Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV8402STT1GIC PWR DRIVER N-CHAN 1:1 SOT223 |
0 |
|
Технический лист |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 2A | 165mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|

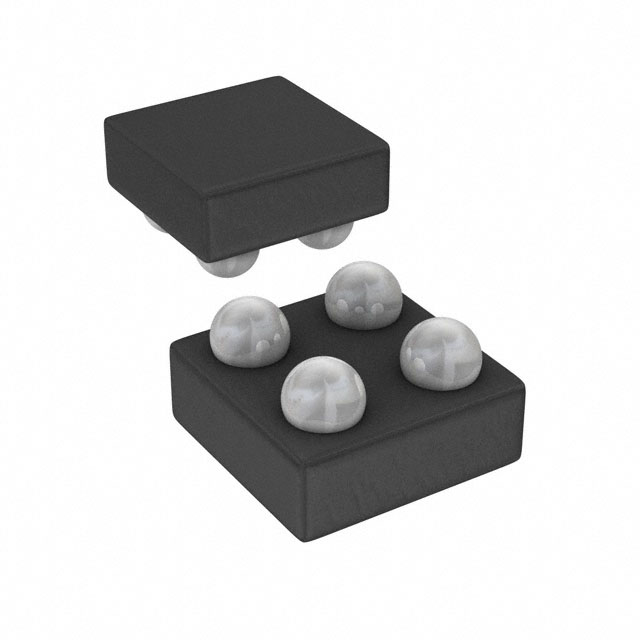

MIC94300YCS-TRIC PWR SWITCH N-CHAN 1:1 4WLCSP |
0 |
|
Технический лист |
4-UFBGA, WLCSP | Ripple Blocker™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.8V ~ 3.6V | Not Required | 200mA | - | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.88x0.88) |
|
NCV8405ADTRKGIC PWR DRIVER N-CHANNEL 1:1 DPAK |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 6A | 90mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
BTS52001EJAXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-8 |
0 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 28V | Not Required | 1.5A | 200mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8-43-EP |
|
MIC2544-1BMMIC PWR SWITCH N-CHAN 1:1 8MSOP |
0 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Bulk | Discontinued | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
MIC2544-2BMMIC PWR SWITCH N-CHAN 1:1 8MSOP |
0 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Bulk | Discontinued | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
MIC2548-1BMMIC PWR SWITCH N-CHAN 1:1 8MSOP |
0 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Bulk | Discontinued | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
MIC2548-2BMMIC PWR SWITCH N-CHAN 1:1 8MSOP |
0 |
|
Технический лист |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Bulk | Discontinued | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
.jpg)
|
BTS308 E3062AIC PWR SWITCH N-CHAN 1:1 TO220AB |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | PROFET® | Tape & Reel (TR) | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.7V ~ 34V | Not Required | 1.18A | 270mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SMD TO-220AB/5 |
|
FPF2303MPXIC PWR SWITCH P-CHAN 1:2 8MLP |
0 |
|
Технический лист |
8-WDFN Exposed Pad | IntelliMAX™ | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 1.1A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MLP (3x3) |
|
TPS2211AIDBG4IC PWR SWITCH 3:2 16SSOP |
0 |
|
Технический лист |
16-SSOP (0.209", 5.30mm Width) | - | Tube | Discontinued | PCMCIA Switch | 2 | 3:2 | High Side | - | Parallel | 3.3V, 5V, 12V | Not Required | 1A | 70mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
VN750IC PWR DRVR N-CH 1:1 5PENTAWATT |
0 |
|
Технический лист |
Pentawatt-5 (Vertical, Bent and Staggered Leads) | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | 5-PENTAWATT |
|

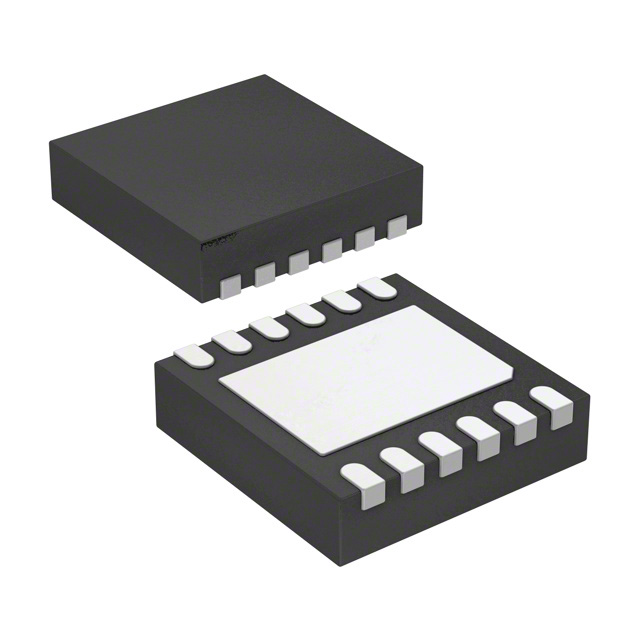

AOZ1363DIIC PWR SWITCH N-CHAN 1:1 12DFN |
0 |
|
Технический лист |
12-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 12V (Max) | Not Required | 6A | 23mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 12-DFN (3x3) |
|
AOZ1351DI-01ECPOWERTM 5V 38M PROTECTION SWIT |
0 |
|
Технический лист |
12-VFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 5.5V | Not Required | 3.5A | 38mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|
VNP28N04IC PWR DRIVER N-CHAN 1:1 TO220AB |
0 |
|
Технический лист |
TO-220-3 | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 20A | 35mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220 |
|
|
VNP20N07IC PWR DRIVER N-CHAN 1:1 TO220AB |
0 |
|
Технический лист |
TO-220-3 | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 14A | 50mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220 |
|
TPS2021DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
0 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 600mA | 33mOhm | Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2022DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
0 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 33mOhm | Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2031DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
0 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 600mA | 33mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TPS2034DG4IC PWR SWITCH N-CHAN 1:1 8SOIC |
0 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 33mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
