Драйверы затворов
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Программируемый | Управляемая конфигурация | Тип канала | Количество драйверов | Тип затвора | Напряжение - Питание | Логическое напряжение - VIL, VIH | Ток - пиковый выход (источник, сток) | Тип входа | Напряжение высокой стороны - макс. (бутстреп) | Время нарастания/спада (тип.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

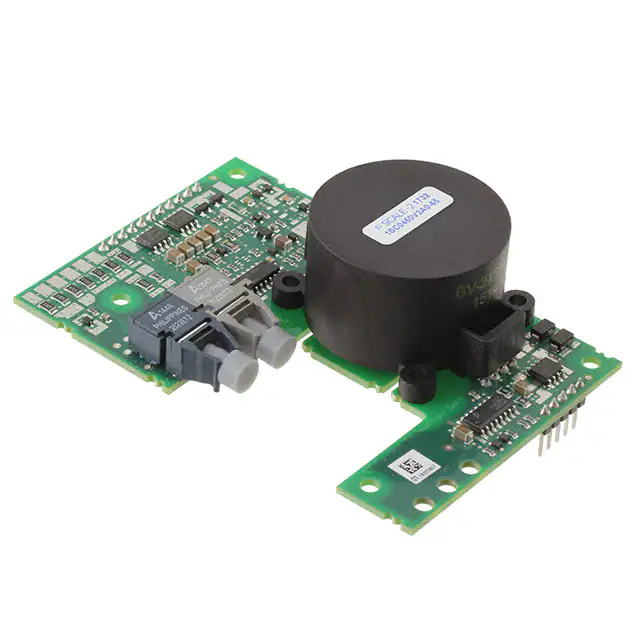

1SC0450V2A0-65IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Технический лист |
SCALE™-2 | Module | Tray | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 50A, 50A | - | 6500 V | 30ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
1SP0635V2M1-5SNA1200E330100IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Box | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | - | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
1SP0635V2M1-5SNA1500E330300IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Box | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | - | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
1SP0635V2M1-CM1200HC-66HIC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
- |
SCALE™-2 | Module | Box | Active | Not Verified | High-Side or Low-Side | - | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | - | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
VLA553-01RIC GATE DRVR HALF-BRIDGE OCTAPAK |
0 |
|
Технический лист |
- | Module | Bulk | Discontinued | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | OctaPAK 7+1 |
|
|
VLA553-02RIC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Технический лист |
- | Module | Bulk | Discontinued | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | Module |
|

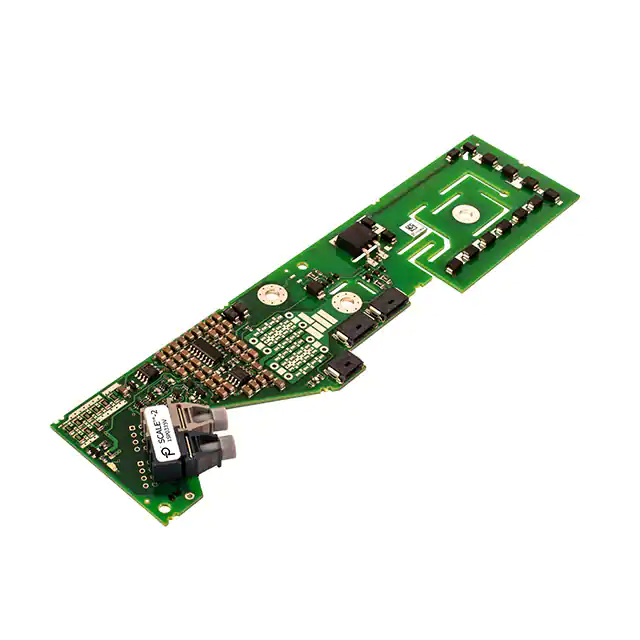

1SP0335V2M1-33IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Технический лист |
SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 3300 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

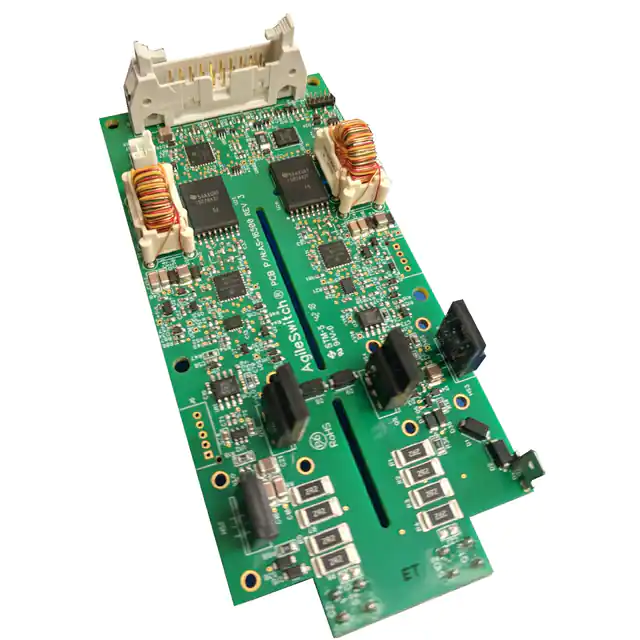

62EM1-00001IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Технический лист |
- | Module | Bulk | Obsolete | Verified | Half-Bridge | Single | 2 | N-Channel MOSFET | 14V ~ 16V | 4V, 1.25V, 10V, 3.5V | 20A, 20A | Non-Inverting | - | 80ns, 90ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|

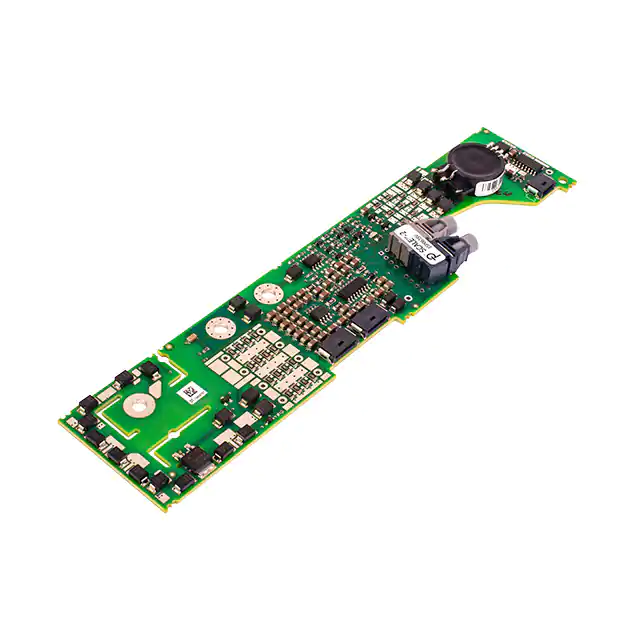

1SP0635V2M1-25IC GATE DRVR HI/LOW SIDE MODULE |
0 |
|
Технический лист |
SCALE™-2 | Module | Box | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 2500 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

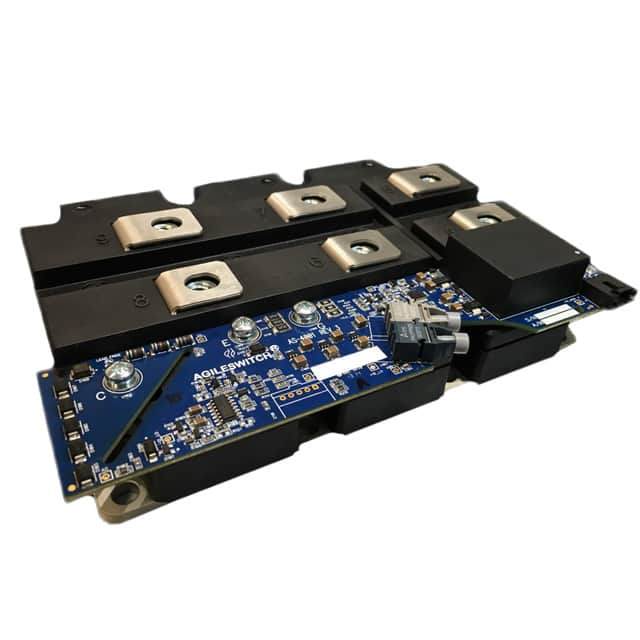

HPFM-00117IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Технический лист |
- | Module | Bulk | Active | Not Verified | Half-Bridge | Independent | 1 | IGBT | 14.5V ~ 16V | - | 30A, 30A | Non-Inverting | - | 600ns, 350ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
LT1162CNIC GATE DRVR HALF-BRIDGE 24DIP |
0 |
|
Технический лист |
- | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | 0°C ~ 125°C (TJ) | - | - | Through Hole | 24-PDIP |
|
|
LT1162INIC GATE DRVR HALF-BRIDGE 24DIP |
0 |
|
Технический лист |
- | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | -40°C ~ 125°C (TJ) | - | - | Through Hole | 24-PDIP |
|
ICL7667CPAIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Технический лист |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 15V | 0.8V, 2V | - | Inverting | - | 20ns, 20ns | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
IR2104SIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LTC1154CN8IC GATE DRVR HIGH-SIDE 8DIP |
0 |
|
Технический лист |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
LMD18400N/NOPBIC GATE DRVR HIGH-SIDE 20DIP |
0 |
|
Технический лист |
- | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 7V ~ 28V | 0.8V, 2V | 3A, 3A | Non-Inverting | - | - | -25°C ~ 150°C (TJ) | - | - | Through Hole | 20-PDIP |
|
98-0247IC GATE DRVR HALF-BRIDGE 16SOIC |
0 |
|
Технический лист |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IXBD4410PIIC GATE DRVR LOW-SIDE 16DIP |
0 |
|
- |
ISOSMART™ | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 1V, 3.65V | 2A, 2A | Non-Inverting | 1200 V | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 16-DIP |
|
IR2101IC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Технический лист |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR2104IC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Технический лист |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
