Полные полумостовые (H-мостовые) драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Конфигурация выхода | Применение | Интерфейс | Тип нагрузки | Технология | Rds On (тип.) | Ток - выход/канал | Ток - пиковый выход | Напряжение - Питание | Напряжение - нагрузка | Рабочая температура | Марка | Квалификация | Особенности | Защита от сбоев | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T6818-TUSY-66IC HALF BRIDGE DRVR 1.5A 14SOIC |
0 |
|
Технический лист |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | BCDMOS | 500mOhm | 1.5A | - | 4.75V ~ 5.25V | 5.6V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | 14-SOIC |
|
HIP4080AIBTIC FULL BRIDGE DRIVER 20SOIC |
0 |
|
Технический лист |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 2.6A | 9.5V ~ 15V | 8V ~ 15V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit | - | Surface Mount | 20-SOIC |
|
HIP4081AIBTIC HALF/FULL BRIDGE DRVR 20SOIC |
0 |
|
Технический лист |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge, Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 2.6A | 9.5V ~ 15V | 8V ~ 15V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit | - | Surface Mount | 20-SOIC |
|
HIP4083ABIC GATE DRVR HIGH-SIDE 16SOIC |
0 |
|
Технический лист |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | High Side | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 240mA | 7V ~ 15V | 7V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 16-SOIC |
|
HIP4083ABTIC GATE DRVR HIGH-SIDE 16SOIC |
0 |
|
Технический лист |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | High Side | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 240mA | 7V ~ 15V | 7V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 16-SOIC |
|
HIP4086ABTIC HALF BRIDGE DRIVER 24SOIC |
0 |
|
Технический лист |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 500mA | 7V ~ 15V | 7V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 24-SOIC |
|
UBA2032TS/N3,118IC GATE DRVR HALF-BRIDGE 28SSOP |
0 |
|
Технический лист |
- | 28-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | 10.5V ~ 13.5V | - | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 28-SSOP |
|
|
UBA2033TS/N2,118IC GATE DRVR HALF-BRIDGE 28SSOP |
0 |
|
Технический лист |
- | 28-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | 10.5V ~ 13.5V | - | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 28-SSOP |
.jpg)
|
BTS7810KNTMA1IC HALF BRIDGE DRIVER TO263-15 |
0 |
|
Технический лист |
TrilithIC™ | TO-263-18 (15 Leads + 3 Tabs) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 14mOhm LS, 26mOhm HS | - | 42A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-15-1 |
|
|
BTS7811KDTMA1IC HALF BRIDGE DRIVER TO263-15 |
0 |
|
Технический лист |
TrilithIC™ | TO-263-18 (15 Leads + 3 Tabs) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 14mOhm LS, 26mOhm HS | - | 42A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-15-1 |
|

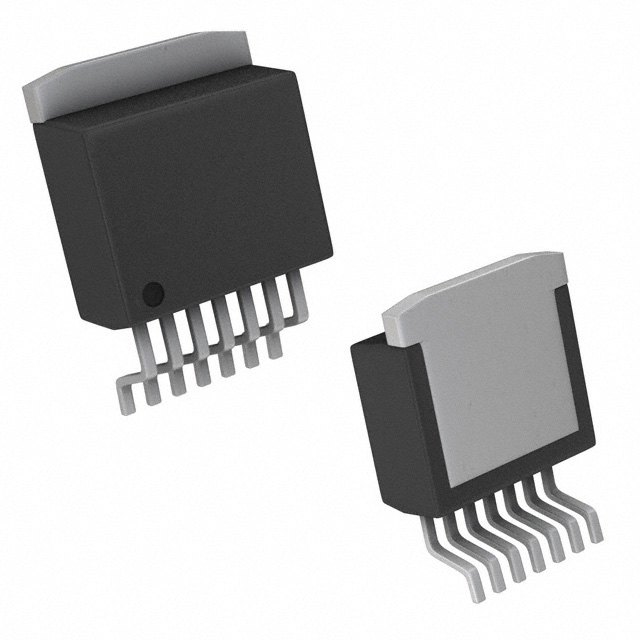

BTS7930BIC HALF BRIDGE DRVR 20A TO263-7 |
0 |
|
Технический лист |
NovalithIC™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 18mOhm LS, 10mOhm HS | 20A | 50A | 5.5V ~ 28V | 5.5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-7-1 |
|

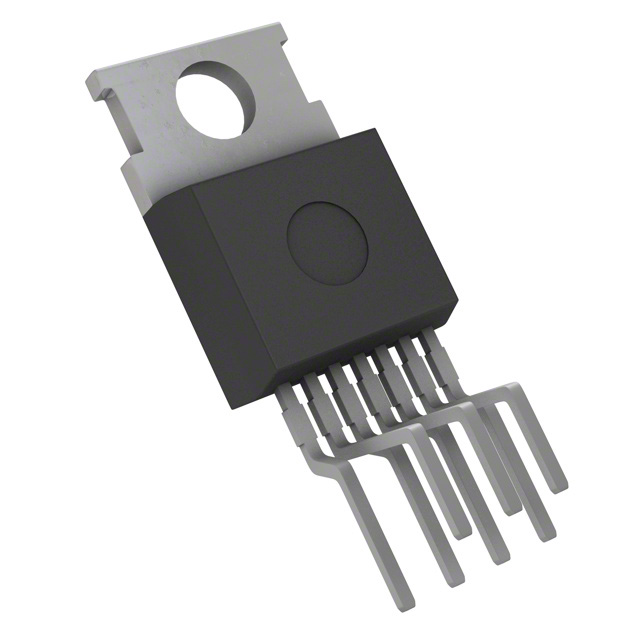

BTS7960PIC HALF BRIDGE DRVR 40A TO220-7 |
0 |
|
Технический лист |
NovalithIC™ | TO-220-7 Formed Leads | Tube | Obsolete | Half Bridge | DC Motors, General Purpose | Logic | Inductive | DMOS | 9mOhm LS, 7mOhm HS | 40A | 60A | 5.5V ~ 27.5V | 5.5V ~ 27.5V | -40°C ~ 150°C (TJ) | - | - | Latch Function, Slew Rate Controlled, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Through Hole | P-TO220-7 |
|

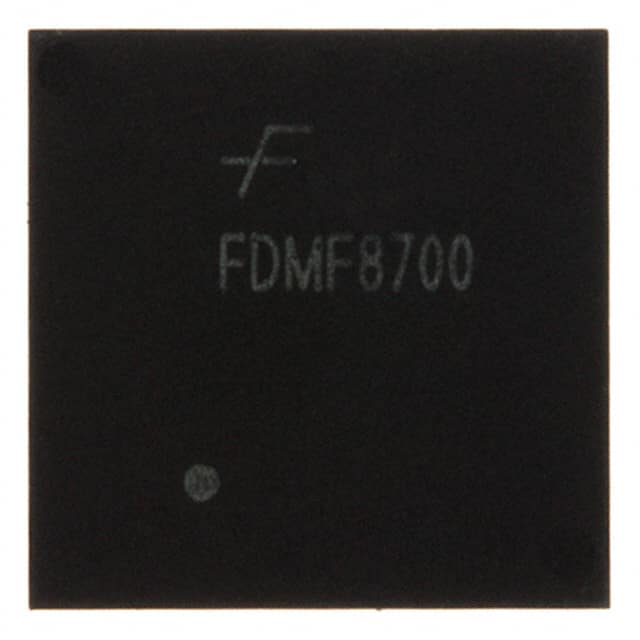

FDMF8700IC HALF BRIDGE DRVR 30A PWR88-56 |
0 |
|
Технический лист |
- | 56-PowerWFQFN Module | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 30A | 65A | 6.4V ~ 13.5V | 6.4V ~ 14V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 56-Power88™ |
|
|
FDMF8705IC HALF BRIDGE DRVR 18A PWR88-56 |
0 |
|
Технический лист |
- | 56-PowerWFQFN Module | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 18A | 65A | 6.4V ~ 13.5V | 6.4V ~ 14V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 56-Power88™ |
|
FDMF6700IC HALF BRIDGE DRVR 25A POWER66 |
0 |
|
Технический лист |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 25A | 65A | 6.4V ~ 13.5V | 6.4V ~ 14V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | Power66 |
|
ISL55111IVZIC HALF BRIDGE DRVR 100MA 8TSSOP |
0 |
|
Технический лист |
- | 8-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | Digital Imaging | Logic | Capacitive and Resistive | Power MOSFET | 3Ohm | 100mA | 3.5A | 2.7V ~ 5.5V | 5V ~ 13.2V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-TSSOP |
|
|
ISL55111IVZ-TIC HALF BRIDGE DRVR 100MA 8TSSOP |
0 |
|
Технический лист |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | Digital Imaging | Logic | Capacitive and Resistive | Power MOSFET | 3Ohm | 100mA | 3.5A | 2.7V ~ 5.5V | 5V ~ 13.2V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-TSSOP |
|
VN770P13TRIC HALF BRIDGE DRIVER 9A 28SO |
0 |
|
Технический лист |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 270mOhm (Max) | 9A | - | 6V ~ 26V | 36V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
FDMF8704VIC HALF BRIDGE DRVR 32A PWR88-56 |
0 |
|
Технический лист |
- | 56-PowerWFQFN Module | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 32A | 65A | 4.5V ~ 5.5V | 7V ~ 20V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, 5V Regulated Output | Shoot-Through | Surface Mount | 56-Power88™ |
|
UC3717AQIC HALF BRIDGE DRIVER 1A 20PLCC |
0 |
|
Технический лист |
- | 20-LCC (J-Lead) | Tube | Obsolete | Half Bridge (2) | General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 1A | - | 4.75V ~ 5.25V | 10V ~ 46V | 0°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature | Surface Mount | 20-PLCC (9x9) |
