Преобразователи переменного тока в постоянный, автономные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Выходная изоляция | Внутренний переключатель(и) | Напряжение - Пробой | Топология | Напряжение - Запуск | Напряжение - Питание (Vcc/Vdd) | Рабочий цикл | Частота - Переключение | Мощность (Вт) | Защита от сбоев | Функции управления | Рабочая температура | Марка | Квалификация | Устройство поставщика Упаковка | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNK304DGIC OFFLINE SWITCH MULT TOP 8SO |
0 |
|
Технический лист |
LinkSwitch®-TN | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK306DGIC OFFLINE SWITCH MULT TOP 8SO |
0 |
|
Технический лист |
LinkSwitch®-TN | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
LNK562PGIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
LinkSwitch®-LP | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 70% | 66kHz | 1.9 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-B | Through Hole |
|
|
LNK563PGIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
LinkSwitch®-LP | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 70% | 83kHz | 2.5 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-B | Through Hole |
|
|
LNK563DGIC OFFLINE SWITCH FLYBACK 8SO |
0 |
|
Технический лист |
LinkSwitch®-LP | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued | Isolated | Yes | 700V | Flyback | - | - | 70% | 83kHz | 2.5 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK563DG-TLIC OFFLINE SWITCH FLYBACK 8SO |
0 |
|
Технический лист |
LinkSwitch®-LP | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tape & Reel (TR) | Active | Isolated | Yes | 700V | Flyback | - | - | 70% | 83kHz | 2.5 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK564PGIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
LinkSwitch®-LP | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 70% | 100kHz | 3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP-B | Through Hole |
|

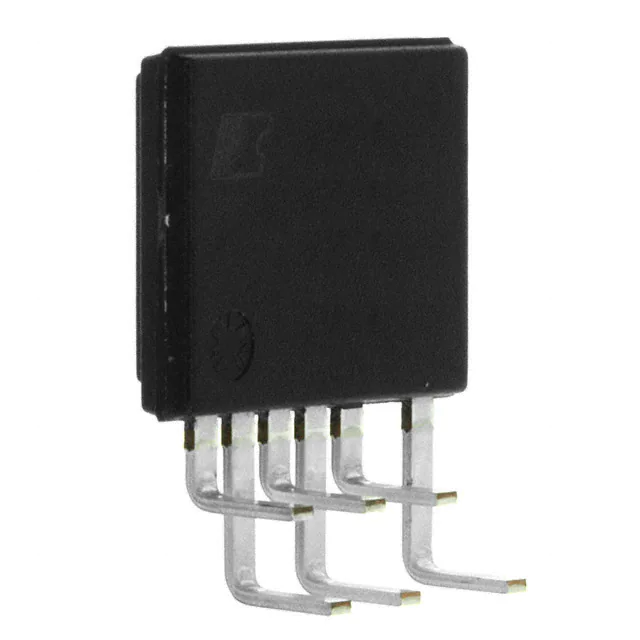

TOP255LNIC OFFLINE SWITCH FLYBACK 7FESIP |
0 |
|
Технический лист |
TOPSwitch®-HX | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 81 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7F | Through Hole |
|
|
TOP256LNIC OFFLINE SWITCH FLYBACK 7FESIP |
0 |
|
Технический лист |
TOPSwitch®-HX | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 88 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7F | Through Hole |
|
|
TOP257LNIC OFFLINE SWITCH FLYBACK 7FESIP |
0 |
|
Технический лист |
TOPSwitch®-HX | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 105 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7F | Through Hole |
|
|
TOP258LNIC OFFLINE SWITCH FLYBACK 7FESIP |
0 |
|
Технический лист |
TOPSwitch®-HX | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 122 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7F | Through Hole |
|
|
TOP259LNIC OFFLINE SWITCH FLYBACK 7FESIP |
0 |
|
Технический лист |
TOPSwitch®-HX | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 162 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7F | Through Hole |
|
|
TOP260LNIC OFFLINE SWITCH FLYBACK 7FESIP |
0 |
|
Технический лист |
TOPSwitch®-HX | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 190 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7F | Through Hole |
|
|
TOP261LNIC OFFLINE SWITCH FLYBACK 7FESIP |
0 |
|
Технический лист |
TOPSwitch®-HX | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 244 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7F | Through Hole |
|
FAN7601BGXIC OFFLINE SWITCH FLYBACK 10SSOP |
0 |
|
Технический лист |
- | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | - | Yes | - | Flyback | 12 V | 8V ~ 20V | 95% | Up to 300kHz | - | Over Temperature, Over Voltage | Frequency Control, Soft Start | -40°C ~ 150°C (TJ) | - | - | 10-SSOP | Surface Mount |
|
FAN7601BNIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | - | Yes | - | Flyback | 12 V | 8V ~ 20V | 95% | 300kHz | - | Over Temperature, Over Voltage | Frequency Control, Soft Start | -40°C ~ 150°C (TJ) | - | - | 8-DIP | Through Hole |
__2.jpg)
|
VN1160TR-EIC OFFLINE SWITCH DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | - | - | - | - | - | 9V ~ 16V | - | - | - | - | - | - | - | - | DPAK | Surface Mount |
|
|
VN1160CTR-EIC OFFLINE SWITCH DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | - | - | - | - | - | 9V ~ 16V | - | - | - | - | - | - | - | - | DPAK | Surface Mount |
|
|
VN1160-EIC OFFLINE SWITCH DPAK |
0 |
|
Технический лист |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | - | - | - | - | - | 9V ~ 16V | - | - | - | - | - | - | - | - | DPAK | Surface Mount |
|
VN1160-1-EIC OFFLINE SWITCH IPAK |
0 |
|
Технический лист |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | - | - | - | - | - | 9V ~ 16V | - | - | - | - | - | - | - | - | IPAK | Through Hole |
