Преобразователи переменного тока в постоянный, автономные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Выходная изоляция | Внутренний переключатель(и) | Напряжение - Пробой | Топология | Напряжение - Запуск | Напряжение - Питание (Vcc/Vdd) | Рабочий цикл | Частота - Переключение | Мощность (Вт) | Защита от сбоев | Функции управления | Рабочая температура | Марка | Квалификация | Устройство поставщика Упаковка | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSD200BMIC OFFLINE SWITCH FLYBACK 7LSOP |
0 |
|
Технический лист |
FPS™ | 8-SMD (7 Leads), Gull Wing | Tube | Obsolete | Isolated | Yes | 670V | Flyback | 7 V | 6V ~ 10V | 66% | 134kHz | 7 W | Current Limiting, Over Load, Over Temperature | - | -25°C ~ 85°C (TA) | - | - | 7-LSOP | Surface Mount |
|
FSD200BIC OFFLINE SWITCH FLYBACK 7DIP |
0 |
|
Технический лист |
FPS™ | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | 7 V | 6V ~ 10V | 66% | 134kHz | 7 W | Current Limiting, Over Load, Over Temperature | - | -25°C ~ 85°C (TA) | - | - | 7-PDIP | Through Hole |
|

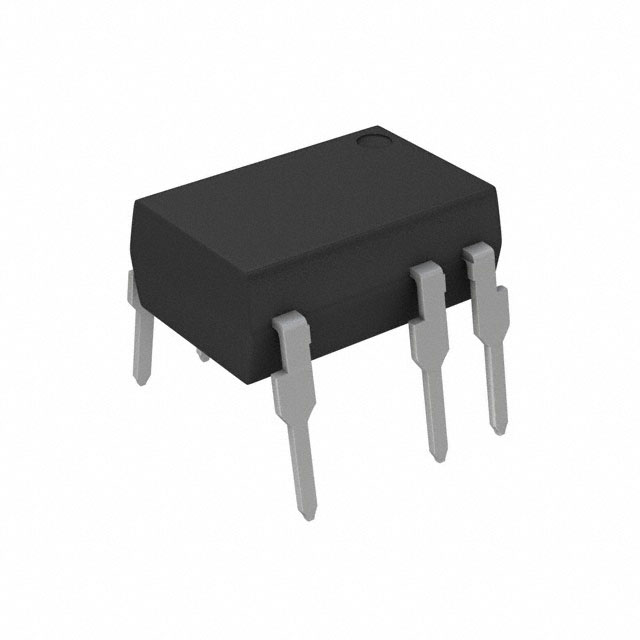

FSD210IC OFFLINE SWITCH FLYBACK 7DIP |
0 |
|
Технический лист |
FPS™ | 8-DIP (0.300", 7.62mm), 7 Leads | Bag | Obsolete | Isolated | Yes | 700V | Flyback | 8.7 V | 6.7V ~ 20V | 65% | 134kHz | 7 W | Current Limiting, Over Load, Over Temperature | - | -25°C ~ 85°C (TA) | - | - | 7-DIP | Through Hole |
|
FSDH0265RNIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
FPS™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 77% | 100kHz | 27 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-DIP | Through Hole |
|
FSDH321LIC OFFLINE SWITCH FLYBACK 8LSOP |
0 |
|
Технический лист |
FPS™ | 8-SMD, Gull Wing | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 67% | 100kHz | 17 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-LSOP | Surface Mount |
|
|
FSDL0165RNIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
FPS™ | 8-DIP (0.300", 7.62mm) | Tube | Active | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 77% | 50kHz | 23 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-DIP | Through Hole |
|
|
FSDL321IC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
FPS™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 77% | 50kHz | 17 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-DIP | Through Hole |
|
FSDM0265RLIC OFFLINE SWITCH FLYBACK 8LSOP |
0 |
|
Технический лист |
FPS™ | 8-SMD, Gull Wing | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 67% | 67kHz | 27 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-LSOP | Surface Mount |
|
|
FSDM0265RNBIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
FPS™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 67% | 67kHz | 27 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-DIP | Through Hole |
|
|
FSDM0365RNIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
FPS™ | 8-DIP (0.300", 7.62mm) | Bag | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 77% | 67kHz | 30 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-DIP | Through Hole |
|
FSDM0565RBWDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Технический лист |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 82% | 66kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | TO-220F-6L (Forming) | Through Hole |
|
|
FSDM0565RWDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Технический лист |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 82% | 66kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | TO-220F-6L (Forming) | Through Hole |
|
FSDM07652RWDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Технический лист |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 80% | 66kHz | 80 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | TO-220F-6L (Forming) | Through Hole |
|
|
FSDM311LIC OFFLINE SWITCH FLYBACK 8LSOP |
0 |
|
Технический лист |
FPS™ | 8-SMD, Gull Wing | Bag | Obsolete | Isolated | Yes | 650V | Flyback | 9 V | 7V ~ 20V | 67% | 67kHz | 13 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-LSOP | Surface Mount |
|
FAN7601MIC OFFLINE SWITCH FLYBACK 8SOIC |
0 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | - | Yes | - | Flyback | 12 V | 8V ~ 20V | 95% | Up to 300kHz | - | Over Temperature, Over Voltage | Frequency Control, Soft Start | -25°C ~ 125°C (TA) | - | - | 8-SOIC | Surface Mount |
|
|
FSDH321IC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Технический лист |
FPS™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 67% | 100kHz | 17 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-DIP | Through Hole |
|
LNK302GNIC OFFLINE SWITCH MULT TOP 8SMD |
0 |
|
Технический лист |
LinkSwitch®-TN | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
|
LNK304GNIC OFFLINE SWITCH MULT TOP 8SMD |
0 |
|
Технический лист |
LinkSwitch®-TN | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
|
LNK305GNIC OFFLINE SWITCH MULT TOP 8SMD |
0 |
|
Технический лист |
LinkSwitch®-TN | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
|
|
LNK306GNIC OFFLINE SWITCH MULT TOP 8SMD |
0 |
|
Технический лист |
LinkSwitch®-TN | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued | Non-Isolated | Yes | 700V | Buck, Buck-Boost, Flyback | - | - | 69% | 66kHz | - | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8B | Surface Mount |
