Модули фильтров линии электропередач
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип фильтра | Конфигурация | Напряжение - Номинальное постоянное | Напряжение - Номинальное переменное | Напряжение - Номинальное переменное (фаза-земля/нейтраль) | Напряжение - Номинальное переменное (фаза-фаза) | Ток | Частота - Рабочая | Применение | Сертифицирующее агентство | Рабочая температура | Тип крепления | Тип вывода | Индуктивность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN3288HV-160-40-C36-R65LINE FILTER 160A CHASSIS MOUNT |
2 |
|
Технический лист |
FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | - | 440 V | 760 V | 160 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3268-130-35LINE FILTER 130A CHASSIS MOUNT |
4 |
|
Технический лист |
FN 3268 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 130 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3258-180-40LINE FILTER 180A CHASSIS MOUNT |
6 |
|
Технический лист |
FN 3258 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 180 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3258H-180-40LINE FILTER 180A CHASSIS MOUNT |
3 |
|
Технический лист |
FN 3258 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 180 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
250KEPS6AFPWLINE FLTR 440VAC 250A CHASS MNT |
4 |
|
Технический лист |
KEP | Box | Active | Three Phase (Wye) | Single Stage | - | 440V | - | - | 250 A | 50/60Hz | Converter | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M10) | - |
|
FN3310-600-99-R5LINE FLTR 520VAC 600A CHASS MNT |
2 |
|
Технический лист |
FN 3310 | Box | Active | Three Phase (Delta) | Single Stage | - | 520V | - | 520 V | 600 A | DC ~ 60Hz | General Purpose | CE, cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN351H-110-35LINE FILTER 110A CHASSIS MOUNT |
2 |
|
Технический лист |
FN 351 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 110 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2200-600-99LINE FLTR 1200VDC 600A CHASS MNT |
18 |
|
Технический лист |
FN 2200 | Box | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 600 A | - | Photovoltaic Inverter | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
250KEPS6BFPWLINE FLTR 520VAC 250A CHASS MNT |
2 |
|
Технический лист |
KEP | Box | Active | Three Phase (Wye) | Single Stage | - | 520V | - | - | 250 A | 50/60Hz | Converter | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M10) | - |
|
FN3359-180-28LINE FILTER 180A CHASSIS MOUNT |
20 |
|
Технический лист |
FN 3359 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 300 V | 520 V | 180 A | DC ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Threaded Post (M10) | - |
|
FN3359HV-150-28LINE FILTER 150A CHASSIS MOUNT |
3 |
|
Технический лист |
FN 3359 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 400 V | 690 V | 150 A | DC ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Threaded Post (M10) | - |
|
FN2210-1000-99-R5LINE FLTR 1000VDC 1KA CHASS MNT |
4 |
|
Технический лист |
FN 2210 | Box | Active | DC | Single Stage | 1000V (1kV) | - | - | - | 1 kA | DC | Inverters, Power Drive Systems | CE, cURus | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN3280H-160-40LINE FLTR 480VAC 160A CHASS MNT |
8 |
|
Технический лист |
FN 3280 | Tray | Active | Three Phase (Wye) | Two Stage | - | 480V | 300 V | 520 V | 160 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2211-1000-99-C30-R55LINE FLTR 1000VDC 1KA CHASS MNT |
6 |
|
Технический лист |
FN 2211 | Box | Active | DC | Single Stage | 1000V (1kV) | - | - | - | 1 kA | DC | Inverters, Power Drive Systems | CE, cURus | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN3280H-200-40LINE FLTR 480VAC 200A CHASS MNT |
6 |
|
Технический лист |
FN 3280 | Tray | Active | Three Phase (Wye) | Two Stage | - | 480V | 300 V | 520 V | 200 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3100-230-40LINE FILTER 230A CHASSIS MOUNT |
3 |
|
Технический лист |
FN 3100 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 230 A | DC ~ 60Hz | Regenerative Motor Drive | CSA, SEMKO, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2200-800-99LINE FLTR 1200VDC 800A CHASS MNT |
2 |
|
Технический лист |
FN 2200 | Box | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 800 A | - | Photovoltaic Inverter | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN3359HV-250-28LINE FILTER 250A CHASSIS MOUNT |
2 |
|
Технический лист |
FN 3359 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 400 V | 690 V | 250 A | DC ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Threaded Post (M10) | - |
|

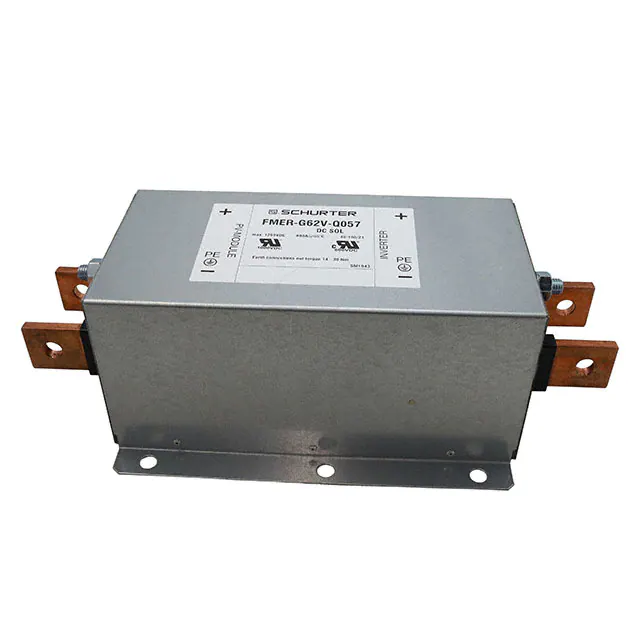

FMER-G62V-Q057LINE FLTR 1200VDC 800A CHASS MNT |
2 |
|
Технический лист |
FMER SOL | Bulk | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 800 A | - | Photovoltaic Inverter | cURus | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FMBD-B92F-K012LINE FILTER 300/520VAC 200A CHAS |
3 |
|
Технический лист |
FMBD NEO | Bulk | Active | Three Phase (Wye) | Two Stage | - | 300V, 520V | - | - | 200 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 300µH, L2 - 9µH |
