Модули фильтров линии электропередач
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип фильтра | Конфигурация | Напряжение - Номинальное постоянное | Напряжение - Номинальное переменное | Напряжение - Номинальное переменное (фаза-земля/нейтраль) | Напряжение - Номинальное переменное (фаза-фаза) | Ток | Частота - Рабочая | Применение | Сертифицирующее агентство | Рабочая температура | Тип крепления | Тип вывода | Индуктивность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN2030BZ-8-06LINE FILTER 250VAC/VDC 8A CHASS |
0 |
|
Технический лист |
FN 2030 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 8 A | 50 ~ 60Hz | Medical | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 8mH |
|
|
FN2030B-8-07LINE FILTER 250VAC/VDC 8A CHASS |
0 |
|
Технический лист |
FN 2030 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 8 A | 50 ~ 60Hz | Medical | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 8mH |
|

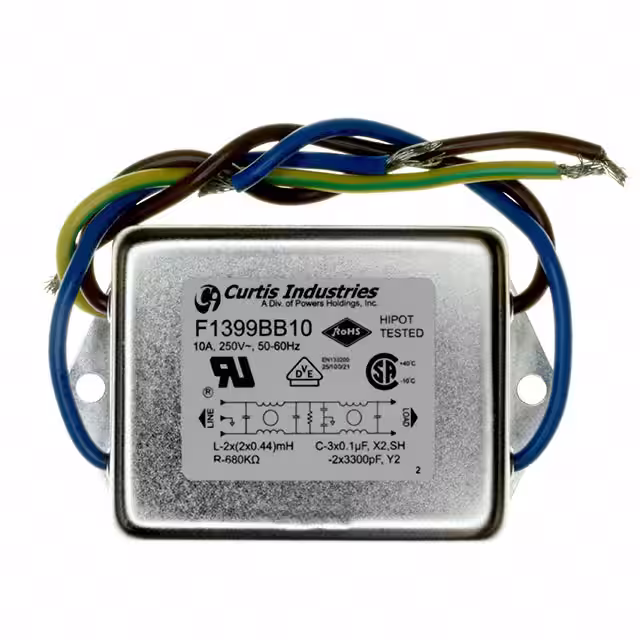

F1399BB10LINE FILTER 250VAC 10A CHASS MNT |
0 |
|
Технический лист |
F1399 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CE, CSA, TUV, UR | - | Chassis Mount | Wire Leads | - |
|
|
FN2090Z-1-06LINE FILTER 250VAC/VDC 1A CHASS |
0 |
|
Технический лист |
FN 2090 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 1 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 20mH |
|
|
FN2090-1-07LINE FILTER 250VAC/VDC 1A CHASS |
0 |
|
Технический лист |
FN 2090 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 1 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 20mH |
|

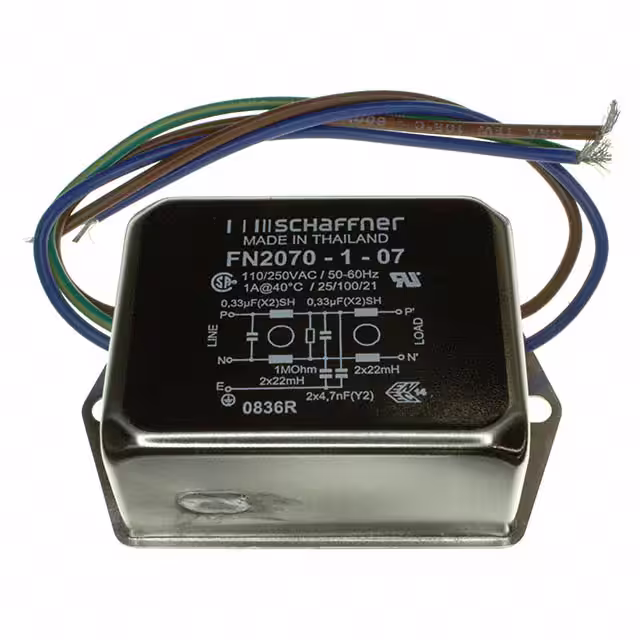

FN2070-1-07LINE FILTER 110V/250VAC 1A CHASS |
0 |
|
Технический лист |
FN 2070 | Tray | Active | Single Phase | Two Stage | - | 110V, 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 22mH |
|
FMAB-N7PK-2046LINE FLTR 277/400VDC 277VAC CHAS |
0 |
|
Технический лист |
FMAB | Box | Active | Single Phase | Single Stage | 277V, 400V | 277V | - | - | 20 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
|
AMI-29A-16-3LINE FILTER 250VAC 16A CHASS MNT |
0 |
|
- |
AMI-29 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Wire Leads | 8mH |
|
|
AMI-29B-16-3LINE FILTER 250VAC 16A CHASS MNT |
0 |
|
- |
AMI-29 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Wire Leads | 8mH |
|
|
AMI-29-20-3LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
- |
AMI-29 | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Threaded Post (M4) | 5.4mH |
|
RSEN-2006LDLINE FILTER 250VAC/VDC 6A DIN |
0 |
|
Технический лист |
RSEN | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 6 A | - | General Purpose | CSA, EN, UL | -25°C ~ 85°C | DIN Rail | Terminal Block | - |
|
|
FLLE2010ASDDLINE FILTER 300VAC/VDC 10A CHASS |
0 |
|
Технический лист |
FLLE2-S | Bulk | Last Time Buy | Single Phase | Two Stage | 300V | 300V | - | - | 10 A | 50/60Hz | General Purpose | ENEC, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 5mH |
|

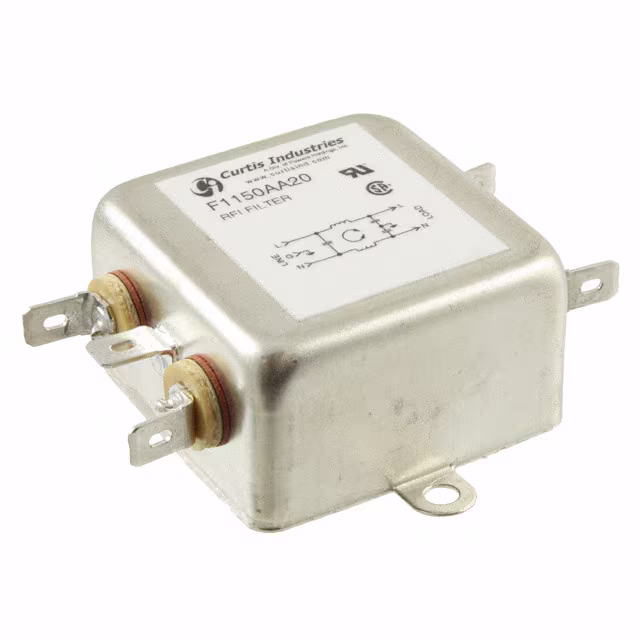

F1150AA20LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
F1150 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CE, UR | - | Chassis Mount | Quick Connect | - |
|

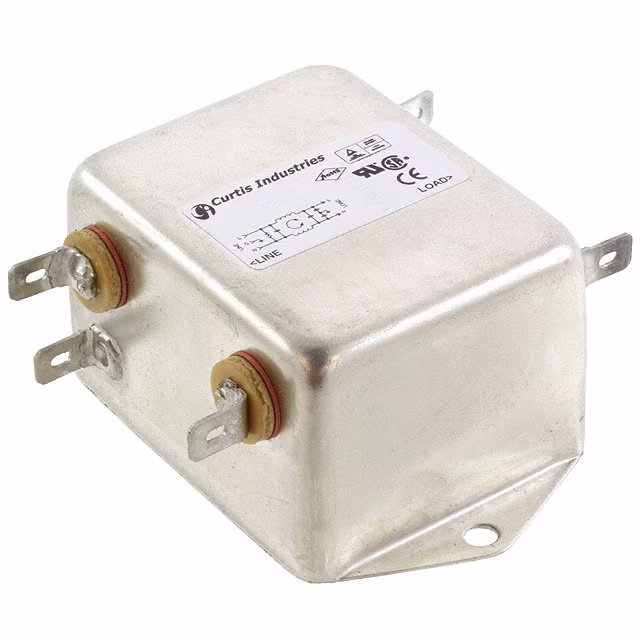

F1250AA20LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
F1250 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | - | - | Chassis Mount | Quick Connect | - |
|
|
F1200BB10LINE FILTER 250VAC 10A CHASS MNT |
0 |
|
Технический лист |
F1200 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | CE, CSA, TUV, UR | - | Chassis Mount | Wire Leads | - |
|
|
AMI-M12AC-7-20-BLINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-M12AC | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Quick Connect | 1.76mH |
|
|
3-143-612LINE FILTER 250VAC 12A CHASS MNT |
0 |
|
Технический лист |
FMAB NEO | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 12 A | 50/60Hz | Medical | CE, cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
RSAN-2003LDLINE FILTER 250VAC/VDC 3A DIN |
0 |
|
Технический лист |
RSAN | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 3 A | - | General Purpose | CSA, EN, UL | -25°C ~ 85°C | DIN Rail | Terminal Block | - |
|
AHM-L10LINE FILTER 250VAC 10A CHASS MNT |
0 |
|
Технический лист |
AHML | Box | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 10 A | 50/60Hz | Medical | CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
04DRPS4LINE FILTER 250VAC 4A CHASS MNT |
0 |
|
Технический лист |
DRP | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 4 A | 50/60Hz | General Purpose | cURus, ENEC | - | Chassis Mount | Terminal Block | 6.4mH |
