Модули фильтров линии электропередач
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип фильтра | Конфигурация | Напряжение - Номинальное постоянное | Напряжение - Номинальное переменное | Напряжение - Номинальное переменное (фаза-земля/нейтраль) | Напряжение - Номинальное переменное (фаза-фаза) | Ток | Частота - Рабочая | Применение | Сертифицирующее агентство | Рабочая температура | Тип крепления | Тип вывода | Индуктивность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

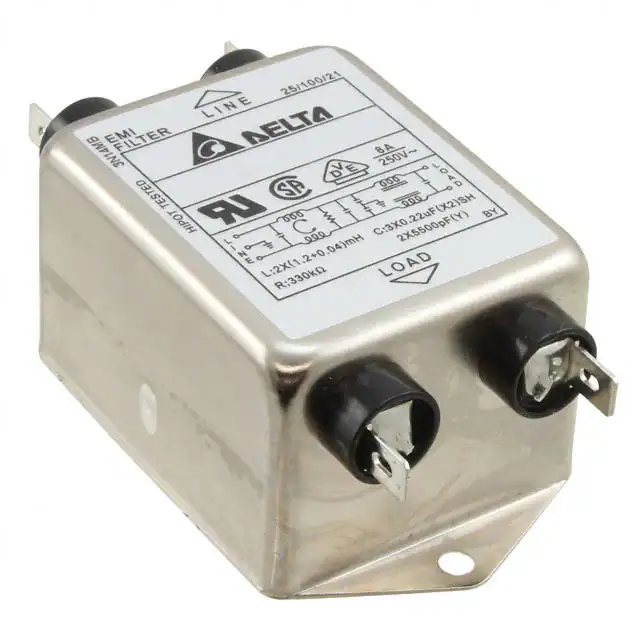

10DVCG5LINE FILTER 115V/250VAC 10A CHAS |
0 |
|
Технический лист |
DV | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | L1 - 1.2mH, L2 - 40mH |
|

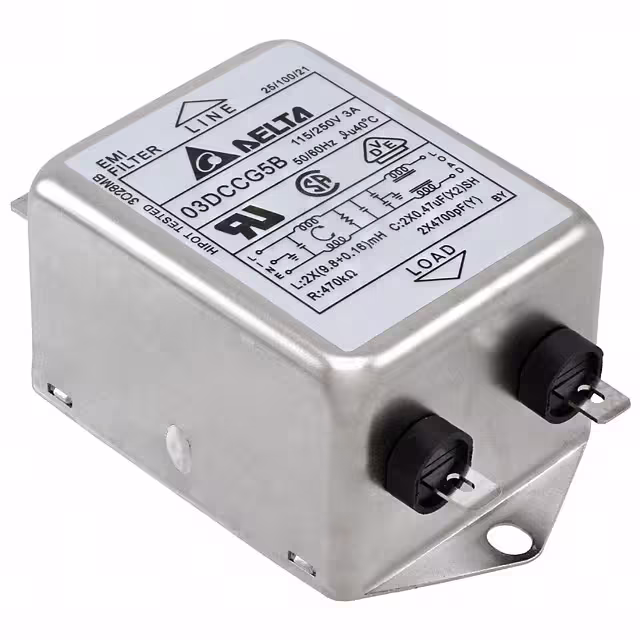

03DCCG5BLINE FILTER 115V/250VAC 3A CHASS |
0 |
|
Технический лист |
DC | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | - |
|
FN2030M-4-06LINE FILTER 250VAC/VDC 4A CHASS |
0 |
|
Технический лист |
FN 2030 | Box | Active | Single Phase | Single Stage | 250V | 250V | - | - | 4 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 14mH |
|
AMI-23B-20-6LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Threaded Post (M4) | 4mH |
|
|
AMI-23A-30-6LINE FILTER 250VAC 30A CHASS MNT |
0 |
|
Технический лист |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 2mH |
|
|
AMI-M12X-1-15-DLINE FILTER 250VAC 15A CHASS MNT |
0 |
|
Технический лист |
AMI-M12X | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 15 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 5.07mH |
|
|
AMI-M12M-8M-3-CLINE FILTER 250VAC 3A CHASS MNT |
0 |
|
Технический лист |
AMI-M12M | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 32.18mH |
|
|
FN2030-3-07LINE FILTER 250VAC/VDC 3A CHASS |
0 |
|
Технический лист |
FN 2030 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 3 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 14mH |
|
|
FN2030Z-3-06LINE FILTER 250VAC/VDC 3A CHASS |
0 |
|
Технический лист |
FN 2030 | Bulk | Active | Single Phase | Two Stage | 250V | 250V | - | - | 3 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 14mH |
|

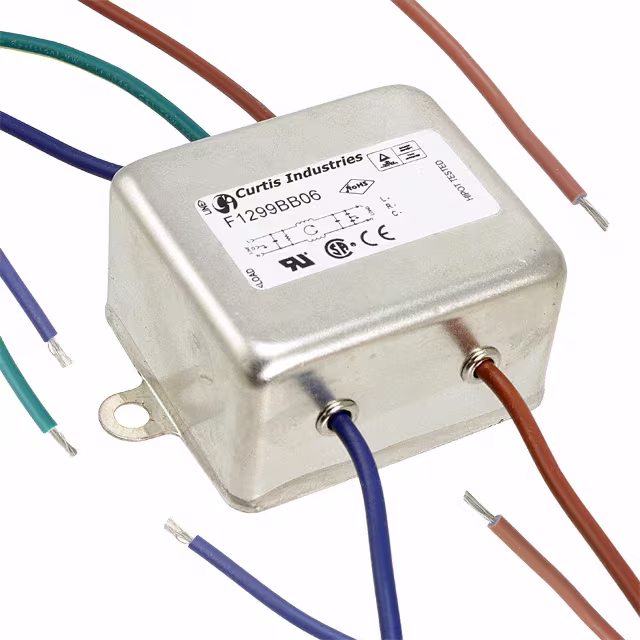

F1299BB06LINE FILTER 250VAC 6A CHASS MNT |
0 |
|
Технический лист |
F1299 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Wire Leads | - |
|
|
AMI-23A-20-3LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Threaded Post (M4) | 4mH |
|
|
AMI-23B-20-3LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Threaded Post (M4) | 4mH |
|
|
AMI-23-20-6LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-23 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect, Threaded Post (M4) | 4mH |
|

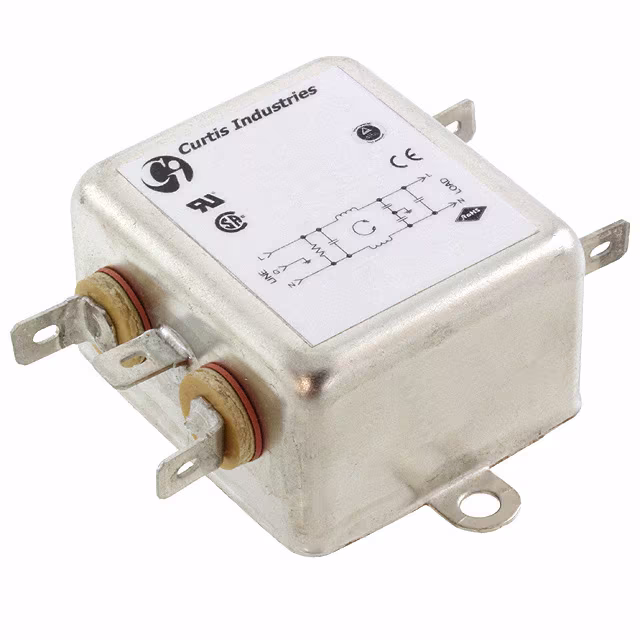

F1200AA03LINE FILTER 250VAC 3A CHASS MNT |
0 |
|
Технический лист |
F1200 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CE, CSA, TUV, UR | - | Chassis Mount | Quick Connect | - |
|
|
F1299BB02LINE FILTER 250VAC 2A CHASS MNT |
0 |
|
Технический лист |
F1299 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Wire Leads | - |
|
|
AMI-M12P-1-15-ALINE FILTER 250VAC 15A CHASS MNT |
0 |
|
Технический лист |
AMI-M12P | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 15 A | 50/60Hz | Medical | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 5.07mH |
|
|
AMI-M12B-3-7-BLINE FILTER 250VAC 7A CHASS MNT |
0 |
|
Технический лист |
AMI-M12B | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 7 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 14.6mH |
|
|
AMI-M12A-1-20-CLINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-M12A | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 840µH |
|
|
AMI-M12R-6-20-BLINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-M12R | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | 880µH |
|
5500.2631.07LINE FILTER 125V/250VAC 3A CHASS |
0 |
|
Технический лист |
FMAB NEO | Box | Active | Single Phase | Single Stage | - | 125V, 250V | - | - | 3 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
