Модули фильтров линии электропередач
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип фильтра | Конфигурация | Напряжение - Номинальное постоянное | Напряжение - Номинальное переменное | Напряжение - Номинальное переменное (фаза-земля/нейтраль) | Напряжение - Номинальное переменное (фаза-фаза) | Ток | Частота - Рабочая | Применение | Сертифицирующее агентство | Рабочая температура | Тип крепления | Тип вывода | Индуктивность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

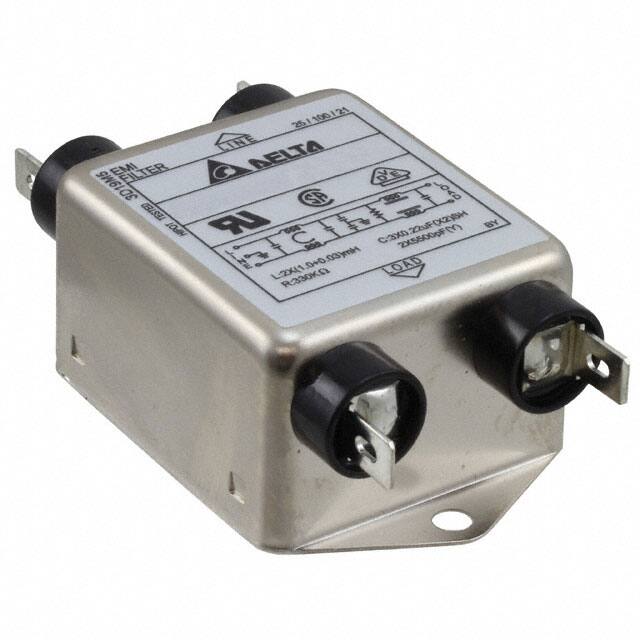

03DVCG5LINE FILTER 115V/250VAC 3A CHASS |
0 |
|
Технический лист |
DV | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | L1 - 1mH, L2 - 30mH |
|
AMI-M12D-1-10-D-1LINE FILTER 250VAC 10A CHASS MNT |
0 |
|
Технический лист |
AMI-M12D | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 7.178mH |
|
|
AMI-M11O-1-6-CLINE FILTER 250VAC 6A CHASS MNT |
0 |
|
Технический лист |
AMI-M11O | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1mH |
|
|
3-130-939LINE FILTER 250VAC 10A PANEL MNT |
0 |
|
Технический лист |
5124 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | Medical | CQC, cURus, ENEC | -25°C ~ 85°C | Panel Mount | IEC 320-C14, Quick Connect | 1.5mH |
|
|
AMI-M12R-1-20-B-2LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-M12R | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 880µH |
|
|
AMI-M11H-1-20-ALINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-M11H | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | Medical | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 10mH |
|

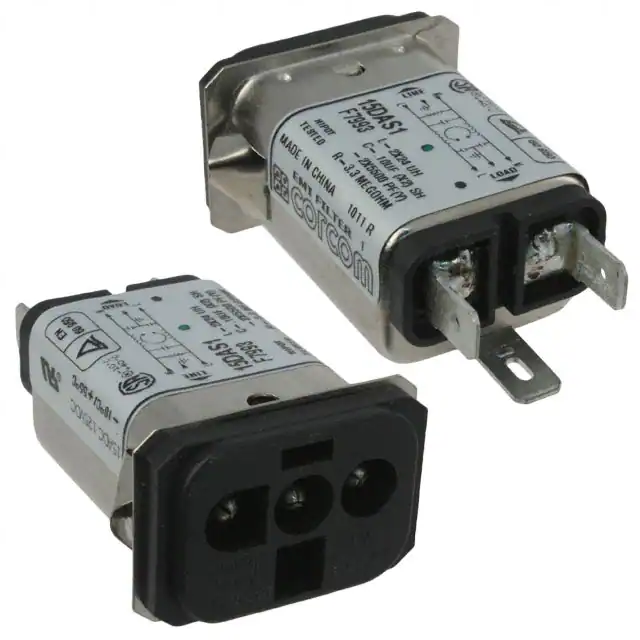

2-6609075-9LINE FILTER 125VDC 15A PANEL MNT |
0 |
|
Технический лист |
DA, Corcom | Bulk | Active | DC | - | 125V | - | 2.25 kV | 1.45 kV | 15 A | - | General Purpose | CSA, TUV, UL | -10°C ~ 40°C | Panel Mount | SMD (SMT) Tab | 24µH |
|
AMI-21B-20-3LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-21 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH |
|
|
AMI-21A-20-6LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-21 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | Quick Connect | 700µH |
|
|
AMI-M11L-6-30-BLINE FILTER 250VAC 30A CHASS MNT |
0 |
|
Технический лист |
AMI-M11L | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | 690µH |
|
FMAB-N7PH-0446LINE FLTR 277/400VDC 277VAC CHAS |
0 |
|
Технический лист |
FMAB | Box | Active | Single Phase | Single Stage | 277V, 400V | 277V | - | - | 4 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
|
AMI-M11N-1-3-BLINE FILTER 250VAC 3A CHASS MNT |
0 |
|
Технический лист |
AMI-M11N | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 7mH |
|
|
FN2010A-10-07LINE FILTER 250VAC/VDC 10A CHASS |
0 |
|
Технический лист |
FN 2010 | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 10 A | DC ~ 400Hz | Safety | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 800µH |
|
FN2020B-1-06LINE FILTER 250VAC 1A CHASS MNT |
0 |
|
Технический лист |
FN 2020 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 12mH |
|
|
AMI-M12B-3-3-BLINE FILTER 250VAC 3A CHASS MNT |
0 |
|
Технический лист |
AMI-M12B | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Wire Leads | 14.12mH |
|
|
AMI-M12U-1-20-BLINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Технический лист |
AMI-M12U | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 900µH |
|
AH-L03LINE FILTER 110V/250VAC 3A CHASS |
0 |
|
Технический лист |
AHL | Box | Obsolete | Single Phase | Two Stage | - | 110V, 250V | - | - | 3 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
20DKCG5BLINE FILTER 115V/250VAC 20A CHAS |
0 |
|
Технический лист |
DK | Bulk | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | Quick Connect | 600µH |
|
|
FMAB-N6PH-0646LINE FLTR 277/400VDC 277VAC CHAS |
0 |
|
Технический лист |
FMAB | Box | Active | Single Phase | Single Stage | 277V, 400V | 277V | - | - | 6 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
|
6DAFPLINE FILTER 125VDC 10A PANEL MNT |
0 |
|
Технический лист |
DA, Corcom | Bulk | Active | Single Phase | Single Stage | 125V | - | - | - | 10 A | - | General Purpose | CSA, UL, VDE | -10°C ~ 40°C | Panel Mount | Quick Connect | 100µH |
