Модули фильтров линии электропередач
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип фильтра | Конфигурация | Напряжение - Номинальное постоянное | Напряжение - Номинальное переменное | Напряжение - Номинальное переменное (фаза-земля/нейтраль) | Напряжение - Номинальное переменное (фаза-фаза) | Ток | Частота - Рабочая | Применение | Сертифицирующее агентство | Рабочая температура | Тип крепления | Тип вывода | Индуктивность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPA2-8V1INTERCONNECT |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AMI-B11AW2-13-4-BLINE FILTER 250VAC 4A TH |
0 |
|
Технический лист |
AMI-B11AW | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 4 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Through Hole | PC Pins | 4.68mH |
|
|
AMI-M12T-1-3-BLINE FILTER 250VAC 3A CHASS MNT |
0 |
|
Технический лист |
AMI-M12T | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.02mH |
|
|
AMI-M12R-1-5-B-1LINE FILTER 250VAC 5A CHASS MNT |
0 |
|
Технический лист |
AMI-M12R | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 5 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.032mH |
|
|
AMI-M12B-1-3-BLINE FILTER 250VAC 3A CHASS MNT |
0 |
|
Технический лист |
AMI-M12B | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 14.12mH |
|

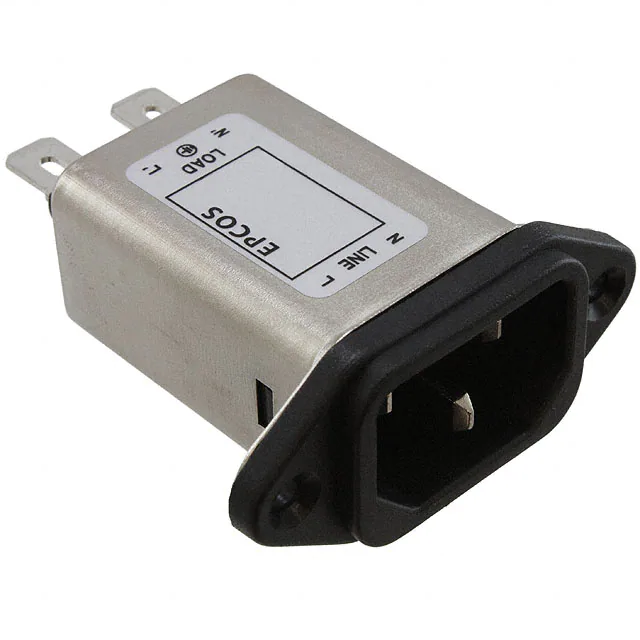

B84771M0012L000LINE FILTER |
0 |
|
Технический лист |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B84771M0015L000LINE FILTER |
0 |
|
Технический лист |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

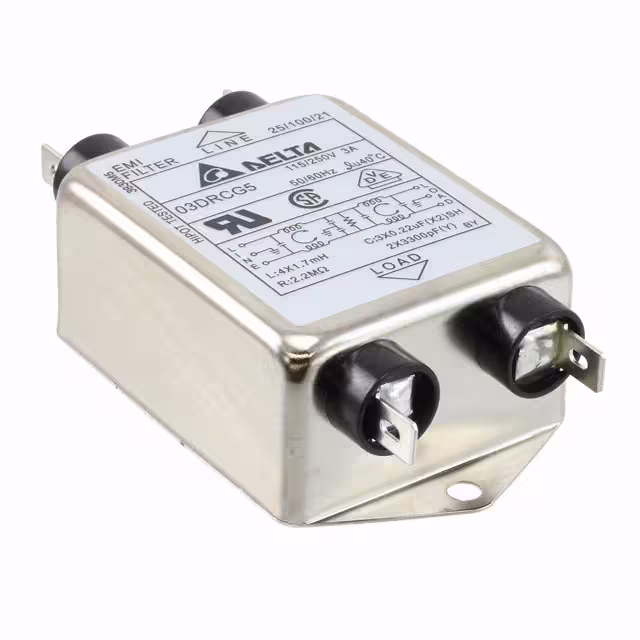

03DRCG5LINE FILTER 115V/250VAC 3A CHASS |
0 |
|
Технический лист |
DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.7mH |
|

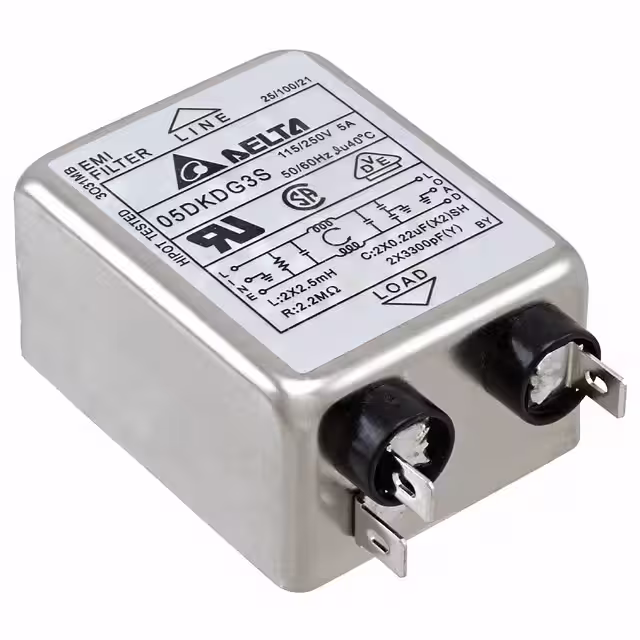

05DKDG3SLINE FILTER 115V/250VAC 5A CHASS |
0 |
|
Технический лист |
DK | Box | Active | Single Phase | Single Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | IEC 320-C14, Quick Connect | 4.5mH |
|
|
AMI-M11R-7M-3-B-1LINE FILTER 250VAC 3A CHASS MNT |
0 |
|
Технический лист |
AMI-M11R | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Quick Connect | 7.06mH |
|
03DRCW5LINE FILTER 115V/250VAC 3A CHASS |
0 |
|
Технический лист |
DR | Box | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Wire Leads | 1.7mH |
|
FMAB-N7PG-0146LINE FLTR 277/400VDC 277VAC CHAS |
0 |
|
Технический лист |
FMAB | Box | Active | Single Phase | Single Stage | 277V, 400V | 277V | - | - | 1 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | Quick Connect | - |
|
|
AMI-M12S-7M-5-B-1LINE FILTER 250VAC 5A CHASS MNT |
0 |
|
Технический лист |
AMI-M12S | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 5 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Quick Connect | 1.032mH |
|
|
AMI-M12Q-1-10-BLINE FILTER 250VAC 10A CHASS MNT |
0 |
|
Технический лист |
AMI-M12Q | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 10 A | 50/60Hz | Medical | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 1.245mH |
|
AH-L01LINE FILTER 110V/250VAC 1A CHASS |
0 |
|
Технический лист |
AHL | Box | Obsolete | Single Phase | Two Stage | - | 110V, 250V | - | - | 1 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
AMI-M11N-1-6-BLINE FILTER 250VAC 6A CHASS MNT |
0 |
|
Технический лист |
AMI-M11N | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 5.1mH |
|

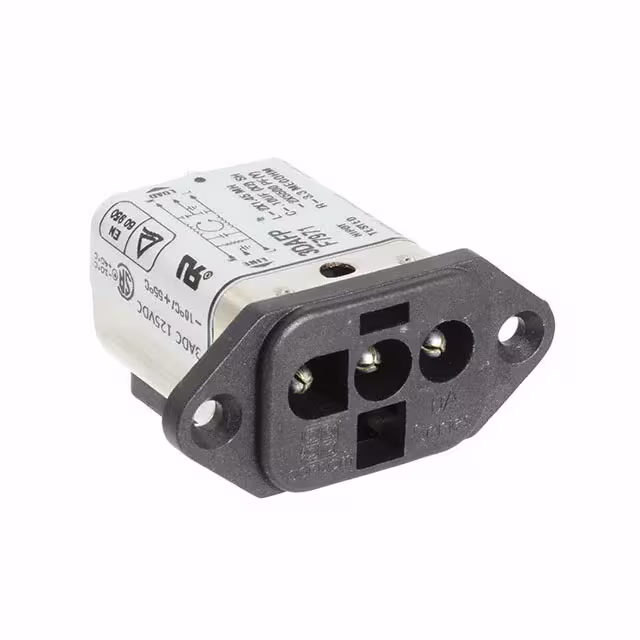

3DAFPLINE FILTER 125VDC 3A PANEL MNT |
0 |
|
Технический лист |
DA, Corcom | Bulk | Active | DC | Single Stage | 125V | - | - | - | 3 A | 50 ~ 60Hz | General Purpose | CSA, UL, VDE | -10°C ~ 55°C | Panel Mount | Quick Connect | 1.45mH |
|
|
AMI-M11P-1-10-B-2LINE FILTER 250VAC 10A CHASS MNT |
0 |
|
Технический лист |
AMI-M11P | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | Quick Connect | 7.13mH |
|

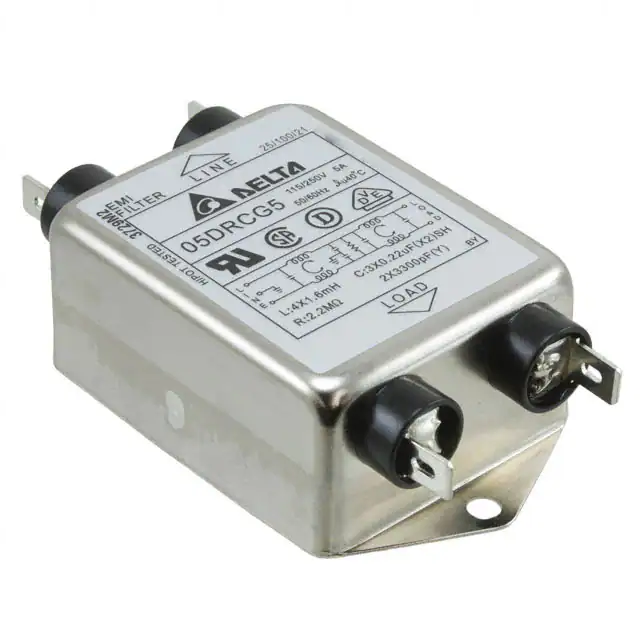

05DRCG5LINE FILTER 115V/250VAC 5A CHASS |
0 |
|
Технический лист |
DR | Bulk | Active | Single Phase | Two Stage | - | 115V, 250V | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1.6mH |
|
|
AMI-M12S-7M-3-B-1LINE FILTER 250VAC 3A CHASS MNT |
0 |
|
Технический лист |
AMI-M12S | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Quick Connect | 3.52mH |
