Модули фильтров линии электропередач
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип фильтра | Конфигурация | Напряжение - Номинальное постоянное | Напряжение - Номинальное переменное | Напряжение - Номинальное переменное (фаза-земля/нейтраль) | Напряжение - Номинальное переменное (фаза-фаза) | Ток | Частота - Рабочая | Применение | Сертифицирующее агентство | Рабочая температура | Тип крепления | Тип вывода | Индуктивность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TB6-B400LBSLINE FILTER 400A CHASSIS MOUNT |
6 |
|
Технический лист |
TB6-B | Box | Active | Three Phase (Delta) | Two Stage | - | - | 254 V | 440 V | 400 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN258-130-35LINE FILTER 130A CHASSIS MOUNT |
2 |
|
Технический лист |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 130 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
LF-260NLINE FILTER 250VAC/VDC 60A CHASS |
0 |
|
Технический лист |
LF | Tray | Obsolete | Single Phase | Two Stage | 250V | 250V | - | - | 60 A | - | General Purpose | - | -20°C ~ 55°C | Chassis Mount | Threaded Post (M6) | - |
|
FLLD4160ATHT7LINE FILTER 160A CHASSIS MOUNT |
2 |
|
Технический лист |
FLLD3 | Bulk | Last Time Buy | Three Phase (Wye) | Single Stage | - | - | 305 V | 530 V | 160 A | 50/60Hz | General Purpose | ENEC, UL | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
6609070-8LINE FILTER 110A CHASSIS MOUNT |
6 |
|
Технический лист |
FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 110 A | 50 ~ 60Hz | Regenerative Motor Drive | UL | -10°C ~ 40°C | Chassis Mount | Terminal Block, Threaded Post (M10) | - |
|

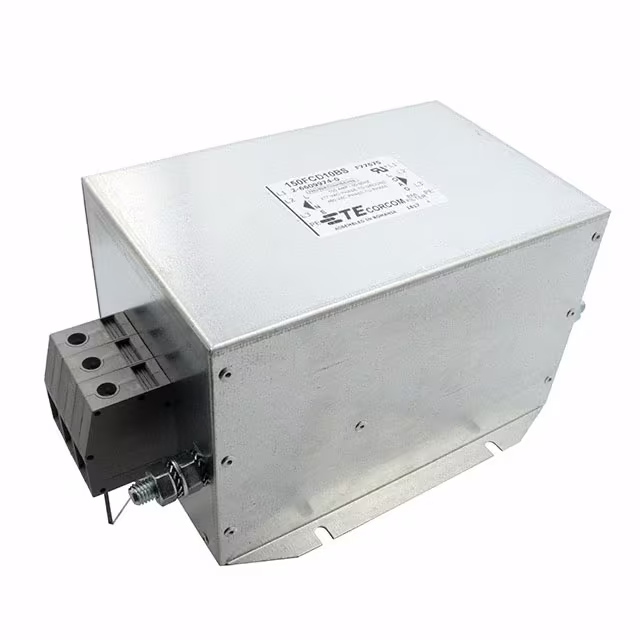

2-6609974-0LINE FILTER 150A CHASSIS MOUNT |
3 |
|
Технический лист |
FCD | Box | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 150 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
FN258HVIT-130-35LINE FILTER 130A CHASSIS MOUNT |
3 |
|
Технический лист |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 400 V | 690 V | 130 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
250APS12LLINE FLTR 520VAC 250A CHASS MNT |
1 |
|
Технический лист |
APS | Bulk | Active | Three Phase (Delta) | Three Stage | - | 520V | - | - | 250 A | 50/60Hz | General Purpose | - | -10°C ~ 50°C | Chassis Mount | Terminal Post | - |
|
|
FN356-100-28LINE FILTER 100A CHASSIS MOUNT |
2 |
|
Технический лист |
FN 356 | Tray | Obsolete | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 100 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M10) | - |
|
FN258HV-130-35LINE FILTER 130A CHASSIS MOUNT |
2 |
|
Технический лист |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 400 V | 690 V | 130 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB4-400GRLINE FILTER 400A CHASSIS MOUNT |
2 |
|
Технический лист |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 400 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FLLD4200ATHT7LINE FILTER 200A CHASSIS MOUNT |
0 |
|
Технический лист |
FLLD3 | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 305 V | 530 V | 200 A | 50/60Hz | General Purpose | ENEC, UL | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
LF-350LINE FILTER 250VAC/VDC 50A CHASS |
0 |
|
Технический лист |
LF | Bulk | Active | Three Phase (Delta) | Two Stage | 250V | 250V | - | - | 50 A | - | General Purpose | - | -20°C ~ 45°C | Chassis Mount | Threaded Post (M4) | - |
|
6609067-7LINE FILTER 150A CHASSIS MOUNT |
2 |
|
Технический лист |
AYC | Box | Last Time Buy | Three Phase (Wye) | Single Stage | - | - | 277 V | 480 V | 150 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|

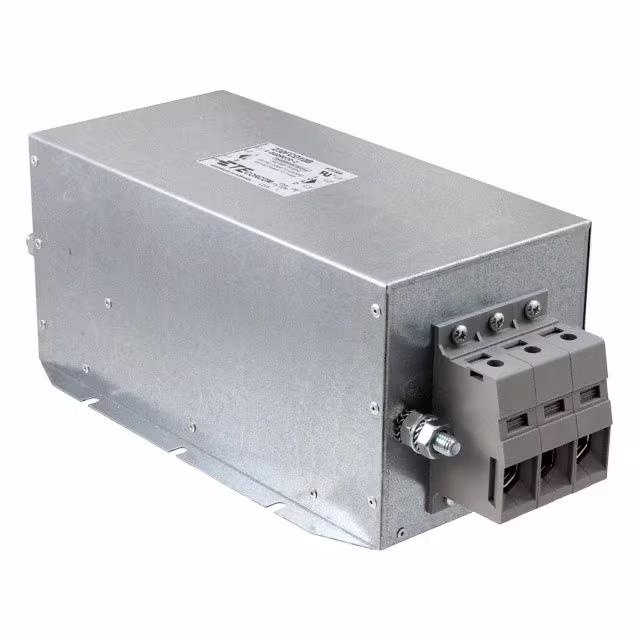

1-6609070-2LINE FILTER 230A CHASSIS MOUNT |
2 |
|
Технический лист |
FCD | Bulk | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 230 A | 50/60Hz | General Purpose | UL | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
|
FMBC-0964-H110LINE FLTR 480VAC 115A CHASS MNT |
2 |
|
Технический лист |
FMBC BOOK STYLE | Bulk | Obsolete | Three Phase (Delta) | Two Stage | - | 480V | - | - | 115 A | 50/60Hz | Inverters, Power Drive Systems | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 700µH, L2 - 200µH |
|
|
TB6-4250BC62LINE FILTER 250A CHASSIS MOUNT |
2 |
|
Технический лист |
TB6-2/4 | Box | Active | Three Phase (Delta) | Two Stage | - | - | 250 V | 440 V | 250 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
|
TB4-500GRLINE FILTER 500A CHASSIS MOUNT |
2 |
|
Технический лист |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 500 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB4-250HRLINE FILTER 250A CHASSIS MOUNT |
4 |
|
Технический лист |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 250 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
3-6609974-3LINE FILTER 150A CHASSIS MOUNT |
3 |
|
Технический лист |
FCD | Bag | Last Time Buy | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 150 A | 50/60Hz | Regenerative Motor Drive | UR | -10°C ~ 40°C | Chassis Mount | Terminal Block | - |
