Клапаны и управление
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Функция | Тип привода | Рабочее давление | Диаметр отверстия | Тип жидкости | Метод подключения | Для использования с/сопутствующими продуктами | Тип крепления | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
81516200CONTROL VALVE 4/2 SUBBASE MNT |
1 |
|
Технический лист |
- | Bulk | Active | Control Valve, Maintained | 4/2 | - | 51 ~ 116 PSI (3.5 ~ 8 bar) | 0.157" (4.00mm) | Air, Inert Gas | - | - | Sub-Base Mount | - |
|

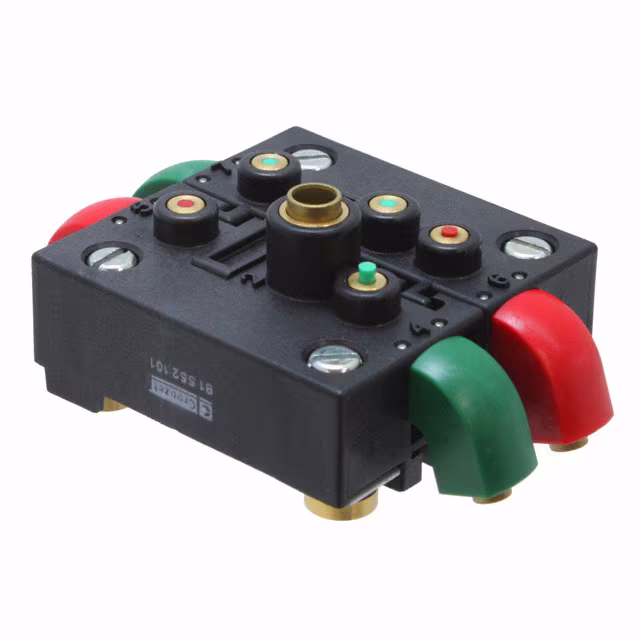

81552101SUB-BASE END DIN RAIL |
0 |
|
Технический лист |
- | Bulk | Active | Sub-Base, End | - | - | - | - | - | Push-In Connection for Tubing 5/32" (4.00mm) Dia | Sequencer | DIN Rail | Pressure Indicator, Rotatable Connector |
|

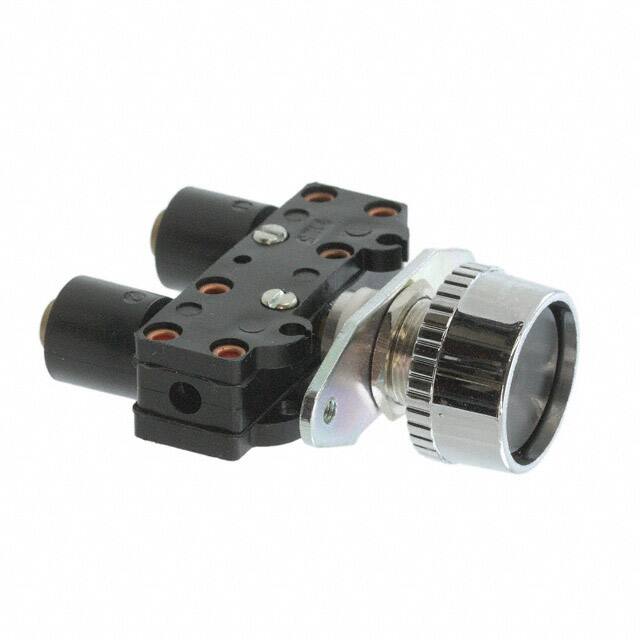

81735511CONTROL VALVE 3/2 NC ROD MOUNT |
1 |
|
Технический лист |
- | Box | Active | Control Valve, Momentary | 3/2 Normally Closed | Pushbutton | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Rod Mount | Operating Force 8 ~ 18N |
|
HGL-3/8-QS-8PILOTED CHECK VALVE |
1 |
|
Технический лист |
- | Bulk | Active | Non-Return Valve (Check Valve) | - | - | 7 ~ 145 PSI (0.5 ~ 10 bar) | - | Air, Inert Gas, Liquid | Threaded | - | Sub-Base Mount | - |
|
VUVS-L25-P53E-MD-N14-F8SOLENOID VALVE |
1 |
|
Технический лист |
- | Bulk | Active | Solenoid Valve | - | - | 36 ~ 145 PSI (2.5 ~ 10 bar) | - | Air, Inert Gas, Liquid | Threaded | - | Sub-Base Mount | - |
|

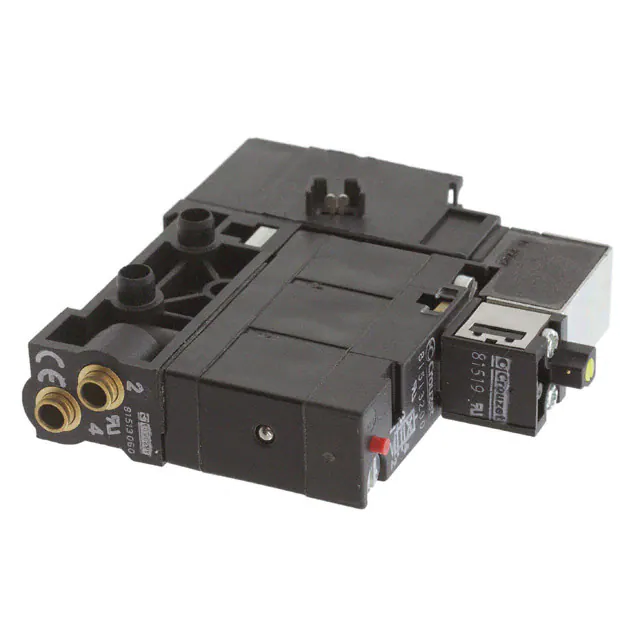

81513203SOLENOID VALVE ASSY 4/2 DIN RAIL |
0 |
|
Технический лист |
- | Box | Active | Solenoid Valve Assembly | 4/2 | - | 44 ~ 116 PSI (3 ~ 8 bar) | 0.118" (3.00mm) | Air, Inert Gas | - | - | DIN Rail | Manual Override, Supply Voltage 24VDC |
|
81922210POSITION DETECT 3/2 NC CHAS MNT |
0 |
|
Технический лист |
Compact | Bulk | Active | Position Detector | 3/2 Normally Closed | Side Rotary - No Lever | 1 ~ 116PSI (0.1 ~ 8 bar) | 0.118" (3.00mm) | Air, Inert Gas | Threaded 1/8" BSP | - | Chassis Mount | Operating Force 25N |
|
SOL1A4VALVE SOLENOID 3/8" BSP NO 220/2 |
0 |
|
Технический лист |
SOL | Box | Active | Solenoid Valve | 2/2 Normally Open, One-Way | - | 1 ~ 218 PSI (0.1 ~ 15 bar) | - | Inert Gas, Liquid | Threaded 3/8" BSP | - | Free Hanging (In-Line) | Supply Voltage 230VAC |
|
81503725TIMER ON-DELAY SUB-BASE MOUNT |
0 |
|
Технический лист |
- | Box | Active | Timer, Adjustable | On-Delay | - | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | - | - | Sub-Base Mount | Delay Time 0.1 ~ 60sec |
|
SOL6B1VALVE SOLENOID 1-1/2" BSP NC 24V |
0 |
|
Технический лист |
SOL | Box | Active | Solenoid Valve | 2/2 Normally Closed, One-Way | - | 6 ~ 145 PSI (0.4 ~ 10 bar) | - | Inert Gas, Liquid | Threaded 1-1/2" BSP | - | Free Hanging (In-Line) | Supply Voltage 24VDC |
|
SOL5A3VALVE SOLENOID 1-1/4" BSP NO 110 |
0 |
|
Технический лист |
SOL | Box | Active | Solenoid Valve | 2/2 Normally Open, One-Way | - | 6 ~ 174 PSI (0.4 ~ 12 bar) | - | Inert Gas, Liquid | Threaded 1-1/4" BSP | - | Free Hanging (In-Line) | Supply Voltage 110VAC |
|
|
WATER-VALVE-6.5MM-12VDCWATER-VALVE-6.5MM-12VDC |
0 |
|
- |
- | Bulk | Active | Solenoid Valve | - | - | 0 ~ 116PSI (0 ~ 8 bar) | - | Liquid | Push-In Connection for Tubing 15/64" (6.00mm) Dia | - | Chassis Mount | Supply Voltage 12VDC |
|
|
VFOE-LE-T-R18-Q8ONE-WAY FLOW CONTROL VALVE |
0 |
|
Технический лист |
VFOE | Bulk | Active | Flow Restrictor, Adjustable | One-Way | - | 3 ~ 145 PSI (0.2 ~ 10 bar) | - | Air | Threaded 1/8" R | - | Sub-Base Mount | - |
|
|
VFOE-LE-T-M5-Q4ONE-WAY FLOW CONTROL VALVE |
2 |
|
Технический лист |
VFOE | Bulk | Active | Flow Restrictor, Adjustable | One-Way | - | 3 ~ 145 PSI (0.2 ~ 10 bar) | - | Air | Threaded M5 | - | Sub-Base Mount | - |
|
|
VFOE-LE-T-G18-Q8ONE-WAY FLOW CONTROL VALVE |
2 |
|
Технический лист |
VFOE | Bulk | Active | Flow Restrictor, Adjustable | One-Way | - | 3 ~ 145 PSI (0.2 ~ 10 bar) | - | Air | Threaded 1/8" G | - | Sub-Base Mount | - |
|
|
VFOE-LE-T-G18-Q6ONE-WAY FLOW CONTROL VALVE |
1 |
|
Технический лист |
VFOE | Bulk | Active | Flow Restrictor, Adjustable | One-Way | - | 3 ~ 145 PSI (0.2 ~ 10 bar) | - | Air | Threaded 1/8" G | - | Sub-Base Mount | - |
|
81545001VAC GEN PRES OPERATED FREE HANG |
1 |
|
Технический лист |
- | Bulk | Active | Vacuum Generator | Pressure Operated | - | 30 ~ 116 PSI (2 ~ 8 bar) | - | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Free Hanging (In-Line) | - |
|

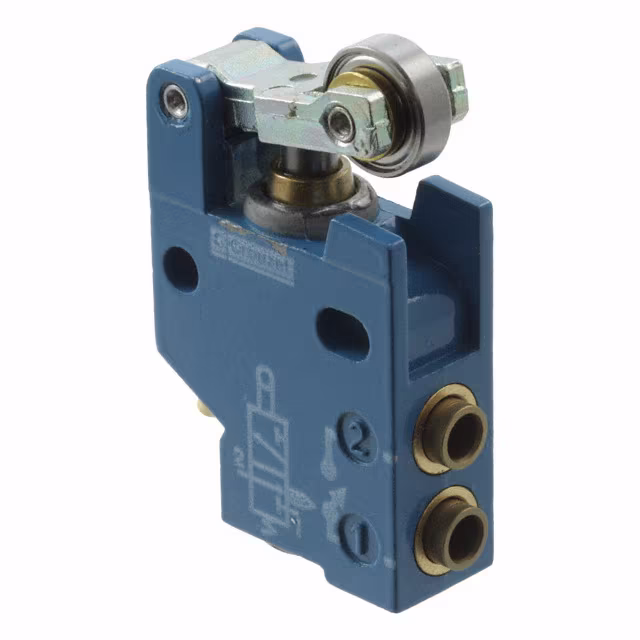

81921714POSITION DETECT 3/2 NC CHAS MNT |
1 |
|
Технический лист |
Miniature | Bulk | Active | Position Detector | 3/2 Normally Closed | Lever, Roller | 1 ~ 116PSI (0.1 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Chassis Mount | Connectable Exhaust, Operating Force 18N |
|
|
3-WAY-VALVE-12V3-WAY-VALVE-12V |
0 |
|
- |
- | Bulk | Active | Control Valve | - | - | - | - | Air | Threaded | Control Valve | Free Hanging (In-Line) | - |
|
|
VABF-L1-10H-H2CHECK VALVE |
0 |
|
- |
- | Bulk | Active | Non-Return Valve (Check Valve) | - | - | 7.25 ~ 116 PSI (0.5 ~ 8 bar) | - | Air | Threaded | Control Valve | Free Hanging (In-Line) | - |
