Счетчики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Тип измерения | Диапазон измерения | Тип дисплея | Количество символов в строке | Отображаемые символы - Высота | Тип выхода | Напряжение - Питание | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMS-40LCD-2/3-5-CVOLTMETER 20VDC LCD PANEL MOUNT |
41 |
|
Технический лист |
DMS-40LCD | Box | Obsolete | Voltmeter | Voltage | ±20VDC | LCD - Black Characters | 4.5 | 0.401" (10.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | Bezel Sold Separately |
|
M4Y-DV-4DC VOLT 199.9V FULL 100-240VAC |
59 |
|
Технический лист |
M4Y/M4W/M5W/M4M | Box | Active | Voltmeter | Voltage | 0 ~ 199.9V | LED - Red Characters | 3.5 | 0.551" (14.00mm) | - | 110 ~ 220VAC | Rectangular - 67.00mm x 31.00mm | Panel Mount | Screw Terminal | - | - |
|
ACM3P-4-AC1-B-CAMMETER 0-100A LED PANEL MOUNT |
35 |
|
Технический лист |
ACM3P | Box | Obsolete | Ammeter | Current (3-Phase) | 0 ~ 100A | LED - Blue Characters | 4 | 0.360" (9.14mm) | - | 85 ~ 264VAC | Rectangular - 36.22mm x 22.10mm | Panel Mount - Surface | Screw Terminal | - | Built In Current Transformer (Primary) |
|
M4YS-NASCALING METER 4-20mA LOOP POWER |
63 |
|
Технический лист |
M4YS | Box | Active | Process Meter | Process | 4VDC, 20mA | LED - Red Characters | 4 | 0.551" (14.00mm) | - | 110 ~ 220VAC | Rectangular - 67.00mm x 31.00mm | Panel Mount | Screw Terminal | - | - |
|
MT4W-DV-4NDC VOLT 0-500V INDICATOR 100-240 |
214 |
|
Технический лист |
MT4W | Box | Active | Voltmeter | Voltage | 0 ~ 500VDC | LED - Red Characters | 4 | 0.560" (14.20mm) | - | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | - | - |
|
|
MT4W-DA-1NDC AMP 0-5A INDICATOR 12-24VDC |
111 |
|
Технический лист |
MT4W | Box | Active | Ammeter | Current | 0 ~ 5A | LED - Red Characters | 4 | 0.560" (14.20mm) | - | 12 ~ 24VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | - | - |
|
|
MT4W-DV-1NDC VOLT 0-500V INDICATOR 12-24V |
92 |
|
Технический лист |
MT4W | Box | Active | Voltmeter | Voltage | 0 ~ 500VDC | LED - Red Characters | 4 | 0.560" (14.20mm) | - | 12 ~ 24VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | - | - |
|

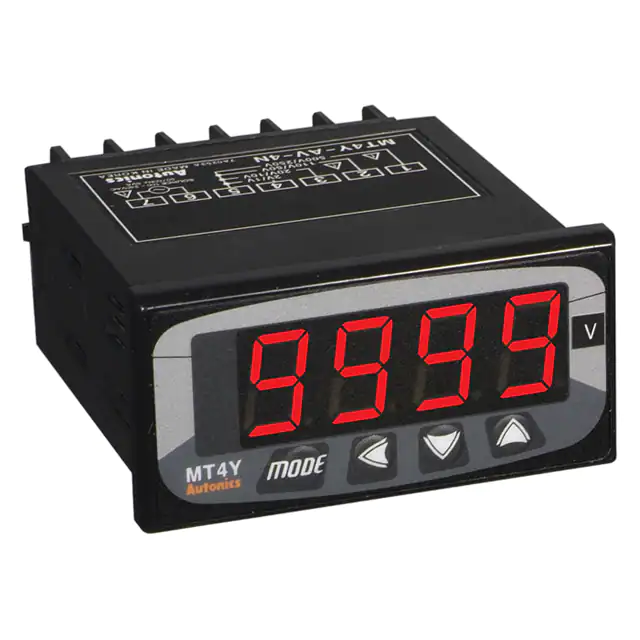

MT4Y-DV-4NDC VOLT 0-500V INDICATOR 100-240 |
37 |
|
Технический лист |
MT4Y | Box | Active | Voltmeter | Voltage | 0 ~ 500VDC | LED - Red Characters | 4 | 0.560" (14.20mm) | - | 100 ~ 240VAC | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | - | - |
|
M4VMETER GRAPHIC PANEL LED 12-24VDC |
33 |
|
Технический лист |
M4V | Box | Active | Process Meter | Process | Multiple | LED - Red Characters | 4 | 0.551" (14.00mm) | - | 12 ~ 24VDC | Rectangular - 70.00mm x 23.00mm | Panel Mount | Screw Terminal | - | - |
|
|
MT4W-AV-4NAC VOLT 0-500V INDI. 100-240VAC |
132 |
|
Технический лист |
MT4W | Box | Active | Voltmeter | Voltage | 0 ~ 500VAC | LED - Red Characters | 4 | 0.560" (14.20mm) | - | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | - | - |
|
|
MT4W-AA-4NAC AMP 0-5A INDICATOR 100-240VAC |
130 |
|
Технический лист |
MT4W | Box | Active | Ammeter | Current | 0 ~ 5A | LED - Red Characters | 4 | 0.560" (14.20mm) | - | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | - | - |
|
|
MT4Y-AA-4NAC AMP 0-5A INDICATOR 100-240VAC |
60 |
|
Технический лист |
MT4Y | Box | Active | Ammeter | Current | 0 ~ 5A | LED - Red Characters | 4 | 0.560" (14.20mm) | - | 100 ~ 240VAC | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | - | - |
|
BT57-E51B200000000VOLTMETER 0-10V LCD PANEL MNT |
100 |
|
Технический лист |
Beta 70 | Retail Package | Active | Voltmeter | Voltage | 0 ~ 10V | LCD - Red Characters | 4.5 | 0.713" (18.10mm) | - | 110VAC | Rectangular - 92.80mm x 44.10mm | Panel Mount | Plug In Screw Terminals | IP54 - Dust Protected, Water Resistant | Scaling Meter |
|
AP10-331EAL0000000DigiAmeter Sys:3/1Ph;IP:100-500V |
100 |
|
Технический лист |
Alpha 10 | Retail Package | Active | Multifunction Meter (Current, Voltage, Frequency, Power) | Current (3-Phase), Voltage, Wattage | 1 ~ 5A, 0 ~ 500VAC | LCD - Red Characters | 3, 3, 3 | 0.713" (18.10mm) | Relay | 40 ~ 300VAC/DC | Square - 92.80mm x 92.80mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Alpha 10 Multifunction Power Meter with Pulse Option |
|

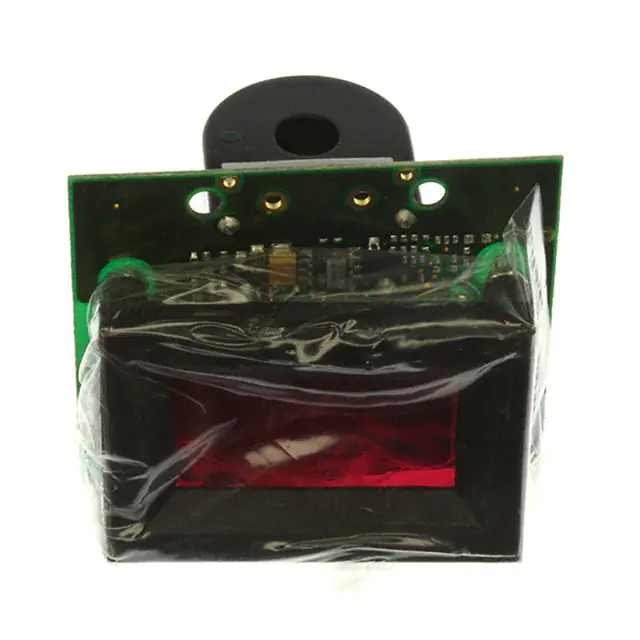

ACA-20RM-2-AC3-RL-CAMMETER 0-19.99A LED PANEL MOUNT |
152 |
|
Технический лист |
ACA-20RM | Box | Obsolete | Ammeter | Current | 0 ~ 19.99A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 140VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Primary) |
|
MX4W-V-FNAC/DC VOLT 0-500V 24-240VAC/VDC |
50 |
|
Технический лист |
MX4W | Box | Active | Voltmeter | Voltage | 0 ~ 500V | LCD - White Characters | 4 | 0.748" (19.00mm) | - | 24 ~ 240VAC/DC | - | DIN Rail, Panel Mount | Screw Terminal | - | - |
|

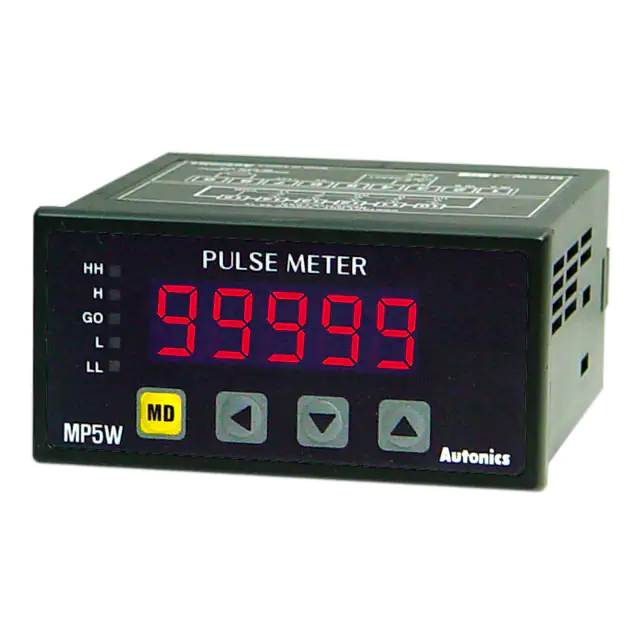

MP5W-4NPULSE METER INDICATOR 100-240V |
62 |
|
Технический лист |
MP5W | Box | Active | Process Meter | Process | Multiple | LED - Red Characters | 5 | 0.315" (8.00mm) | - | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | - | Pulse Meter |
|
MP5Y-4NPULSE METER INDICATOR 100-240V |
44 |
|
Технический лист |
MP5Y | Box | Active | Process Meter | Process | Multiple | LED - Red Characters | 5 | 0.315" (8.00mm) | - | 100 ~ 240VAC | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | - | Pulse Meter |
|
|
MT4W-DA-41DC AMP 0-5A 3RELAY 100-240VAC |
87 |
|
Технический лист |
MT4W | Box | Active | Ammeter | Current | 0 ~ 5A | LED - Red Characters | 4 | 0.560" (14.20mm) | Relay (3) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | - | - |
|
|
MT4W-DV-41DC VOLT 0-500V 3RELAY 100-240VAC |
40 |
|
Технический лист |
MT4W | Box | Active | Voltmeter | Voltage | 0 ~ 500VDC | LED - Red Characters | 4 | 0.560" (14.20mm) | Relay (3) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | - | - |
