Счетчики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Тип измерения | Диапазон измерения | Тип дисплея | Количество символов в строке | Отображаемые символы - Высота | Тип выхода | Напряжение - Питание | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAXLA0U0MULTI METER LED PANEL MOUNT |
4 |
|
Технический лист |
PAX | Box | Active | Multifunction Meter | Current, Process, Voltage | 0 ~ 200mA, 0 ~ 200VDC | LED - Red Characters | 5 | 0.560" (14.20mm) | Relay (2) | 50 ~ 250VAC, 21.6 ~ 250VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
PAXLA000MULTI METER LED PANEL MOUNT |
5 |
|
Технический лист |
PAX | Box | Active | Multifunction Meter | Current, Process, Voltage | 0 ~ 200mA, 0 ~ 200VDC | LED - Red Characters | 5 | 0.560" (14.20mm) | Relay (2) | 50 ~ 250VAC, 21.6 ~ 250VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
2907983DIN-MOUNT ENERGY METER WITH DISP |
6 |
|
Технический лист |
EEM-MA | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 35 ~ 690VAC | LCD - Black Characters, Backlight | - | - | - | 100 ~ 230VAC, 150 ~ 250VDC | - | DIN Rail | Screw Terminal | - | - |
|

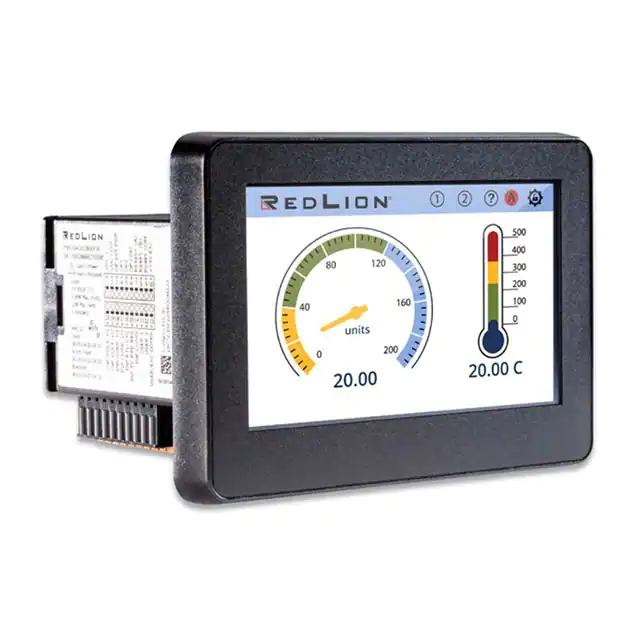

PM500A0400800F00GRAPHICAL PANEL METER, PM-50, 4. |
9 |
|
Технический лист |
PM-50 | Bulk | Active | Multifunction Meter | Current, Resistance, RTD, Thermocouple, Voltage | ±2A, ±60VDC, -270°C ~ 2315°C, 1000Ohm | TFT - Color (Touch) | - | - | Solid State | 10 ~ 30VDC | - | Panel Mount | Spring Terminal | IP65 - Dust Tight, Water Resistant | - |
|

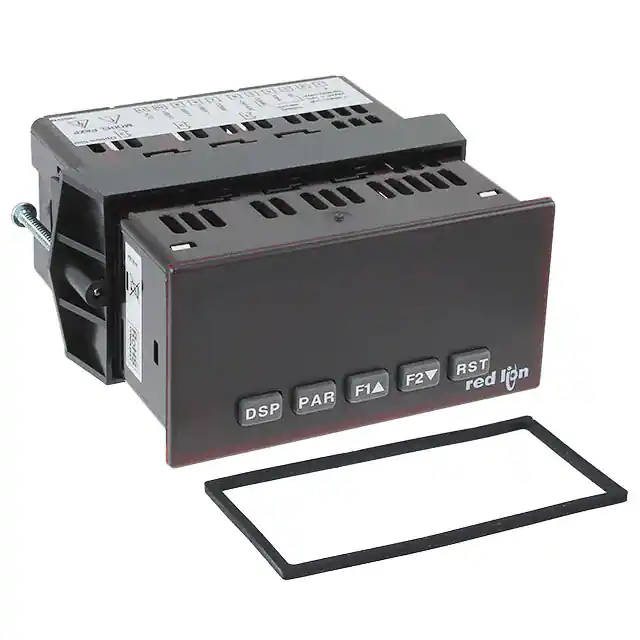

PAXP0010PROCESS METER LED PANEL MOUNT |
17 |
|
Технический лист |
PAX | Box | Active | Process Meter | Process | 0 ~ 20mA, 0 ~ 10VDC | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 24VAC, 11 ~ 36VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
PAXD0010AMMETER/VOLTMETER LED PANEL MT |
22 |
|
Технический лист |
PAX | Box | Active | Ammeter, Voltmeter | Current, Voltage | ±2A, ±300VDC | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 24VAC, 11 ~ 36VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
PAXH0000AMMETER/VOLTMETER LED PNL MOUNT |
14 |
|
Технический лист |
PAX | Box | Active | Ammeter, Voltmeter | Current, Voltage | 0 ~ 5A, 0 ~ 300VAC | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 85 ~ 250VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
|
PAXS0000PROCESS METER 240MVDC LED PNL MT |
9 |
|
Технический лист |
PAX | Box | Active | Process Meter | Process | ±240mVDC | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 85 ~ 250VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
|
PAXDP010PROC MTR 20MA/10VDC LED PNL MT |
5 |
|
Технический лист |
PAX | Box | Active | Process Meter | Process | ±20mA, ±10VDC | LED - Red Characters | 5 | 0.560" (14.20mm) | Option Cards Available | 24VAC, 11 ~ 36VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Option Cards Available |
|
2907971DIN-MOUNT ENERGY METER WITHOUT D |
3 |
|
Технический лист |
EEM-MB | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 35 ~ 690VAC | - | - | - | - | 100 ~ 230VAC, 150 ~ 250VDC | - | DIN Rail | Screw Terminal | IP20 | - |
|
LD2A05P0MULTI METER LED CHASSIS MOUNT |
8 |
|
Технический лист |
LD | Box | Active | Multifunction Meter | Current, Process, Voltage | 0 ~ 200mA, 0 ~ 200VDC | LED - Red Characters | 5 | 2.250" (57.00mm) | Relay (2) | 50 ~ 250VAC, 21.6 ~ 250VDC | - | Chassis Mount | Connector | IP65 - Dust Tight, Water Resistant | Serial Communications Output |
|
DFR0244-GAMMETER 0-9.99A LED PANEL MOUNT |
49 |
|
Технический лист |
- | Bulk | Active | Ammeter | Current | 0 ~ 9.99A | LED - Green Characters | 3 | - | - | 4 ~ 30VDC | Rectangular - 45.50mm x 26.50mm | Panel Mount | Connector | - | - |
|
DFR0244-BAMMETER 0-9.99A LED PANEL MOUNT |
46 |
|
Технический лист |
- | Bulk | Active | Ammeter | Current | 0 ~ 9.99A | LED - Blue Characters | 3 | - | - | 4 ~ 30VDC | Rectangular - 45.50mm x 26.50mm | Panel Mount | Connector | - | - |
|
4403-15 TO +15V DC ANALOG PANELMETER |
69 |
|
Технический лист |
- | Bulk | Active | Voltmeter | Voltage | ±15VDC | Analog - Black Characters | - | - | Analog | - | Rectangular - 60.00mm x 55.00mm | Panel Mount | Stud | - | - |
|
460VOLTMETER 3.2-30VDC LED CHAS MT |
90 |
|
Технический лист |
- | Bulk | Active | Voltmeter | Voltage | 3.2 ~ 30VDC | LED - Green Characters | 3 | - | - | - | - | Chassis Mount | Wire Leads | - | - |
|
|
576TEMP METER LED PANEL MOUNT |
90 |
|
Технический лист |
- | Bulk | Active | Temperature Meter | Thermister | -30°C ~ 70°C | LED - Blue Characters | 3 | 0.560" (14.20mm) | - | 4.5 ~ 30VDC | Rectangular - 45.50mm x 26.50mm | Panel Mount | Wire Leads | - | - |
|
3990LARGE 5V ANALOG PANEL METER |
30 |
|
Технический лист |
- | Bulk | Active | Voltmeter | Voltage | 0 ~ 5VDC | Analog - Black Characters | - | - | Analog | - | - | Panel Mount | Stud | - | - |
|

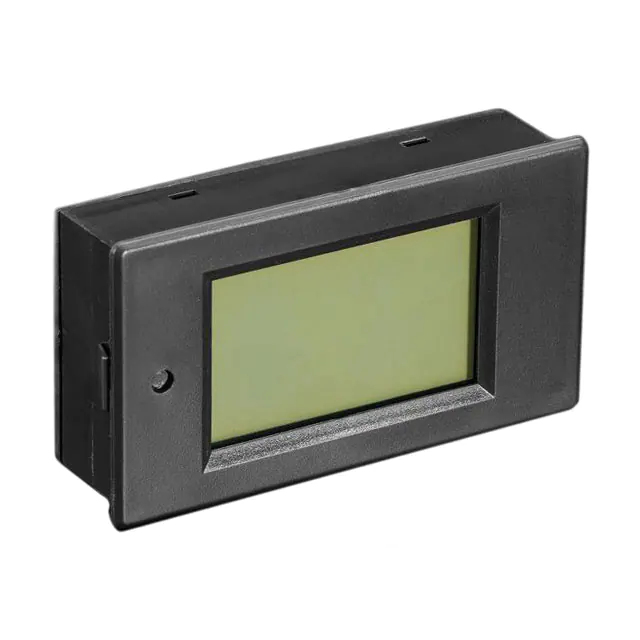

3626MULTI METER MULTIPLE LCD PNL MT |
42 |
|
Технический лист |
- | Bulk | Active | Energy Monitor | Current, Voltage, Wattage | Multiple | LCD - Black Characters, Blue Backlight | - | - | - | 6.5VDC | - | Panel Mount | Screw Terminal | - | Hour Meter |
|
V 1VOLTMETER 0-200MVDC LCD PNL MT |
8 |
|
Технический лист |
V | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.250" (6.30mm) | Reference | 7 ~ 12VDC | Rectangular - 31.00mm x 15.00mm | Panel Mount | PC Pin | - | - |
|

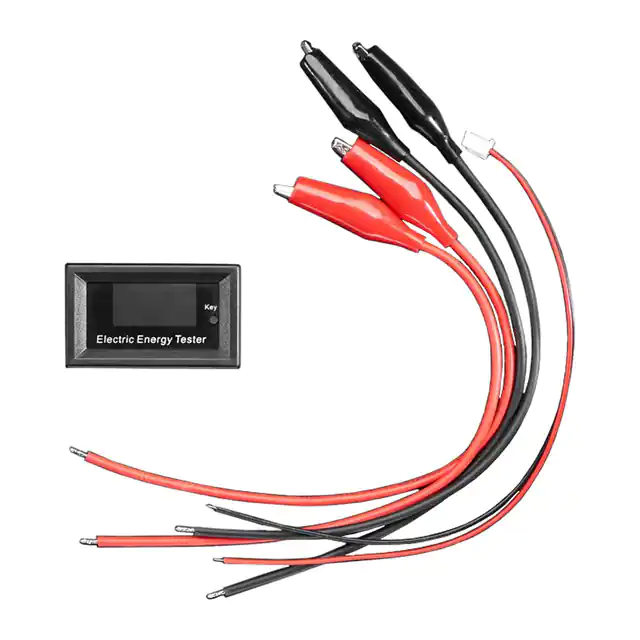

3624MULTI METER MULTIPLE LCD PNL MT |
29 |
|
Технический лист |
- | Bulk | Active | Multifunction Meter | Current, Resistance, Temperature, Voltage, Wattage | Multiple | LCD - White Characters, Backlight | - | - | - | Loop Power, 5VDC | - | Panel Mount | Screw Terminal | - | Hour Meter |
