Счетчики, счетчики моточасов
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Режим работы | Скорость счета | Формат времени | Количество символов в строке | Тип дисплея | Отображаемые символы - Высота | Тип входа | Тип выхода | Напряжение - Питание | Сброс | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUB4L820COUNTER LCD 8 CHAR 3.6V PANEL MT |
0 |
|
Технический лист |
CUB4 | Box | Active | Totalizer | Up | 50Hz, 5kHz | - | 8 | LCD - Red Characters, Backlight | 0.460" (11.70mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
K3MA-F 24VAC/VDCCOUNTER LCD 5 CHAR 24V PANEL MT |
0 |
|
Технический лист |
K3MA-F | Bulk | Active | Tachometer | Up | 5kHz | - | 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm) | No Voltage, Voltage | - | 24VAC/DC | - | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
99772714COUNTER 7 CHAR 187-264V PANEL MT |
5 |
|
Технический лист |
CHM48 | Box | Active | Time Counter (Hour Meter) | Up | - | 99999.99hrs | 7 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 187 ~ 264VAC | Non-Resettable | Square - 45.00mm x 45.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP52 - Dust Protected |
|

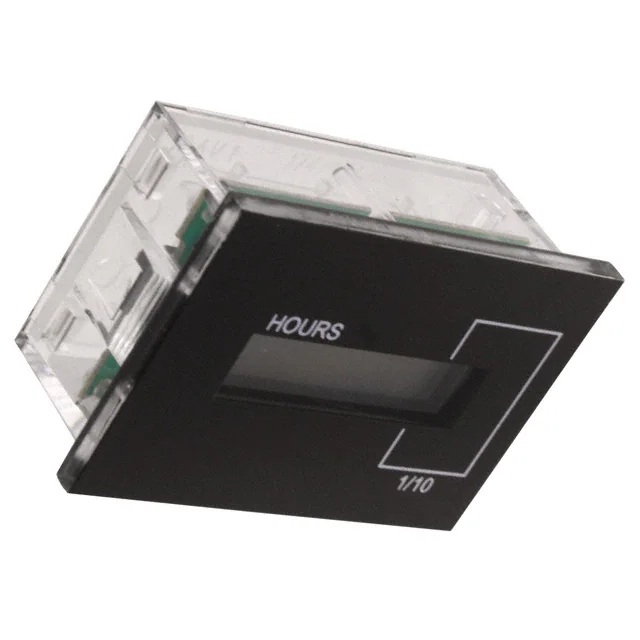

700LN001N1248D2060ACOUNTER LCD 6 CHAR 20-60V PNL MT |
0 |
|
Технический лист |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 20 ~ 60VAC, 12 ~ 48VDC | Non-Resettable | Rectangular - 36.80mm x 24.10mm | Panel Mount | Connector | IP66 - Dust Tight, Water Resistant |
|
H7EC-NPCOUNTER LCD 8 CHAR PANEL MOUNT |
1 |
|
Технический лист |
H7EC | Box | Active | Totalizer | Up | 1kHz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
87622070COUNTER LCD 8 CHAR PANEL MOUNT |
1 |
|
Технический лист |
CTR24 | Box | Active | Totalizer | Up, Down, Command | 30Hz | - | 8 | LCD - Black Characters | 0.314" (8.00mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7ET-N1-BCOUNTER LCD 7 CHAR PANEL MOUNT |
1 |
|
Технический лист |
H7ET | Box | Active | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

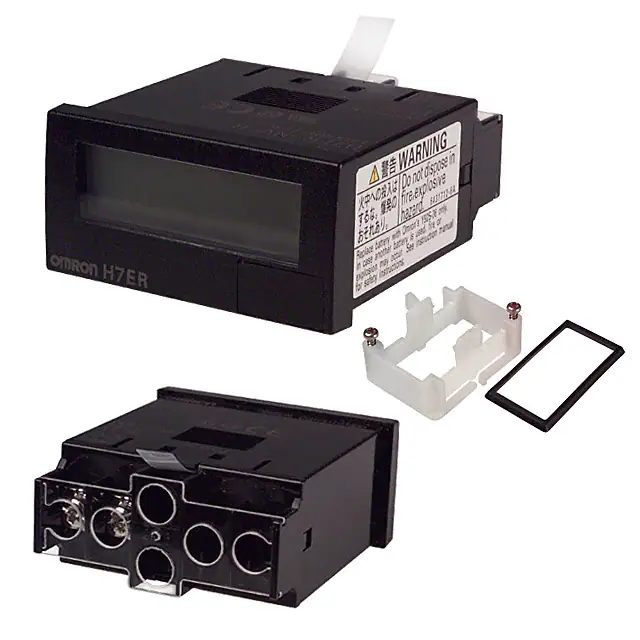

H7ER-NV-BTACHOMETER LCD 4 CHAR PANEL MT |
1 |
|
Технический лист |
H7ER | Bulk | Active | Tachometer | Up | 1kHz | - | 4 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

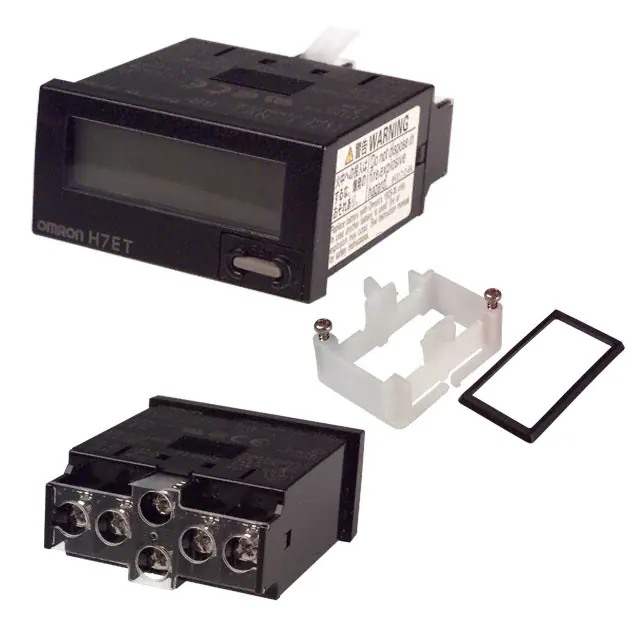

H7ET-NV1-BHCOUNTER LCD 7 CHAR PANEL MOUNT |
1 |
|
Технический лист |
H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 9999hrs59.9min; 999hrs59min59sec | 7 | LCD - Black Characters, Green Backlight | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included), 24VDC (Backlight) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CC-ASCOUNTER,DIGITAL,1-STAGE/TOTAL/PR |
1 |
|
Технический лист |
H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
C48CB003COUNTER LCD 6 CHAR 85-250V PANEL |
1 |
|
Технический лист |
C48C | Box | Active | Batch, Preset, Totalizer | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Black Characters | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2), Solid State | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

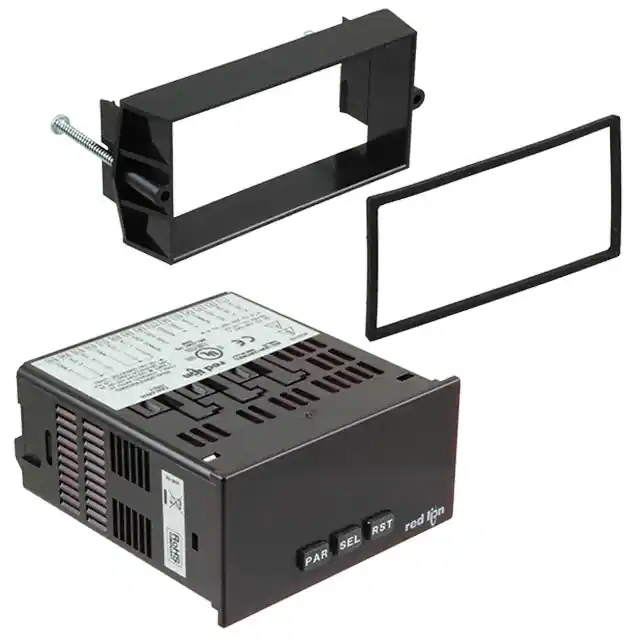

PAXLCRU0COUNTER LED 6 CHAR 50-250V PANEL |
1 |
|
Технический лист |
PAX®LITE | Box | Active | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 25kHz, 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Relay (2) | 50 ~ 250VAC, 21.6 ~ 250VDC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
C48CD102COUNTER LCD 6 CHAR 85-250V PANEL |
0 |
|
Технический лист |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXCK000COUNTER LED 6 CHAR 85-250V PANEL |
1 |
|
Технический лист |
PAX | Box | Active | Time Counter, Timer | Up | 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
C48CD112COUNTER LCD 6 CHAR 24V PANEL MT |
1 |
|
Технический лист |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2) | 24VAC, 18 ~ 36VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
C48CD005COUNTER LCD 6 CHAR 85-250V PANEL |
1 |
|
Технический лист |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Black Characters | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Solid State (2) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
LD2006P0COUNTER LED 6 CHAR 50-250V CHASS |
1 |
|
Технический лист |
LD | Bulk | Active | Batch, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 6 | LED - Red Characters | 2.250" (57.00mm) | Voltage | Relay (2) | 50 ~ 250VAC | External, Front Panel, Programmable | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LD400600COUNTER LED 6 CHAR 50-250V CHASS |
1 |
|
Технический лист |
LD | Bulk | Active | Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 6 | LED - Red Characters | 4.000" (101.00mm) | Voltage | - | 50 ~ 250VAC | External | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7ER-NTACHOMETER LCD 4 CHAR PANEL MT |
1 |
|
Технический лист |
H7ER | Box | Active | Tachometer | Up | 1kHz | - | 4 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7ER-N-BTACHOMETER LCD 4 CHAR PANEL MT |
1 |
|
Технический лист |
H7ER | Bulk | Active | Tachometer | Up | 1kHz | - | 4 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
