Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q8F7CXXG02ELED PM INDICATOR FLUSH GRN |
435 |
|
Технический лист |
Q8 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
CNX714C200FVWIND TUFFLED FLEXVOLT 14MM RED |
340 |
|
Технический лист |
CNX 714FV | Bulk | Active | LED | Red | - | - | - | 5V ~ 28V | - | Round | 0.55" (13.97mm) | 17.00mm Dia | Round with Domed Top | 1300mcd ~ 1900mcd | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 6P | - |
|
Q8F7CXXY02ELED PM INDICATOR FLUSH YLW |
303 |
|
Технический лист |
Q8 | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

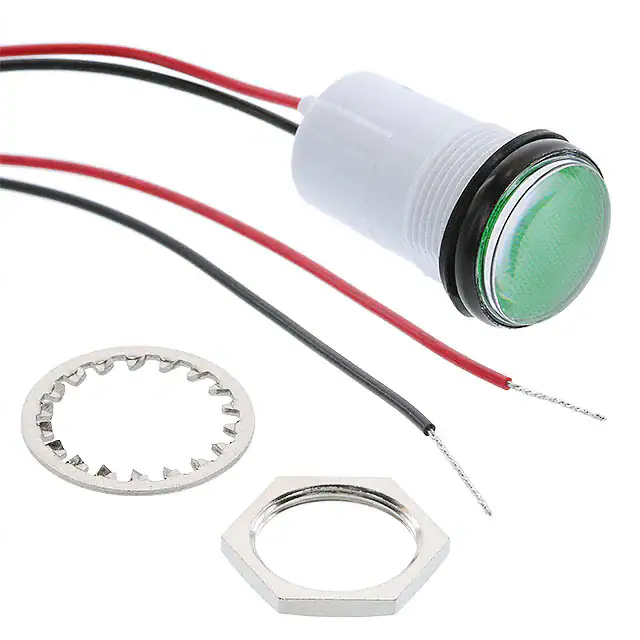

PML50GFVWLED GREEN ROUND PANEL MOUNT |
3,479 |
|
Технический лист |
PML50 | Bulk | Active | LED | Green | Green | Clear | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | 3640mcd | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|
Q6F7BYYRG02ELED INDICATOR 6MM FLUSH IP67 |
3,773 |
|
Технический лист |
Q6 | Bulk | Active | LED | Green, Red | - | Diffused | Vf (Typ), If (Max) | 2.2V Green, 2V Red | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 8mcd Green, 10mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6P3CXXG24ELED PANEL MOUNT INDICATOR GRN |
1,045 |
|
Технический лист |
Q6 | Bag | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6F3BXXG24ELED PM INDICATOR FLUSH GRN |
960 |
|
Технический лист |
Q6 | Bag | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 8mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P3CXXG24ELED PM INDICATOR PROMINENT GRN |
227 |
|
Технический лист |
Q8 | Bag | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 60mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P3CXXR12ELED PM INDICATOR PROMINENT RED |
219 |
|
Технический лист |
Q8 | Bag | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 100mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
5571505203FLED PNL MT 11/16" 24V WT RED |
101 |
|
Технический лист |
557 | Bulk | Active | LED | Red | - | - | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
Q8F8BZZRYG02EPANEL MOUNT LED |
3,631 |
|
Технический лист |
Q8 | Bulk | Active | LED | Green, Red, Yellow | - | - | - | 2.2V Green, 2V Red, 2.1V Yellow | 20mA | Round | 0.315" (8.00mm) | - | Round with Flat Top | 10mcd Green, 15mcd Red, 6mcd Yellow | - | - | Solder Lug | IP67 | - |
|
Q8P7BXXR02ELED PM IND PROMINENT RED |
195 |
|
Технический лист |
Q8 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 100mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
5571605203FLED PNL MT 11/16" 24V WT GREEN |
126 |
|
Технический лист |
557 | Bulk | Active | LED | Green | - | - | DC | 24V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
Q8F1BXXG110EINDICATOR 110V 8MM FLUSH GREEN |
116 |
|
Технический лист |
Q8 | Bulk | Active | LED | Green | Green | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 100° | Solder Lug | IP67 | - |
|
Q8F7BXXR02EINDICATOR 2VDC 8MM FLUSH RED |
163 |
|
Технический лист |
Q8 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 12mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F3CZZRYG24ELED PMI FLUSH GRN/RED/YLW |
878 |
|
Технический лист |
Q14 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 24V Green, 24V Red, 24V Yellow | 20mA Green, 20mA Red, 20mA Yellow | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 30mcd Green, 180mcd Red, 30mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F7BXXG02ELED PM INDICATOR FLUSH GRN |
292 |
|
Технический лист |
Q8 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (8.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
PML50RGFVWLED RED/GREEN ROUND PANEL MOUNT |
2,169 |
|
Технический лист |
PML50 | Bulk | Active | LED | Green, Red | - | Clear | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | 2380mcd Green, 1130mcd Red | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|
Q6F7CXXB02ELED PM INDICATOR FLUSH BLUE |
374 |
|
Технический лист |
Q6 | Bag | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 3.8V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 100mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
LE177C5GLED PNL MNT 125/250V GREEN |
214 |
|
Технический лист |
LE | Bulk | Active | LED | Green | Green | Diffused | AC | 125V ~ 250V | - | Round | 0.50" (12.70mm) | 14.60mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - |
