Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S22DLWXXPQS22 DAYLIGHT VISIBLE EZ LIGHT - |
3 |
|
Технический лист |
S22L | Box | Active | LED | White | - | Clear | DC | 10V ~ 30V | 25mA | Round | 0.87" (22.00mm) | - | Round with Flat Top | 4mcd | - | - | Quick Connect | IP67, IP69K, NEMA 4X | - |
|
704.006.718INDICATOR PANEL LED |
3 |
|
Технический лист |
04 | Bulk | Active | LED | - | Colorless | Clear | - | - | - | Round | 1.20" (30.50mm) | 35.00mm Dia | Round with Flat Top | - | - | - | Screw Terminal | IP65 | - |
|
6303604304F30MM DOM GN 24VDC W/TERM |
0 |
|
Технический лист |
630 | Bag | Active | LED | Green | - | - | DC | 24V | 32mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 1800mcd | - | - | Screw Terminal | - | - |
|
S18DLWXXPQS18 DAYLIGHT VISIBLE EZ-LIGHT - |
3 |
|
Технический лист |
S18L | Box | Active | LED | White | - | Clear | DC | 10V ~ 30V | 25mA | Round | 0.71" (18.00mm) | - | Round with Flat Top | 0.9mcd | - | - | Quick Connect | IP67, IP69K, NEMA 4X | - |
|
S22LGRXPQS22 EZ LIGHT INDICATOR GRN/RED |
1 |
|
Технический лист |
- | Bulk | Active | LED | Green, Red | - | Diffused | DC | 10V ~ 30V | 25mA | Round | 0.866" (22.00mm) | - | Round with Flat Top | 4.1mcd Green, 1.1mcd Red | - | - | Quick Connect | IP67, IP69K, NEMA 4X | - |
|
S18LYXXPQS18 EZ-LIGHT 18MM IP67 BRS |
1 |
|
Технический лист |
S18L | Box | Active | LED | Yellow | - | Clear | DC | 10V ~ 30V | 25mA | Round | 0.71" (18.00mm) | - | Round with Flat Top | 0.8mcd | - | - | Quick Connect | IP67, IP69K, NEMA 4X | - |
|

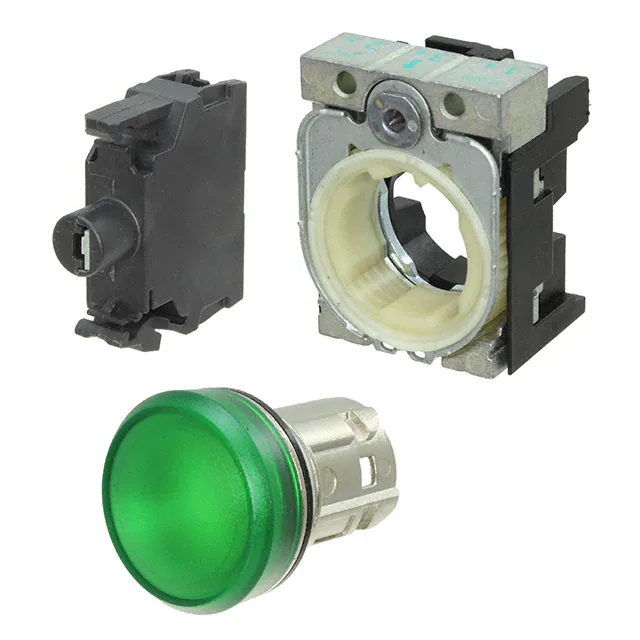

45-1T00.20H6.000.100INDICATOR PANEL LED GRN 24V |
5 |
|
Технический лист |
45 | Bulk | Active | LED | Green | Green | - | AC/DC | 24V | - | - | - | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, IP67, IP69K | - |
|

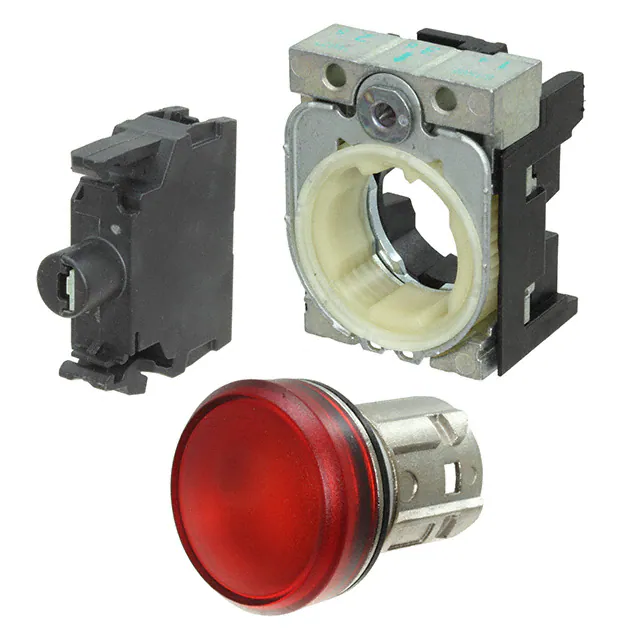

45-1T00.20E6.000.100INDICATOR PANEL LED RED 24V |
3 |
|
Технический лист |
45 | Bulk | Active | LED | Red | Red | - | AC/DC | 24V | - | - | - | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, IP67, IP69K | - |
|
AP22M-2Q4SLED PANEL INDICATOR BLU 24V IP66 |
5 |
|
Технический лист |
AP22M | Bulk | Active | LED | Blue | - | Clear | AC/DC | 24V | 24mA | Round | 0.88" (22.30mm) | 29.80mm Dia | Round with Domed Top | - | - | - | Screw Terminal | IP66 | - |
|
5563503304FLED PNL MT 1" 12V WT DOME RED |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Red | Red | Fresnel | DC | 12V | 95mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
Q14F5CZZRGB24ECAFLUSH CHRMBEZ RGB 24VDC IP67 |
0 |
|
Технический лист |
Q14 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 24V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.55" (14.00mm) | - | Round with Flat Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
5561505304FLED PNL MT 1" 125VAC WT FLAT RED |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Red | - | - | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561705304FLED PNL MT 1" 125VAC WT FLAT YLW |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Yellow | - | - | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561507304FLED PNL MT 1" 125VAC WT FLAT RED |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Red | - | - | DC | 125V | 10mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
ZB5CV033HEAD FOR PILOT LIGHT, HARMONY XB |
1 |
|
Технический лист |
Harmony ZB5 | Box | Active | LED | Green | Green | - | - | - | - | Round | 0.87" (22.00mm) | 30.00mm | Square with Convex Top | - | - | - | - | IP66, NEMA 4X, 13 | - |
|
ZB5CV043HEAD FOR PILOT LIGHT, HARMONY XB |
1 |
|
Технический лист |
Harmony ZB5 | Box | Active | LED | Red | Red | - | - | - | - | Round | 0.87" (22.00mm) | 30.00mm | Square with Convex Top | - | - | - | - | IP66, NEMA 4X, 13 | - |
|
ZB5CV013HEAD FOR PILOT LIGHT, HARMONY XB |
1 |
|
Технический лист |
Harmony ZB5 | Box | Active | LED | White | White | - | - | - | - | Round | 0.87" (22.00mm) | 30.00mm | Square with Convex Top | - | - | - | - | IP66, NEMA 4X, 13 | - |
|
5561504304FLED PNL MT 1" 24V WT FLAT RED |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
S22LGXXPS22 EZ LIGHT INDICATOR GREEN |
2 |
|
Технический лист |
- | Bulk | Active | LED | Green | - | Diffused | DC | 10V ~ 30V | 25mA | Round | 0.866" (22.00mm) | - | Round with Flat Top | 4.1mcd | - | - | Wire Leads | IP67, IP69K, NEMA 4X | - |
|
S22LRXXPS22 EZ LIGHT - 22 MM - IP67S |
1 |
|
Технический лист |
S22L | Box | Active | LED | Red | - | Clear | DC | 10V ~ 30V | 25mA | Round | 0.87" (22.00mm) | - | Round with Flat Top | 1.1mcd | - | - | Wire Leads - 78.74" (2m) | IP67, IP69K, NEMA 4X | - |
