Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S18LGXXPQINDICATOR EZ-LIGHT GREEN |
0 |
|
Технический лист |
- | Box | Active | LED | Green | - | Diffused | DC | 10V ~ 30V | 25mA | Round | 0.709" (18.00mm) | - | Round with Flat Top | 4.1mcd | - | - | Quick Connect | IP67, IP69K, NEMA 4X | - |
|
Q10F5SXXSR02ELED PANEL INDICATOR RED 2V IP67 |
0 |
|
Технический лист |
Q10 | Bag | Active | LED | Red | - | - | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.394" (10.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14P5CZZRGB12ECAPROMCHRMBEZ RGB 12VDC IP67 |
0 |
|
Технический лист |
Q14 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 12V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.55" (14.00mm) | - | Round with Domed Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
5563504304FLED PNL MT 1" 24V WT DOME RED |
5 |
|
Технический лист |
556 | Bulk | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561704304FLED PNL MT 1" 24V WT FLAT YLW |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Yellow | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
Q14F5BZZRGB12ECAFLUSH BLKBEZ RGB 12VDC IP67 |
0 |
|
Технический лист |
Q14 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 12V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.55" (14.00mm) | - | Round with Flat Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
AP22M-2Q4RLED PANEL INDICATOR RED 24V IP66 |
3 |
|
Технический лист |
AP22M | Bulk | Active | LED | Red | - | Clear | AC/DC | 24V | 24mA | Round | 0.88" (22.30mm) | 29.80mm Dia | Round with Domed Top | - | - | - | Screw Terminal | IP66 | - |
|
5561605304FLED PNL MT 1" 125VAC WT FLAT GRN |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Green | - | - | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

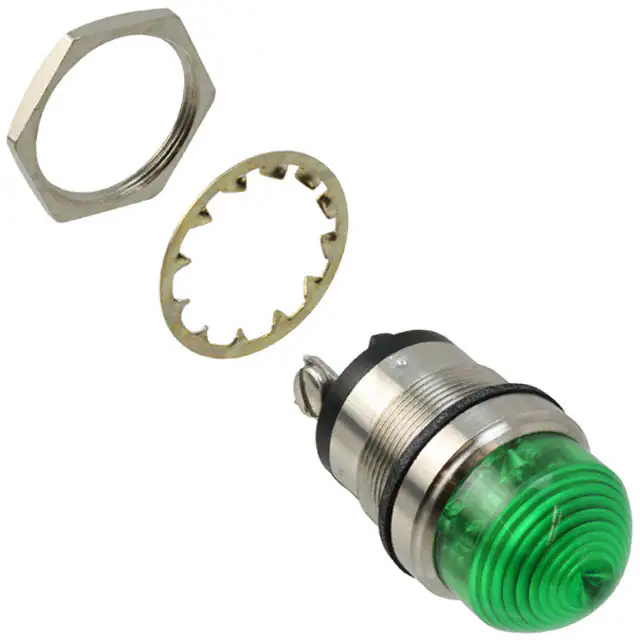

5563605304FLED PNL MT 1" 125VAC WT DOME GRN |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Green | - | - | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

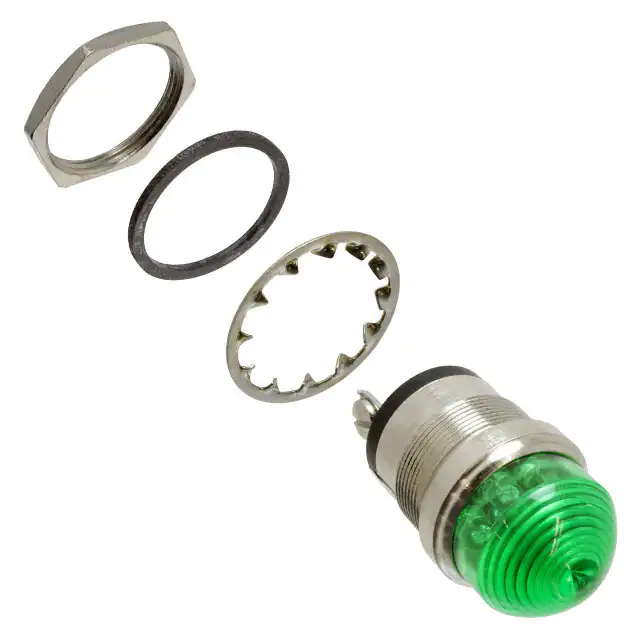

5563604304FLED PNL MT 1" 24V WT DOME GRN |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Green | - | - | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561504324FLED 1" FLAT RED PMI 24V C1D2 |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
S18DLGXXPTS18 DAYLIGHT VISIBLE EZ LIGHT - |
3 |
|
- |
S18L | Box | Active | LED | Green | - | Clear | DC | 10V ~ 30V | 25mA | Round | 0.71" (18.00mm) | - | Round with Flat Top | 2.3mcd | - | - | Screw Terminal | IP67, IP69K, NEMA 4X | - |
|
5561604324FLED 1" FLAT GRN LED PMI 24V C1D2 |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Green | - | - | DC | 24V | 32mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
S22L2FRGB7QS22 PRO EZ LIGHT INDICATOR MULTI |
0 |
|
Технический лист |
- | Bag | Active | LED | Blue, Cyan, Green, Magenta, Red, White - Cool, Yellow | - | Diffused | DC | 10V ~ 30V | 70mA | Round | 0.866" (22.00mm) | - | Round with Flat Top | 0.3mcd Blue, 2mcd Cyan, 1.9mcd Green, 1.2mcd Magenta, 0.8mcd Red, 2.5mcd White - Cool, 2.5mcd Yellow | - | - | Quick Connect | IP66, IP67, IP69K | - |
|
9001SKP8R31PILOT LIGHT 277VAC 30MM SK +OPTI |
1 |
|
Технический лист |
Harmony 9001SK | Box | Active | Incandescent | - | Red | - | AC | 277V | - | Round | 1.18" (30.00mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 3R, 4X, 1, 2, 3, 4, 12, 13 | - |
|
PM3SRDPMI IND 645NM RED DIFF LENS |
25 |
|
Технический лист |
PM3 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.7V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 40mcd | 645nm | 40° | - | - | - |
|
MPC3GDLED ASSY PNL 3MM GRN DIFF 565NM |
23 |
|
Технический лист |
MPC3 | Tray | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | PC Pin | - | - |
|
PM5RDW12.0PNL MNT RED 20MA W/WIRE 12" |
0 |
|
Технический лист |
PM5 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 45° | Wire Leads - 12" (304.80mm) | - | - |
|
MPR5HDPNL MNT W/ WIRE 625NM 25MCD RED |
25 |
|
Технический лист |
MPR5 | Tray | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 625nm | 40° | - | - | - |
|
5580501027FLED PMI SNAP-IN GREEN PVC FREE |
0 |
|
Технический лист |
558 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 70mcd | 565nm | 45° | Wire Leads - 14" (355.60mm) | - | - |
