Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q8F3BXXR24ELED PM INDICATOR FLUSH RED |
101 |
|
Технический лист |
Q8 | Bag | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 12mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
PM5-PRDW12.0PNL MNT W/ WIRE 645NM 40MCD RED |
144 |
|
Технический лист |
PM5 | Bag | Active | LED | Red | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 40mcd | 645nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
CCLB-1-3036-9908-ISEALED LED INDICATOR SUPER ULTRA |
148 |
|
Технический лист |
CCLB | Bulk | Active | LED | Red | - | - | DC | 12V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 2800mcd | 660nm | 20° | Wire Leads - 6" (152.40mm) | IP67 | - |
|

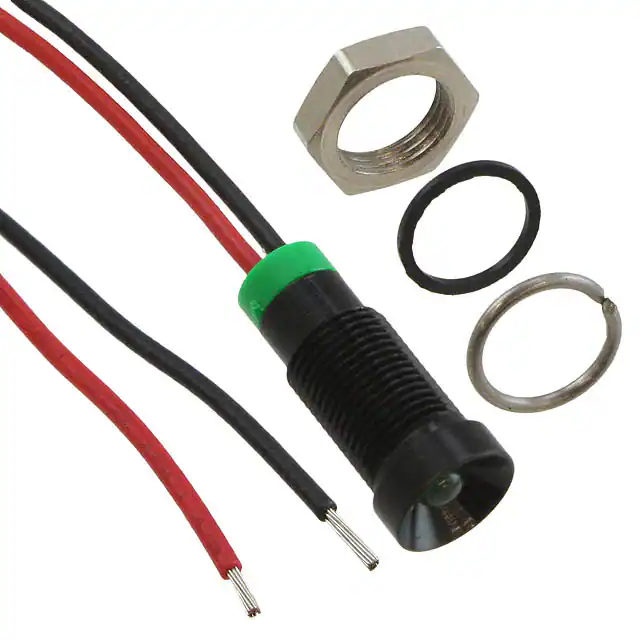

Q6R7BXXG02ELED PM INIDCATOR RECESSED GREEN |
225 |
|
Технический лист |
Q6 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

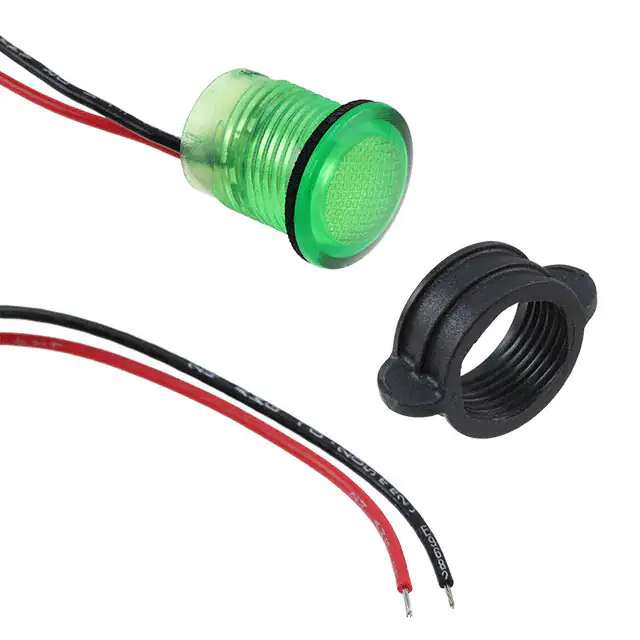

CNX714C500FVWIND TUFFLED FLEXVOLT 14MM GREEN |
448 |
|
Технический лист |
CNX 714FV | Bulk | Active | LED | Green | - | - | - | 5V ~ 28V | - | Round | 0.55" (13.97mm) | 17.00mm Dia | Round with Domed Top | 1050mcd | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 6P | - |
|
5571503203FLED PNL MT 11/16" 12V WT RED |
195 |
|
Технический лист |
557 | Bulk | Active | LED | Red | - | - | DC | 12V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | 1020mcd | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|

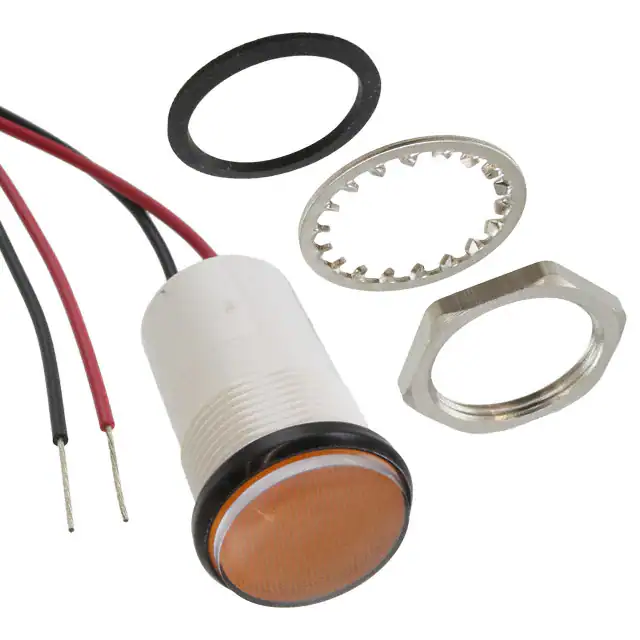

5571703203FLED PNL MT 11/16" 12V WT YELLOW |
124 |
|
Технический лист |
557 | Bulk | Active | LED | Yellow | - | - | DC | 12V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
Q6R7BXXR02ELED PM INDICATOR RECESSED RED |
228 |
|
Технический лист |
Q6 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
LE177C5CLED PNL MNT 125/250V CLEAR |
223 |
|
Технический лист |
LE | Bulk | Active | LED | Clear | Colorless | Clear | AC | 125V ~ 250V | - | Round | 0.50" (12.70mm) | 14.60mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - |
|
PML50SRGFVW.688" DIA (17.5MM) RED/GREEN LED |
123 |
|
Технический лист |
PML50 | Bulk | Active | LED | Green, Red | - | Clear | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Domed Top | 1370mcd Green, 520mcd Red | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|
Q8P1BXXY110EINDICATOR 110V 8MM PROMINENT YEL |
139 |
|
Технический лист |
Q8 | Bulk | Active | LED | Yellow | Yellow | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 50mcd | - | 100° | Solder Lug | IP67 | - |
|
6572503103FLED 17.46MM RED DIFF PANEL MOUNT |
106 |
|
Технический лист |
657 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Domed Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
Q14F3CXXG12ELED PM INDICATOR FLUSH GREEN |
148 |
|
Технический лист |
Q14 | Bag | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q12-7P1CXXHG02ELED INDICATOR 12.7MM PROMINENT H |
416 |
|
Технический лист |
Q12-7 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 3.3V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Domed Top | 1560mcd | - | - | Solder Lug | IP67 | - |
|
Q8P3BZZRYG24ELED PMI PROMINENT GRN/RED/YLW |
698 |
|
Технический лист |
Q8 | Bag | Active | LED | Green, Red, Yellow | - | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd Green, 60mcd Red, 13mcd Yellow | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q12P1BXXG24EINDICATOR 24V 12MM PROMINENT GRN |
531 |
|
Технический лист |
Q12 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 60mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
Q12P1CXXR12EINDICATOR 12V 12MM PROMINENT RED |
486 |
|
Технический лист |
Q12 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.47" (11.94mm) | 8.00mm Dia | Round with Domed Top | 350mcd | - | 60° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
CCLB-1-3047-9908-ISEALED LED INDICATOR SUPER ULTRA |
152 |
|
Технический лист |
CCLB | Bulk | Active | LED | Green | - | - | DC | 12V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 5490mcd | 520nm | 20° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CCLB-1-3036-9920-ISEALED LED INDICATOR SUPER ULTRA |
204 |
|
Технический лист |
CCLB | Bulk | Active | LED | Red | - | - | AC | 120V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 2800mcd | 660nm | 20° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
6561352303FLED PNL IND ORG 5V IP67/NEMA 4X |
107 |
|
Технический лист |
656 | Bag | Active | LED | Orange | - | Clear | DC | 5V | 16mA | Round | 0.50" (12.70mm) | 16.50mm Dia | Round with Flat Top | 1850mcd | - | - | Wire Leads - 5.84" (148.21mm) | IP67, NEMA 4X | - |
