Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5100H1/5LED RED/GRN BICLR 1/4"HOLE PNLMN |
1 |
|
Технический лист |
5100H | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.2V Green, 2.2V Red | 20mA Green, 20mA Red | Round | 0.25" (6.35mm) | - | Round with Domed Top | 6mcd Green, 6mcd Red | 565nm Green, 650nm Red | - | Wire Leads - 6" (152.40mm) | - | - |
|
5593501007FLED SNAP-IN PANEL 5MM RD/GRN |
0 |
|
Технический лист |
559 | Bulk | Active | LED | Green, Red | - | Diffused | Vf (Typ), If (Max) | 2.3V Green, 2.1V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd Green, 5mcd Red | 565nm Green, 635nm Red | 65° | Wire Leads - 14" (355.60mm) | - | - |
|
1030D1INDICATOR NEON RED PANEL MNT |
15 |
|
Технический лист |
1030D | Bag | Not For New Designs | Neon | Red | Red | - | AC | 105V ~ 125V | - | Round | 0.50" (12.70mm) | - | Round with Flat Top | - | - | - | Wire Leads - 4.6" (116.84mm) | - | - |
|
LE2950WL5GLED PNL MNT 125/250V GREEN |
0 |
|
Технический лист |
LE | Bulk | Active | LED | Green | Green | Diffused | AC | 125V ~ 250V | - | Round | 0.31" (7.87mm) | 7.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 8" (203.20mm) | - | - |
|
6061415110FLED PNL IND 6MM R,G 3V PROTRUD |
0 |
|
Технический лист |
606 | Bulk | Active | LED | Green, Red | - | Clear | DC | 3V Green, 3V Red | 10mA Green, 10mA Red | Round | 0.24" (6.20mm) | - | Round with Domed Top | 4000mcd Green, 1200mcd Red | 517nm Green, 622nm Red | 120° | Wire Leads - 6" (152.40mm) | - | - |
|
1032QD5NEON IND GREEN 120V PC MNT QC |
0 |
|
Технический лист |
1032QD | Bag | Not For New Designs | Neon | Green | - | - | AC | 105V ~ 125V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
PM3-PHDW12.0PNL MNT RED 20MA W/WIRE: 12" |
0 |
|
Технический лист |
PM3 | Bag | Active | LED | Red | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 625nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
Q8F3BXXR12ELED PM INDICATOR FLUSH RED |
0 |
|
Технический лист |
Q8 | Bag | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 12mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F3BXXG12ELED PM INDICATOR FLUSH GREEN |
0 |
|
Технический лист |
Q8 | Bag | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6R7CXXG02ELED PM INIDCATOR RECESSED GREEN |
0 |
|
Технический лист |
Q6 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

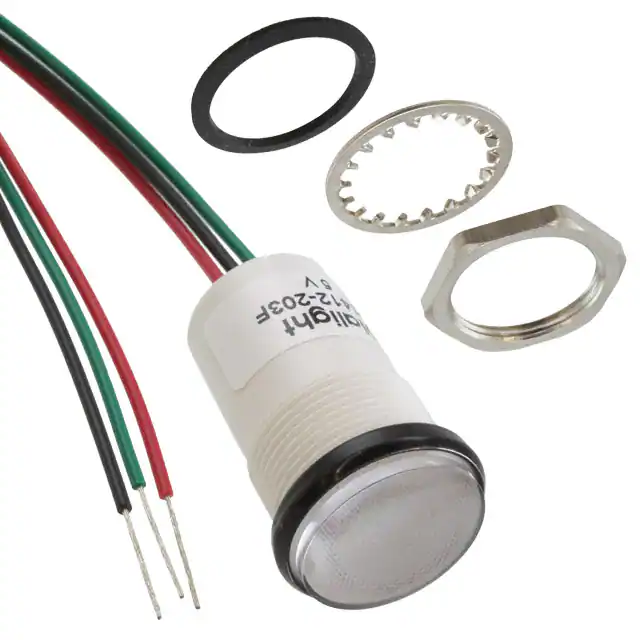

5571412203FLED PNL MT 11/16" 5V WT RED/GRN |
0 |
|
Технический лист |
557 | Bulk | Active | LED | Green, Red | - | - | DC | 5V Green, 5V Red | 16mA Green, 70mA Red | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
Q8P1CXXHG02E8MM PRMNT CHRM HYPR GRN 2VDC |
0 |
|
Технический лист |
Q8 | Tray | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.32" (8.13mm) | - | Round with Domed Top | 1900mcd | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

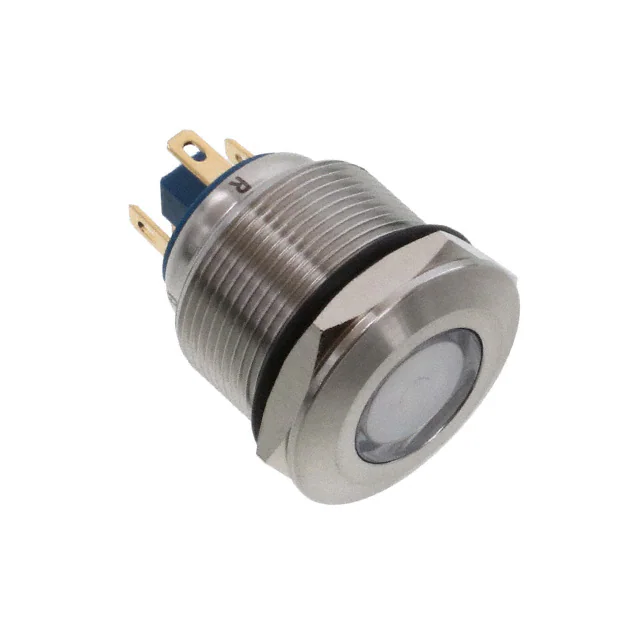

6211121304F22MM FLTPMI RGB 3VDC W/TERM |
0 |
|
Технический лист |
621 | Bag | Active | LED | Red, Green, Blue (RGB) | - | Diffused | DC | 3V | 15mA Red, 15mA Green, 15mA Blue | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd Red, 250mcd Green, 300mcd Blue | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
DX1093/GNLED PANEL INDICATOR GREEN 2V |
0 |
|
Технический лист |
DX1093 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 2V | 25mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 20mcd | - | - | PC Pin | IP66 | - |
|
QRM85BXXR02ELED PMI REAR MOUNT RED |
0 |
|
Технический лист |
QRM | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Flat Top | 10mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F5CZZRGB12ECAFLUSH CHRMBEZ RGB 12VDC IP67 |
0 |
|
Технический лист |
Q14 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 12V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.55" (14.00mm) | - | Round with Flat Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
5563505304FLED PNL MT 1" 125VAC WT DOME RED |
0 |
|
Технический лист |
556 | Bulk | Active | LED | Red | - | - | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
S22L2SRGB14QS22 PRO EZ LIGHT INDICATOR MULTI |
0 |
|
Технический лист |
- | Bag | Active | LED | Amber, Blue, Cyan, Green, Lime Green, Magenta, Rose, Sky Blue, Spring Green, Orange, Red, Violet | - | Diffused | DC | 10V ~ 30V | 70mA | Round | 0.866" (22.00mm) | - | Round with Flat Top | 1.8mcd Amber, 0.3mcd Blue, 2mcd Cyan, 1.9mcd Green, 2.2mcd Lime Green, 1.2mcd Magenta, 0.9mcd Rose | - | - | Quick Connect | IP66, IP67, IP69K | - |
|
PM5GDPNL MNT W/ WIRE 568NM 25MCD GREE |
0 |
|
Технический лист |
PM5 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 45° | - | - | - |
|
5590103001FLED PANEL RED DIFF 12V SNAP-IN |
19 |
|
Технический лист |
559 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 635nm | 60° | PC Pin | - | - |
