Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

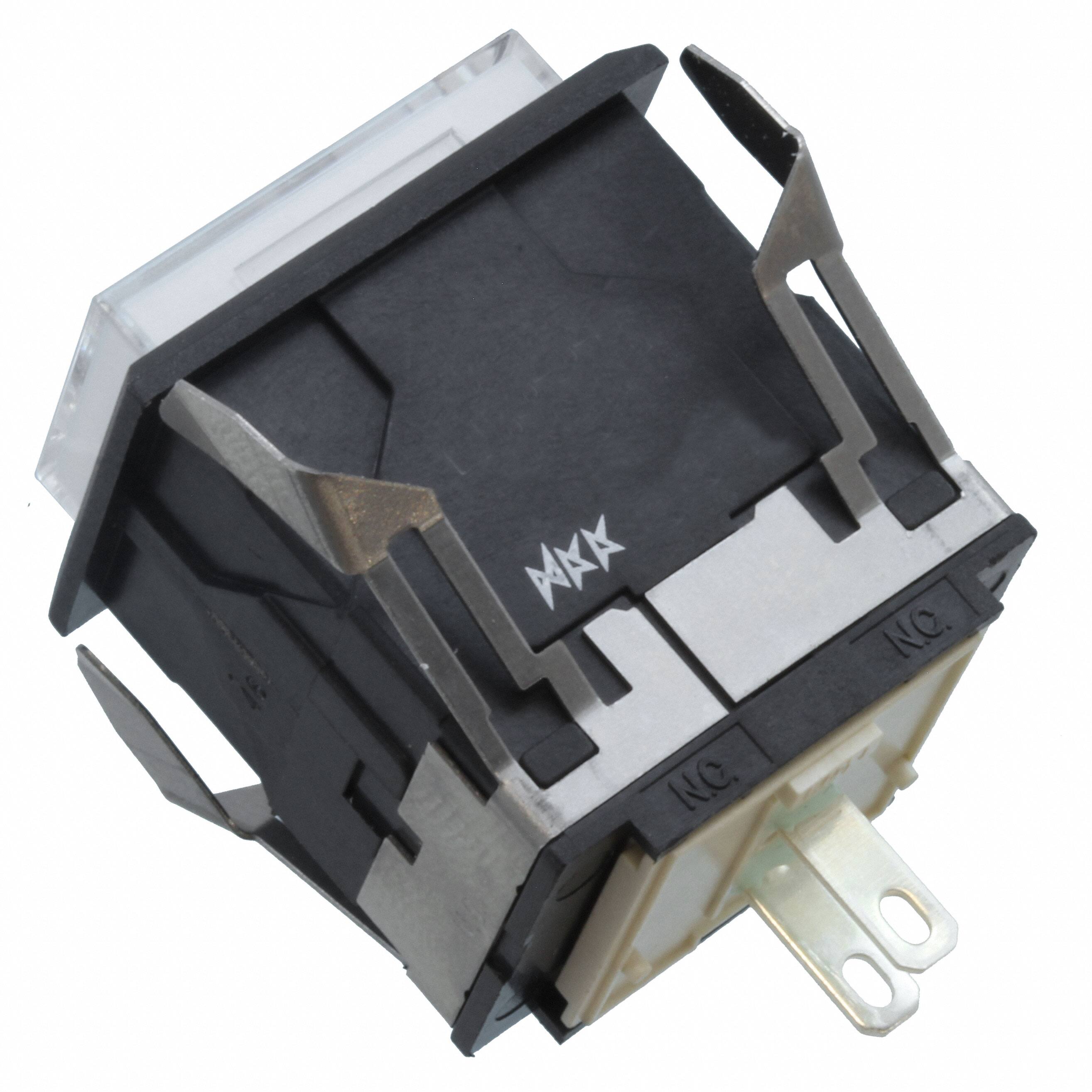

LB03KW01-6F-JBIND PB ILLUM RECT LB SER GRN SLD |
0 |
|
Технический лист |
LB | Box | Active | LED | Green | White | Clear | Vf (Typ), If (Max) | 3.3V | 30mA | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 19.40mm x 13.20mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
LB03KW01-6G-JBIND PB ILLUM RECT BLACK BLUE |
0 |
|
Технический лист |
LB | Box | Active | LED | Blue | White | Clear | Vf (Typ), If (Max) | 3.3V | 30mA | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 19.40mm x 13.20mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
Q8P5CXXW12EINDICATOR 8MM PM PROMINENT BLUE |
17 |
|
Технический лист |
Q8 | Tray | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1600mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
UB04KW016B-JBINDICATOR SQ WHITE LED WHITE CAP |
0 |
|
Технический лист |
UB | Box | Active | LED | White | White | Diffused | Vf (Typ), If (Max) | 3.8V | 25mA | Square | 0.70" x 0.70" (17.78mm x 17.78mm) | 12.00mm | Square with Flat Top | - | - | - | - | - | - |
|
|
YB03KW01-2CF12-JBINDICATOR |
0 |
|
Технический лист |
YB | Bulk | Active | LED | Green, Red | White | Clear | Vf (Typ), If (Max) | 12V Green, 12V Red | 15mA Green, 15mA Red | Round | 0.63" (16.00mm) | 21.00mm x 15.00mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
CRM-1-3054-9910-IPMI DIA .315" (8MM) GREEN 24V |
100 |
|
Технический лист |
CRM | Bag | Active | LED | Green | Green | - | Vf (Typ), If (Max) | 3.2V | 20mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 300mcd | 520nm | 30° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|

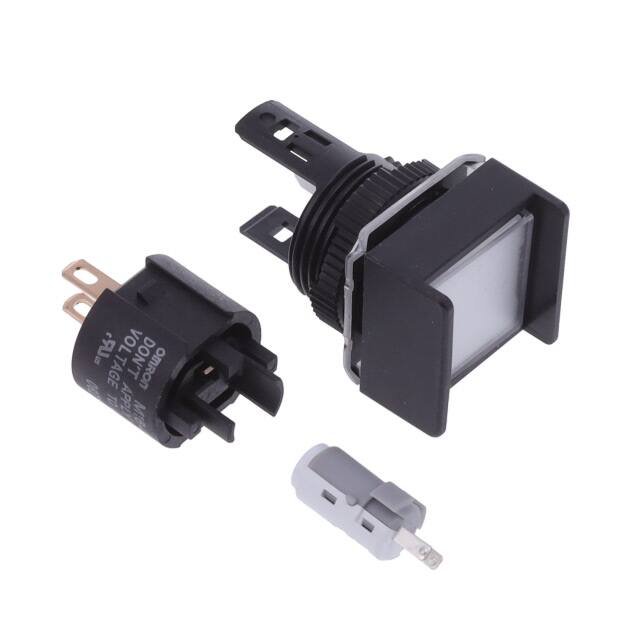

M16-AW-12DPILOT LIGHT 12V LED SQUARE WHITE |
71 |
|
Технический лист |
M16 | Bulk | Active | LED | White | White | Diffused | AC/DC | 12V | 8mA | Round | 0.63" (16.00mm) | 15.10mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - |
|
|
657-3009-802FRT ANGLE LED INDICATOR ASMBY |
8 |
|
- |
657 | Box | Active | LED | White, Cool | Colorless | Clear | DC | 12V ~ 32V | 24mA | Round | - | - | Round with Flat Top | 2000mcd | - | 100°, 80° | Wire Leads | IP67, NEMA 4X | - |
|
|
YB02WKW01-5C05-JCINDICATOR PB 5V RED ILL CLR CAP |
0 |
|
Технический лист |
YB | Tray | Active | LED | Red | Red | Clear | AC | 5V | 25mA | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB02WKW01-5C12-JCINDICATOR PB RND RED 12V ILLUM |
0 |
|
Технический лист |
YB | Box | Active | LED | Red | Red | Clear | AC | 12V | 20mA | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB02WKW01-5C24-JCINDICATOR PB RND RED 24V ILLUM |
0 |
|
Технический лист |
YB | Box | Active | LED | Red | Red | Clear | AC | 24V | 10mA | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|

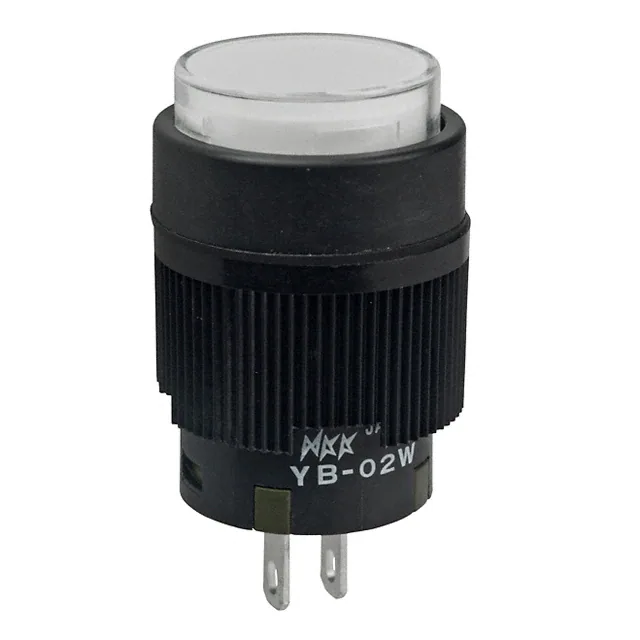

YB02WKW01-5F24-JBINDICATOR PB RND GRN 24V ILLUM |
0 |
|
Технический лист |
YB | Box | Active | LED | Green | White | Diffused | AC | 24V | 10mA | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB02WKW01-2CF02-JBLED PANEL IND GRN/RED 2V |
0 |
|
Технический лист |
YB | Bulk | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2V Green, 2V Red | 60mA Green, 60mA Red | Round | 0.63" (16.00mm) | 16.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB02WKW01-5C05-JBLED PANEL INDICATOR RED 5V |
0 |
|
Технический лист |
YB | Bulk | Active | LED | Red | Red | Diffused | DC | 5V | 25mA | Round | 0.63" (16.00mm) | 16.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB02WKW01-5F24-JFLED PANEL INDICATOR GRN 24V |
0 |
|
Технический лист |
YB | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 10mA | Round | 0.63" (16.00mm) | 16.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB02WKW01-5F12-JFINDICATOR PB 12V GRN ILL CLR CAP |
0 |
|
Технический лист |
YB | Tray | Active | LED | Green | Green | Clear | AC | 12V | 20mA | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB01WKW01-5D05-JBINDICATOR PB 5V AMB ILL CLR CAP |
0 |
|
Технический лист |
YB | Tray | Active | LED | Amber | White | Diffused | AC | 5V | 25mA | Round | 0.63" (16.00mm) | 15.00mm | Square with Flat Top | - | - | - | Quick Connect, Solder Lug - 0.110" (2.8mm) | - | - |
|

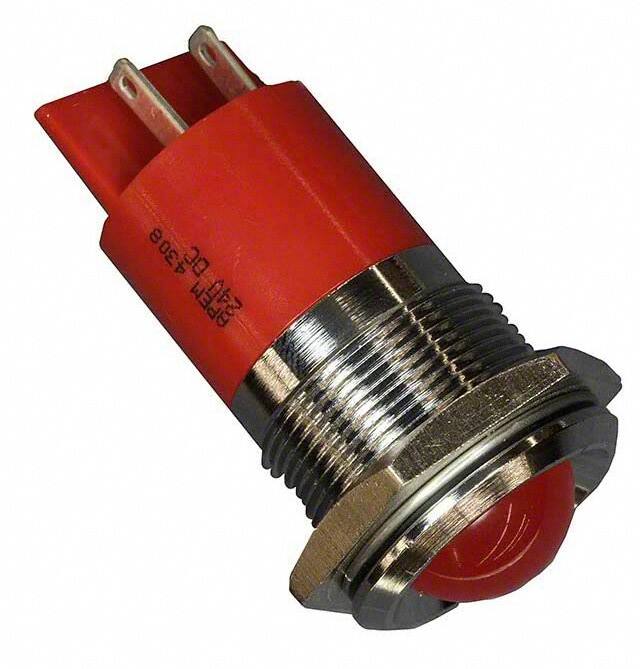

Q22P1CXXR24EINDICATOR 24V 22MM PROMINENT RED |
0 |
|
Технический лист |
Q22 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Domed Top | 80mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

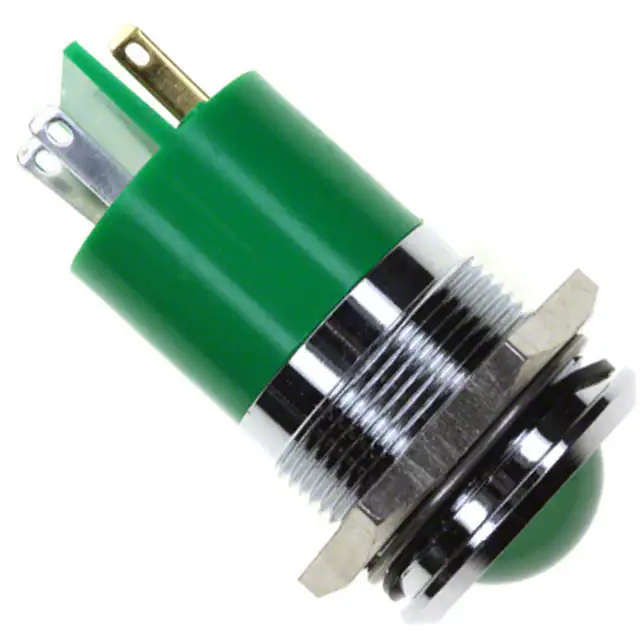

Q22P1CXXG24EINDICATOR 24V 22MM PROMINENT GRN |
0 |
|
Технический лист |
Q22 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Domed Top | 95mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

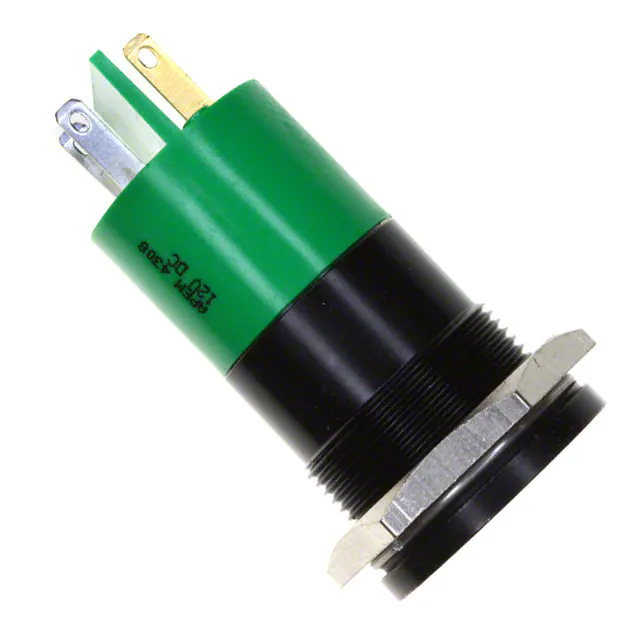

Q22F1BXXG12EINDICATOR 12V 22MM FLUSH GREEN |
0 |
|
Технический лист |
Q22 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 40mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
