Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

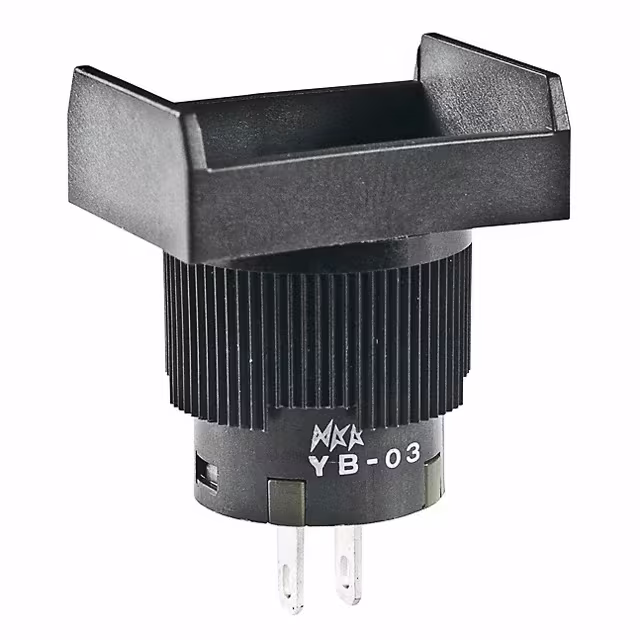

YB03KW01INDICATOR PB RECT SILVER SLD LUG |
23 |
|
Технический лист |
YB | Box | Active | - | - | - | - | - | - | - | Round | 0.63" (16.00mm) | 21.00mm x 15.00mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
36EN-2312GRN NEON 125 VOLTS |
55 |
|
Технический лист |
36 | Bag | Not For New Designs | Neon | - | Green | - | - | 125V | - | Round | 0.31" (7.87mm) | 7.54mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | - | - |
|
C91-BG24H-CGOPM .290" ED STD 24VDC GREEN BK B |
90 |
|
Технический лист |
90 | Bag | Active | LED | Green | Green | Clear | Vf (Typ), If (Max) | 24V | 20mA | Round | 0.29" (7.37mm) | 7.10mm Dia | Round with Flat Top | 10mcd | 565nm | 60° | Wire Wrap, 0.201" (5.1mm) | - | - |
|
|
6241121317F624 LED PMI 12MM RGB 3VDC W/ WIR |
53 |
|
Технический лист |
624 | Bag | Active | LED | Red, Green, Blue (RGB) | Colorless | Clear | DC | 3V Red, 3V Green, 3V Blue | 15mA Red, 15mA Green, 15mA Blue | Round | 0.49" (12.50mm) | 9.14mm Dia | Round with Flat Top | 3500mcd Red, 5000mcd Green, 1000mcd Blue | - | - | Wire Leads - 6.000" (152.40mm) | IP67 | - |
|

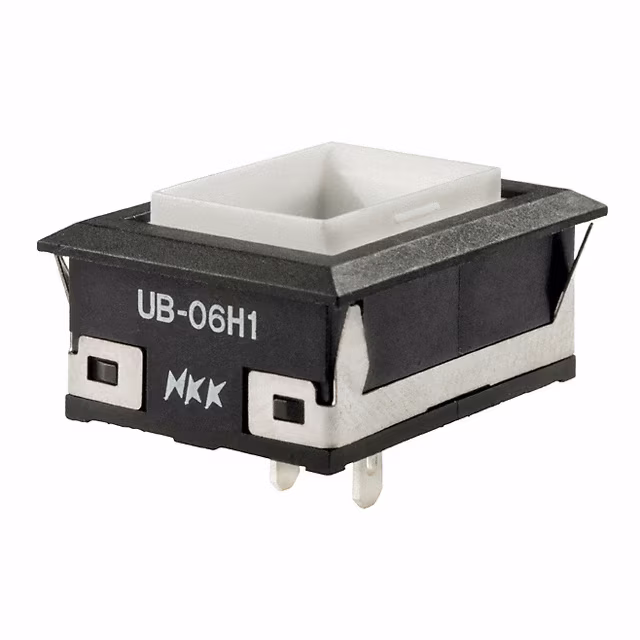

UB06KW015CINDICATOR RECT BLK HSNG RED LED |
2 |
|
Технический лист |
UB | Box | Active | LED | Red | - | - | Vf (Typ), If (Max) | 1.85V | 30mA | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 17.00mm x 12.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
1090QA3-28VINDICATOR INCAND AMBER PANEL MNT |
98 |
|
Технический лист |
1090QA | Bag | Not For New Designs | Incandescent | Amber | Amber | - | - | 28V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
|
HB02KW01-5C-CBSW IND PB RND RED LED DIFF SLD |
29 |
|
Технический лист |
HB | Tray | Active | LED | Red | White | Diffused | Vf (Typ), If (Max) | 1.95V | 30mA | Round | 0.32" (8.13mm) | 7.40mm Dia | Round with Flat Top | - | - | - | - | - | - |
|
DX0998/GNLED PANEL INDICATOR GREEN 2V |
86 |
|
Технический лист |
DX0998 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 2V | 25mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 20mcd | - | - | PC Pin | - | - |
|
|
PMRL200-BR28H-WTPMI 1-03-17 WT |
73 |
|
Технический лист |
PMRL200 | Bulk | Active | LED | Red | - | - | Vf (Typ), If (Max) | 28V | 16.5mA | Round | 0.31" (7.92mm) | 5mm, T-1 3/4 | Round with Domed Top | 120mcd | 635nm | 60° | PC Pin | - | - |
|
|
PMRL200-BG48H-WTPMI 2-22-17 WT |
58 |
|
Технический лист |
PMRL200 | Bulk | Active | LED | Green | - | - | DC | 2V | - | Round | 0.31" (7.92mm) | 5mm, T-1 3/4 | Round with Domed Top | 80mcd | 565nm | 60° | PC Pin | - | - |
|
|
FL1A-8FW-1-D-ERG12VLED RG 8MM NUT 12VAC/DC |
35 |
|
Технический лист |
FL1A | Bulk | Active | LED | Green, Red | White | Diffused | AC/DC | 10.8V ~ 13.2V | 20mA Green, 20mA Red | Round | 0.32" (8.00mm) | 8.00mm Dia | Round with Flat Top | 5100mcd Green, 5050mcd Red | - | 65° | Wire Leads - 7.3" (185.42mm) | IP65 | - |
|
|
FL1A-8FW-1-D-ERG24VLED RG 8MM NUT 24VAC/DC |
35 |
|
Технический лист |
FL1A | Bulk | Active | LED | Green, Red | White | Diffused | AC/DC | 21.6V ~ 26.4V | 20mA Green, 20mA Red | Round | 0.32" (8.00mm) | 8.00mm Dia | Round with Flat Top | 5100mcd Green, 5050mcd Red | - | 65° | Wire Leads - 7.3" (185.42mm) | IP65 | - |
|
|
PMRL125W-BG2PMI 8-24-2012 |
46 |
|
Технический лист |
PMRL125 | Bulk | Active | LED | Green | - | - | DC | 2V | - | Round | 0.23" (5.84mm) | 3mm, T-1 | Round with Domed Top | 14mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
PMRL200-BG12H-WTPMI 11-09-16 WT |
84 |
|
Технический лист |
PMRL200 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 12V | 20mA | Round | 0.31" (7.92mm) | 5mm, T-1 3/4 | Round with Domed Top | 80mcd | 565nm | 60° | PC Pin | - | - |
|
1053QA5LAMP NEON GREEN 220V PNL MNT |
93 |
|
Технический лист |
1053QA | Bag | Not For New Designs | Neon | Green | - | - | - | 208V ~ 250V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
|
PML50YGFVWPML50 HARSH ENVIRONMENT SERIES I |
87 |
|
Технический лист |
PML50 | Bag | Active | LED | Green, Yellow | - | - | DC | 5V ~ 28V | 20mA | Round | 0.69" (17.50mm) | 17.78mm Dia | Round with Flat Top | 762mcd Green, 1080mcd Yellow | - | - | Wire Leads - 5.5" (139.70mm) | IP67 | - |
|
|
PMRL200W-BCG15HPMI 1-30-17 GREEN |
90 |
|
Технический лист |
PMRL200 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 15V | 24mA | Round | 0.31" (7.92mm) | 5mm, T-1 3/4 | Round with Domed Top | 80mcd | 565nm | 24° | Wire Leads - 6" (152.40mm) | - | - |
|
|
PMRL200-NWB24H-WTPMI 1-03-17 WT |
53 |
|
Технический лист |
PMRL200 | Bulk | Active | LED | Blue | - | - | Vf (Typ), If (Max) | 24V | 15mA | Round | 0.31" (7.92mm) | 5mm, T-1 3/4 | Round with Domed Top | 700mcd | 465nm | 45° | PC Pin | - | - |
|

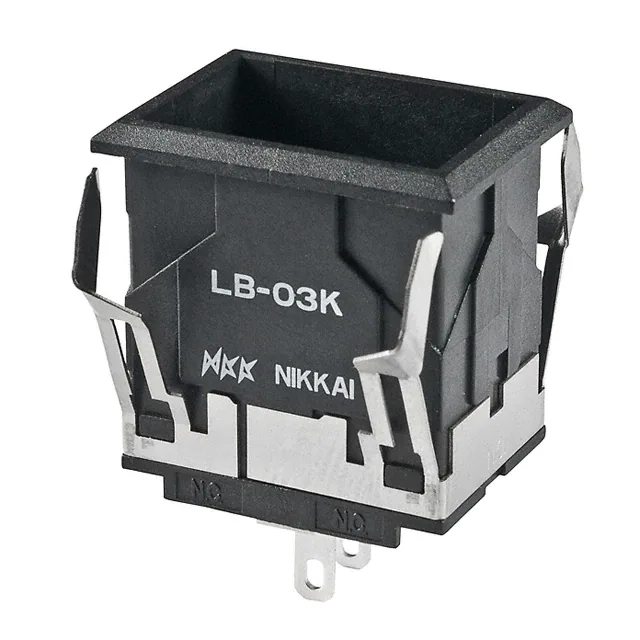

LB03KW01IND PB RECT SILVER SLD LB SER |
9 |
|
Технический лист |
LB | Box | Active | - | - | - | - | - | - | - | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 19.40mm x 13.20mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
PL-612-RPILOT LIGHT L.E.D RED |
69 |
|
Технический лист |
PL-521 | Bulk | Active | LED | Red | - | - | DC | 12V | - | Round | 0.55" (13.87mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - |
