Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5100H5FLLED GREEN 1/4" HOLE PANEL MOUNT |
509 |
|
Технический лист |
5100H | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 9V ~ 12V | 56mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 32mcd | 565nm | 60° | Wire Leads - 6.1" (154.94mm) | - | Flashing LED |
|
2150QA1LAMP NEON INCAND RED PNL MNT |
219 |
|
Технический лист |
2150QA | Bag | Not For New Designs | Neon | Red | - | - | AC | 105V ~ 125V | - | Round | 0.31" (7.87mm) | - | Round with Flat Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
1090A5-12VINDICATOR INCAND GREEN PANEL MNT |
1,028 |
|
Технический лист |
1090A | Bag | Not For New Designs | Incandescent | Green | Green | - | - | 12V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Wire Leads - 4.6" (116.84mm) | - | - |
|
1092QA1-125VACLED PANEL INDICATOR RED 125V |
147 |
|
Технический лист |
1092Q | Bulk | Active | LED | Red | Red | Diffused | AC | 125V | 25mA | Round | 0.50" (12.70mm) | - | Round with Domed Top | 13000mcd | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
2150A3LAMP NEON INCAND AMBER PNL MNT |
325 |
|
Технический лист |
2150A | Bag | Not For New Designs | Neon | Amber | - | Clear | AC | 105V ~ 125V | - | Round | 0.31" (7.87mm) | - | Round with Flat Top | - | - | - | Wire Leads - 4.6" (116.84mm) | - | - |
|
1050A1INDICATOR NEON RED PANEL MNT |
860 |
|
Технический лист |
1050A | Bag | Not For New Designs | Neon | Red | Red | - | AC | 105V ~ 125V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Wire Leads - 4.6" (116.84mm) | - | - |
|

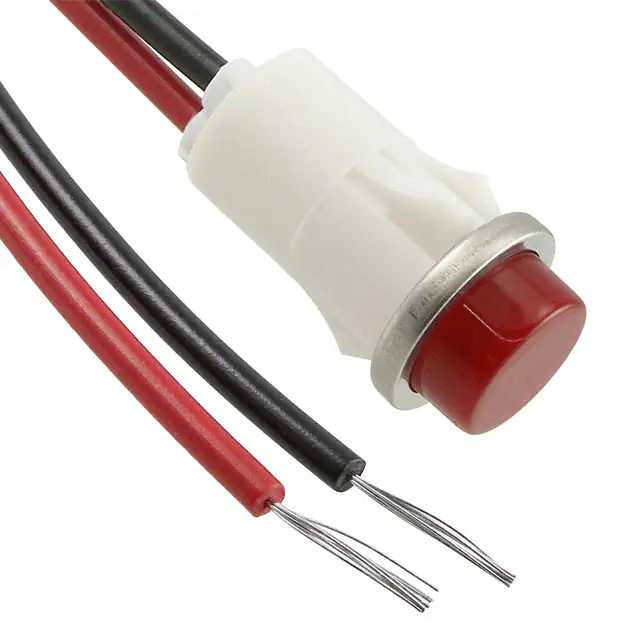

1051C1INDICATOR NEON RED PANEL MNT |
146 |
|
Технический лист |
1051C | Bag | Not For New Designs | Neon | Red | Red | - | AC | 208V ~ 250V | - | Round | 0.50" (12.70mm) | - | Round with Flat Top | - | - | - | Wire Leads - 4.6" (116.84mm) | - | - |
|
5100H1FLLED RED 1/4" HOLE PANEL MOUNT |
216 |
|
Технический лист |
5100H | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 9V ~ 12V | 56mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 80mcd | 625nm | 60° | Wire Leads - 6.1" (154.94mm) | - | Flashing LED |
|
1092QC1-12VLED PMI, RED, HI-HAT, 12V, 3/16" |
141 |
|
Технический лист |
1092Q | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 25mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 13000mcd | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
6071212310F7 MM GREEN PMI W GASKET |
352 |
|
Технический лист |
607 | Bulk | Active | LED | Green | - | - | DC | 2V | 15mA | Round | 0.28" (7.20mm) | 4.00mm Dia | Round with Domed Top | 65mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
2111A1INDICATOR NEON RED PANEL MNT |
265 |
|
Технический лист |
2111A | Bag | Not For New Designs | Neon | Red | - | Clear | AC | 208V ~ 250V | - | Round | 0.31" (7.87mm) | - | Round with Flat Top | - | - | - | Wire Leads - 4.6" (116.84mm) | - | - |
|
606-3215-120F6 MM GREEN LED PMI HT 6V |
106 |
|
Технический лист |
606 | Bulk | Active | LED | Green | - | - | DC | 6V | 15mA | Round | 0.30" (7.50mm) | - | Round with Flat Top | 2500mcd | - | - | Wire Leads - 6" (152.40mm) | IP67 | - |
|
1091QM5-12VLED IND LIGHT 12V GREEN |
4,913 |
|
Технический лист |
1091QM | Bulk | Active | LED | Green | Green | - | AC/DC | 12V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
1091QM1-12VLED IND LIGHT 12V RED |
2,458 |
|
Технический лист |
1091QM | Bulk | Active | LED | Red | Red | - | AC/DC | 12V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|
QS63XXB24INDICATOR 6MM FIXED BLU 24V WIRE |
333 |
|
Технический лист |
QS | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.24" (6.00mm) | 7.20mm Dia | Round with Convex Top | 800mcd | - | 30° | Wire Leads - 7.87" (200.00mm) | - | - |
|

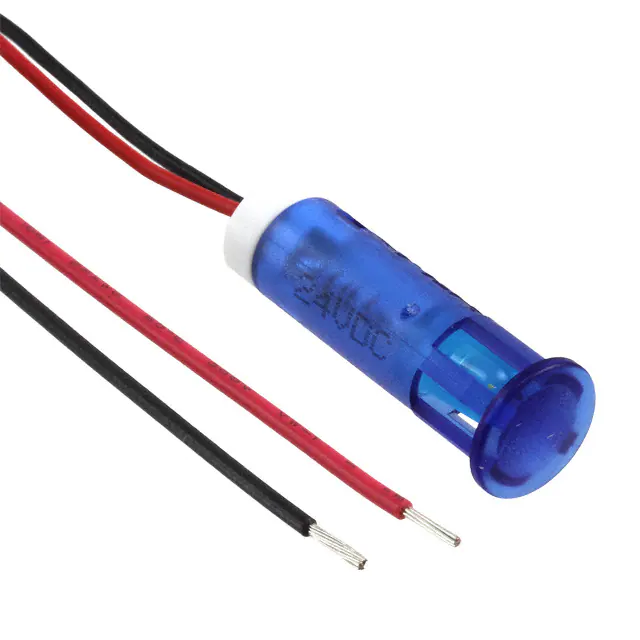

QS83XXB24INDICATOR 8MM FIXED BLU 24V WIRE |
308 |
|
Технический лист |
QS | Bulk | Active | LED | Blue | Blue | Diffused | DC | 24V | 20mA | Round | 0.315" (8.00mm) | 10.00mm Dia | Round with Flat Top | 800mcd | - | 30° | Wire Leads - 7.87" (200.00mm) | - | - |
|
1030QD3NEON IND LIGHT 125V AMBER QC |
227 |
|
Технический лист |
1030QD | Bag | Not For New Designs | Neon | Amber | - | - | AC | 105V ~ 125V | - | Round | 0.50" (12.70mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - |
|

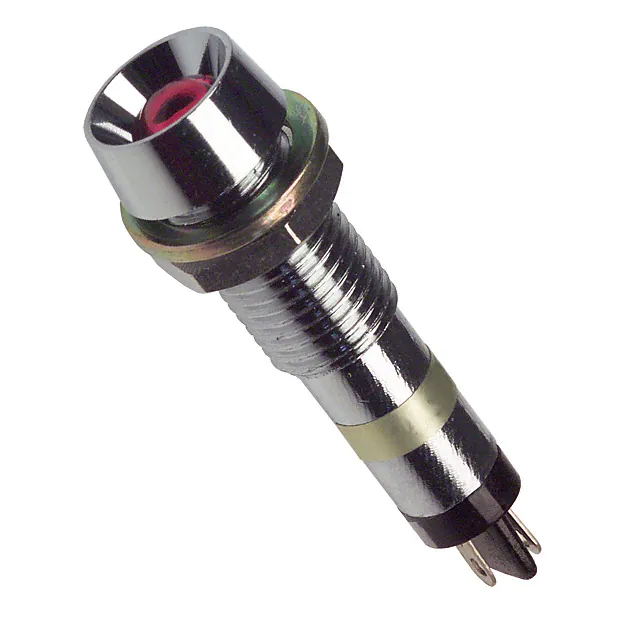

6072112130FLED PNL MT 7MM 12V CHROME RED |
204 |
|
Технический лист |
607 | Bag | Active | LED | Red | - | - | DC | 12V | 15mA | Round | 0.28" (7.20mm) | - | Round with Flat Top | 65mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|

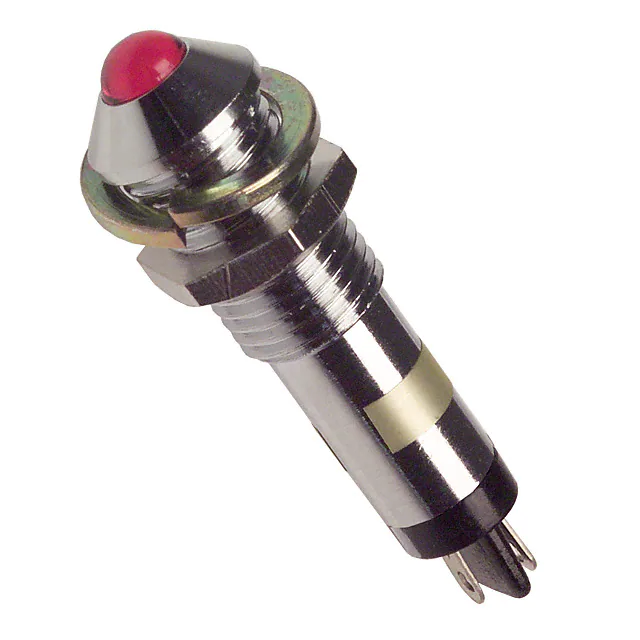

6071112130FLED PNL MT 7MM 12V CHROME RED |
121 |
|
Технический лист |
607 | Bag | Active | LED | Red | - | - | DC | 12V | 15mA | Round | 0.28" (7.20mm) | 4.00mm Dia | Round with Domed Top | 40mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
|
606-3215-140F6 MM GREEN LED PMI HT 24V |
228 |
|
Технический лист |
606 | Bulk | Active | LED | Green | - | - | DC | 24V | 15mA | Round | 0.30" (7.50mm) | - | Round with Flat Top | 2500mcd | - | - | Wire Leads - 6" (152.40mm) | IP67 | - |
