Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6303505304F30MM DOM RD 120VAC W/TERM |
16 |
|
Технический лист |
630 | Bag | Active | LED | Red | - | - | AC | 120V | 10.5mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 500mcd | - | - | Screw Terminal | - | - |
|
6303005304F30MM DOM WHITE 120VAC W/TERM |
6 |
|
Технический лист |
630 | Bag | Active | LED | White | - | - | AC | 120V | 9.5mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 1800mcd | - | - | Screw Terminal | - | - |
|
Q19P5CZZRGB12ECAPROMCHRMBEZ RGB 12VDC IP67 |
10 |
|
Технический лист |
Q19 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 12V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.75" (19.00mm) | 22.00mm Dia | Round with Domed Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F5ARXXHR24EINDICATOR 24V 14MM FLUSH RED |
49 |
|
Технический лист |
Q14 | Bag | Active | LED | Red | - | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 800mcd | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
5561508304FLED PNL MT 1" 37V WT FLAT RED |
13 |
|
Технический лист |
556 | Bulk | Active | LED | Red | - | - | DC | 37.5V | 20mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563708304FLED PANEL MT 1" WT DOME YELLOW |
12 |
|
Технический лист |
556 | Bulk | Active | LED | Yellow | - | - | DC | 37.5V | 20mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
Q19P5BZZRGB12ECAPROMBLKBEZ RGB 12VDC IP67 |
10 |
|
Технический лист |
Q19 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 12V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.75" (19.00mm) | 22.00mm Dia | Round with Domed Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
XB7EV65PHARMONY XB7, MONOLITHIC PILOT LI |
8 |
|
Технический лист |
Harmony XB7 | Box | Active | Incandescent | - | Yellow | - | DC | 250V | - | Round | 0.89" (22.50mm) | 29.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.250" (6.3mm) | IP20, IP54, NEMA 12 | - |
|
QH16057YC16MM HALO YLW BODY FROSTED LENS |
47 |
|
Технический лист |
QH | Bag | Active | LED | Yellow | White | Diffused | DC | 12V ~ 26.4V | 4.2 ~ 20mA | Round | 0.63" (16.00mm) | 35.50mm Dia | Ring with Domed Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
556-18B4-304F1" FLAT B LED 24VDC, UV RATED |
15 |
|
Технический лист |
556 | Bulk | Active | LED | Blue | - | - | DC | 24V | 32mA | Round | 1.12" (28.40mm) | - | Round with Flat Top | 13000mcd | - | - | Wire Leads - 8" (203.20mm) | IP66, NEMA 4X | - |
|
|
556-16B4-304F1" FLAT G LED 24VDC, UV RATED |
20 |
|
Технический лист |
556 | Bulk | Active | LED | Green | - | - | DC | 24V | 32mA | Round | 1.12" (28.40mm) | - | Round with Flat Top | 41500mcd | - | - | Wire Leads - 8" (203.20mm) | IP66, NEMA 4X | - |
|
5563803304FLED PNL MT 1" 12V WT DOME BLUE |
20 |
|
Технический лист |
556 | Bulk | Active | LED | Blue | - | - | DC | 12V | 60mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563005304FLED PANEL MT 1" 125V ROUND WHT |
12 |
|
Технический лист |
556 | Bulk | Active | LED | White | - | - | AC | 125V | 9mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

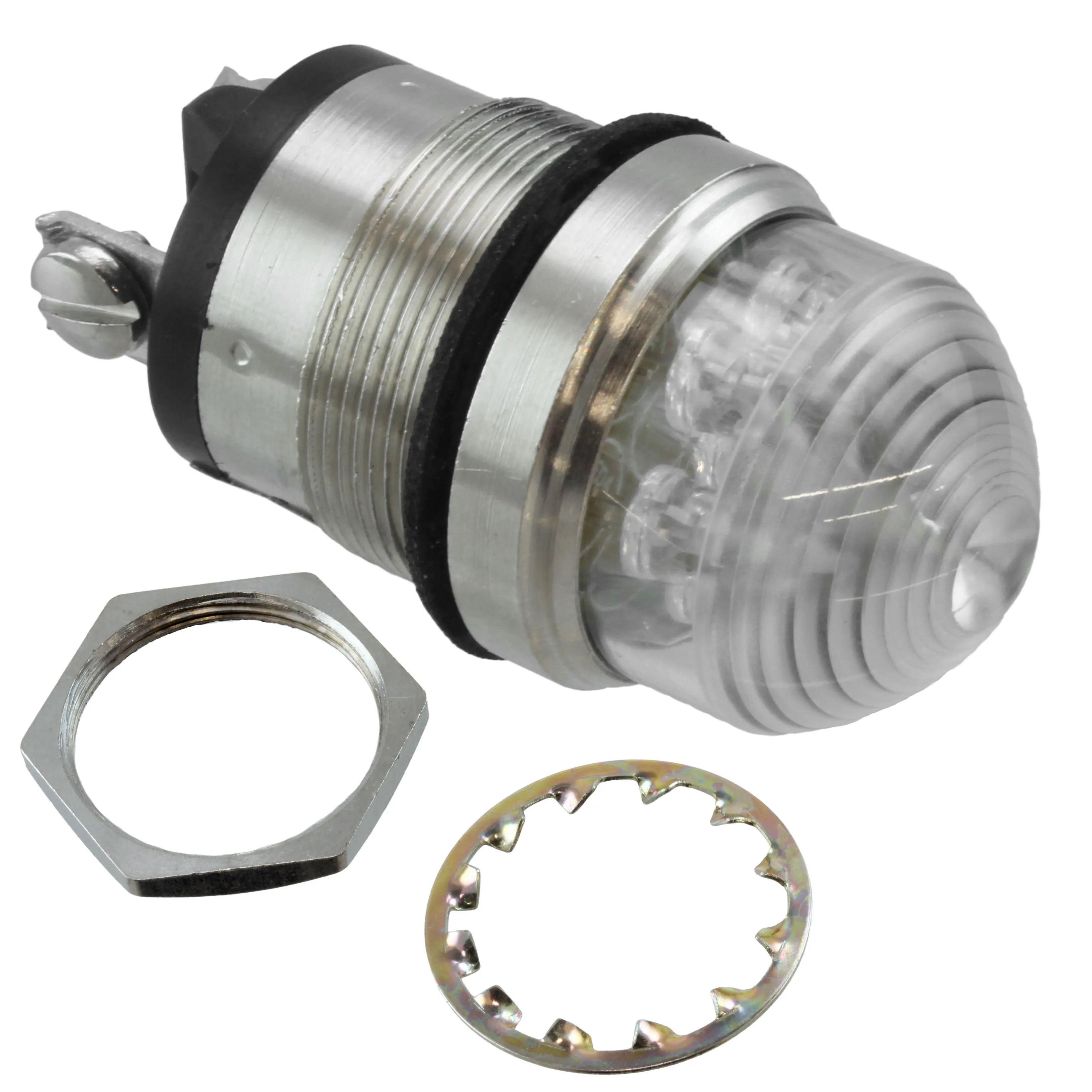

5563003304FLED PNL MT 1" 12V WT DOME WHT |
8 |
|
Технический лист |
556 | Bulk | Active | LED | White | - | - | DC | 12V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

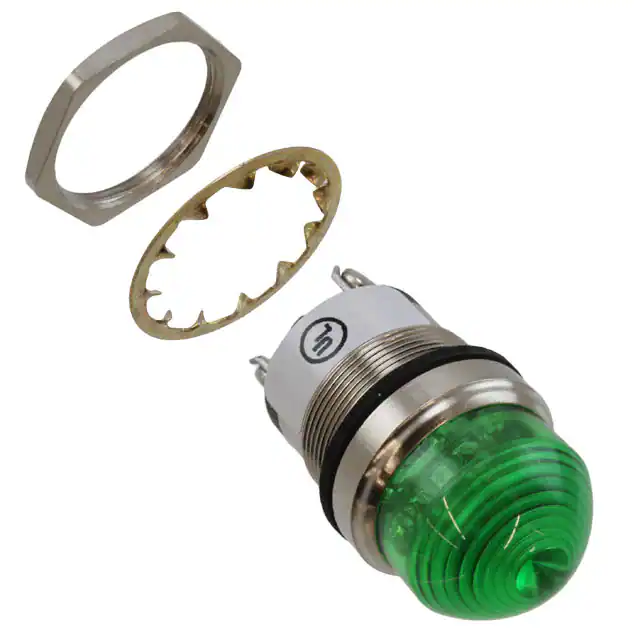

5563603324FLED 1" DOME GRN PMI 12V C1D2 |
2 |
|
Технический лист |
556 | Bulk | Active | LED | Green | - | - | DC | 12V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
XVLA125LED PILOT LIGHT WITH BLACK BEZEL |
10 |
|
Технический лист |
Harmony XVL | Box | Active | LED | Yellow | Yellow | - | DC | 12V | 18mA | Round | 0.32" (8.00mm) | - | Round with Domed Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - |
|

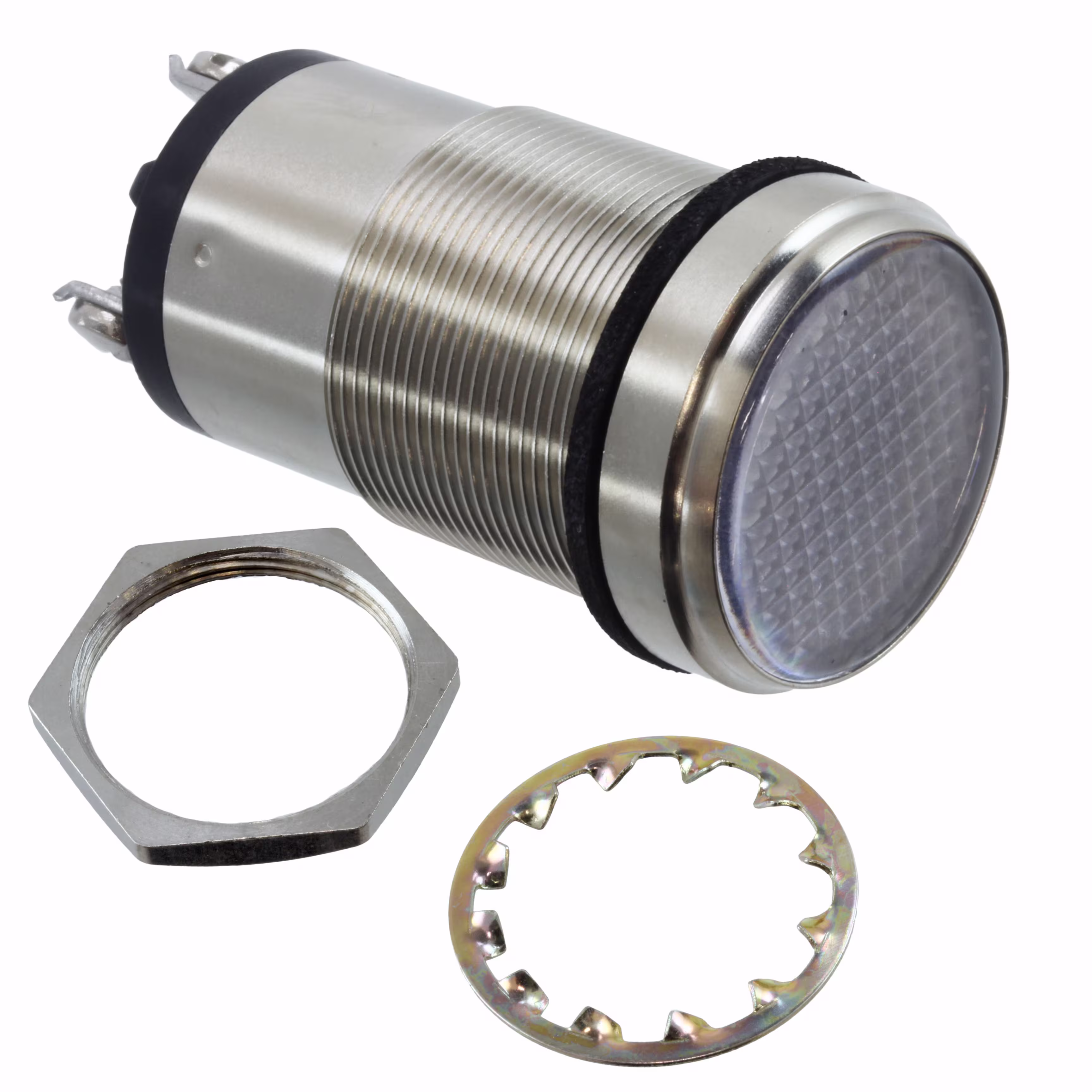

5561805304FLED PNL MT 1" 125VAC WT FLAT BLU |
3 |
|
Технический лист |
556 | Bulk | Active | LED | Blue | - | - | AC | 125V | 9.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

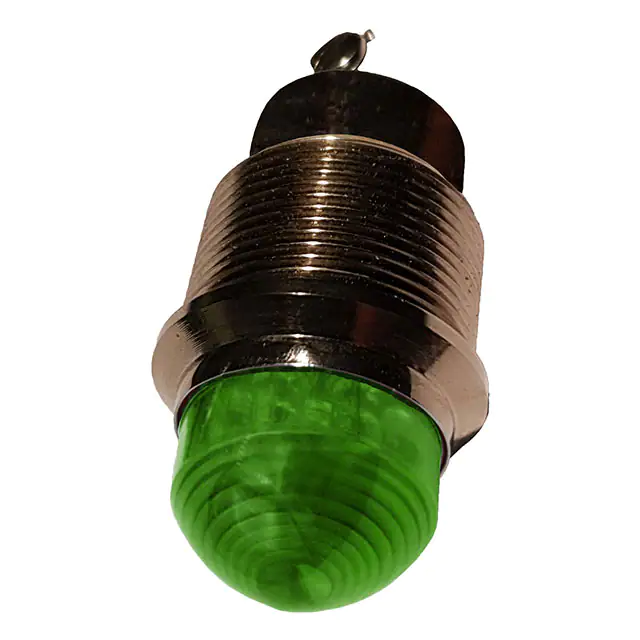

6303605304F30MM DOM GN 120VAC W/TERM |
14 |
|
Технический лист |
630 | Bag | Active | LED | Green | - | - | AC | 120V | 9.5mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 700mcd | - | - | Screw Terminal | - | - |
|
Q10F5SXXSB24ELED PANEL INDICATOR BLU 24V IP67 |
9 |
|
Технический лист |
Q10 | Bag | Active | LED | Blue | - | - | DC | 24V | 20mA | Round | 0.394" (10.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 50mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
QH19028RC19MM HALO BLACK BODY TINTED LENS |
5 |
|
Технический лист |
QH | Bag | Active | LED | Red | Red | Clear | DC | 12V ~ 26.4V | 4.2 ~ 20mA | Round | 0.748" (19.00mm) | 38.50mm Dia | Ring with Domed Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
