Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QRM85BXXY24ELED PMI REAR MOUNT YELLOW |
97 |
|
Технический лист |
QRM | Bag | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
45-1T00.20N6.000.100INDICATOR PANEL LED WHT 24V |
9 |
|
Технический лист |
45 | Bulk | Active | LED | White | White | - | AC/DC | 24V | - | - | - | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, IP67, IP69K | - |
|
6301003304F30MM FLT WHITE 12VDC W/TERM |
22 |
|
Технический лист |
630 | Bag | Active | LED | White | - | - | DC | 12V | 60mA | Round | 1.18" (30.00mm) | - | Round with Flat Top | 4000mcd | - | - | Screw Terminal | - | - |
|
5561504314FLED 1" RED PMI 24V CLR FLAT LEN |
49 |
|
Технический лист |
556 | Bulk | Active | LED | Red | Colorless | Clear | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563704304FLED PNL MT 1" 24V WT DOME YEL |
8 |
|
Технический лист |
556 | Bulk | Active | LED | Yellow | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

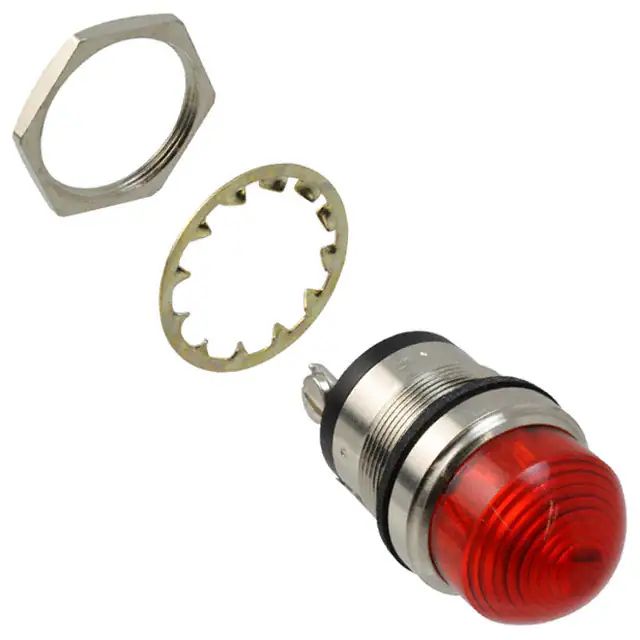

5563507304FLED 1" DOME RED PMI 125VCD |
7 |
|
Технический лист |
556 | Bulk | Active | LED | Red | - | - | AC | 125V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
QRM85BXXR24ELED PMI REAR MOUNT RED |
46 |
|
Технический лист |
QRM | Bag | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Flat Top | 10mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
K14-040.120101INDICATOR PANEL LED RED 24V |
9 |
|
Технический лист |
14 | Box | Active | LED | Red | Red | Clear | AC/DC | 24V | 5mA | Round | 0.88" (22.30mm) | 29.00mm Dia | Round with Flat Top | - | - | - | Solder Lug | IP67 | - |
|
Q16F5CZZRGB12ECAFLUSHCHRMBEZ RGB 12VDC IP67 |
25 |
|
Технический лист |
Q16 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 12V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.63" (16.00mm) | 18.30mm Dia | Round with Flat Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q16P5CZZRGB24ECAPROMCHRMBEZ RGB 24VDC IP67 |
15 |
|
Технический лист |
Q16 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 24V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.63" (16.00mm) | 18.30mm Dia | Round with Domed Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q16P5CZZRGB12ECAPROMCHRMBEZ RGB 12VDC IP67 |
9 |
|
Технический лист |
Q16 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 12V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.63" (16.00mm) | 18.30mm Dia | Round with Domed Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
AP22M-2Q4GLED PANEL INDICATOR GRN 24V IP66 |
40 |
|
Технический лист |
AP22M | Bulk | Active | LED | Green | - | Clear | AC/DC | 24V | 24mA | Round | 0.88" (22.30mm) | 29.80mm Dia | Round with Domed Top | - | - | - | Screw Terminal | IP66 | - |
|
|
Q16F5BZZRGB12ECAFLUSHBLKBEZ RGB 12VDC IP67 |
30 |
|
Технический лист |
Q16 | Bulk | Active | LED | Red, Green, Blue (RGB) | Clear | Diffused | DC | 12V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.63" (16.00mm) | 18.30mm Dia | Round with Flat Top | 220mcd Red, 500mcd Green, 100mcd Blue | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

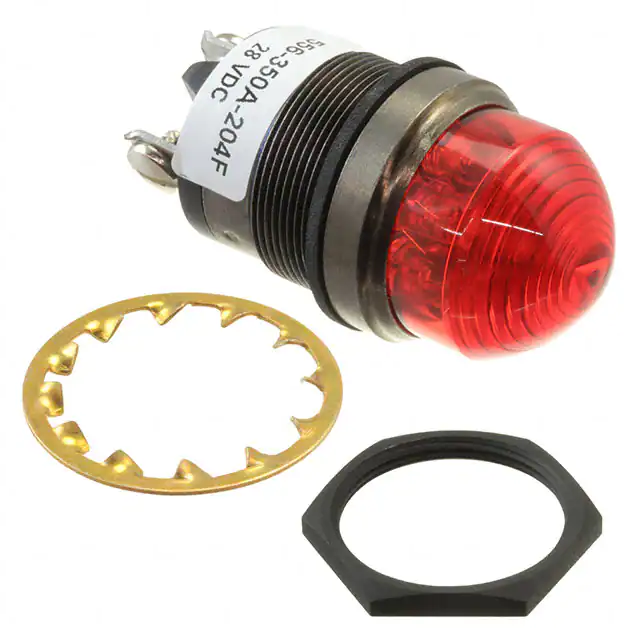

556350A204F1"DOME RED LED PMI CONST INT |
9 |
|
Технический лист |
556 | Bag | Active | LED | Red | Red | Clear | DC | 18V ~ 48V | 8.2mA | Round | 1.00" (25.4mm) | - | Round with Domed Top | 400mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
XB7EV08MPHARMONY XB7, MONOLITHIC PILOT LI |
88 |
|
Технический лист |
Harmony XB7 | Box | Active | LED | - | Orange | - | AC | 230V ~ 240V | 16mA ~ 20mA | Round | 0.89" (22.50mm) | 29.00mm Dia | Round with Flat Top | - | - | - | Screw Terminal | IP20, IP65, NEMA 4, 12 | - |
|
5561905304FLED PNL MT 1" 24V FLAT ORANGE |
11 |
|
Технический лист |
556 | Bulk | Active | LED | Orange | - | - | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561607304FLED 1" FLAT GREEN PMI 125VDC |
10 |
|
Технический лист |
556 | Bulk | Active | LED | Green | - | - | AC | 125V | 10mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
704.006.518INDICATOR PANEL LED |
12 |
|
Технический лист |
04 | Bulk | Active | LED | - | Green | Clear | - | - | - | Round | 1.20" (30.50mm) | 35.00mm Dia | Round with Flat Top | - | - | - | Screw Terminal | IP65 | - |
|
704.006.418INDICATOR PANEL LED |
7 |
|
Технический лист |
04 | Bulk | Active | LED | - | Yellow | Clear | - | - | - | Round | 1.20" (30.50mm) | 35.00mm Dia | Round with Flat Top | - | - | - | Screw Terminal | IP65 | Flashing LED |
|
Q10F5SXXSY02ELED PNL INDICATOR YELLOW 2V IP67 |
18 |
|
Технический лист |
Q10 | Bag | Active | LED | Yellow | - | - | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.394" (10.00mm) | 5mm, T-1 3/4 | Round with Flat Top | 350mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
