Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

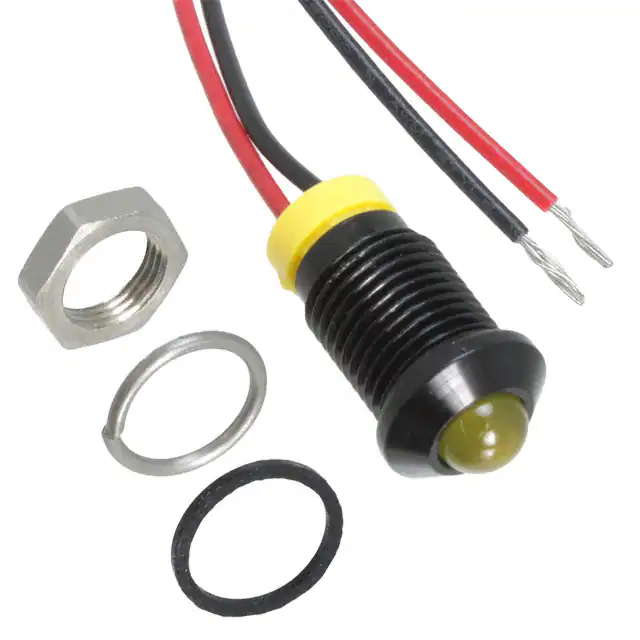

Q8P7BXXY02ELED PM IND PROMINENT YLW |
49 |
|
Технический лист |
Q8 | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 50mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
18-032.0055LINDICATOR PANEL LED 24V |
21 |
|
Технический лист |
18 | Bulk | Active | LED | - | Green | Diffused | DC | 24V | 2mA | Round | 0.315" (8.00mm) | 9.00mm Dia | Round with Flat Top | - | - | - | Solder Lug | IP40 | - |
|
Q8P1CXXHO02E8MM PRMNT CHRM HYPR ORG 2VDC |
54 |
|
Технический лист |
Q8 | Tray | Active | LED | Orange | Orange | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.32" (8.13mm) | - | Round with Domed Top | 4500mcd | - | - | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
6572504103FLED 17.46MM RED DIFF PANEL MOUNT |
90 |
|
Технический лист |
657 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Domed Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
6571704303FLED 17.46MM YELLOW DIFF PNL MNT |
58 |
|
Технический лист |
657 | Bulk | Active | LED | Yellow | White | Diffused | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
6572902103FLED 17.46MM ORANGE DIFF PNL MNT |
35 |
|
Технический лист |
657 | Bulk | Active | LED | Orange | Orange | Diffused | DC | 5V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Domed Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
6571504103FLED 17.46MM RED DIFF PANEL MOUNT |
26 |
|
Технический лист |
657 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
6571903103FLED 17.46MM ORANGE DIFF PNL MNT |
65 |
|
Технический лист |
657 | Bulk | Active | LED | Orange | Orange | Diffused | DC | 12V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
Q8F1BXXR110EINDICATOR 110V 8MM FLUSH RED |
59 |
|
Технический лист |
Q8 | Bulk | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 12mcd | - | 100° | Solder Lug | IP67 | - |
|
6571704103FLED 17.46MM YELLOW DIFF PNL MNT |
43 |
|
Технический лист |
657 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
Q8P1BXXG110EINDICATOR 110V 8MM PROMINENT GRN |
37 |
|
Технический лист |
Q8 | Bulk | Active | LED | Green | Green | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Domed Top | 60mcd | - | 100° | Solder Lug | IP67 | - |
|
|
6571904103FLED 17.46MM ORANGE DIFF PNL MNT |
33 |
|
Технический лист |
657 | Bulk | Active | LED | Orange | Orange | Diffused | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
6572704103FLED 17.46MM YELLOW DIFF PNL MNT |
33 |
|
Технический лист |
657 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Domed Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
6571702103FLED 17.46MM YELLOW DIFF PNL MNT |
27 |
|
Технический лист |
657 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 5V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
Q6F3CYYRG12ELED PANEL MOUNT INDICATOR RD/GR |
10 |
|
Технический лист |
Q6 | Bag | Active | LED | Green, Red | Red | Diffused | DC | 12V Green, 12V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 8mcd Green, 10mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F7BXXY02ELED PM INDICATOR FLUSH YLW |
46 |
|
Технический лист |
Q8 | Bag | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 6mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

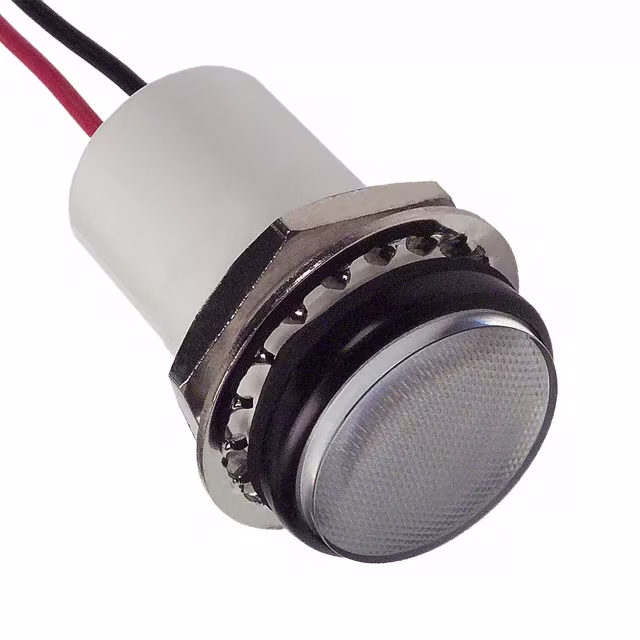

5571003203FLED PNL MT 11/16" 12V WT WHITE |
74 |
|
Технический лист |
557 | Bulk | Active | LED | White | - | - | DC | 12V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
5571002203FLED PNL MT 11/16" 5V WT WHITE |
71 |
|
Технический лист |
557 | Bulk | Active | LED | White | - | - | DC | 5V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
5571802203FLED PNL MT 11/16" 5V WT BLUE |
13 |
|
Технический лист |
557 | Bulk | Active | LED | Blue | - | - | DC | 5V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
84-8001.5640INDICATOR PANEL LED GRN 24V |
15 |
|
Технический лист |
84 | Bulk | Active | LED | Green | Green | - | DC | 24V | 10mA | - | - | - | - | - | - | - | Wire Leads | - | - |
