Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSI-LXR4815ID-150LED 5MM RED DIFF REFL6"LDS PNLMT |
4,590 |
|
Технический лист |
- | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
PM53-BCW6.0PNL MNT GREEN, RED W/WIRE 6" |
919 |
|
Технический лист |
PM53 | Bag | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 35mcd Green, 35mcd Red | 568nm Green, 625nm Red | 40° | Wire Leads - 6" (152.40mm) | - | - |
|
6551104104FLED PANEL INDICATOR RED 24V |
515 |
|
Технический лист |
655 | Bag | Active | LED | Red | - | - | DC | 24V | 20mA | Round | 0.50" (12.70mm) | 16.00mm Dia | Round with Flat Top | 70mcd | - | - | Solder Lug | - | - |
|
|
SSI-LXR3612ID-150LED 3MM PANEL MNT W/24AWG LEADS |
4,198 |
|
Технический лист |
- | Bulk | Active | LED | Red | Red | Diffused | DC | 2V | 30mA | Round | 0.24" (6.20mm) | 3mm, T-1 | Round with Domed Top | 30mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|

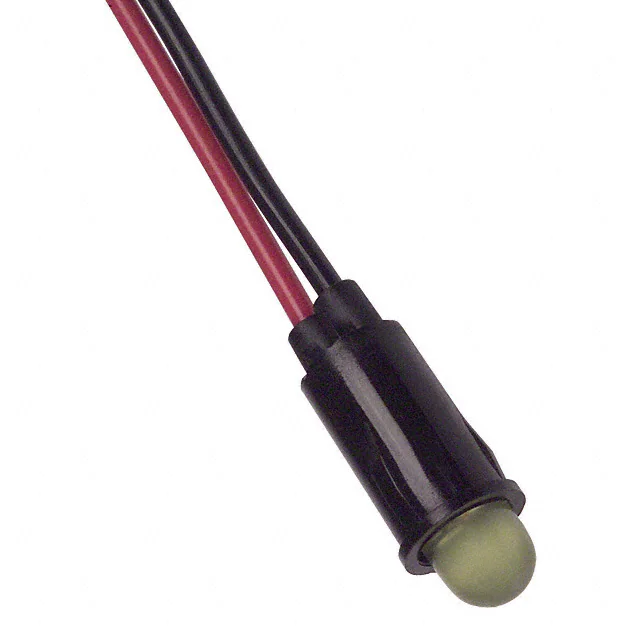

5110F7LED YELLOW 5/32" HOLE PANEL MNT |
193 |
|
Технический лист |
5110F | Bulk | Not For New Designs | LED | Yellow | - | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 6.3mcd | 585nm | - | Wire Leads - 4.4" (111.80mm) | - | - |
|
5100H5LCLED GREEN 1/4" HOLE PANEL MOUNT |
108 |
|
Технический лист |
5100H | Bag | Active | LED | Green | - | - | Vf (Typ), If (Max) | 1.8V | 7mA | Round | 0.25" (6.35mm) | - | Round with Domed Top | 2.5mcd | 565nm | - | Wire Leads - 6" (152.40mm) | - | - |
|
L65DG24LLED 5MM GREEN DIFFUSED PANELMT |
2,199 |
|
Технический лист |
L65 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 10mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 570nm | 30° | PC Pin | - | - |
|
L65DR24LLED 5MM RED DIFFUSED PANELMT |
223 |
|
Технический лист |
L65 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 10mcd | 700nm | 30° | PC Pin | - | - |
|
MPR5GDW12.0LED PANEL INDICATOR GRN 2.1V |
1,697 |
|
Технический лист |
MPR5 | Bag | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 40° | Wire Leads - 12" (304.80mm) | - | - |
|
L65DY2LLED 5MM YELLOW DIFFUSED PANELMT |
329 |
|
Технический лист |
L65 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 2.1V | 20mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 1500mcd | 590nm | 30° | PC Pin | - | - |
|
|
SSI-LXR1612GD-150LED 3MM FLUSH GRN DIFF6"LDSPNLMT |
1,546 |
|
Технический лист |
- | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 30mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
5580102027FLED PMI SNAP-IN RED PVC FREE |
244 |
|
Технический лист |
558 | Bulk | Active | LED | Red | - | - | DC | 5V | 12mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 29mcd | 635nm | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
6081131110FLED PNL IND 8MM RED LOCKWASH/NUT |
766 |
|
Технический лист |
608 | Bulk | Active | LED | Red | - | - | Vf (Typ), If (Max) | 2V | 15mA | Round | 0.33" (8.38mm) | 9.91mm Dia | Round with Domed Top | 20mcd | - | - | - | - | - |
|
|
L65DG12LLED 5MM GREEN DIFFUSED PANELMT |
225 |
|
Технический лист |
L65 | Bulk | Active | LED | Green | Green | Diffused | DC | 11.5V | 10mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 20mcd | 570nm | 30° | PC Pin | - | - |
|

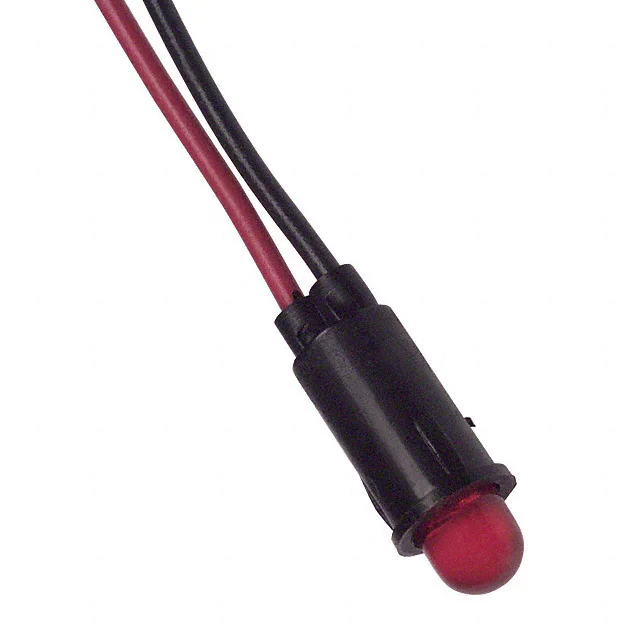

5110F1LED RED 5/32" HOLE PANEL MOUNT |
390 |
|
Технический лист |
5110F | Bulk | Active | LED | Red | - | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 635nm | - | Wire Leads - 4.4" (111.80mm) | - | - |
|
5580102023FLED PMI SNAP-IN RED PVC FREE |
204 |
|
Технический лист |
558 | Bulk | Active | LED | Red | - | - | DC | 5V | 12mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 29mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
L65DY24LLED 5MM YELLOW DIFFUSED PANELMT |
6,334 |
|
Технический лист |
L65 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 24V | 20mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 20mcd | 595nm | 30° | PC Pin | - | - |
|

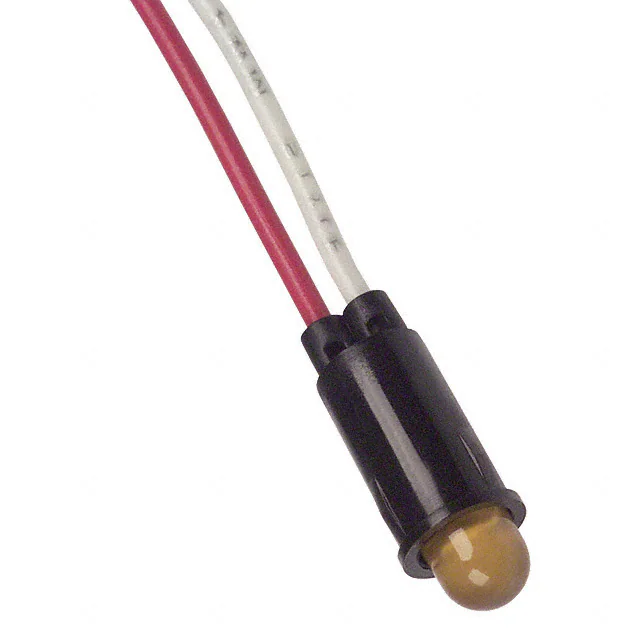

5102H3-12VLED AMBER 1/4" HOLE 12V PAN MNT |
409 |
|
Технический лист |
5102H | Bag | Active | LED | Amber | - | - | DC | 12V | 15mA | Round | 0.25" (6.35mm) | - | Round with Domed Top | 4mcd | 583nm | - | Wire Leads - 6" (152.40mm) | - | - |
|

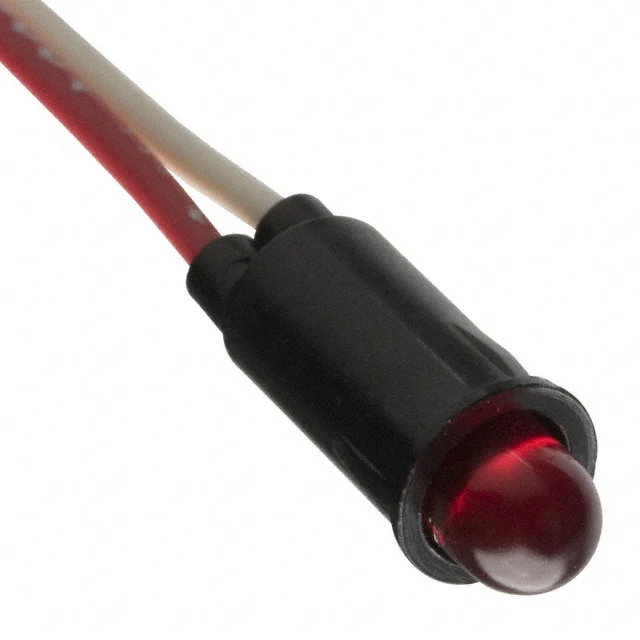

5102H1-12VLED RED 1/4" HOLE 12V PANEL MNT |
279 |
|
Технический лист |
5102H | Bag | Active | LED | Red | - | - | DC | 12V | 15mA | Round | 0.25" (6.35mm) | - | Round with Domed Top | 4mcd | 635nm | - | Wire Leads - 6" (152.40mm) | - | - |
|
FL1P-22NA-1-R24VLED RED 22MM NUT 24VAC/DC STK |
475 |
|
Технический лист |
FL1P | Bulk | Active | LED | Red | Red | - | AC/DC | 24V | 20mA | Round | 0.87" (22.00mm) | 29.00mm Dia | Round with Flat Top | 1000 ~ 1500mcd | - | 35° | Screw Terminal | IP50 | - |
