Триак, выходные оптоизоляторы SCR
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип выхода | Цепь пересечения нуля | Количество каналов | Напряжение - Изоляция | Напряжение - Выкл. | Статическое dV/dt (мин.) | Ток - светодиодный триггер (Ift) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Ток - Удержание (Ih) | Время включения | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
BRT22-HPHOTOCOUPLER TRIAC 600V 6DIP |
0 |
|
Технический лист |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT23-FPHOTOCOUPLER TRIAC 800V 6DIP |
0 |
|
Технический лист |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT23-HPHOTOCOUPLER TRIAC 800V 6DIP |
0 |
|
Технический лист |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT23-MPHOTOCOUPLER TRIAC 800V 6DIP |
0 |
|
Технический лист |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 3mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
H11C4MOPTOISOLATOR 5KV SCR 6DIP |
0 |
|
Технический лист |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | SCR | No | 1 | 5000Vrms | 400 V | - | 20mA | 150 mA | 500µA | - | 1.5V (Max) | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | - |
|
PC3SD11NTZBHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
Технический лист |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 4-DIP | CSA, UR |
|
|
PC3SD11YTZAHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
Технический лист |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 4-DIP | CSA, UR, VDE |
|
|
PC3SD11YXPCHOPTOISOLATOR 5KV TRIAC SMD |
0 |
|
Технический лист |
- | 6-SMD (5 Leads), Gull Wing | Tube | Discontinued | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
|
PC3SD21NTZBHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
PC3SD21NTZDHOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|

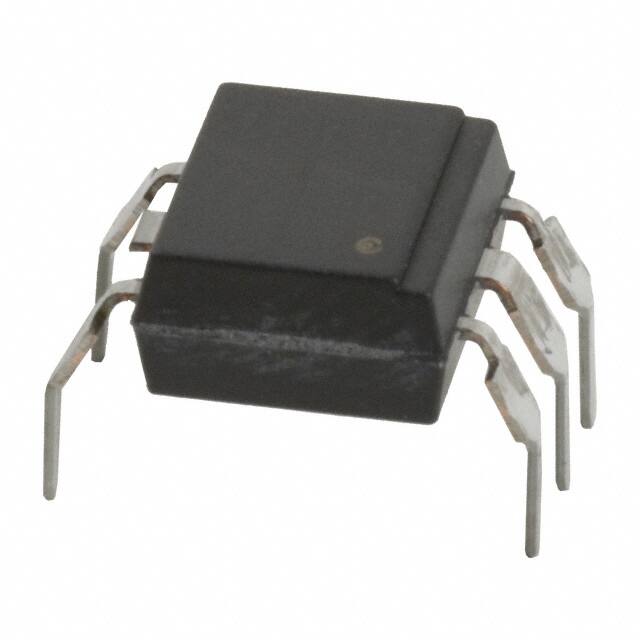

PC3SF11YVZAHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
- |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Discontinued | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC3SF11YVZBHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
- |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC3SF21YVZBHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
- |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Discontinued | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC4SD21NTZCHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC4SF21YVZBHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
- |
- | 6-DIP (0.400", 10.16mm), 5 Leads | Tube | Discontinued | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PR36MF51NSLHOPTOISOLATOR 4KV PWR TRIAC DIP |
0 |
|
- |
- | - | Tube | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC3SD21NTZAHOPTOISOLATOR 5KV TRIAC DIP |
0 |
|
- |
- | - | Tape & Reel (TR) | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC3SD21YXPLHOPTOISOLATOR 5KV TRIAC SMD |
0 |
|
- |
- | - | Tape & Reel (TR) | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC4SD11YXPCHOPTOISOLATOR 5KV TRIAC SMD |
0 |
|
- |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
TLP3042(TP1,S,C,F)X36 PB-F PHOTOCOUPLER SMD T&R JA |
0 |
|
Технический лист |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
