Транзисторные, фотоэлектрические выходные оптоизоляторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Количество каналов | Напряжение - Изоляция | Коэффициент передачи тока (мин.) | Коэффициент передачи тока (макс.) | Время включения/выключения (тип.) | Время нарастания/спада (тип.) | Тип входа | Тип выхода | Напряжение - выход (макс.) | Ток - выход/канал | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Насыщение Vce (макс.) | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
TLP290(BL-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
17,138 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
|
TLP290(GB-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
16,696 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|

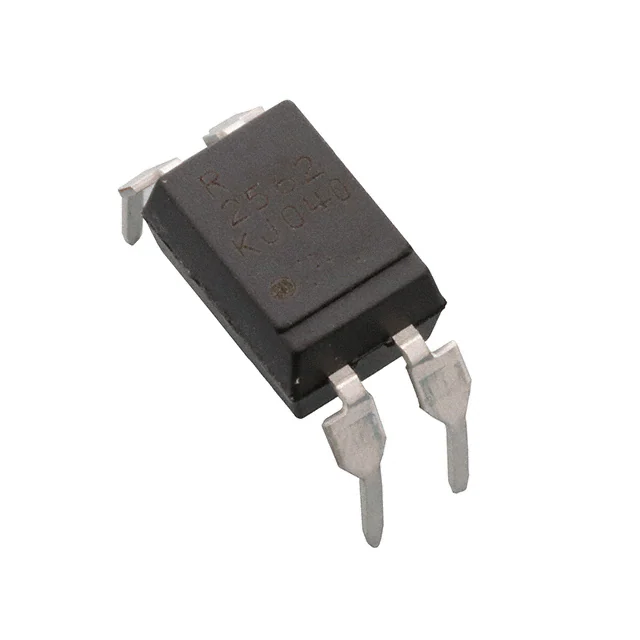

PS2561AL1-1-L-AOPTOISOLATOR 5KV TRANS 4DIP |
13,765 |
|
Технический лист |
NEPOC | 4-DIP (0.400", 10.16mm) | Tube | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
TLP184(BL-TPL,SEOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
12,445 |
|
Технический лист |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SOP |
|
|
TLP293(BLL-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
11,326 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 500µA | 400% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
|
TLP290(GR-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
10,196 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
|
TLP184(V4GBTR,SEX36 PB-F PHOTOCOUPLER SO6 ROHS T |
8,538 |
|
Технический лист |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SOP |
|
|
TLP184(GB-TPL,SEOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
8,275 |
|
Технический лист |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SOP |
|
|
TLP290(V4GBTP,SEX36 PB-F TRANSISTOR OPTOCOUPLER |
6,693 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
LTV-827OPTOISOLATOR 5KV 2CH TRANS 8-DIP |
5,262 |
|
Технический лист |
LTV-8x7 | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 110°C | Through Hole | 8-DIP |
|
SFH615A-4XSMT&ROPTOISOLATOR 5.3KV TRANS 4SMD |
4,124 |
|
Технический лист |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 6µs, 25µs | 4.6µs, 15µs | DC | Transistor | 70V | 50mA | 1.65V (Max) | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
TLP293(GRL-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
4,081 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 500µA | 200% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
ISP817DXSMT/ROPTOISO 5.3KV TRANS 4SMD |
3,694 |
|
Технический лист |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | - |
|
|
TLP293(GRH-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
3,293 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 150% @ 500µA | 300% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
PS2561A-1-H-AOPTOISOLATOR 5KV TRANS 4DIP |
2,686 |
|
Технический лист |
NEPOC | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
FOD817C300WOPTOISOLATOR 5KV TRANSISTOR 4DIP |
2,075 |
|
Технический лист |
- | 4-DIP (0.400", 10.16mm) | Tube | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Through Hole | 4-DIP |
|
|
TLP290(GB,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
1,978 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tube | Not For New Designs | 1 | 3750Vrms | 100% @ 5mA | 400% @ 5mA | 7µs, 7µs | 4µs, 7µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
|
TLP183(YH-TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
1,746 |
|
Технический лист |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 75% @ 5mA | 150% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SOP |
|
|
TLP293(TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
1,637 |
|
Технический лист |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
4N37MOPTOISO 4.17KV TRANS W/BASE 6DIP |
40,095 |
|
Технический лист |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 4170Vrms | 100% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 300mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
