Отражательный - аналоговый выход
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Расстояние срабатывания | Метод измерения | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Ток - Коллектор (Ic) (Макс.) | Ток - постоянный ток вперед (If) (макс.) | Тип выхода | Время отклика | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPB755NZSNSR OPTO TRANS 5.59MM REFL C-MT |
0 |
|
Технический лист |
- | Module, Pre-Wired | Bulk | Obsolete | 0.220" (5.59mm) | Reflective | 24 V | 30 mA | 50 mA | Phototransistor | - | Chassis Mount |
|
|
OPB732WSNSR OPTO TRANS 76.2MM REFL C-MT |
0 |
|
- |
- | Module, Pre-Wired | Bulk | Obsolete | 3" (76.2mm) | Reflective | 30 V | 50 mA | 50 mA | Phototransistor | - | Chassis Mount |
|
|
OPB755NSENSR OPTO TRANS 5.59MM REFL PCB |
0 |
|
Технический лист |
- | PCB Mount | Bulk | Obsolete | 0.220" (5.59mm) | Reflective | 24 V | 30 mA | 50 mA | Phototransistor | - | Through Hole |
|
|
OPB755TSENSR OPTO TRANS 5.59MM REFL PCB |
0 |
|
Технический лист |
- | PCB Mount | Bulk | Obsolete | 0.220" (5.59mm) | Reflective | 24 V | 30 mA | 50 mA | Phototransistor | - | Through Hole |
|

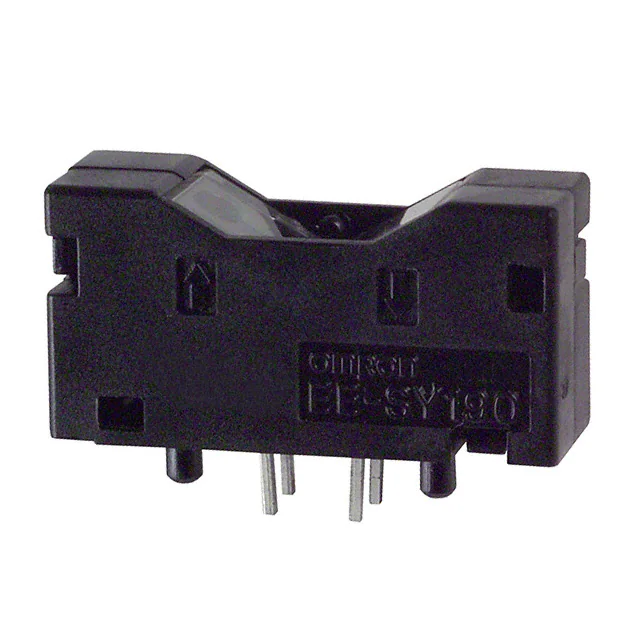

EE-SY190OPTO SENSOR VERT REFLECT TYPE |
0 |
|
Технический лист |
- | PCB Mount | Bulk | Obsolete | 0.178" (4.5mm) | Reflective | 30 V | 20 mA | 50 mA | Phototransistor | 30µs, 30µs | Through Hole |
|
OPB700ALSNSR OPTO TRANS 5.08MM REFL C-MT |
0 |
|
Технический лист |
- | Module, Pre-Wired | Bulk | Obsolete | 0.200" (5.08mm) | Reflective | 24 V | - | 100 mA | Phototransistor | - | Chassis Mount |
|
OPB730SNSR OPTO TRANS 6.35MM REFL TO72 |
0 |
|
Технический лист |
- | TO-72 | Bulk | Active | 0.250" (6.35mm) | Reflective | 15 V | 25 mA | 50 mA | Photodarlington | - | Through Hole |
|

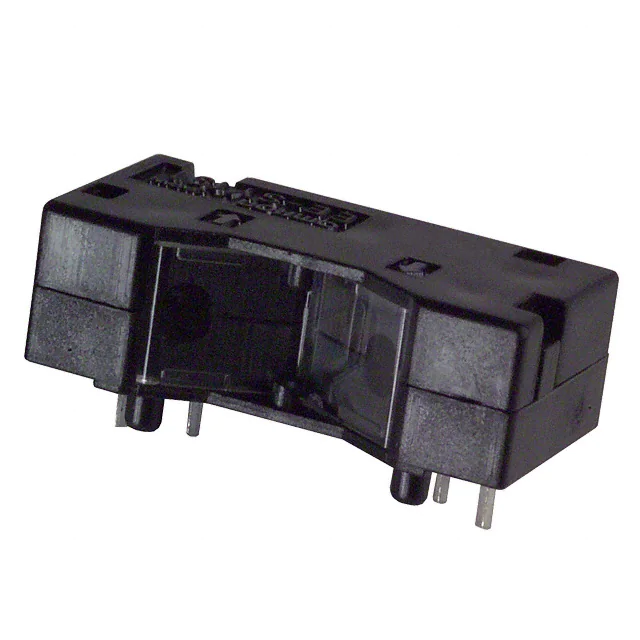

EE-SY191OPTO SENSOR HORZ REFLECT TYPE |
0 |
|
Технический лист |
- | PCB Mount | Bulk | Obsolete | 0.178" (4.5mm) | Reflective | 30 V | 20 mA | 50 mA | Phototransistor | 30µs, 30µs | Through Hole, Right Angle |
|

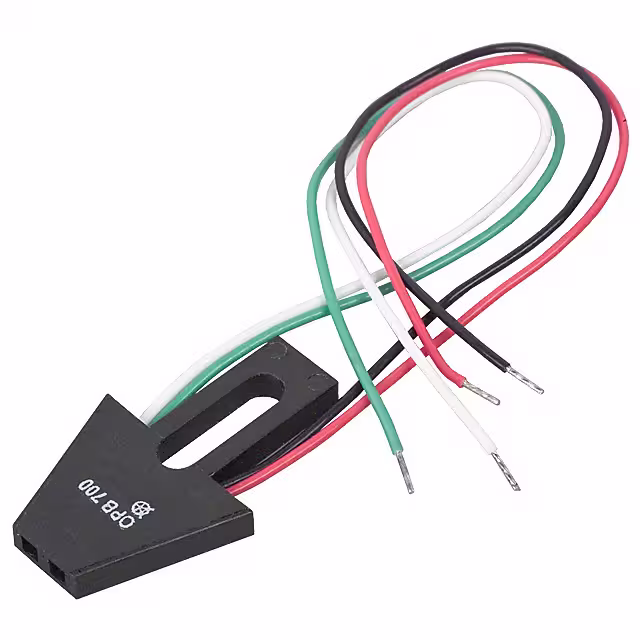

OPB700SNSR OPTO TRANS 5.08MM REFL C-MT |
0 |
|
Технический лист |
- | Module, Pre-Wired | Bulk | Obsolete | 0.200" (5.08mm) | Reflective | 24 V | - | 100 mA | Phototransistor | - | Chassis Mount |
|
|
OPB701SNSR OPTO TRANS 5.08MM REFL C-MT |
0 |
|
Технический лист |
- | Module, Pre-Wired | Bulk | Obsolete | 0.200" (5.08mm) | Reflective | 15 V | - | 100 mA | Photodarlington | - | Chassis Mount |
|
OPB701ALSNSR OPTO TRANS 5.08MM REFL C-MT |
0 |
|
Технический лист |
- | Module, Pre-Wired | Bulk | Obsolete | 0.200" (5.08mm) | Reflective | 15 V | - | 100 mA | Photodarlington | - | Chassis Mount |
|
|
EE-SY169A-DPHOTOMICROSENSORW/PLASTIC COVR |
0 |
|
Технический лист |
- | 2-SIP | Bulk | Obsolete | 0.157" (4mm) | Reflective | 30 V | 20 mA | 50 mA | Phototransistor | 30µs, 30µs | Through Hole |
|
|
HVS6003-001REFLECTIVE SENSOR 850NM TO-46 |
0 |
|
- |
- | TO-46-3 Lens Top Metal Can | Bulk | Obsolete | - | Reflective | 30 V | - | 15 mA | Phototransistor | - | Through Hole |
|

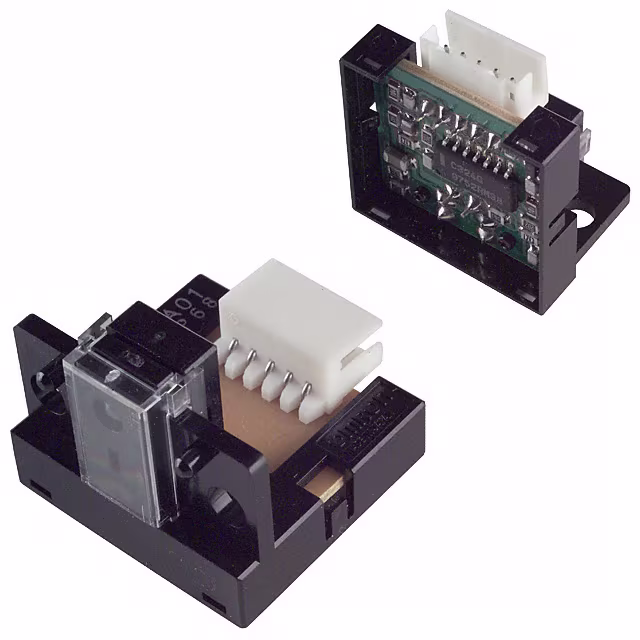

Z4D-A01PHOTO SENSOR 7.5MM REFLECT TYPE |
0 |
|
Технический лист |
- | - | Bulk | Obsolete | 0.256" (6.5mm) | Reflective | - | - | - | - | 100µs | Chassis Mount |
|
GUVF-P12MDREFLECTIVE UV SENSOR (USE FOR MO |
0 |
|
- |
- | PCB Mount | Bulk | Obsolete | - | Reflective | - | 25 mA | 25 mA | - | - | Through Hole |
|
E20639DIFFUSE REFLECTION SENSOR; SENSI |
0 |
|
- |
- | Cylinder, Threaded | Box | Active | 0.787" ~ 2.362" (20mm ~ 60mm) | Reflective | - | - | - | - | - | Panel Mount |
|
E20648DIFFUSE REFLECTION SENSOR; SENSI |
0 |
|
Технический лист |
- | Cylinder, Threaded | Box | Active | 2.362" ~ 11.811" (60mm ~ 300mm) | Reflective | - | - | - | - | - | Panel Mount |
|
E20633DIFFUSE REFLECTION SENSOR; SENSI |
0 |
|
- |
- | Cylinder, Threaded | Box | Active | 2.756" ~ 11.811" (70mm ~ 300mm) | Reflective | - | - | - | - | - | Panel Mount |
|
E20651DIFFUSE REFLECTION SENSOR; SENSI |
0 |
|
- |
- | Cylinder, Threaded | Box | Active | 2.362" ~ 11.811" (60mm ~ 300mm) | Reflective | - | - | - | - | - | Panel Mount |
|
E20654DIFFUSE REFLECTION SENSOR; SENSI |
0 |
|
- |
- | Cylinder, Threaded | Box | Active | 2.362" ~ 11.811" (60mm ~ 300mm) | Reflective | - | - | - | - | - | Panel Mount |
