Фотодиоды
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Длина волны | Цвет - улучшенный | Спектральный диапазон | Тип диода | Чувствительность @ нм | Время отклика | Напряжение - Обратный постоянный ток (Vr) (макс.) | Ток - темный (тип.) | Активная область | Угол обзора | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPW34FASSENSOR PHOTODIODE 880NM 2SMD GW |
0 |
|
Технический лист |
- | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 880nm | - | 730nm ~ 1100nm | PIN | - | 20ns | 16 V | 2nA | 7mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
BP104FSSENSOR PHOTODIODE 950NM 2SMD GW |
0 |
|
Технический лист |
- | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 950nm | - | 800nm ~ 1100nm | PIN | - | 20ns | 20 V | 2nA | 4.84mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
SFH 2400FASENSOR PHOTODIODE 900NM 3SMD GW |
0 |
|
Технический лист |
- | 3-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 900nm | - | 750nm ~ 1100nm | PIN | - | 5ns | 20 V | 1nA | 1mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
VEMD5010X01-GS15SENSOR PHOTODIODE 940NM 4SMD |
0 |
|
Технический лист |
- | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 940nm | - | 450nm ~ 1100nm | PIN | - | 100ns | 20 V | 2nA | 7.5mm² | 130° | -40°C ~ 110°C (TA) | - | - | Surface Mount |
|
VEMD5110X01-GS15SENSOR PHOTODIODE 940NM 4SMD |
0 |
|
Технический лист |
- | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 940nm | - | 790nm ~ 1050nm | PIN | - | 100ns | 20 V | 2nA | 7.5mm² | 130° | -40°C ~ 110°C (TA) | - | - | Surface Mount |
|
|
PDB-C152SMFSENSOR PHOTODIODE 660NM 1206 |
0 |
|
- |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | 660nm | Blue | 400nm ~ 1100nm | PIN | - | 50ns | 50 V | 2nA | 1.66mm² | 120° | -40°C ~ 85°C | - | - | Surface Mount |
|
|
BPW34FSSENSOR PHOTODIODE 950NM 2SMD GW |
0 |
|
Технический лист |
- | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 950nm | - | 780nm ~ 1100nm | PIN | - | 20ns | 16 V | 2nA | 7mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|

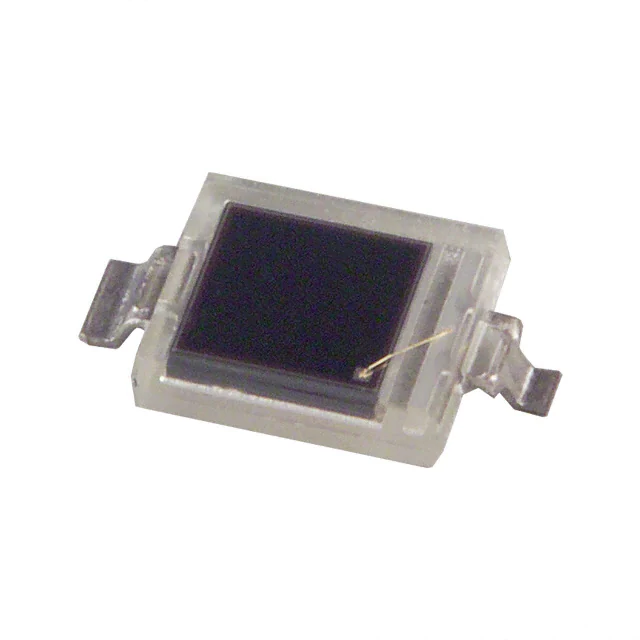

BPW34SSENSOR PHOTODIODE 850NM 2SMD GW |
0 |
|
Технический лист |
- | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 850nm | - | 400nm ~ 1100nm | PIN | - | 20ns | 32 V | 2nA | 7mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
VEMD5080X01-GS15SENSOR PHOTODIODE 950NM 4SMD |
0 |
|
Технический лист |
- | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 950nm | - | 350nm ~ 1100nm | PIN | - | 70ns | 20 V | 200pA | 7.5mm² | 130° | -40°C ~ 110°C (TA) | Automotive | AEC-Q101 | Surface Mount |
|
VEMD5060X01-GS15SENSOR PHOTODIODE 820NM 4SMD |
0 |
|
Технический лист |
- | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 820nm | - | 350nm ~ 1070nm | PIN | - | 30ns | 20 V | 200pA | 7.5mm² | 130° | -40°C ~ 110°C (TA) | - | - | Surface Mount |
|
VEMD5160X01-GS15SENSOR PHOTODIODE 840NM 4SMD |
0 |
|
Технический лист |
- | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 840nm | - | 700nm ~ 1070nm | PIN | - | 30ns | 20 V | 200pA | 7.5mm² | 130° | -40°C ~ 110°C (TA) | - | - | Surface Mount |
|

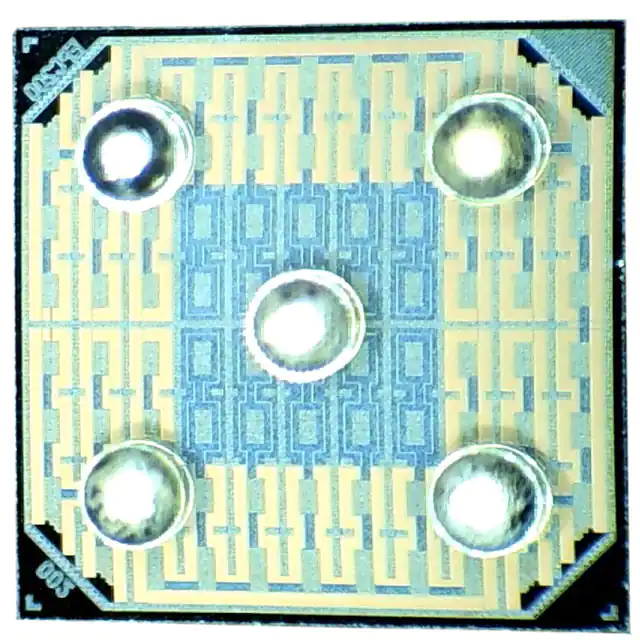

EPC200-CSP5SENSOR PHOTODIODE 850NM 5XFBGA |
0 |
|
Технический лист |
- | 5-XFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | 850nm | Infrared (NIR)/Red | 400nm ~ 1030nm | - | 0.61 A/W @ 850nm, 0.43 A/W @ 940nm | 300ns | 20 V | 5nA | - | 150° | -40°C ~ 85°C | - | - | Surface Mount |
|
|
T1610P-SD-FSENSOR PHOTODIODE 560NM DIE |
0 |
|
- |
- | Die | Tray | Active | 560nm | - | 390nm ~ 800nm | PIN | - | 100ns | 16 V | 2nA | 7.7mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
TEMD6010FX01-GS15SENSOR PHOTODIODE 540NM 3SMD |
0 |
|
- |
- | 3-SMD, No Lead | Bulk | Active | 540nm | Infrared (NIR) | 430nm ~ 610nm | PIN | - | - | 16 V | 100pA | 0.27mm² | 120° | -40°C ~ 100°C (TA) | Automotive | AEC-Q101 | Surface Mount |
|
NJL6414R-TE1SENSOR PHOTODIODE 900NM 2SMD |
0 |
|
Технический лист |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | 900nm | - | - | - | 0.27 A/W @ 405nm, 0.47 A/W @ 780nm | 16ns, 22ns | 35 V | 500pA | 2.25mm² | - | -30°C ~ 85°C | - | - | Surface Mount |
|

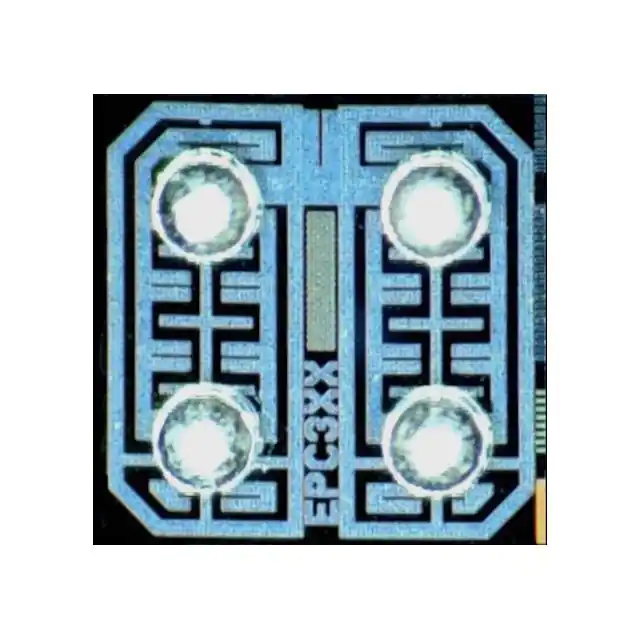

EPC300-CSP4-001SENSOR PHOTODIODE 850NM 4XFBGA |
0 |
|
Технический лист |
- | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | 850nm | Infrared (NIR)/Red | 400nm ~ 1030nm | - | 0.6 A/W @ 850nm | 300ns | 20 V | 80pA | 0.86mm² | 150° | -40°C ~ 85°C | - | - | Surface Mount |
|
K857PH-GS15SENSOR PHOTODIODE 950NM 6VDFN |
0 |
|
Технический лист |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | 950nm | - | 710nm ~ 1100nm | PIN | - | 2.5µs, 3.9µs | 10 V | 1nA | 1.6mm² | 120° | -40°C ~ 110°C (TA) | - | - | Surface Mount |
|
K857PE-GS15SENSOR PHOTODIODE 840NM 6VDFN |
0 |
|
Технический лист |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | 840nm | - | 690nm ~ 1050nm | PIN | - | 30ns | 20 V | 1nA | 1.6mm² | 120° | -40°C ~ 110°C (TA) | - | - | Surface Mount |
|
|
TEMD5510FX01-GS15SENSOR PHOTODIODE 540NM 2SMD |
0 |
|
- |
- | 2-SMD, No Lead | Bulk | Active | 540nm | Infrared (NIR) | 430nm ~ 610nm | PIN | - | - | 16 V | 2nA | 7.5mm² | 130° | -40°C ~ 100°C (TA) | Automotive | AEC-Q101 | Surface Mount |
|
|
019-141-411-IR920SENSOR PHOTODIODE 920NM 2SMD |
0 |
|
Технический лист |
- | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | 920nm | - | - | - | - | - | 50 V | 20pA | - | - | -40°C ~ 105°C | - | - | Surface Mount |
