Двигатели - переменного тока, DC
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Функция | Тип двигателя | Напряжение - Номинальное | Об/мин | Крутящий момент - номинальный (унций-дюйм / мНм) | Мощность - Номинальная | Тип кодировщика | Размер/измерение | Диаметр - вал | Длина - вал и подшипник | Расстояние между монтажными отверстиями | Тип вывода | Особенности | Коэффициент редукции | Крутящий момент - макс. мгновенный (унций-дюйм / мНм) | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JYLRA1240ZVIBRATION LRA AC Z AXIS 3.0G |
0 |
|
Технический лист |
JYLRA | Active | AC Motor | Vibration, LRA (Haptic) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | -20°C ~ 60°C | |
|
|
JYN30PA-11130V-27VIBRATION ERM 12MM DC MOTOR |
0 |
|
Технический лист |
JYN | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 4000 RPM | 0.05 / 0.35 | - | - | Round - 0.472" Dia (12.00mm) | - | 0.256" (6.50mm) | 0.335" (8.50mm) | Quick Connect | - | - | - | - | |
|
VZ30C1T8219731VIBRATION MOTOR 14000 RPM 2.7V |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | DC Motor | Vibration, ERM (Haptic) | - | 2.7VDC | 14000 RPM | - | - | - | Round - 0.158" Dia (4.00mm) | - | 0.150" (3.80mm) | - | J Lead | - | - | - | -20°C ~ 70°C |
|
VZ4FC1B1301781VIBRATION ERM MTR 10000 RPM 3V |
0 |
|
Технический лист |
Z4 | Tape & Reel (TR) | Obsolete | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 10000 RPM | - | - | - | Round - 0.158" Dia (4.00mm) | - | 0.146" (3.70mm) | - | J Lead | - | - | - | -20°C ~ 70°C |
|
VZ30C1T8460001VIBRATION MOTOR 15000 RPM 2.7V |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | DC Motor | Vibration, ERM (Haptic) | - | 2.7VDC | 15000 RPM | - | - | - | Round - 0.158" Dia (4.00mm) | - | 0.146" (3.70mm) | - | J Lead | - | - | - | -20°C ~ 70°C |
|

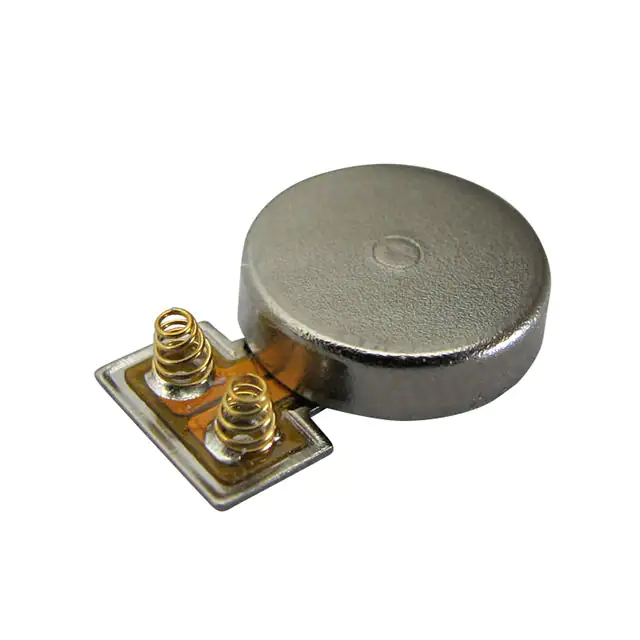

VC0824K001LVIBRATION ERM MOTOR 10K RPM 0.6G |
3 |
|
Технический лист |
- | Tray | Obsolete | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 10000 RPM | - | - | - | Round - 0.317" Dia (8.05mm) | - | - | - | Pressure Contact | - | - | - | -30°C ~ 70°C |
|
316030003STANDARD MOTOR 12000 RPM 4.2V |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC Motor | Standard | - | 4.2V | 12000 RPM | - | - | - | Round - 0.236" Dia (6.00mm) | 0.031" (0.80mm) | 0.146" (3.70mm) | - | Wire Leads | - | - | - | - |
|
LS-00026R260 3-6V 12000RPM BRSHD DC MTR |
23 |
|
Технический лист |
- | Retail Package | Active | DC Motor | Standard | Brushed | 3VDC | 12000 RPM | - | - | - | Round - 0.937" Dia (23.80mm) | 0.079" (2.00mm) | - | - | Solder Tab | - | - | - | - |
|
|
FIT0016GEARMOTOR 160 RPM 6V W/ BACK SH |
0 |
|
Технический лист |
- | Bulk | Active | DC Motor | Gearmotor | - | 6VDC | 160 RPM | - | - | - | - | - | - | - | Wire Leads | - | 120 | 11.11 / 78.45 | -10°C ~ 60°C |
|
VW0625SS001DVIBRATION ERM MTR 12K RPM 0.55G |
0 |
|
Технический лист |
- | Tray | Active | DC Motor | Vibration, ERM (Haptic) | Brushless (BLDC) | 3VDC | 12000 RPM | - | - | - | Round - 0.236" Dia (6.00mm) | - | - | - | Pressure Contact | - | - | - | -20°C ~ 60°C |
|
|
JYN30PA-11120V-27VIBRATION ERM 12MM DC MOTOR |
0 |
|
Технический лист |
JYN | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 4000 RPM | 0.051 / 0.361 | - | - | Round - 0.472" Dia (12.00mm) | - | 0.256" (6.50mm) | 0.335" (8.50mm) | Quick Connect | - | - | - | - | |
|
VJP08-74D160AVIBRATION MOTOR 14K RPM 4.8G |
0 |
|
Технический лист |
- | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 4.5VDC | 15000 RPM | - | - | - | Round - 0.315" Dia (8.00mm) | - | - | - | Wire Leads | - | - | - | -30°C ~ 85°C |
|
NF143G-301LOW VOLTAGE DC MOTORS |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC Motor | Standard | Brushed | 12VDC | 19600 RPM | 0.48 / 3.42 | 7.4W | - | Round - 0.800" Dia (20.32mm) | 0.079" (2.00mm) | 0.492" (12.50mm) | 0.488" (12.40mm) | Solder Tab | - | - | - | -10°C ~ 55°C |
|

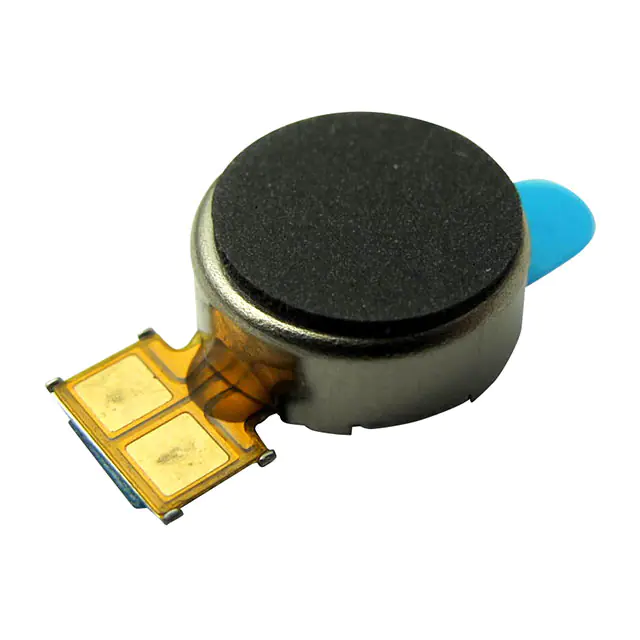

VW0934AB007GVIBRATION ERM MTR 9K RPM 1.4G |
22 |
|
Технический лист |
- | Tray | Obsolete | DC Motor | Vibration, ERM (Haptic) | Brushless (BLDC) | 3VDC | 11500 RPM | - | - | - | Round - 0.354" Dia (9.00mm) | - | - | - | Pressure Contact | - | - | - | -30°C ~ 70°C |
|
VW0934AB001GVIBRATION ERM MTR 11500 RPM 3V |
11 |
|
Технический лист |
- | Tray | Obsolete | DC Motor | Vibration, ERM (Haptic) | Brushless (BLDC) | 3VDC | 11500 RPM | - | - | - | Round - 0.354" Dia (9.00mm) | - | - | - | Wire Leads | - | - | - | -30°C ~ 70°C |
|
NF123G-302LOW VOLTAGE DC MOTORS |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC Motor | Standard | Brushed | 9VDC | 19467 RPM | 0.16 / 1.13 | 7.4W | - | Round - 0.800" Dia (20.32mm) | 0.079" (2.00mm) | - | 0.488" (12.40mm) | Solder Tab | - | - | - | -10°C ~ 55°C |
|
2591GEARMOTOR 150 RPM 4.5V |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC Motor | Gearmotor | Brushed | 4.5VDC | 150 RPM | - | - | - | Rectangular - 1.437" x 1.142" (36.50mm x 29.00mm) | 0.118" (3.00mm) | 0.382" (9.70mm) | - | PC Pin | - | 120 | - | - |
|
|
NF123LG-301LOW VOLTAGE DC MOTORS |
0 |
|
Технический лист |
- | Bulk | Active | DC Motor | Standard | Brushed | 7VDC | 5500 RPM | 0.32 / 2.3 | 2.2W | - | Round - 0.800" Dia (20.32mm) | 0.079" (2.00mm) | - | 0.488" (12.40mm) | Solder Tab | - | - | - | -20°C ~ 70°C |
|
FIT0419GEARMOTOR 96 RPM 6V MICRO |
0 |
|
Технический лист |
- | Bulk | Active | DC Motor | Gearmotor | Brushed | 6VDC | 96 RPM | 35.27 / 249 | - | Incremental | Rectangular - 0.315" x 0.394" (8.00mm x 10.00mm) | 0.157" (4.00mm) | 0.079" (2.00mm) | 0.551" (14.00mm) | Solder Tab | - | - | - | - |
|
|
PC280LG-304LOW VOLTAGE DC MOTORS |
0 |
|
Технический лист |
- | Bulk | Active | DC Motor | Standard | Brushed | 32VDC | 5600 RPM | 0.64 / 4.5 | 7.4W | - | Round - 1.000" Dia (25.40mm) | 0.079" (2.00mm) | - | 0.669" (17.00mm) | Solder Tab | - | - | 1.44 / 10.17 | -10°C ~ 55°C |
