Мониторы релейного выхода
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Состояние срабатывания | Диапазон срабатывания | Время задержки | Напряжение - Питание | Тип выхода | Схема | Контактный рейтинг при напряжении | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

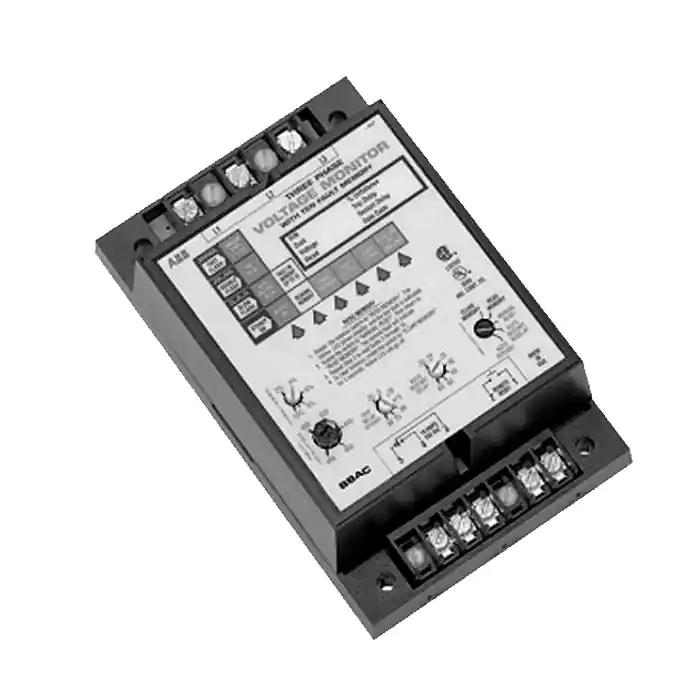

WVM911AH3 PHASE VOLTAGE MONITOR |
0 |
|
Технический лист |
WVM | Bulk | Obsolete | Voltage Sensing AC, Phase Loss | Energized High/Low | 400 ~ 480V AC | 0.25 Sec ~ 30 Sec | 400 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 250VAC | Chassis Mount |
|
SLD-380-ASASLD SERIES PHASE AND UNDER-VOLTA |
0 |
|
Технический лист |
SLD | Box | Active | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 315 ~ 390V AC | 0.03 Sec ~ 20 Sec | 380VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Socketable |
|
|
SLD-230-ASASLD SERIES PHASE AND UNDER-VOLTA |
0 |
|
Технический лист |
SLD | Box | Active | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 185 ~ 230V AC | 0.03 Sec ~ 20 Sec | 208 ~ 240VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Socketable |
|
|
WVM911AL3 PHASE VOLTAGE MONITOR |
0 |
|
Технический лист |
WVM | Bulk | Obsolete | Voltage Sensing AC, Phase Loss | Energized High/Low | 400 ~ 480V AC | 0.25 Sec ~ 30 Sec | 400 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 250VAC | Chassis Mount |
|
|
VBA-208-AFNVBA SERIES SINGLE PHASE MONITORI |
0 |
|
Технический лист |
VBA | Box | Active | Voltage Sensing AC | Energized High/Low | 187 ~ 229V AC | 0.05 Sec ~ 0.5 Sec | 208VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
VBA-24-DLAVBA SERIES SINGLE PHASE MONITORI |
0 |
|
Технический лист |
VBA | Box | Active | Voltage Sensing AC | Energized High/Low | 19 ~ 29V DC | 0.05 Sec ~ 0.5 Sec | 24VDC | Relay | DPDT (2 Form C) | 5A @ 240VAC | Socketable |
|
|
7940011718DPADCV 0-10V SIGNAL CONV/DISCON |
0 |
|
Технический лист |
DPA | Bulk | Obsolete | Voltage Sensing DC | - | 0 ~ 10V | - | 24VDC | Relay | SPDT (1 Form C) x 2 | - | DIN Rail |
|
|
7940012970SIGNAL CONVERTER/DISCONNECTOR |
0 |
|
- |
DPA | Bulk | Obsolete | Voltage Sensing DC | Energized High/Low | 0 ~ 10V | - | 24VDC | Relay | SPDT (1 Form C) x 2 | - | DIN Rail |
|
|
7940017847PROCESS MONITORING |
0 |
|
- |
DPA | Bulk | Obsolete | Voltage Sensing AC | - | 0 ~ 125V AC | No Delay | 24VDC | Relay | SPDT (1 Form C) x 2 | - | DIN Rail |
|
|
7940017848SIGNAL CONVERTER/DISCONNECTOR |
0 |
|
- |
DPA | Bulk | Obsolete | Voltage Sensing DC | Energized High/Low | 0 ~ 10mV DC | - | 24VDC | Relay | SPDT (1 Form C) x 2 | - | DIN Rail |
|
|
7940017849PROCESS MONITORING |
0 |
|
- |
DPA | Bulk | Obsolete | Voltage Sensing DC | Energized High/Low | 0 ~ 100mV DC | - | 24VDC | Relay | SPDT (1 Form C) x 2 | - | DIN Rail |
|
2904901TRANSDUCER MEASURING |
0 |
|
Технический лист |
MACX | Bulk | Obsolete | Temperature Monitoring | Energized High/Low | -200°C ~ 850°C | - | 24 ~ 230VAC/DC | Relay | DPDT (2 Form C) | 2A @ 250VAC | DIN Rail |
|
|
2495690000ACT20P-UI-2RCO-AC-P |
0 |
|
Технический лист |
ACT20P | Box | Active | Process Sensing | Energized High/Low | - | 0 Sec ~ 99 Sec | 90 ~ 264VAC | Relay | DPDT (2 Form C) | 6A @ 250VAC/110VDC | DIN Rail |
|
|
3UG46511AA30DIGITAL MONITORING RELAY |
0 |
|
Технический лист |
SIRIUS | Box | Active | Speed Monitoring | - | 50 ~ 60Hz | 0.1 Sec ~ 99.9 Sec | 24VAC/DC | Relay | SPDT (1 Form C) | 3A @ 250VAC | DIN Rail |
|
|
SM15502410KRLY TACH 24VAC 10K RPM |
0 |
|
- |
SM 155 | Box | Obsolete | Speed Monitoring | - | 1000 ~ 10000RPM | - | 24VAC | Relay | SPDT (1 Form C) | 10A @ 250VAC | Socketable |
|
3UG45811AW30INSULATION MONITORING RELAY, 400 |
0 |
|
Технический лист |
SIRIUS | Box | Active | Insulation Monitoring | - | 0 ~ 400V AC | - | 24 ~ 240VAC/DC | Relay | SPDT (1 Form C) | - | DIN Rail |
|
|
3UG45822AW31INSULATION MONIT 250VAC/300VDC/1 |
0 |
|
Технический лист |
SIRIUS | Bulk | Active | Insulation Monitoring | - | 0 ~ 250V AC | - | 24 ~ 240VAC/DC | Relay | SPDT (1 Form C) | - | DIN Rail |
|
|
3UG45821AW31INSULATION MONIT 250VAC/300VDC/1 |
0 |
|
Технический лист |
SIRIUS | Bulk | Active | Insulation Monitoring | - | 0 ~ 250V AC | - | 24 ~ 240VAC/DC | Relay | SPDT (1 Form C) | - | DIN Rail |
|
|
WVM611RL3 PHASE VOLTAGE MONITOR |
0 |
|
Технический лист |
WVM | Bulk | Obsolete | Voltage Sensing AC, Phase Loss | Energized High/Low | 200 ~ 240V AC | 0.25 Sec ~ 30 Sec | 200 ~ 240VAC | Relay | SPDT (1 Form C) | 10A @ 250VAC | Chassis Mount |
|
MAR-120-ACA-CMOTOR AUTO-RESTART RELAY |
0 |
|
Технический лист |
MAR | Box | Obsolete | Voltage Sensing AC | Energized High/Low | 70 ~ 100V AC | 0.2 Sec ~ 60 Sec | 120VAC | Relay | SPDT (1 Form C) | 10A @ 120VAC | Socketable |
