Мониторы релейного выхода
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Состояние срабатывания | Диапазон срабатывания | Время задержки | Напряжение - Питание | Тип выхода | Схема | Контактный рейтинг при напряжении | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR5395-EH-24D-330-X-CD-ELR-IRELAY DC CUR SENS 24VDC CHAS MT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - |
|
|
70.62.8.400.00003PH PHASE LOSS 208V-480V DPDT |
0 |
|
- |
70 | Box | Active | Voltage Sensing AC, Phase Loss | - | 170 ~ 520V AC | Fixed, 0.50 Sec | 208 ~ 480VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
|
DUA01CD48500V24/48V VOLTAGE/CURRENT RELAY |
0 |
|
Технический лист |
DUA01 | Box | Active | Current Sensing AC, Voltage Sensing AC/DC | Energized High | 2 ~ 500V AC/DC | - | 24 ~ 48VAC/DC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|

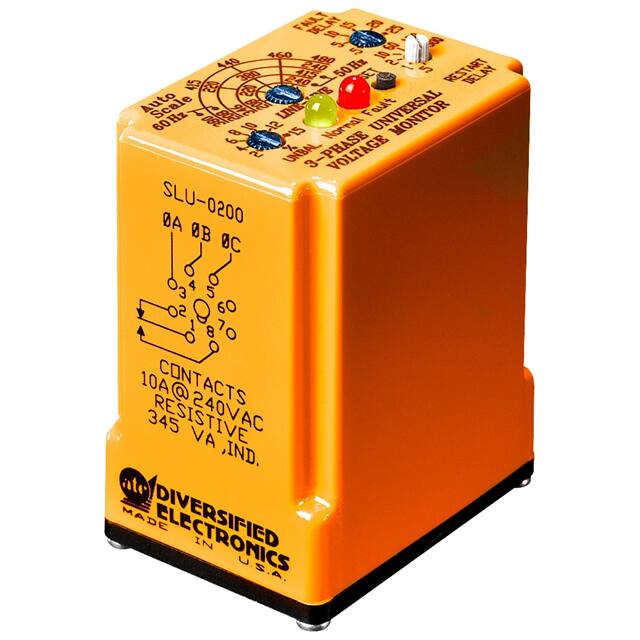

SLU-0200UNIVERSAL PHASE MONITORING RELAY |
0 |
|
Технический лист |
SLU-0200 | Box | Discontinued | Voltage Sensing AC, Phase Sequence | Energized High/Low | 200 ~ 500V AC | 0.5 Sec ~ 300 Sec | 208 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Socketable |
|
|
70.41.8.400.20303PH UNDER/OVER VOLT MONITOR |
0 |
|
- |
70 | Box | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss | - | 220 ~ 510V AC | 0.5 Sec ~ 60 Sec | 208 ~ 480VAC | Relay | SPDT (1 Form C) | 6A @ 250VAC | DIN Rail |
|
|
TVM460A75S2M3 PHASE LINE MONITOR |
0 |
|
Технический лист |
TVM | Bulk | Discontinued | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High/Low | - | Fixed, 5 Sec | 460VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Panel Mount |
|
|
CMG010036AC SELF POWERED GO NO-GO CURRENT |
0 |
|
Технический лист |
CMG | Box | Active | Current Sensing AC | Energized High/Low | 9 ~ 36A AC | 0.05 Sec ~ 0.4 Sec | 24 ~ 480VAC | Relay | SPST-NO (1 Form A) | 5A @ 240VAC | Chassis Mount |
|
|
84873011CONTROL RELAY PHASE 3X380VAC DIN |
0 |
|
Технический лист |
FW | Bulk | Obsolete | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 310 ~ 337V AC | 0.2 Sec ~ 10 Sec | 304 ~ 337VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
|
84873012CONTROL RELAY PHASE 3X400VAC DIN |
0 |
|
- |
FW | Bulk | Obsolete | Phase Loss, Phase Sequence, Voltage Sensing AC | - | 320 ~ 460V AC | 0.2 Sec ~ 10 Sec | 400VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
|
84873014CONTROL RELAY PHASE 3X440VAC DIN |
0 |
|
- |
FW | Bulk | Obsolete | Phase Loss, Phase Sequence, Voltage Sensing AC | - | 350 ~ 510V AC | 0.2 Sec ~ 10 Sec | 440VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
|
84873015CONTROL RELAY PHASE 3X480VAC DIN |
0 |
|
Технический лист |
FW | Bulk | Obsolete | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 384 ~ 552V AC | 0.2 Sec ~ 10 Sec | 480VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
SLA-230-ALAPHASE MONITOR/RELAY |
0 |
|
Технический лист |
SLA | Box | Discontinued | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 190 ~ 270V AC | 0.25 Sec ~ 0.5 Sec | 230VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Socketable |
|
|
RM22JA21MRAMP MON RELAY, 24-240VAC IN, 0.1 |
0 |
|
Технический лист |
Harmony | Box | Active | Current Sensing AC/DC | Energized High/Low | 0.004 ~ 1A AC/DC | No Delay | 24 ~ 240VAC/DC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
|
1102810520CPW-E12, 230 V AC, 1 - 10 A (MEA |
0 |
|
- |
- | Bulk | Active | Current Sensing AC, Voltage Sensing AC | Energized High/Low | - | - | 230VAC | Relay | SPDT (1 Form C) | 4A @ 250VAC | DIN Rail |
|
|
110281052013CPW-E12, 230 V AC, 0.2 - 2.5 A ( |
0 |
|
- |
- | Bulk | Active | Current Sensing AC, Voltage Sensing AC | Energized High/Low | - | - | 230VAC | Relay | SPDT (1 Form C) | 4A @ 250VAC | DIN Rail |
|
SLU-100-ASAUNIVERSAL PHASE MONITORING RELAY |
0 |
|
Технический лист |
SLU-100 | Box | Discontinued | Phase Sequence | - | 200 ~ 500V AC | 0.5 Sec ~ 300 Sec | 208 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Socketable |
|
CMG-0101CURRENT MONITOR |
0 |
|
- |
CMG-0101 | Box | Discontinued | Current Sensing AC | Energized High/Low | 0.5 ~ 2A AC | 0.02 Sec ~ 0.4 Sec | 24 ~ 480VAC | Solid State | SPST-NO (1 Form A) | 1A @ 280VAC | Chassis Mount |
|
|
84873016CONTROL RELAY PHASE 3X575VAC DIN |
0 |
|
Технический лист |
FW | Bulk | Obsolete | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 460 ~ 661V AC | 0.2 Sec ~ 10 Sec | 600VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
HLVA6I23RELAY OUTPUT |
0 |
|
Технический лист |
- | Bulk | Active | Voltage Sensing AC | Energized Low | 70 ~ 220V AC | 1 Sec ~ 20 Sec | 100 ~ 240VAC | Relay | SPDT (1 Form C) | 30A @ 125/240VAC | Chassis Mount |
|
SC20ALMDCAMPLIFIER LOOP PWR TRIP UNIVERSA |
0 |
|
Технический лист |
SC | Box | Obsolete | Process Sensing | Energized High/Low | 0.4 ~ 2V | No Delay | Loop Power | Solid State | SPST-NO (1 Form A) | 0.13A @ 110VAC/24VDC | DIN Rail |
