Мониторы релейного выхода
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Состояние срабатывания | Диапазон срабатывания | Время задержки | Напряжение - Питание | Тип выхода | Схема | Контактный рейтинг при напряжении | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

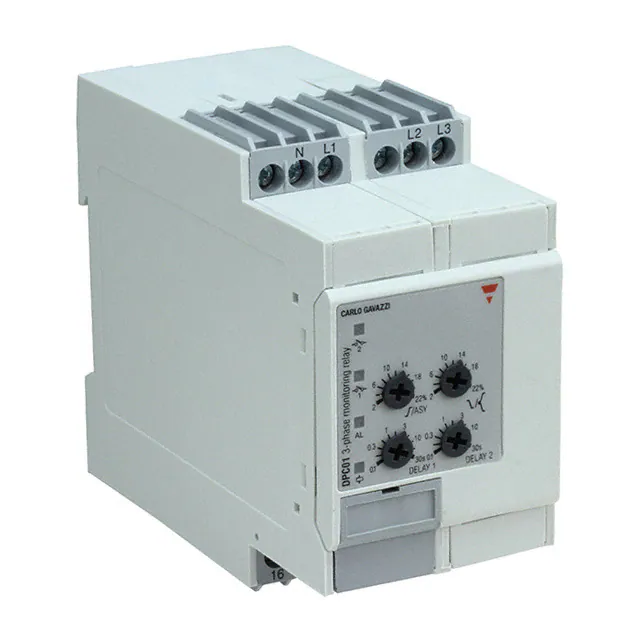

DPC01DM693PHASE OVER/UNDER VOLT MONITOR |
13 |
|
Технический лист |
DPC01 | Box | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High/Low | 510 ~ 793V AC | 0.1 Sec ~ 30 Sec | 600 ~ 690VAC | Relay | SPDT (1 Form C) x 2 | 8A @ 250VAC | DIN Rail |
|
EISH200MA024ON/OFF CURRENT SENSOR |
9 |
|
Технический лист |
EISH | Box | Active | Current Sensing AC | Energized High/Low | 0.2 ~ 60A AC/DC | Fixed, 0.25 Sec | 0.5 ~ 30VAC/DC | Solid State | SPST-NO (1 Form A) | - | DIN Rail |
|

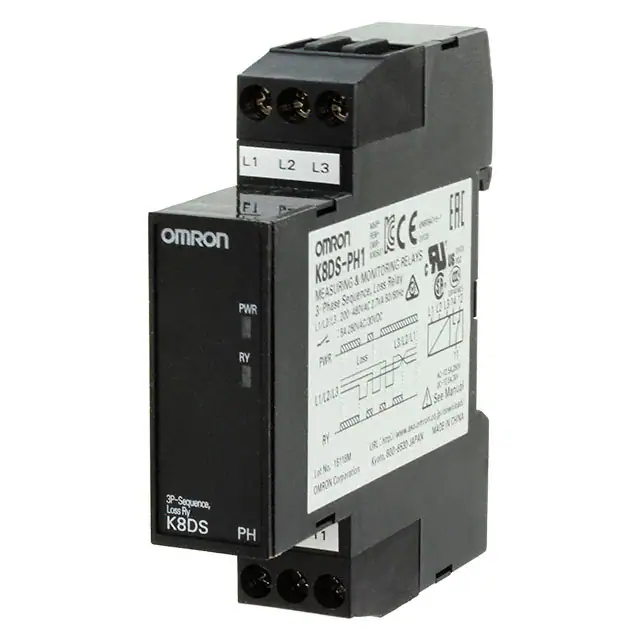

K8DS-PH1 200/480VACTHIN PHSE SEQUENCE LOSS |
22 |
|
Технический лист |
K8DS | Bulk | Active | Phase Loss, Phase Sequence | - | - | No Delay | 200 ~ 480VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
70.61.8.400.0000RELAY MONITOR 3PHASE 208V-480V |
16 |
|
Технический лист |
70 | Box | Active | Voltage Sensing AC, Phase Loss | - | 170 ~ 500V AC | Fixed, 0.50 Sec | 208 ~ 240VAC | Relay | SPDT (1 Form C) | 6A @ 250VAC | DIN Rail |
|
DPA51CM44RELAY MONITOR 3PHASE 208-480 |
15 |
|
Технический лист |
DPA51 | Box | Active | Phase Loss, Phase Sequence | Energized High | 177 ~ 550V AC | - | 208 ~ 480VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
DIA53S72420ARELAY MONITOR AC OVER CURR 2-20A |
8 |
|
Технический лист |
DIA53 | Box | Active | Current Sensing AC | Energized High | 2 ~ 20A AC | - | Loop Power | Solid State | SPST-NO (1 Form A) | 0.1A @ 40VDC | DIN Rail |
|

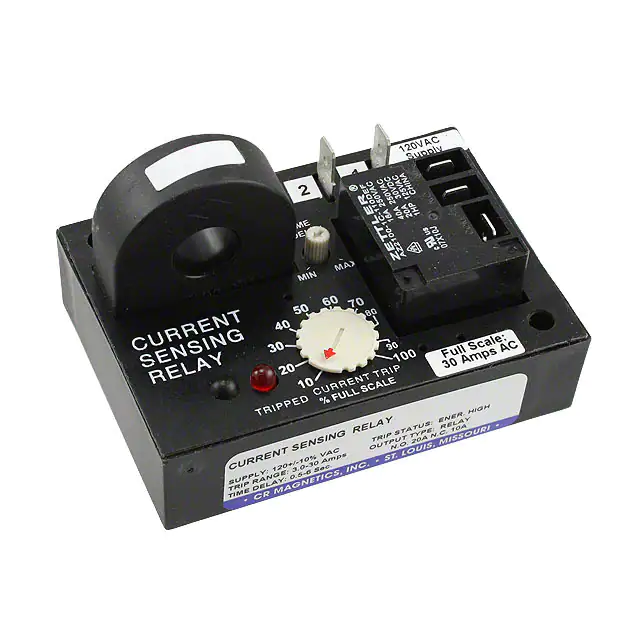

CR4395-EH-120-330-A-CD-ELR-IRELAY AC CUR SENS 120VAC CHAS MT |
11 |
|
Технический лист |
CR4395 | Box | Active | Current Sensing AC | Energized High | 3.0 ~ 30A AC | 0.5 Sec ~ 6 Sec | 120VAC | Relay | SPDT (1 Form C) | 20A @ 240VAC | Chassis Mount |
|
LSRXCURRENT SENSOR W/RELAY 5-200A |
17 |
|
Технический лист |
LSRX | Bulk | Active | Current Sensing AC | Energized High | 5 ~ 200A AC | No Delay | - | Relay | SPST-NO (1 Form A) | 5A @ 240VAC | Chassis Mount |
|

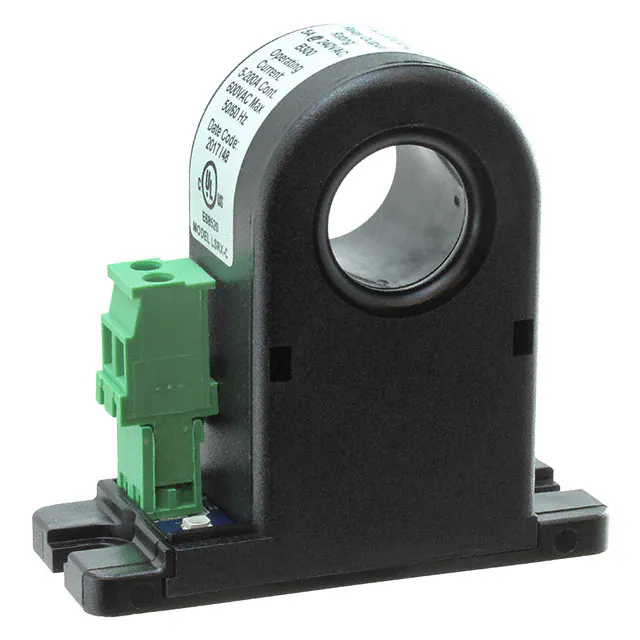

LSRX-CCURRENT SENSOR W/RELAY 5-200A |
13 |
|
Технический лист |
LSRX-C | Bulk | Active | Current Sensing AC | Energized High | 5 ~ 200A AC | No Delay | - | Relay | SPST-NO (1 Form A) | 5A @ 240VAC | Chassis Mount |
|
K8DT-PH1CN3PHSE 3WIRE PHSELSS RLY PSH IN |
3 |
|
Технический лист |
K8DT | Box | Active | Phase Loss, Phase Sequence | - | - | No Delay | 200 ~ 480VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
DPA01DM48RELAY MONITOR 3PHASE 380-415 |
8 |
|
Технический лист |
DPA01 | Box | Active | Phase Loss, Phase Sequence | Energized High | 323 ~ 550V AC | - | 380 ~ 480VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail |
|
CR5395-EH-ACV-110-X-CD-ELR-IRELAY DC CUR SENS 85-265VAC/DC |
23 |
|
Технический лист |
CR5395 | Box | Active | Current Sensing DC | Energized High | 1.0 ~ 10A DC | No Delay | 85 ~ 265VAC/DC | Relay | SPDT (1 Form C) | 20A @ 240VAC | Chassis Mount |
|

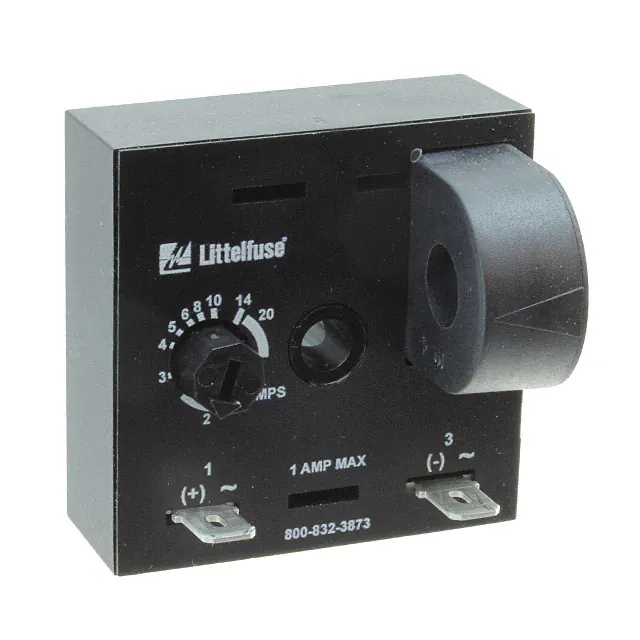

TCSHAAMODULE CUR SENSOR 2-20A 24-240V |
20 |
|
Технический лист |
TCS | Bulk | Active | Current Sensing AC | Energized High | 2 ~ 20A AC | - | - | Solid State | SPST-NO (1 Form A) | - | Chassis Mount |
|

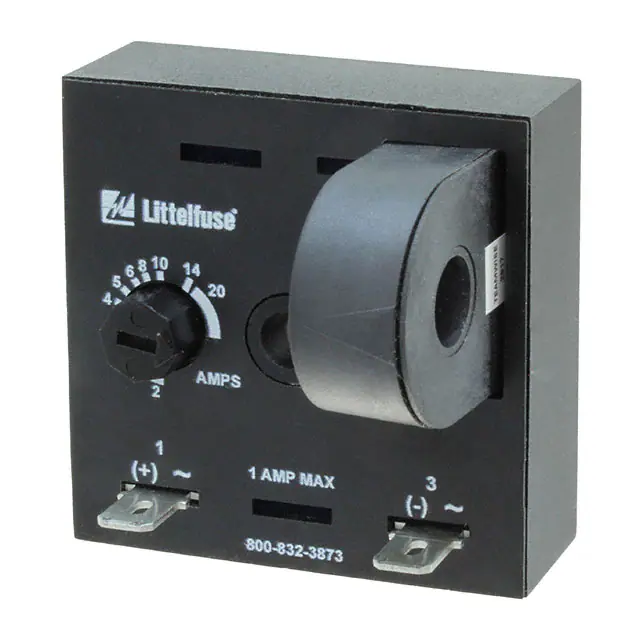

TCSGAAMODULE CUR SENSOR 2-20A 3-50VDC |
14 |
|
Технический лист |
TCS | Bulk | Active | Current Sensing AC | Energized High | 2 ~ 20A AC | - | - | Solid State | SPST-NO (1 Form A) | - | Chassis Mount |
|
DUA01CB23500VRELAY MONITOR OVER VOLT ADJ |
6 |
|
Технический лист |
DUA01 | Box | Active | Current Sensing AC, Voltage Sensing AC/DC | Energized High | 2 ~ 500V AC/DC | - | 115 ~ 230VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|
SLU-100-ASASLU-100 SERIES UNIVERSAL PHASE M |
9 |
|
Технический лист |
SLU-100 | Box | Active | Phase Sequence | - | 200 ~ 500VAC | 0.5 Sec ~ 300 Sec | 208 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Socketable |
|
PUA01CB23500VOVERVOLT MONITOR RELAY 500V ADJ |
15 |
|
Технический лист |
PUA01 | Box | Active | Current Sensing AC, Voltage Sensing AC/DC | Energized High | 2 ~ 500V AC/DC | - | 115 ~ 230VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | Socketable |
|
DPA53CM48RELAY MONITOR 3PHASE 320-480 |
12 |
|
Технический лист |
DPA53 | Box | Active | Phase Loss, Phase Sequence | Energized High | 320 ~ 480V AC | - | 380 ~ 480VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
DPA53CM23RELAY MONITOR 3PHASE 160-240 |
19 |
|
Технический лист |
DPA53 | Box | Active | Phase Loss, Phase Sequence | Energized High | 160 ~ 240V AC | - | 208 ~ 240VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
RM17UAS15HARMONY, MODULAR 1-PHASE VOLTAGE |
5 |
|
Технический лист |
Harmony | Box | Active | Voltage Sensing AC/DC | Energized High/Low | 65 ~ 260V AC | 0.1 Sec ~ 10 Sec | 110 ~ 240VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC/250VDC | DIN Rail |
