Мониторы релейного выхода
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Состояние срабатывания | Диапазон срабатывания | Время задержки | Напряжение - Питание | Тип выхода | Схема | Контактный рейтинг при напряжении | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
250-100-METMODEL 250-100/RT FORM C RELAY |
1 |
|
Технический лист |
250A | Bulk | Active | Voltage Sensing AC | Energized High/Low | 95 ~ 120V AC | Fixed, 4 Sec | 95 ~ 120VAC | Relay | DPDT (2 Form C) | 10A @ 240VAC | Chassis Mount |
|

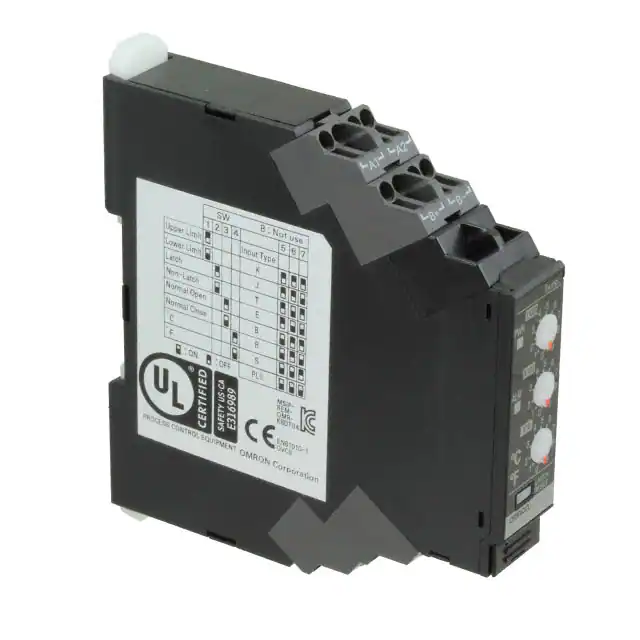

K8DT-TH2CDTEMP MONTRG RELY TC/RTD PSH IN |
1 |
|
Технический лист |
K8DT | Box | Active | Temperature Monitoring | - | - | No Delay | 24VAC/DC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|

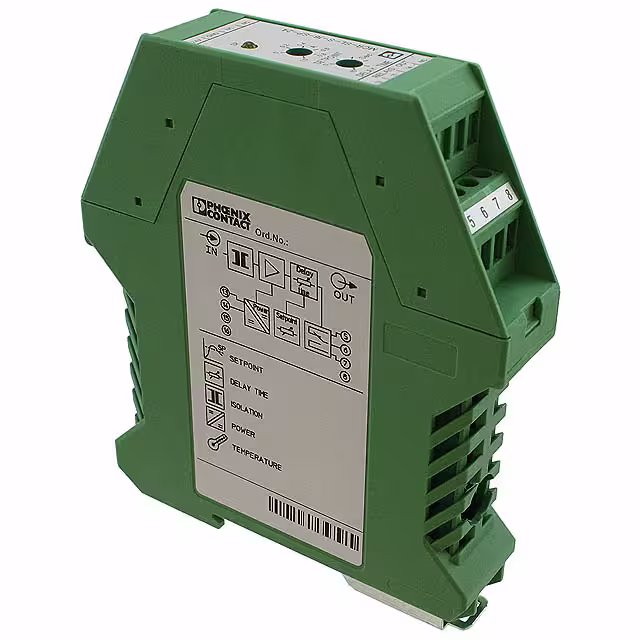

2864464CONTACTOR 30-250VAC SPDT |
1 |
|
Технический лист |
MCR | Bulk | Active | Current Sensing AC | Energized High | 0 ~ 16A | No Delay | 20 ~ 30VDC | - | SPDT (1 Form C) | 2A @ 250VAC | DIN Rail |
|
2885773MON RELAY 3PHASE 2PDT 230VAC |
1 |
|
Технический лист |
EMD | Bulk | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High | 160 ~ 300V AC | 0.1 Sec ~ 10 Sec | 24VAC/DC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|

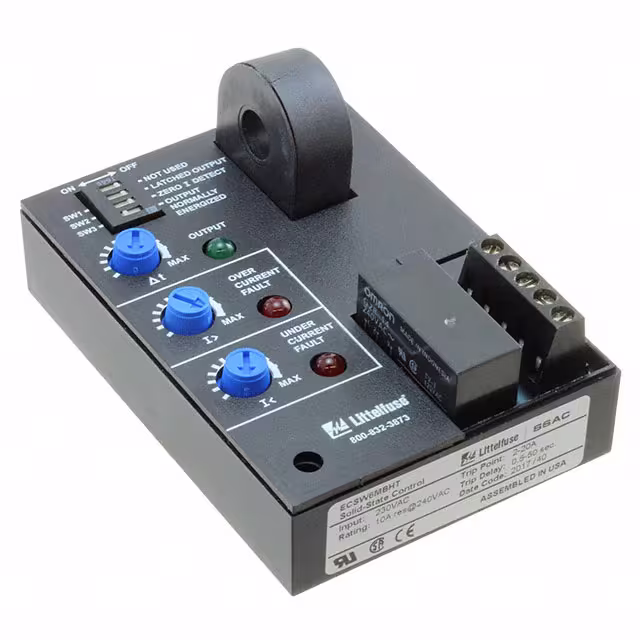

ECSW6MBHTCUR SENSE MONITOR 230VAC 2-20A |
0 |
|
Технический лист |
ECSW | Bulk | Active | Current Sensing AC | Energized High/Low | 2 ~ 20A AC | 0.5 Sec ~ 50 Sec | 230VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
111P1-PHASE PUMPSAVERPLUS/ 115V/ 1 |
1 |
|
Технический лист |
111P | Bulk | Active | Voltage Sensing AC | Energized High/Low | 95 ~ 132.5V AC | Fixed, 4 Sec, 5 Sec | 115VAC | Relay | - | 16A @ 120VAC | Chassis Mount |
|
K8AK-TS1 24 VAC/VDCTHERMISTOR MOTOR PROTECTION |
1 |
|
Технический лист |
K8AK | Bulk | Active | Temperature Monitoring | - | - | No Delay | 24VAC/DC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
2867979MON RELAY 3PHASE 2X2PDT 500VAC |
1 |
|
Технический лист |
EMD | Bulk | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High | 3 ~ 500V AC | 0.1 Sec ~ 10 Sec | 110 ~ 500VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
350200283-PHASE VOLT MON/ 190-240V/ AD |
1 |
|
Технический лист |
350 | Bulk | Active | Voltage Asymmetry, Voltage Sensing AC | Energized Low | 190 ~ 240V AC | Fixed, 2 Sec, 4 Sec | 190 ~ 240VAC | Relay | DPDT (2 Form C) | 15A @ 240VAC | Chassis Mount |
|
233P-ENCL1-PHASE PUMPSAVERPLUS / 230V |
1 |
|
Технический лист |
233P | Bulk | Active | Voltage Sensing AC | Energized High/Low | 190 ~ 265V AC | Fixed, 4 Sec, 5 Sec | 230VAC | Relay | SPST-NO (1 Form A) | 17A @ 240VAC | Chassis Mount |
|
K7GE-MGMAK7GE CONTROLLER AC INPUT |
1 |
|
Технический лист |
K7GE-MG | Box | Active | Resistance Monitoring | Energized High/Low | 100kOhm ~ 99.9MOhm | 0 Sec ~ 1 Sec | 100 ~ 240VAC | Solid State | NPN | 0.05A @ 24VDC | DIN Rail |
|
DIA53S72450ARELAY MONITOR AC OVER CURR 5-50A |
0 |
|
Технический лист |
DIA53 | Box | Active | Current Sensing AC | Energized High | 5 ~ 50A AC | - | Loop Power | Solid State | SPST-NO (1 Form A) | 0.1A @ 40VDC | DIN Rail |
|
DTA71CM24THERMISTOR RELAY SINGLE OUT |
0 |
|
Технический лист |
DTA71 | Box | Active | Temperature Monitoring | Energized High | - | - | 18 ~ 265VAC/DC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|
PWRS220ACONTROL RELAY PHASE 3X220VAC |
0 |
|
Технический лист |
WRS | Bulk | Active | Phase Loss, Phase Sequence | Energized High | - | No Delay | 220VAC | Relay | SPDT (1 Form C) | 10A @ 250VAC | Socketable |
|
PPA01CM443-PHASE VOLT RELAY LOSS/SEQ |
0 |
|
Технический лист |
PPA01 | Box | Active | Phase Loss, Phase Sequence | Energized High | 177 ~ 475V AC | - | 208 ~ 415VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | Socketable |
|

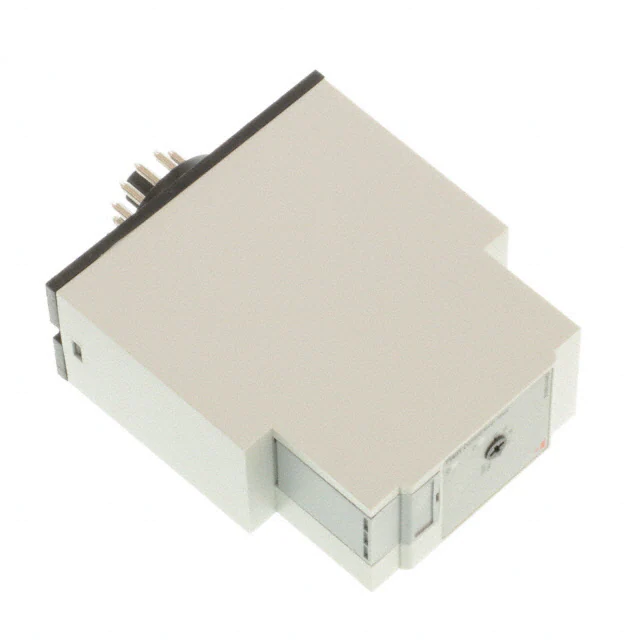

PIA01CB235A115-230V CURRENT LEVEL RELAY |
1 |
|
Технический лист |
PIA01 | Box | Active | Current Sensing AC/DC | Energized High/Low | 0.5 ~ 5A AC/DC | - | 115 ~ 230VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | Socketable |
|
DPA02CM403PH VOLT RLY LOSS/SEQ |
0 |
|
Технический лист |
DPA02 | Box | Active | Phase Sequence | - | 323 ~ 475V AC | - | 380 ~ 415VAC | Relay | SPDT (1 Form C) | 8A @ 250VAC | DIN Rail |
|
K8AK-AS3 24VAC/DCCURRENT RELAY 10 TO 200 A |
1 |
|
Технический лист |
K8AK | Box | Active | Current Sensing AC/DC | - | 10 ~ 200A AC/DC | 0.1 Sec ~ 30 Sec | 24VAC/DC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|

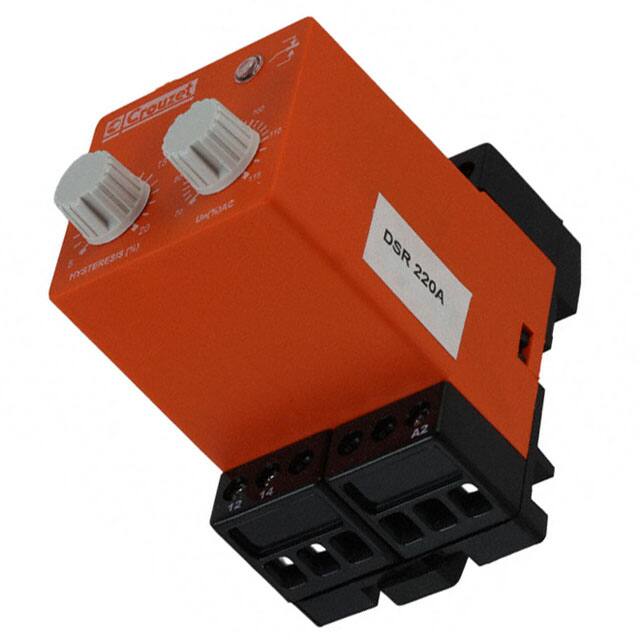

DSR220ACONTROL RELAY UNDER VOLT 220VAC |
0 |
|
- |
SR | Box | Active | Voltage Sensing AC/DC | Energized High | 48 ~ 220V AC, 12 ~ 24V DC | No Delay | 220VAC | Relay | SPDT (1 Form C) | 10A @ 250VAC | DIN Rail |
|
2903521MONITORING RELAY SCREW TERM |
1 |
|
Технический лист |
EMD | Bulk | Active | Current Sensing AC | Energized High | 0 ~ 10A AC | No Delay | - | Relay | SPDT (1 Form C) | - | DIN Rail |
