Мониторы преобразователей тока/напряжения
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Входной диапазон | Выход | Изоляция | Время отклика | Точность | Напряжение - Питание | Тип крепления | Тип вывода | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ENTUBE SE (50V 5V)TRANSDUCER VOLTAGE DIVIDER |
1 |
|
Технический лист |
Entube SE | Box | Active | Voltage Transducer | ±50V | ±5V | - | - | ±0.2% | - | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ENTUBE SE (1000V 10V)TRANSDUCER VOLTAGE DIVIDER |
0 |
|
Технический лист |
Entube SE | Box | Active | Voltage Transducer | ±1000V | ±10V | - | - | ±0.2% | - | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ENTUBE SE (100V 5V)TRANSDUCER VOLTAGE DIVIDER |
1 |
|
Технический лист |
Entube SE | Box | Active | Voltage Transducer | ±100V | ±5V | - | - | ±0.2% | - | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
2813457TRANSDUCER CURRENT 20-30VDC |
1 |
|
Технический лист |
MCR | Bulk | Active | Current Transducer | 0 ~ 100A | 0 ~ 10VDC, 0 ~ 20mA | 5000VAC (Test) | 340ms | - | 20 ~ 30VDC | DIN Rail | Screw Terminal | -20°C ~ 60°C | CE, cULus |
|
ISOBLOCK V-1C (50V 5V)TRANSDUCER VOLTAGE 9-28VDC |
1 |
|
Технический лист |
IsoBlock V | Box | Active | Voltage Transducer | ±50V | ±5V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|

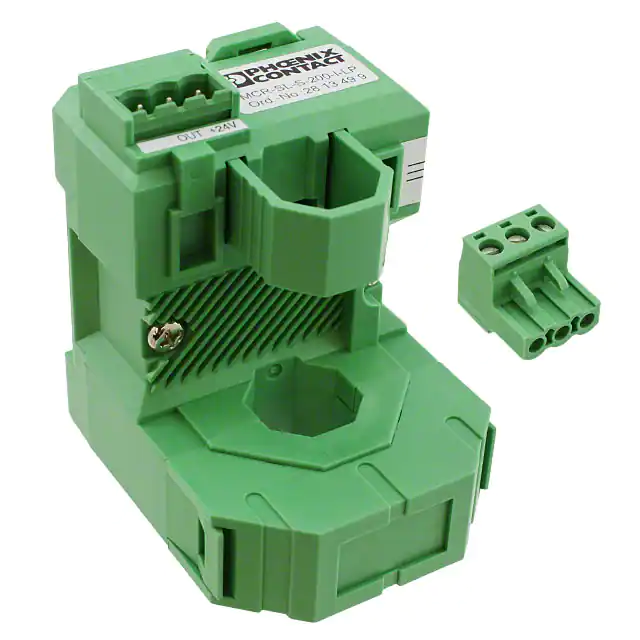

2813499TRANSDUCER CURRENT 20-30VDC |
1 |
|
Технический лист |
MCR | Bulk | Active | Current Transducer | 0 ~ 200A | 4 ~ 20mA | 5000VAC (Test) | 340ms | - | 20 ~ 30VDC | DIN Rail | Screw Terminal | -20°C ~ 60°C | CE, cULus |
|
2308072TRANSDUCER CURRENT 24VDC |
1 |
|
Технический лист |
MCR | Bulk | Active | Current Transducer | 0 ~ 400A | 4 ~ 20mA | 300VAC (Working), 3500VAC (Test) | 150ms | - | 24VDC | Chassis Mount, DIN Rail | Spring Terminal | -40°C ~ 65°C | CE, cULus |
|
|
2308098TRANSDUCER CURRENT 24VDC |
1 |
|
Технический лист |
MCR | Bulk | Active | Current Transducer | 0 ~ 600A | 4 ~ 20mA | 300VAC (Working), 3500VAC (Test) | 150ms | - | 24VDC | Chassis Mount, DIN Rail | Spring Terminal | -40°C ~ 65°C | CE, cULus |
|
|
ISOBLOCK V-1C (1500V 5V)TRANSDUCER VOLTAGE 9-28VDC |
1 |
|
Технический лист |
IsoBlock V | Box | Active | Voltage Transducer | ±1500V | ±5V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
ENTUBE DE (1500V 10V)TRANSDUCER VOLTAGE HIBAND |
1 |
|
Технический лист |
Entube DE | Box | Active | Voltage Transducer | ±1500V | ±10V | - | - | ±0.2% | - | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
ENTUBE TE (750V 10V)TRANSDUCER VOLTAGE DIVIDER 3PH |
1 |
|
Технический лист |
Entube TE | Box | Active | Voltage Transducer | ±750V | ±10V | - | - | ±0.2% | - | DIN Rail | RJ45, Spring Terminal | -25°C ~ 70°C | - |
|
|
ENTUBE SE (300V 10V)TRANSDUCER VOLTAGE DIVIDER |
1 |
|
Технический лист |
Entube SE | Box | Active | Voltage Transducer | ±300V | ±10V | - | - | ±0.2% | - | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|

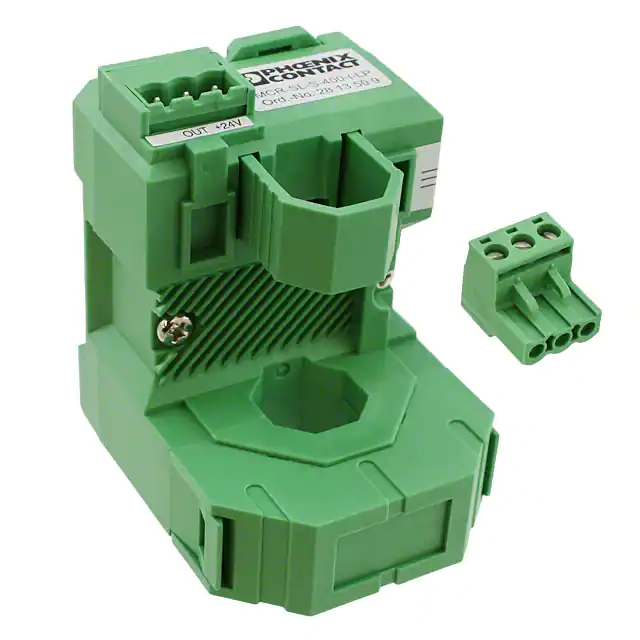

2813509TRANSDUCER CURRENT 20-30VDC |
1 |
|
Технический лист |
MCR | Bulk | Active | Current Transducer | 0 ~ 400A | 4 ~ 20mA | 5000VAC (Test) | 340ms | - | 20 ~ 30VDC | DIN Rail | Screw Terminal | -20°C ~ 60°C | CE, cULus |
|
|
ENTUBE TE (1000V 10V)TRANSDUCER VOLTAGE DIVIDER 3PH |
1 |
|
Технический лист |
Entube TE | Box | Active | Voltage Transducer | ±1000V | ±10V | - | - | ±0.2% | - | DIN Rail | RJ45, Spring Terminal | -25°C ~ 70°C | - |
|
|
ENTUBE TE (500V 10V)TRANSDUCER VOLTAGE DIVIDER 3PH |
1 |
|
Технический лист |
Entube TE | Box | Active | Voltage Transducer | ±500V | ±10V | - | - | ±0.2% | - | DIN Rail | RJ45, Spring Terminal | -25°C ~ 70°C | - |
|
ENTUBE DE-HB (1000V10V SEBNC)TRANSDUCER VOLTAGE 9-28VDC |
1 |
|
Технический лист |
Entube DE-HB | Box | Active | Voltage Transducer | ±1000V | ±10V | - | 20ns | ±0.2% | 9 ~ 28VDC | DIN Rail | BNC, Spring Terminal | -25°C ~ 70°C | - |
|
ENTUBE DE-HB (60V 10V DIFF SC)TRANSDUCER VOLTAGE 9-28VDC |
1 |
|
Технический лист |
- | Box | Active | Voltage Transducer | ±1500V | ±10V | - | - | ±0.2% | 8 ~ 28V | DIN Rail | Spring Terminal | 0°C ~ 70°C | CE |
|

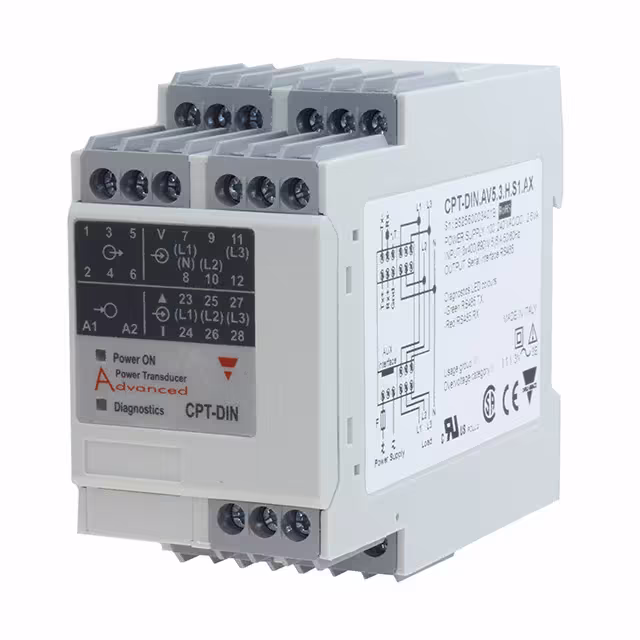

CPTDINAV53HS1AXTRANSDUCER VOLTAGE 90-260VAC/DC |
1 |
|
Технический лист |
CPT-DIN | Box | Active | True RMS AC Voltage Transducer | 400 ~ 690VAC | - | 4000VAC (Test) | 400ms | ±0.5% | 90 ~ 260VAC/DC | DIN Rail | Screw Terminal | 0°C ~ 50°C | CE, CSA, cURus |
|
2813473TRANSDUCER CURRENT 20-30VDC |
1 |
|
Технический лист |
MCR | Bulk | Active | Current Transducer | 0 ~ 400A | 0 ~ 10VDC | 5000VAC (Test) | 340ms | - | 20 ~ 30VDC | DIN Rail | Screw Terminal | -20°C ~ 60°C | CE, cULus |
|
RISH CON-CV-AVG-01-F-V-01-LVOLTAGE TRANSDUCER 0~63.5V I/P |
3 |
|
Технический лист |
- | Bulk | Active | Voltage Transducer | 0 ~ 63.5VAC | 0 ~ 10VDC | - | 250ms | - | 24 ~ 60VAC/DC | DIN Rail | Screw Terminal | 0°C ~ 45°C | UL |
