Микрофоны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Тип выхода | Направление | Диапазон частот | Чувствительность | Отношение сигнал/шум | Импеданс | Напряжение - Номинальное | Диапазон напряжений | Ток - Питание | Расположение порта | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота (макс.) | Форма | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CME-1538-100LBMIC COND ANLG OMNI -38DB 0.157"D |
0 |
|
Технический лист |
- | Bag | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.157" Dia (4.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
EA-21842-C36MIC COND ANALOG OMNI -59DB |
0 |
|
Технический лист |
EA | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.8 kHz | -59dB ±3dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
EK-23024-000MIC COND ANALOG OMNI -53DB |
0 |
|
Технический лист |
EK | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.5 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 10 V | 50 µA | Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
FG-23629-P16MIC COND ANLG OMNI -53DB 0.101"D |
0 |
|
Технический лист |
FG | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Wire Leads | 0.101" Dia (2.57mm) | 0.101" (2.57mm) | Circular | - | - |
|

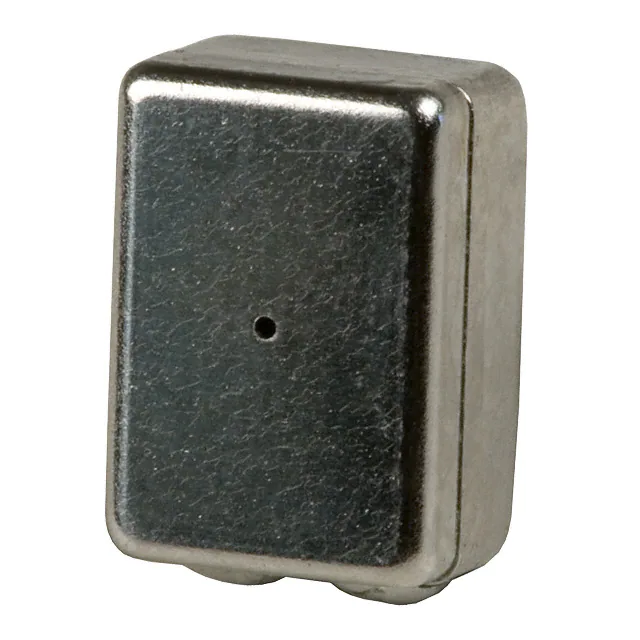

BJ-21590-000MIC MAG ANALOG OMNI -75.5DB |
0 |
|
Технический лист |
BJ | Bulk | Active | Magnetic | Analog | Omnidirectional | 300 Hz ~ 5 kHz | -75.5dB ±3dB @ 74dB SPL | - | 3.9 kOhms | - | - | - | Top | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.160" (4.06mm) | Rectangular | - | - |
|
FG-23329-P07MIC COND ANLG OMNI -53DB 0.101"D |
0 |
|
Технический лист |
FG | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Wire Leads | 0.101" Dia (2.57mm) | 0.101" (2.57mm) | Circular | - | - |
|
CMC-5042PF-ACMIC COND ANLG OMNI -42DB 0.236"D |
2 |
|
Технический лист |
- | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 56dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|

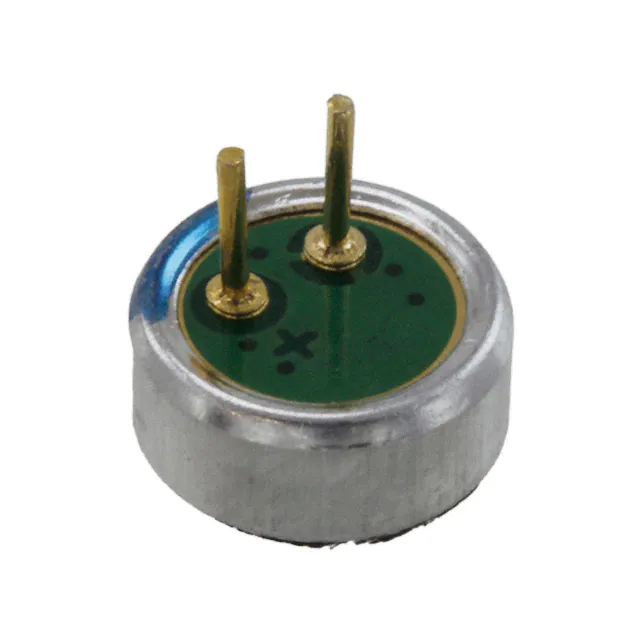

EM-6027PMIC COND ANLG OMNI -43DB 0.236"D |
0 |
|
Технический лист |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 15 kHz | -43dB ±5dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
MW064202-1MIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Технический лист |
MW | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -42dB ±3dB | 60dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
PNM-5054L-C3310-RMIC COND ANLG NC -54DB 0.236"DIA |
0 |
|
Технический лист |
PNM | Box | Active | Electret Condenser | Analog | Noise Cancelling | - | -54dB ±3dB | 56dB | - | 2 V | - | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|
CMP-5247TF-KMIC COND ANLG NC -47DB 0.382"DIA |
0 |
|
Технический лист |
- | Box | Active | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 20 kHz | -47dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | - | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.213" (5.40mm) | Circular | - | - |
|
CMC-6027-42L100MIC COND ANLG OMNI -42DB 0.236"D |
0 |
|
Технический лист |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 57dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP57 - Dust Protected, Waterproof | Wire Leads | 0.236" Dia (6.00mm) | 0.161" (4.10mm) | Circular | - | - |
|
POW-3535L-3-LW100-B-RMIC COND ANLG OMNI -35DB 0.315"D |
0 |
|
Технический лист |
POW | Box | Active | Electret Condenser | Analog | Omnidirectional | - | -35dB ±4dB | 68dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP57 - Dust Protected, Waterproof | Wire Leads | 0.315" Dia (8.00mm) | 0.146" (3.70mm) | Circular | - | - |
|
CMC-4015-130TMIC COND ANLG OMNI -42DB 0.157"D |
0 |
|
Технический лист |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Solder Pads | 0.157" Dia (4.00mm) | 0.059" (1.50mm) | Circular | - | - |
|
CMC-6035-130TMIC COND ANLG OMNI -42DB 0.236"D |
20 |
|
Технический лист |
CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 70dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Solder Pads | 0.236" Dia (6.00mm) | 0.138" (3.50mm) | Circular | - | - |
|
FB-BW-30335-000MIC BOOM ANLG NC -59DB 0.315"DIA |
0 |
|
Технический лист |
FB-BW | Bulk | Active | Boom | Analog | Noise Cancelling | 300 Hz ~ 4 kHz | -59dB ±4dB @ 74dB SPL | - | 2.2 kOhms | 1.3 V | 1.3 V ~ 10 V | 300 µA | Bottom, Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.315" Dia (8.00mm) | 0.185" (4.70mm) | Circular | - | - |
|
FB-FO-23225-000MIC BOOM ANLG NC -60DB 0.340"DIA |
0 |
|
Технический лист |
FB | Bulk | Active | Boom | Analog | Noise Cancelling | 300 Hz ~ 4 kHz | -60dB ±3dB @ 74dB SPL | - | 2.2 kOhms | 1.3 V | 1.3 V ~ 10 V | 200 µA | Top | - | Wire Leads | 0.340" Dia (8.64mm) | - | Circular | - | - |
|
FB-EM-30343-000MIC BOOM ANLG NC -51DB 0.748"DIA |
0 |
|
Технический лист |
FB-EM | Bulk | Active | Boom | Analog | Noise Cancelling | 300 Hz ~ 6 kHz | -51dB ±4dB @ 74dB SPL | - | 2 kOhms | 1.3 V | 1.3 V ~ 10 V | 300 µA | Bottom, Top | - | Wire Leads | 0.748" Dia (19.00mm) | 0.245" (6.22mm) | Circular | - | - |
|
EM-9750PMIC COND ANLG OMNI -42DB 0.382"D |
0 |
|
Технический лист |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 500 µA | Top | IP50 - Dust Protection | PC Pins | 0.382" Dia (9.70mm) | 0.205" (5.20mm) | Circular | - | - |
|
AOM-4540P-RMIC COND ANLG OMNI -40DB 0.382"D |
0 |
|
Технический лист |
AOM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 30 Hz ~ 15 kHz | -40dB ±3dB | 60dB | 2.2 kOhms | 1.5 V | 1.5 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
