Концевые выключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Тип крепления | Тип вывода | Защита от проникновения | Особенности | Рабочее усилие | Сила отпускания | Рабочее положение | Предварительный ход | Дифференциальный ход | Переход | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

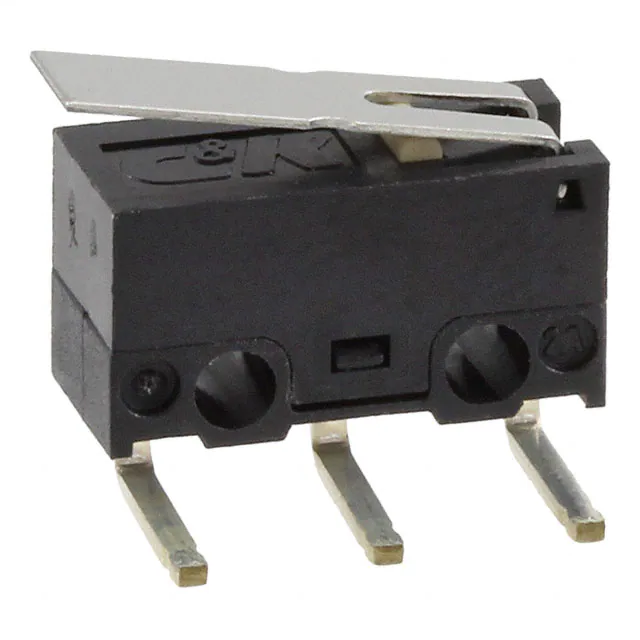

ZMA00A080L04RCSWITCH SNAP ACT SPDT 100MA 125V |
520 |
|
Технический лист |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 30gf | 5.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
SM3CQF3502L03SWITCH LIMIT SPDT 5A 125V |
147 |
|
Технический лист |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 95gf | 38gf | 0.646" (16.4mm) | 0.161" (4.1mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
|
SM3AQF0802L01SWITCH LIMIT SPST-NO 5A 125V |
130 |
|
Технический лист |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 20gf | 10gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
SAJ101XRHLN74SNOPTQSWITCH SNAP ACT SPST-NO 0.1A 30V |
357 |
|
Технический лист |
SAJ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | 2.000gf | 0.400" (10.2mm) | 0.150" (3.8mm) | 0.018" (0.45mm) | 0.020" (0.5mm) | -25°C ~ 75°C |
|

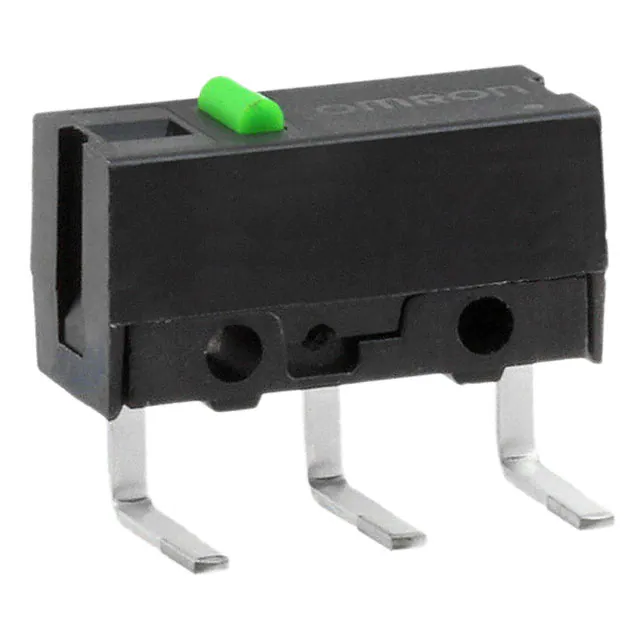

D2FS-F-N-A1SWITCH SNAP ACT SPST-NO 0.1A 6V |
187 |
|
Технический лист |
D2FS | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 6 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 87gf | 5.099gf | 0.276" (7.0mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -20°C ~ 70°C |
|
ESE-18L61DSWITCH DETECTOR SPST-NC 0.01A 5V |
13,514 |
|
Технический лист |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
JJIH0UG150NOPMRTRSWITCH DETECTOR SPST-NO 0.01A 5V |
7,594 |
|
Технический лист |
JJI | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 30gf | - | 0.087" (2.2mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|
JJHH0UG200NOPMRTRSWITCH DETECTOR SPST-NO 0.01A 5V |
5,488 |
|
Технический лист |
JJH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 150gf | - | 0.134" (3.4mm) | 0.014" (0.35mm) | - | - | -40°C ~ 85°C |
|
D2A-2120SWITCH SNAP ACTION SPDT 0.1A 30V |
1,264 |
|
Технический лист |
D2A | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | IP00 | - | 50gf | 5.099gf | 0.295" (7.5mm) | - | - | - | -10°C ~ 80°C |
|
SDS002SWITCH DETECT SPST-NC 100MA 12V |
957 |
|
Технический лист |
SDS | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|
D2F-F-TSWITCH SNAP ACTION SPDT 1A 125V |
1,220 |
|
Технический лист |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
AV3602619-ASWITCH SNAP ACT SPDT 0.1A 125V |
766 |
|
Технический лист |
AV3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Right Side | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
D2SW-P2TSWITCH SNAP ACTION SPDT 2A 250V |
818 |
|
Технический лист |
D2SW-P | Tray | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -20°C ~ 70°C |
|
SM3CQF3501L04SWITCH LIMIT SPDT 5A 125V |
202 |
|
Технический лист |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 50gf | 22gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
|
V19T16-EZ100B02SWITCH SNAP ACTION SPDT 16A 125V |
820 |
|
Технический лист |
V19 | Box | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 10gf | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.080" (2.0mm) | 0.062" (1.6mm) | -25°C ~ 125°C |
|
|
AV3214613SWITCH SNAP ACT SPDT 0.1A 125V |
195 |
|
Технический лист |
AV3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 40gf | 3.500gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
|
SAJ405XHL0N30SNOLRQSWITCH SNAP ACT SPST-NO 0.5A 30V |
9,335 |
|
Технический лист |
SAJ4 | Bulk | Active | SPST-NO | Off-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
AH14609-ASWITCH SNAP ACTION SPDT 3A 125V |
598 |
|
Технический лист |
AH1 | Tube | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
D2F-01F-D3SWITCH SNAP ACTION SPDT 0.1A 30V |
368 |
|
Технический лист |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
JJBV0UG335NOPPRTRSWITCH DETECTOR SPST-NO 0.1A 5V |
5,284 |
|
Технический лист |
JJB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 35gf | - | 0.120" (3.05mm) | 0.012" (0.3mm) | - | - | -15°C ~ 70°C |
