Концевые выключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Тип крепления | Тип вывода | Защита от проникновения | Особенности | Рабочее усилие | Сила отпускания | Рабочее положение | Предварительный ход | Дифференциальный ход | Переход | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

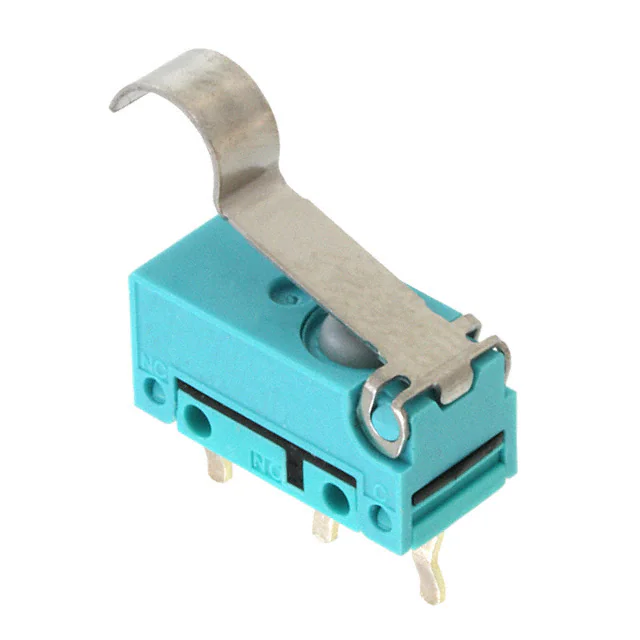

ABJ151461SWITCH SNAP ACT SPDT 0.1A 125V |
1,193 |
|
Технический лист |
ABJ | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP50 - Dust Protected | - | 65gf | 5.099gf | 0.386" (9.8mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
V-15G-3C26SWITCH SNAP ACT SPST-NO 15A 250V |
1,976 |
|
Технический лист |
V | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
D2F-L3SWITCH SNAP ACTION SPDT 3A 125V |
161 |
|
Технический лист |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

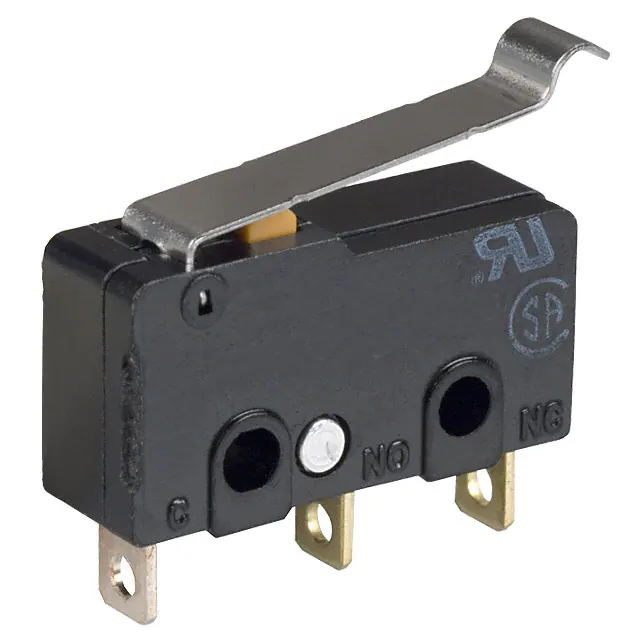

SS-10GL13SWITCH SNAP ACTION SPDT 10A 250V |
1,309 |
|
Технический лист |
SS | Tray | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
.jpg)
|
D3V-21G-1C4A-KSWITCH SNAP ACT SPDT 21A 250V |
126 |
|
Технический лист |
D3V | Bulk | Active | SPDT | On-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
D3V-012-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
834 |
|
Технический лист |
D3V | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
V-15-1C25SWITCH SNAP ACTION SPDT 15A 250V |
702 |
|
Технический лист |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

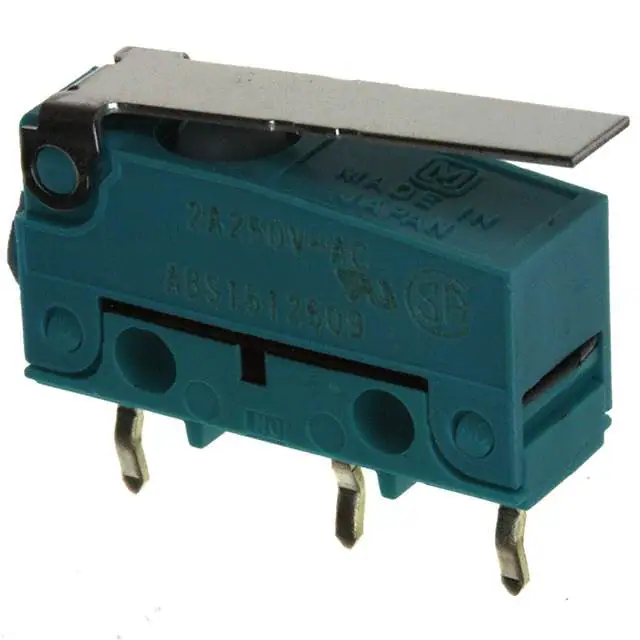

ABS1512509SWITCH SNAP ACTION SPDT 2A 125V |
2,896 |
|
Технический лист |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
SAJ501YPP0STDSDTFLQSWITCH SNAP ACT SPDT 0.1A 125V |
1,229 |
|
Технический лист |
SAJ5 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | 13gf | 0.250" (6.4mm) | 0.037" (0.94mm) | 0.008" (0.2mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
ABS1413409SWITCH SNAP ACTION SPDT 2A 125V |
943 |
|
Технический лист |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 25gf | 2.500gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
V-15G-1C26-KSWITCH SNAP ACTION SPDT 15A 250V |
664 |
|
Технический лист |
V | Tray | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V7-1B17D8-022SWITCH SNAP ACTION SPDT 11A 125V |
1,890 |
|
Технический лист |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 8.000gf | 0.602" (15.3mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|

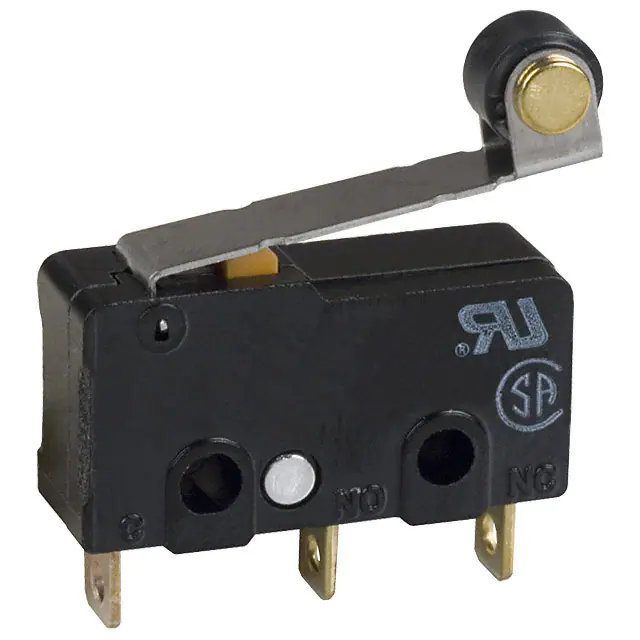

SS-5GL02SWITCH SNAP ACTION ROLL LEVER |
387 |
|
Технический лист |
SS | Tray | Active | - | - | 5A (AC) | 125 V | - | Lever, Straight | - | - | - | - | 50gf | 6.000gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|

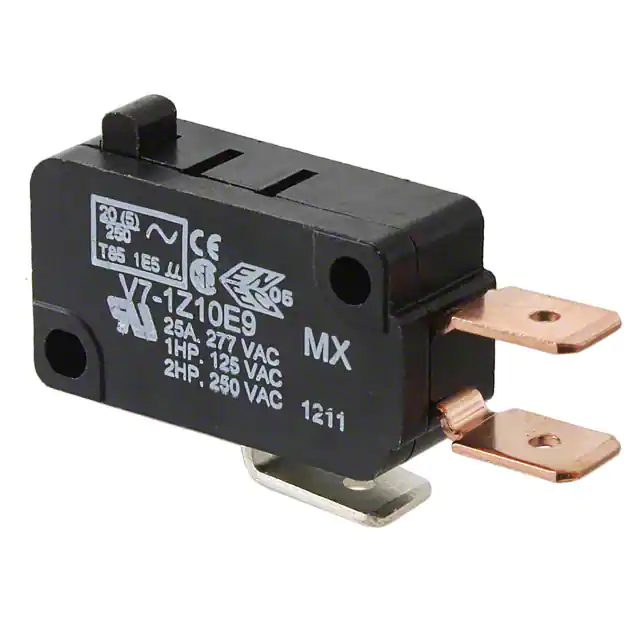

V7-1Z10E9SWITCH SNAP ACTION SPDT 25A 277V |
23,716 |
|
Технический лист |
V7 | Bulk | Active | SPDT | On-Mom | 25A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 225gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
DGE3-E7LCSWITCH SNAP ACTION SPDT 3A 125V |
3,059 |
|
Технический лист |
- | Bulk | Active | 3PDT | On-Off | 3A (AC) | 250 V | - | Lever, Straight | - | - | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
D2SW-P2L1TSWITCH SNAP ACTION SPDT 2A 250V |
3,428 |
|
Технический лист |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
D3V-16G2-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
60,254 |
|
Технический лист |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D3V-16G4-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
27,117 |
|
Технический лист |
D3V | Tray | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|

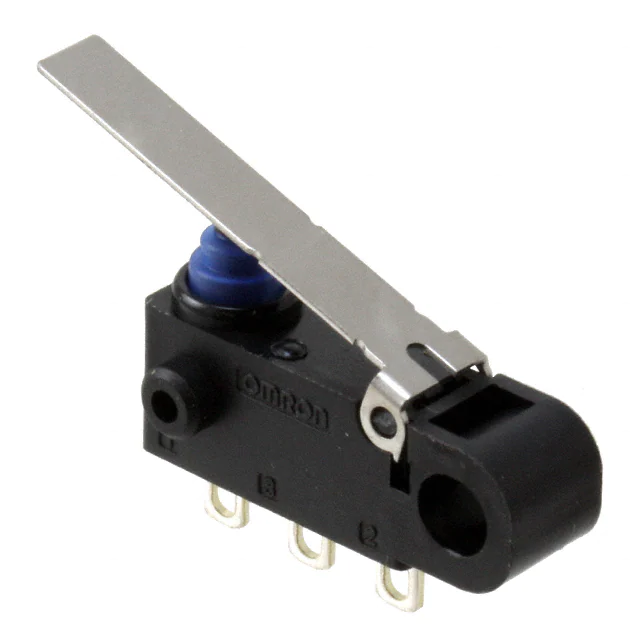

D2HW-C221HSWITCH SNAP ACT SPDT 0.1A 125V |
774 |
|
Технический лист |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 50gf | 3.059gf | 0.366" (9.3mm) | - | 0.031" (0.8mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|

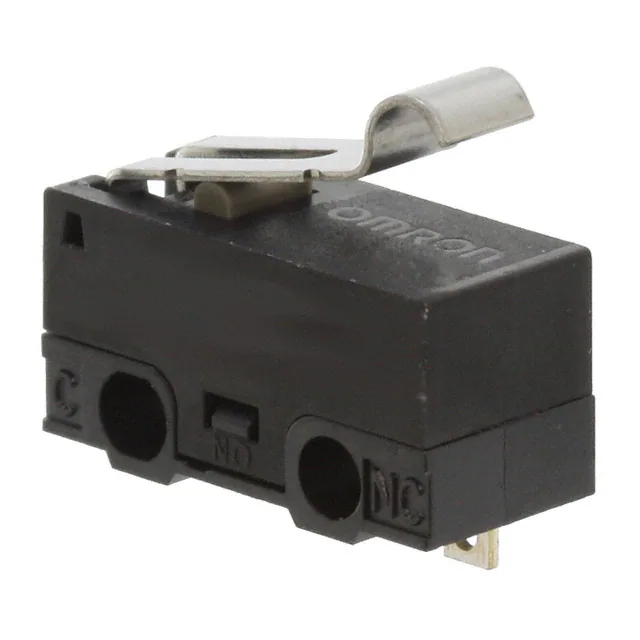

D2F-01L3-DSWITCH SNAP ACTION SPDT 0.1A 30V |
688 |
|
Технический лист |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
