Концевые выключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Тип крепления | Тип вывода | Защита от проникновения | Особенности | Рабочее усилие | Сила отпускания | Рабочее положение | Предварительный ход | Дифференциальный ход | Переход | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MJG--MV-3100A--T35A SPDT Mini Snap Switch 120C |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | UL94 V-0 | 250gf | 50gf | - | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | 25°C ~ 120°C |
|
|
SSM 0001DBASIC SWITCH |
1,182 |
|
Технический лист |
SS | - | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 150gf | 25gf | 0.331" (8.40mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
DB3C-A1LCSWITCH SNAP ACT SPDT 100MA 125V |
19,681 |
|
Технический лист |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 50gf | - | 0.437" (11.1mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.081" (2.05mm) | -40°C ~ 120°C |
|
|
DB3C-B1LCSWITCH SNAP ACT SPDT 100MA 125V |
2,013 |
|
Технический лист |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 50gf | - | 0.437" (11.1mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.081" (2.05mm) | -40°C ~ 120°C |
|
|
SSM 0032DSWITCH SNAP ACT SPDT 0.1A 125V |
1,093 |
|
Технический лист |
SS | Box | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 16gf | 2.039gf | 0.346" (8.80mm) | - | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|

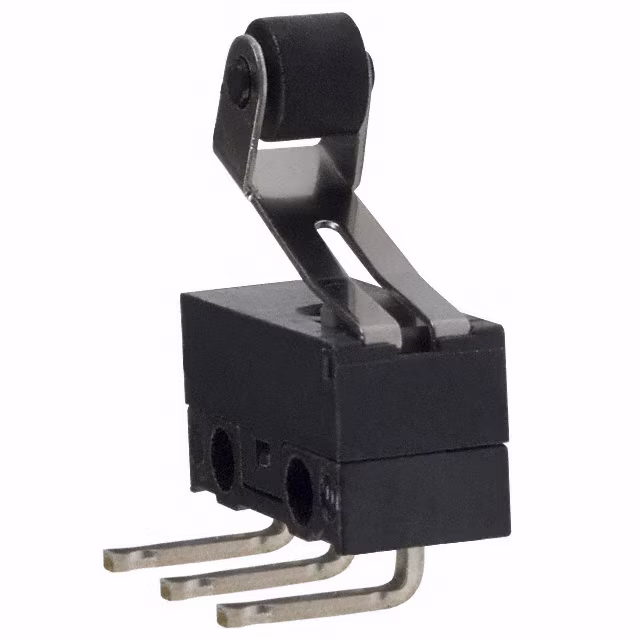

DG23-B2RASWITCH SNAP ACTION SPDT 50MA 30V |
3,900 |
|
Технический лист |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | - | 60gf | - | 0.488" (12.4mm) | 0.060" (1.5mm) | 0.020" (0.51mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
SS5M0083MBASIC SWITCH |
324 |
|
Технический лист |
SS | - | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole | PC Pin | IP40 | - | 16gf | 2.039gf | 0.571" (14.50mm) | - | 0.031" (0.80mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
MJG--MV-3002A--T35A SPDT Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 250gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
MJG--MV-3102A--T35A SPDT Mini Snap Switch 120C |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | UL94 V-0 | 250gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | 25°C ~ 120°C |
|
|
MJG--MV-3003A--T35A SPDT Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
D419-Q1AAD4 MINIATURE SWITCH |
9,900 |
|
Технический лист |
D4 | Bulk | Active | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 45gf | 13gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
SSM 0007CSWITCH SNAP ACT SPDT 0.1A 125V |
3,737 |
|
Технический лист |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 25gf | 0.331" (8.40mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
D2FN1050BSWITCH SNAP ACTION SPDT 3A 125V |
8,880 |
|
Технический лист |
D2F | - | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.512" (13.00mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
|
MJG--MV-3004A-NO--T35A SPST-NO Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPST-NO | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
|
MJG--MV-3101A--T35A SPDT Mini Snap Switch 120C |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | UL94 V-0 | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | 25°C ~ 120°C |
|
|
MJG--MV-3005A-NC--T35A SPST-NC Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPST-NC | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3103A--T35A SPDT Mini Snap Switch 120C |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | UL94 V-0 | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | 25°C ~ 120°C |
|
|
MJG--MV-3005A-NO--T35A SPST-NO Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPST-NO | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3001A--T35A SPDT Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
|
MJG--MV-3004A-NC--T35A SPST-NC Mini Snap Switch |
72,000 |
|
- |
MV | Bulk | Active | SPST-NC | On-Mom | 5A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 280gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
