Концевые выключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Тип крепления | Тип вывода | Защита от проникновения | Особенности | Рабочее усилие | Сила отпускания | Рабочее положение | Предварительный ход | Дифференциальный ход | Переход | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831700C1.FRSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Технический лист |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Right Side | 102gf | 20gf | 0.472" (12.0mm) | - | 0.009" (0.23mm) | 0.029" (0.74mm) | -20°C ~ 130°C |
|
|
831700C3.ELSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Технический лист |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Through Hole | PC Pin | - | Actuator Mounted Left Side | 51gf | 10gf | 0.606" (15.4mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
83170902.SP.LEVIERSWITCH SNAP ACT SPDT 0.1A SOLDER |
0 |
|
Технический лист |
83170 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831709C7.MBSWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
Технический лист |
83170 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Mushroom Button | Through Hole, Right Angle | PC Pin | - | - | 61gf | 10gf | 0.390" (9.9mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
831800C3.ALSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Технический лист |
83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 115gf | 34gf | 0.409" (10.4mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 125°C |
|
|
838030SILICONSWITCH LIMIT SPDT |
0 |
|
Технический лист |
83800 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A831612A3.0.30SWITCH SNAP ACTION TERMINALS |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A831612A3.A.30SWITCH SNAP ACTION |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A831612C6.BBSWITCH SNAP ACTION SPDT QC |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A831700C1.ALSWITCH SNAP ACTION .110 |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GLEC24A1BSWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Технический лист |
GLS | Bulk | Obsolete | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 17gfm | - | 26° | 26° | 8° | 49° | -40°C ~ 85°C |
|
GLEC24CSWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Технический лист |
GLS | Bulk | Obsolete | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1315gf | - | 1.100" (28.0mm) | 0.120" (3.0mm) | 0.025" (0.6mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
14CE1-1KSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Технический лист |
14CE | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 1m | 2300gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 70°C |
|
14CE2-1KSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Технический лист |
14CE | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 1m | 2300gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 70°C |
|
|
14CE2-3KSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Технический лист |
14CE | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3m | 2300gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 70°C |
|
14CE3-1KSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Технический лист |
14CE | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 1m | 2300gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 70°C |
|
8LS1-4CSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Технический лист |
LS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Flexible Cable | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 141gf | - | 1.125" (28.6mm) | 1.125" (28.6mm) | - | - | -29°C ~ 71°C |
|

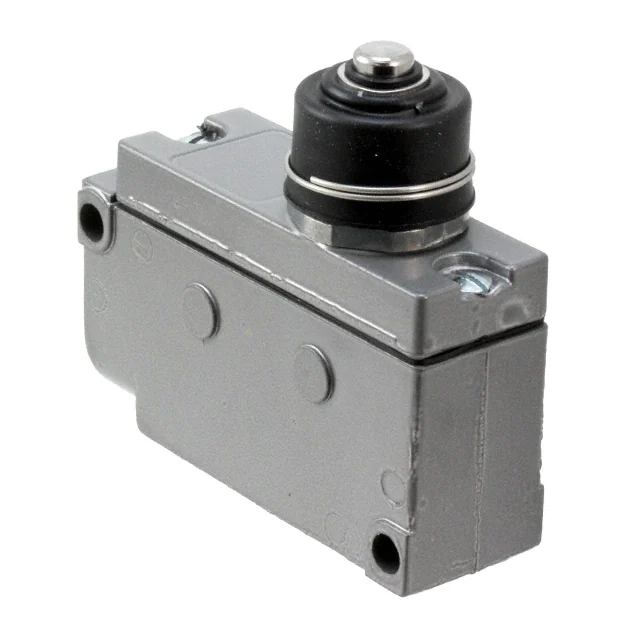

BZE7-2RN-CSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Технический лист |
E7 | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 255 ~ 680gf | 113gf | - | 0.078" (2.0mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -30°C ~ 71°C |
|

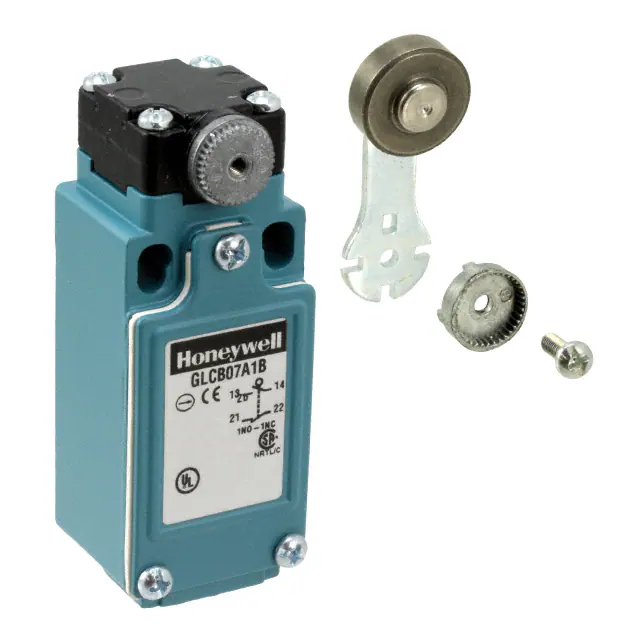

GLCB07A1BSWITCH SNAP ACTION SPDT 0.1A 50V |
0 |
|
Технический лист |
GLS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
AV16653FSWITCH SNAP ACT SPST-NO 10A 125V |
0 |
|
Технический лист |
AV1 | Bulk | Obsolete | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 500gf | - | 0.500" (12.7mm) | - | - | 0.083" (2.1mm) | -25°C ~ 85°C |
