Светодиодное белое освещение
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Цвет | CCT (K) | Флюс при 85°C, ток - испытание | Флюс при 25°C, ток - испытание | Ток - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | CRI (индекс цветопередачи) | Ток - макс. | Угол обзора | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPMWHT221MD5WAPMS0LED LM231A COOL WHITE 6500K 2323 |
0 |
|
- |
LM231A | 0909 (2323 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 6500K | - | 26lm (21lm ~ 31lm) | 65mA | 2.86V | 140 lm/W | 80 | 150mA | 120° | - | - | Surface Mount | 2323 | 0.091" L x 0.091" W (2.30mm x 2.30mm) | 0.031" (0.80mm) |
|
SPMWHT541MD5WAWMS3LED LM561B WARM WHT 2700K 5630 |
0 |
|
Технический лист |
LM561B | 4-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | White, Warm | 2700K | - | 29lm (28lm ~ 30lm) | 65mA | 2.95V | 151 lm/W | 80 | 150mA | 120° | - | - | Surface Mount | 5630 | 0.197" L x 0.118" W (5.00mm x 3.00mm) | 0.035" (0.90mm) |
|
|
SPMWHT541MD5WATMS3LED LM561B NEUT WHT 4000K 5630 |
0 |
|
Технический лист |
LM561B | 4-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | White, Neutral | 4000K | - | 31lm (30lm ~ 32lm) | 65mA | 2.95V | 162 lm/W | 80 | 150mA | 120° | - | - | Surface Mount | 5630 | 0.197" L x 0.118" W (5.00mm x 3.00mm) | 0.035" (0.90mm) |
|
|
SPMWHT541MD7WAW0S0LED LM561B WARM WHT 2700K 5630 |
0 |
|
- |
LM561B | 4-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | White, Warm | 2700K | - | 23lm (20lm ~ 26lm) | 65mA | 2.95V | 120 lm/W | 90 | 150mA | 120° | - | - | Surface Mount | 5630 | 0.197" L x 0.118" W (5.00mm x 3.00mm) | 0.035" (0.90mm) |
|
|
SPMWHT541MD7WAV0S0LED LM561B WARM WHT 3000K 5630 |
0 |
|
- |
LM561B | 4-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | White, Warm | 3000K | - | 24lm (21lm ~ 27lm) | 65mA | 2.95V | 125 lm/W | 90 | 150mA | 120° | - | - | Surface Mount | 5630 | 0.197" L x 0.118" W (5.00mm x 3.00mm) | 0.035" (0.90mm) |
|
|
SPMWHT541MD7WAT0S0LED LM561B NEUT WHT 4000K 5630 |
0 |
|
- |
LM561B | 4-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | White, Neutral | 4000K | - | 26lm (23lm ~ 29lm) | 65mA | 2.95V | 136 lm/W | 90 | 150mA | 120° | - | - | Surface Mount | 5630 | 0.197" L x 0.118" W (5.00mm x 3.00mm) | 0.035" (0.90mm) |
|

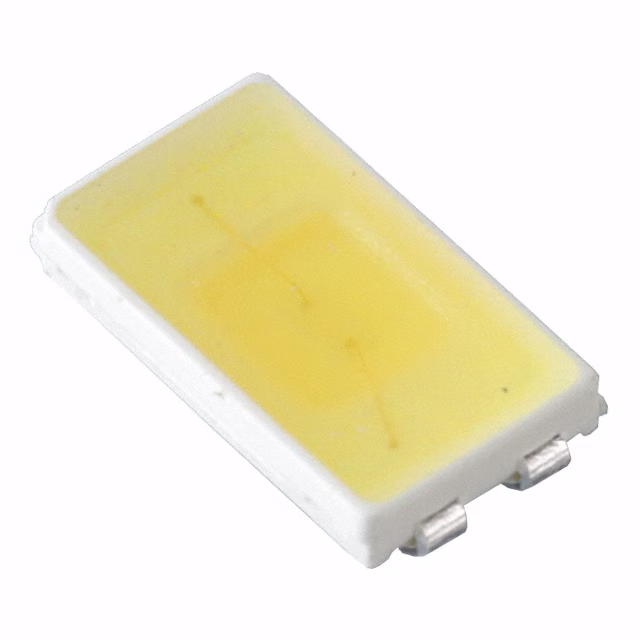

MXL8-PW50-0000LED LUXEON COOL WHITE 5000K 4SMD |
0 |
|
- |
LUXEON 5630 | 4-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | White, Cool | 5000K | - | 35lm (Typ) | 100mA | 3.1V | 113 lm/W | 80 | 150mA | 120° | - | - | Surface Mount | 5630 | 0.220" L x 0.118" W (5.60mm x 3.00mm) | 0.035" (0.90mm) |
|
SCP7UTF1HEL1UKP34ELED LH181B WARM WHT 3500K SMD |
0 |
|
Технический лист |
LH181B | 2-SMD, No Lead | Tape & Reel (TR) | Active | White, Warm | 3500K 5-Step MacAdam Ellipse | 175lm (160lm ~ 190lm) | - | 350mA | 2.9V | 172 lm/W | 70 | 1.4A | 120° | - | - | Surface Mount | SMD | 0.093" L x 0.093" W (2.36mm x 2.36mm) | 0.019" (0.48mm) |
|
MLBAWT-A1-R250-000VE7LED XLAMP WARM WHT 3000K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Warm | 3000K | - | 21lm (18lm ~ 24lm) | 80mA | 3.3V | 80 lm/W | 80 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000VE5LED XLAMP NEUTRAL WHT 4000K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Neutral | 4000K | - | 21lm (18lm ~ 24lm) | 80mA | 3.3V | 80 lm/W | 80 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000VE6LED XLAMP WARM WHT 3500K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Warm | 3500K | - | 21lm (18lm ~ 24lm) | 80mA | 3.3V | 80 lm/W | 80 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000VE8LED XLAMP WARM WHT 2700K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Warm | 2700K | - | 21lm (18lm ~ 24lm) | 80mA | 3.3V | 80 lm/W | 80 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000VF5LED XLAMP NEUTRAL WHT 4250K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Neutral | 4250K | - | 21lm (18lm ~ 24lm) | 80mA | 3.3V | 80 lm/W | 80 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000VF6LED XLAMP WARM WHT 3750K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Warm | 3750K | - | 21lm (18lm ~ 24lm) | 80mA | 3.3V | 80 lm/W | 80 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000VF7LED XLAMP WARM WHT 3250K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Warm | 3250K | - | 21lm (18lm ~ 24lm) | 80mA | 3.3V | 80 lm/W | 80 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000VF8LED XLAMP WARM WHT 2850K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Warm | 2850K | - | 21lm (18lm ~ 24lm) | 80mA | 3.3V | 80 lm/W | 80 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000W50LED XLAMP COOL WHITE 6200K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Cool | 6200K | - | 27lm (24lm ~ 31lm) | 80mA | 3.3V | 102 lm/W | 75 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000WA1LED XLAMP COOL WHITE 5000K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Cool | 5000K | - | 27lm (24lm ~ 31lm) | 80mA | 3.3V | 102 lm/W | 75 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000WA2LED XLAMP NEUTRAL WHT 4750K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Neutral | 4750K | - | 27lm (24lm ~ 31lm) | 80mA | 3.3V | 102 lm/W | 75 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
|
|
MLBAWT-A1-R250-000WA3LED XLAMP NEUTRAL WHT 4300K SMD |
0 |
|
Технический лист |
XLamp® ML-B | 4-SMD, J-Lead Exposed Pad | Tape & Reel (TR) | Active | White, Neutral | 4300K | - | 27lm (24lm ~ 31lm) | 80mA | 3.3V | 102 lm/W | 75 (Typ) | 175mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.124" W (3.50mm x 3.15mm) | 0.052" (1.33mm) |
