Светодиодное белое освещение
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Цвет | CCT (K) | Флюс при 85°C, ток - испытание | Флюс при 25°C, ток - испытание | Ток - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | CRI (индекс цветопередачи) | Ток - макс. | Угол обзора | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XPGBWT-H1-R250-00HE7LED XLAMP WARM WHT 3000K |
0 |
|
Технический лист |
XLamp® XP-G2 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | White, Warm | 3000K | 144lm (139lm ~ 148lm) | - | 350mA | 2.72V | 152 lm/W | 80 | 1.5A | 115° | - | - | Surface Mount | - | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
|
XPGBWT-P1-R250-00CZ7LED XLAMP WARM WHT 3000K |
0 |
|
Технический лист |
XLamp® XP-G2 | 1414 (3535 Metric) | Tape & Reel (TR) | Not For New Designs | White, Warm | 3000K | 104lm (100lm ~ 107lm) | - | 350mA | 2.72V | 109 lm/W | 85 | 1.5A | 115° | - | - | Surface Mount | - | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
|
XPGBWT-U1-R250-00DE7LED XLAMP WARM WHT 3000K |
0 |
|
Технический лист |
XLamp® XP-G2 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | White, Warm | 3000K | 111lm (107lm ~ 114lm) | - | 350mA | 2.72V | 117 lm/W | 90 | 1.5A | 115° | - | - | Surface Mount | - | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
XPGBWT-01-R250-00LF5LED XLAMP NEUTRAL WHT 4250K SMD |
0 |
|
Технический лист |
XLamp® XP-G2 | 1414 (3535 Metric) | Bulk | Active | White, Neutral | 4250K | 168lm (164lm ~ 172lm) | - | 350mA | 2.72V | 177 lm/W | 70 (Typ) | 1.5A | 115° | - | - | Surface Mount | - | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
|
XPGBWT-U1-R250-00DF8LED XLAMP WARM WHT 2850K SMD |
0 |
|
Технический лист |
XLamp® XP-G2 | 1414 (3535 Metric) | Bulk | Active | White, Warm | 2850K | 111lm (107lm ~ 114lm) | - | 350mA | 2.72V | 117 lm/W | 90 | 1.5A | 115° | - | - | Surface Mount | - | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
XEGAWT-H2-0000-000-00000HT540GLED XLAMP WHITE 3SMD |
0 |
|
- |
XLamp® XE-G | 3-SMD, No Lead | Tape & Reel (TR) | Active | White | - | - | - | 1A | 3V | - | 80 | 3A | 125° | - | - | Surface Mount | 3-SMD | 0.081" L x 0.063" W (2.05mm x 1.60mm) | 0.044" (1.13mm) |
|
|
XD16AWT-P2-0000-00000UD5HLED XLAMP NEUTRAL WHT 4000K 0606 |
0 |
|
- |
XLamp® XD16 | 0606 (1616 Metric) | Tape & Reel (TR) | Active | White, Neutral | 4000K | 111lm (107lm ~ 114lm) | - | 350mA | 2.73V | 116 lm/W | 90 | 2A | 120° | - | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.033" (0.83mm) |
|
|
XD16AWT-P2-0000-00000UB8HLED XLAMP WARM WHT 2700K 0606 |
0 |
|
- |
XLamp® XD16 | 0606 (1616 Metric) | Tape & Reel (TR) | Active | White, Warm | 2700K | 97lm (94lm ~ 100lm) | - | 350mA | 2.73V | 102 lm/W | 90 | 2A | 120° | - | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.033" (0.83mm) |
|
|
XPGEWT-02-0000-0P000ZC8ELED XLAMP WARM WHT 2700K 1414 |
0 |
|
- |
XLamp® XP-G4 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | White, Warm | 2700K 5-Step MacAdam Ellipse | 225lm (220lm ~ 230lm) | 240lm (Typ) | 700mA | 2.8V | 115 lm/W | 95 | 2A | 120° | - | - | Surface Mount | 1414 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
|
GM1BW78140ALED WHITE 5000K SMD |
0 |
|
Технический лист |
- | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | White | - | - | 39lm (Typ) | 150mA | 3.5V | 74 lm/W | - | 200mA | - | - | - | Surface Mount | SMD | 0.104" L x 0.065" W (2.64mm x 1.64mm) | 0.035" (0.90mm) |
|
XPCWHT-L1-0000-00803LED XLAMP COOL WHITE 6000K 2SMD |
0 |
|
Технический лист |
XLamp® XP-C | 1414 (3535 Metric) | Tape & Reel (TR) | Active | White, Cool | 6000K | - | 77lm (74lm ~ 81lm) | 350mA | 3.2V | 69 lm/W | 70 (Typ) | 500mA | 115° | - | - | Surface Mount | - | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.084" (2.13mm) |
|

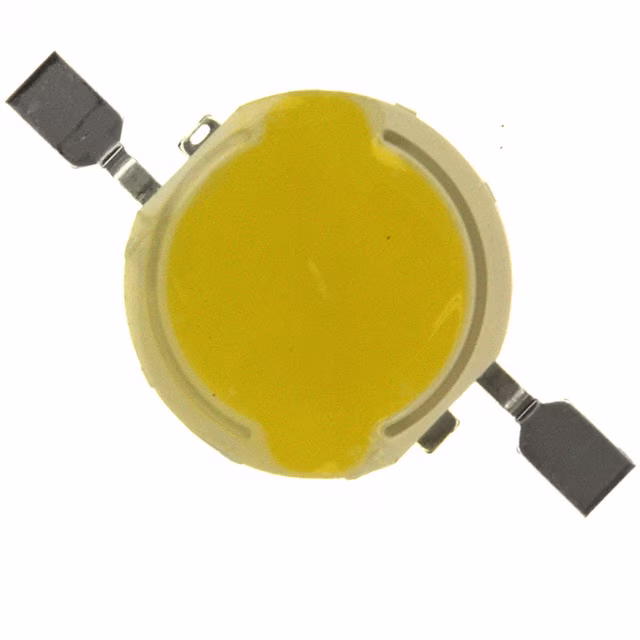

LOPL-E001MLED LOPL NEU WHT 70CRI 8MM ROUND |
0 |
|
Технический лист |
LOPL | 2-SMD, Gull Wing Exposed Pad | Tape & Reel (TR) | Obsolete | White | - | - | 28lm (Typ) | 350mA | 3.8V | 21 lm/W | 70 (Typ) | 350mA | - | - | - | Surface Mount | - | 0.315" Dia (8.00mm) | 0.087" (2.20mm) |
|
LOPL-E001WLED LOPL WHITE 85CRI 8MM ROUND |
0 |
|
Технический лист |
LOPL | 2-SMD, Gull Wing Exposed Pad | Tape & Reel (TR) | Obsolete | White | - | - | 43lm (Typ) | 350mA | 3.8V | 32 lm/W | 85 (Typ) | 350mA | - | - | - | Surface Mount | - | 0.315" Dia (8.00mm) | 0.087" (2.20mm) |
|
ASMT-QWBC-NHJ0ELED COOL WHITE 7250K 4PLCC |
0 |
|
Технический лист |
- | 4-PLCC | Tape & Reel (TR) | Obsolete | White, Cool | 7250K (4500K ~ 10000K) | 31lm | 34lm (26lm ~ 43lm) | 150mA | 3.4V | 67 lm/W | - | 150mA | 120° | - | - | Surface Mount | 4-PLCC | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.083" (2.10mm) |
|
|
XPGBWT-H1-R250-00FE7LED XLAMP WARM WHITE 3000K 2SMD |
0 |
|
Технический лист |
XLamp® XP-G2 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | White, Warm | 3000K | 126lm (122lm ~ 130lm) | - | 350mA | 2.72V | 133 lm/W | 80 | 1.5A | 115° | - | - | Surface Mount | - | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
|
XPGBWT-U1-0000-00AZ7LED XLAMP WARM WHITE 3000K 2SMD |
0 |
|
Технический лист |
XLamp® XP-G2 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | White, Warm | 3000K | 91lm (87lm ~ 94lm) | - | 350mA | 2.72V | 96 lm/W | 90 | 1.5A | 115° | - | - | Surface Mount | - | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
XQEAWT-00-0000-00000P8E8LED XLAMP WARM WHT 2700K SMD |
0 |
|
Технический лист |
XLamp® XQ-E | 0606 (1616 Metric) | Tape & Reel (TR) | Active | White, Warm | 2700K | 77lm (74lm ~ 81lm) | - | 350mA | 2.9V | 76 lm/W | 85 | 1A | 110° | - | - | Surface Mount | SMD | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.068" (1.73mm) |
|
XBHAWT-00-0000-000LT40E4LED XLAMP NEUTRAL WHT 4500K SMD |
0 |
|
Технический лист |
XLamp® XB-H | 1010 (2525 Metric) | Tape & Reel (TR) | Active | White, Neutral | 4500K | 250lm (240lm ~ 260lm) | - | 700mA | 2.86V | 123 lm/W | 75 (Typ) | 1.5A | 110° | - | - | Surface Mount | SMD | 0.096" L x 0.096" W (2.45mm x 2.45mm) | 0.095" (2.41mm) |
|
|
XPGDWT-BS-0000-00P5ELED XLAMP NEUTRAL WHT 4000K 1414 |
0 |
|
Технический лист |
XLamp® XP-G3 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | White, Neutral | 4000K 5-Step MacAdam Ellipse | 192lm (188lm ~ 196lm) | 205lm (Typ) | 350mA | 2.7V | 203 lm/W | 70 | 2A | 125° | - | - | Surface Mount | 1414 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|
|
XPGDWT-BS-0000-00PE2LED XLAMP COOL WHITE 5700K 1414 |
0 |
|
Технический лист |
XLamp® XP-G3 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | White, Cool | 5700K 5-Step MacAdam Ellipse | 192lm (188lm ~ 196lm) | 205lm (Typ) | 350mA | 2.7V | 203 lm/W | 70 | 2A | 125° | - | - | Surface Mount | 1414 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
