Светодиодные излучатели - инфракрасные, УФ, видимые
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Ток - постоянный ток вперед (If) (макс.) | Сила излучения (Ie) Мин. @ If | Длина волны | Напряжение - прямое (Vf) (тип.) | Угол обзора | Ориентация | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TAN1111C-TRLED INDICATION SMD |
0 |
|
Технический лист |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Infrared (IR) | 50mA | - | 940nm | 1.22V | 145° | Top View | -30°C ~ 85°C | - | - | Surface Mount |
|

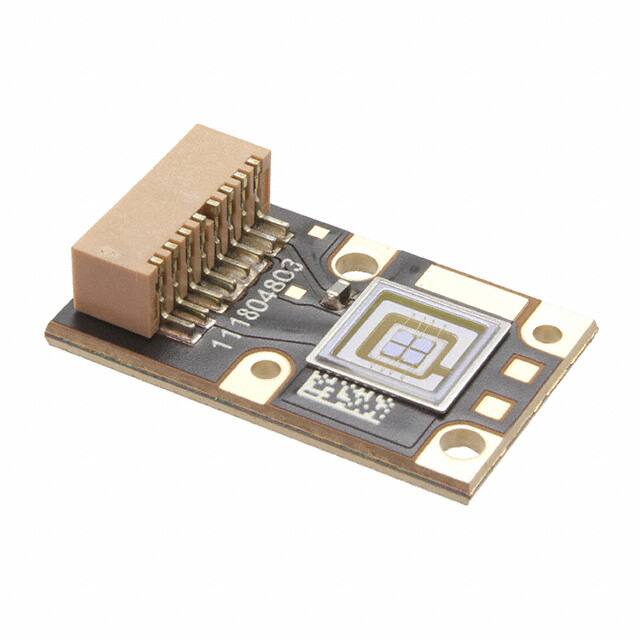

CBM-40-UV-X32-DC380-22EMITTER MODULE |
0 |
|
Технический лист |
Mosaic Array | Module | Tray | Obsolete | Ultraviolet (UV) | 8A | - | 388nm (385nm ~ 390nm) | 3.5V | - | Top View | 125°C (TJ) | - | - | Surface Mount |
|
|
CBM-40-UV-X32-DC385-21MOD COB BIG CHIP LED UV MOSAIC |
0 |
|
Технический лист |
Mosaic Array | Module | Tray | Obsolete | Ultraviolet (UV) | 8A | - | 385nm | 3.5V | - | Top View | 125°C (TJ) | - | - | Chassis Mount |
|
SST-10-UV-B130-E365-00UV MOD |
0 |
|
Технический лист |
SST-10-UV Horticulture | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 370nm (365nm ~ 375nm) | 3.7V | 130° | Top View | 100°C (TJ) | - | - | Surface Mount |
|
|
SST-10-UV-B130-F405-00UV MOD |
0 |
|
Технический лист |
SST-10-UV Horticulture | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1.5A | - | 405nm (400nm ~ 410nm) | 3.3V | 130° | Top View | 100°C (TJ) | - | - | Surface Mount |
|

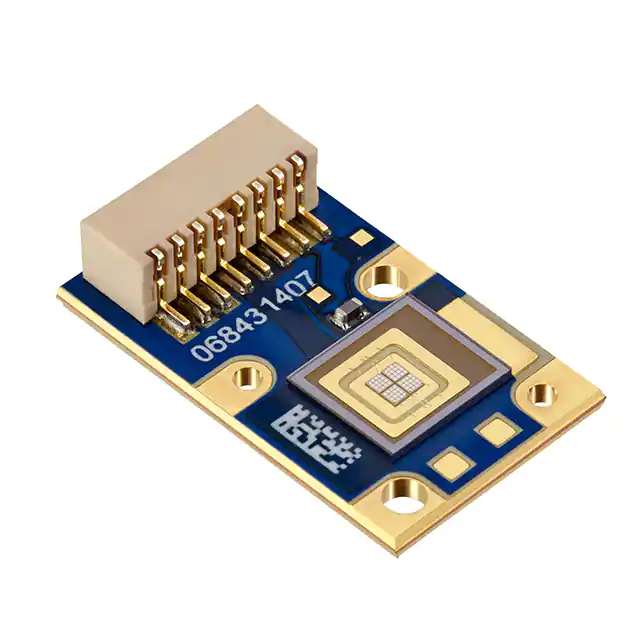

CBM-40-UV-X32-DA400-22EMITTER MODULE |
0 |
|
Технический лист |
Mosaic Array | Module | Tray | Obsolete | Ultraviolet (UV) | 8A | - | 408nm (405nm ~ 410nm) | 3.3V | - | Top View | 125°C (TJ) | - | - | Surface Mount |
|
SFH 4736EMITTER IR 600-1050NM 350MA 3SMD |
0 |
|
Технический лист |
OSLON® Black | 3-SMD, No Lead | Tape & Reel (TR) | Obsolete | Infrared (IR) | 500mA | 14mW/sr @ 500mA (Typ) | - | 3V | 80° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
ELUA3535OG5-P8090U23040500-VD1MEMITTER UV 385NM 700MA SMD |
0 |
|
Технический лист |
ELUA3535OG5 | 1414 (3535 Metric) | Tape & Reel (TR) | Discontinued | Ultraviolet (UV) | 700mA | - | 385nm (380nm ~ 390nm) | 3.5V | 50° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
ELUA3535OG5-P9000U23040500-VD1MEMITTER UV 395NM 700MA SMD |
0 |
|
Технический лист |
ELUA3535OG5 | 1414 (3535 Metric) | Tape & Reel (TR) | Discontinued | Ultraviolet (UV) | 700mA | - | 395nm (390nm ~ 400nm) | 3.5V | 50° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
ELUA3535OG5-P0010U23040500-VD1MEMITTER UV 405NM 700MA SMD |
0 |
|
Технический лист |
ELUA3535OG5 | 1414 (3535 Metric) | Tape & Reel (TR) | Discontinued | Ultraviolet (UV) | 700mA | - | 405nm (400nm ~ 410nm) | 3.5V | 50° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
ELUA3535OGB-P8090U23040500-VD1MEMITTER UV 385NM 700MA SMD |
0 |
|
Технический лист |
ELUA3535OGB | 1414 (3535 Metric) | Tape & Reel (TR) | Discontinued | Ultraviolet (UV) | 700mA | - | 385nm (380nm ~ 390nm) | 3.5V | 120° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
ELUA3535OGB-P9000U23040500-VD1MEMITTER UV 395NM 700MA SMD |
0 |
|
Технический лист |
ELUA3535OGB | 1414 (3535 Metric) | Tape & Reel (TR) | Discontinued | Ultraviolet (UV) | 700mA | - | 395nm (390nm ~ 400nm) | 3.5V | 120° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
ELUA3535OGB-P0010U23040500-VD1MEMITTER UV 405NM 700MA SMD |
0 |
|
Технический лист |
ELUA3535OGB | 1414 (3535 Metric) | Tape & Reel (TR) | Discontinued | Ultraviolet (UV) | 700mA | - | 405nm (400nm ~ 410nm) | 3.5V | 120° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
SFH 4056S8EMITTER IR 860NM 70MA SMD |
0 |
|
- |
- | 2-SMD, No Lead | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
SFH 4857 E7800EMITTER IR 860NM 100MA |
0 |
|
Технический лист |
- | TO-18-2 Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | 6.3mW/sr @ 100mA | 860nm | 1.7V | 74° | Top View | -40°C ~ 125°C | - | - | Through Hole |
|
|
SM1206UV-390-ILLED EMITTER UV WATER CLR 1206 |
0 |
|
Технический лист |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 25mA | - | 390nm ~ 395nm | 3.4V | 140° | Top View | -30°C ~ 80°C (TA) | - | - | Surface Mount |
|
|
T163VU-SF-FPHOTO SENSOR |
0 |
|
Технический лист |
- | Die | Bulk | Obsolete | Infrared (IR) | 100mA | 1.2mW/sr @ 100mA (Typ) | 950nm | 1.3V, 1.8V | - | Top View | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
T8514VB-SF-FPHOTO SENSOR |
0 |
|
Технический лист |
- | Die | Bulk | Obsolete | Infrared (IR) | 100mA | 3.3mW/sr @ 100mA (Typ) | 850nm | 1.44V | 160° | Top View | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
T8719VA-SF-FPHOTO SENSOR |
0 |
|
Технический лист |
- | Die | Bulk | Obsolete | Infrared (IR) | 100mA | 5.8mW/sr @ 100mA (Typ) | 865nm (850nm ~ 880nm) | 1.46V | 160° | Top View | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
TS8510VB-SF-FPHOTO SENSOR |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - |
