Светодиодные излучатели - инфракрасные, УФ, видимые
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Ток - постоянный ток вперед (If) (макс.) | Сила излучения (Ie) Мин. @ If | Длина волны | Напряжение - прямое (Vf) (тип.) | Угол обзора | Ориентация | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XST-3535-UV-A60-CE280-01EMITTER UV 280NM MODULE |
0 |
|
Технический лист |
XST-3535-UV Horticulture | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 500mA | - | 283nm (280nm ~ 286nm) | 6.45V | 60° | Top View | 100°C (TJ) | - | - | Surface Mount |
|
MTPS8085FTEMITTER IR 855NM 80MA COAXIAL |
0 |
|
Технический лист |
Point Source | Coaxial, Metal Can | Bulk | Active | Infrared (IR) | 80mA | - | 855nm | 1.7V | 50° | Top View | -20°C ~ 85°C (TA) | - | - | Through Hole |
|
|
OCI-490-20 IE670 STARVIS EMITTER RED 670NM SMD DOME O |
5 |
|
Технический лист |
- | Flying Leads | Bag | Active | Visible | 1A | 560mW/sr @ 350mA | 670nm | 2.1V | 20° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|

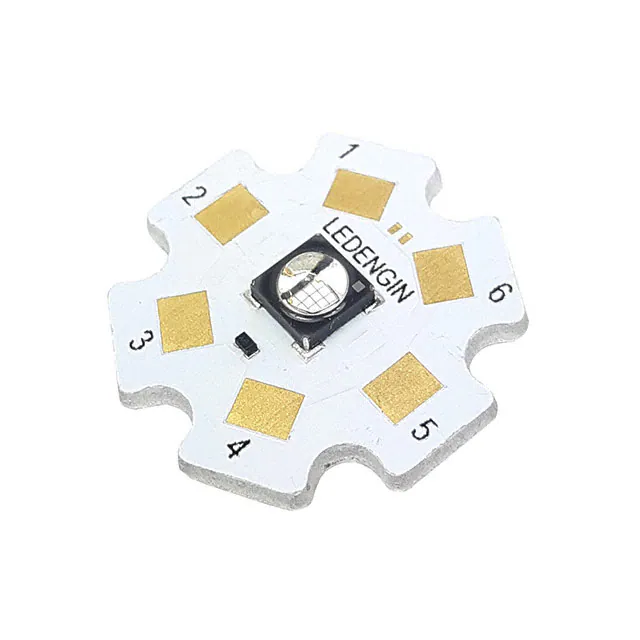

LZ1-10U600-0000EMITTER UV 365NM 700MA STAR |
0 |
|
Технический лист |
LZ1 | Star Array | Tray | Obsolete | Ultraviolet (UV) | 700mA | - | 365nm | 4.1V | 85° | Top View | 100°C (TJ) | - | - | Screw Mount |
|
|
LZ1-30U600-0000EMITTER UV 365NM 700MA STAR |
0 |
|
Технический лист |
LZ1 | Star Array | Tray | Obsolete | Ultraviolet (UV) | 700mA | - | 365nm | 4.1V | 85° | Top View | 100°C (TJ) | - | - | Screw Mount |
|

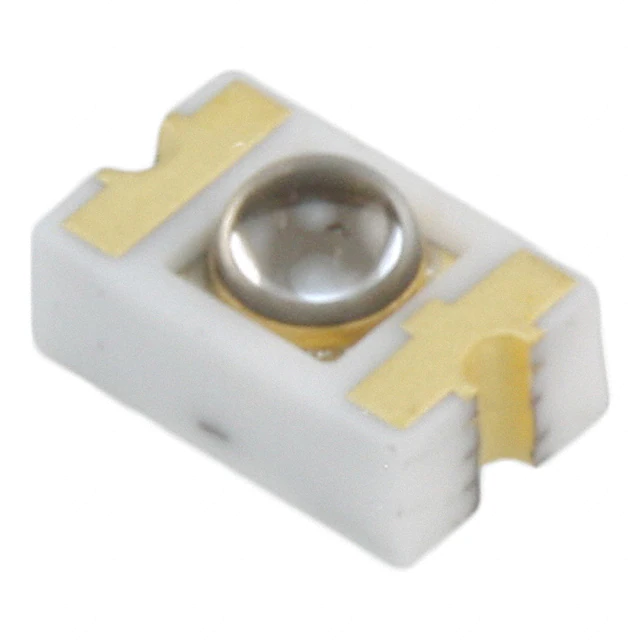

MTE8760CPEMITTER IR 870NM 80MA SMD |
0 |
|
Технический лист |
- | 2-SMD, No Lead | Bulk | Active | Infrared (IR) | 80mA | - | 870nm | 1.5V | 20° | Top View | -20°C ~ 80°C (TA) | - | - | Surface Mount |
|
PDI-E802EMITTER IR 880NM 100MA TO-46 |
0 |
|
Технический лист |
- | TO-46-2 Lens Top Metal Can | Bulk | Active | Infrared (IR) | 100mA | - | 880nm | 1.5V | - | Top View | -55°C ~ 100°C (TA) | - | - | Through Hole |
|
|
LZ1-10U600-00U0EMITTER UV 365NM 700MA STAR |
0 |
|
Технический лист |
LZ1 | Star Array | Tray | Obsolete | Ultraviolet (UV) | 700mA | - | 365nm | 4.1V | 85° | Top View | 100°C (TJ) | - | - | Screw Mount |
|
|
LZ1-30U600-00U0EMITTER UV 365NM 700MA STAR |
0 |
|
Технический лист |
LZ1 | Star Array | Tray | Obsolete | Ultraviolet (UV) | 700mA | - | 365nm | 4.1V | 85° | Top View | 100°C (TJ) | - | - | Screw Mount |
|
OP235TXVEMITTER IR 890NM 100MA TO-46 |
0 |
|
- |
- | TO-46-2 Lens Top Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | - | 890nm | 1.55V | 18° | Top View | -55°C ~ 125°C (TA) | - | - | Through Hole |
|
|
OCL-480 GIR STARVIS EMITTER BROAD BAND 460-1000N |
5 |
|
Технический лист |
- | Flying Leads | Bag | Active | Visible | 1A | 95mW/sr @ 350mA | VIS-NIR | 3.1V | 120° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
LZ4-V4UV0R-0000EMITTER UV |
0 |
|
Технический лист |
LuxiGen™ LZ4 | Star Array | Tray | Obsolete | Ultraviolet (UV) | 1A | - | 368nm (365nm ~ 370nm) | 15.2V | 110° | Top View | 130°C (TJ) | - | - | Surface Mount |
|
|
VLMU35CM00-280-120LED UVC 100 MA SMD |
0 |
|
Технический лист |
- | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 150mA | - | 278nm (265nm ~ 285nm) | 5V | 120° | Top View | -40°C ~ 80°C (TA) | - | - | Surface Mount |
|
|
OP235TXEMITTER IR 890NM 100MA TO-46 |
0 |
|
Технический лист |
- | TO-46-2 Lens Top Metal Can | Bulk | Active | Infrared (IR) | 100mA | - | 890nm | 1.55V | 18° | Top View | -55°C ~ 125°C (TA) | - | - | Through Hole |
|
SWDC-T306-DNN-U1930UVC MODULE BULLET TYPE / E-COLI |
0 |
|
Технический лист |
SWDC | Module | Obsolete | Ultraviolet (UV) | - | 6mW | 265nm ~ 285nm | - | - | Top View | - | - | - | Screw Mount | |
|
SWDC-T103-DNN-U1930UVC MODULE SMALL BULLET TYPE / |
0 |
|
Технический лист |
SWDC | Module | Obsolete | Ultraviolet (UV) | - | 3mW | 265nm ~ 285nm | - | - | Top View | - | - | - | Chassis Mount | |
|
|
HIS20SMD-0THERMAL INFRARED EMITTER IN STAN |
0 |
|
Технический лист |
HISsmd | 6-SMD, No Lead | Box | Active | Infrared (IR) | 140mA | - | 11µm (2µm ~ 20µm) | 1.25V (Max) | - | Top View | - | - | - | Surface Mount |
|
LZ4-04UV00-0000EMITTER UV 365NM FLAT LENS |
0 |
|
Технический лист |
LZ4 | 8-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 1A | - | 365nm | 15.2V | 110° | Top View | 130°C (TJ) | - | - | Surface Mount |
|
|
HIS100SMD-0THERMAL INFRARED EMITTER IN STAN |
0 |
|
Технический лист |
HISsmd | 6-SMD, No Lead | Box | Active | Infrared (IR) | 170mA | - | 11µm (2µm ~ 20µm) | 1.7V (Max) | - | Top View | - | - | - | Surface Mount |
|

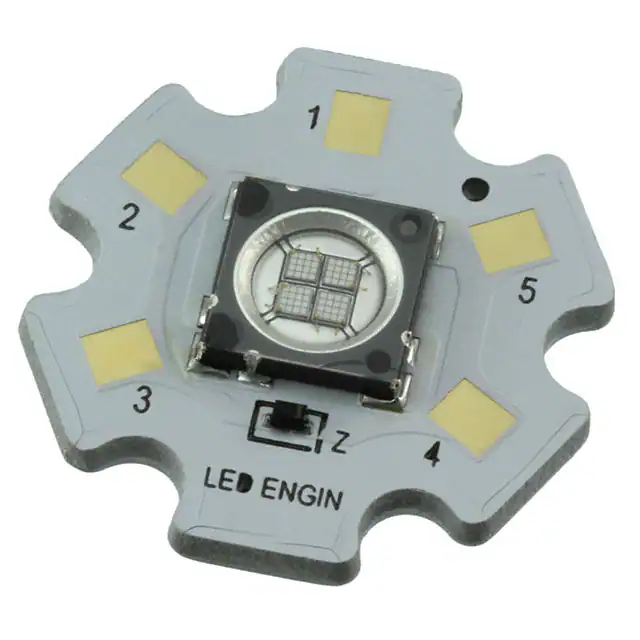

LZ4-44UV00-0000EMITTER UV 365NM FLAT LENS |
0 |
|
Технический лист |
LZ4 | Star Array | Tray | Obsolete | Ultraviolet (UV) | 1A | - | 365nm | 15.2V | 110° | Top View | 130°C (TJ) | - | - | Surface Mount |
