Светодиодные излучатели - инфракрасные, УФ, видимые
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Ток - постоянный ток вперед (If) (макс.) | Сила излучения (Ie) Мин. @ If | Длина волны | Напряжение - прямое (Vf) (тип.) | Угол обзора | Ориентация | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PIR42-21C/L415/TR8EMITTER |
0 |
|
- |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Infrared (IR) | 65mA | 7mW/sr @ 65mA | 730nm (720nm ~ 740nm) | 1.95V | 30° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
AREM-60C0-LM0003528 PLCC-2 SURFACE MOUNT INFRAR |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - |
|
SEP8736-001EMITTER IR 880NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 0.5mW/cm² @ 20mA | 880nm | 1.7V | 10° | Side View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|

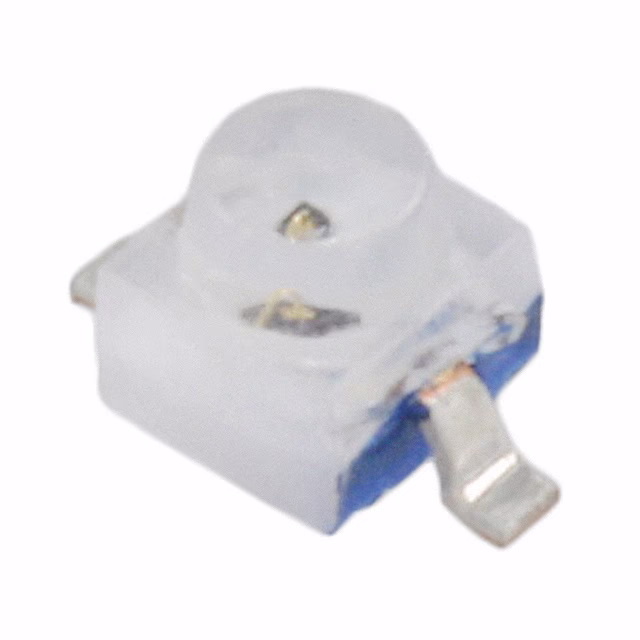

HSDL-4400#011EMITTER IR 875NM 100MA SMD |
0 |
|
Технический лист |
- | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Infrared (IR) | 100mA | 1mW/sr @ 50mA | 875nm | 1.5V | 110° | Top View | -40°C ~ 85°C (TA) | - | - | Surface Mount |
|
CQX14EMITTER IR 940NM 100MA TO-46 |
0 |
|
Технический лист |
- | TO-46-2 Lens Top Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | - | 940nm | 1.7V | 16° | Top View | -65°C ~ 125°C (TA) | - | - | Through Hole |
|

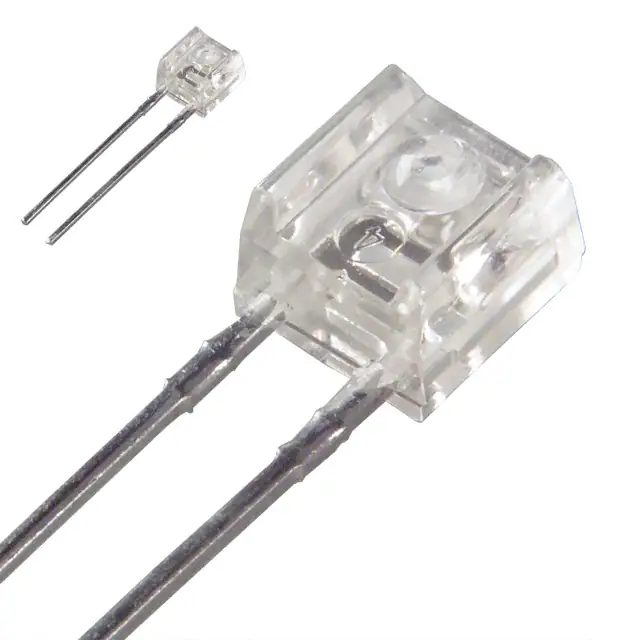

SIM-20STEMITTER IR 950NM 50MA RADIAL |
1 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 7.5mW/sr @ 50mA | 950nm | 1.3V | 30° | Side View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|

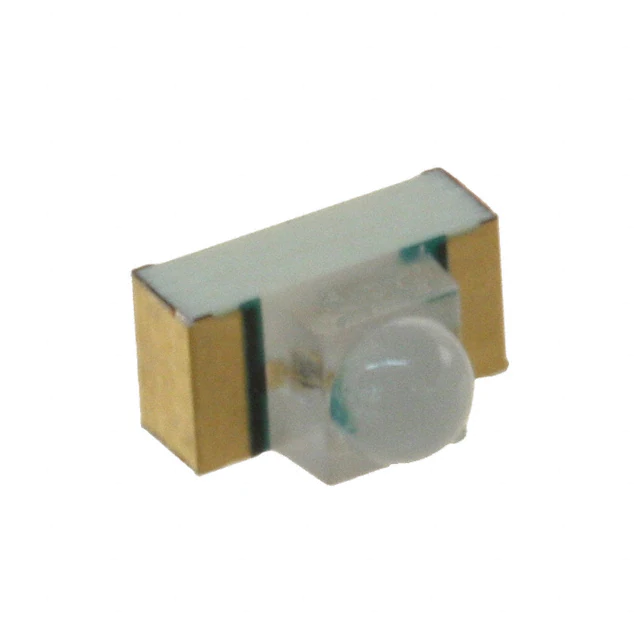

SFH 4045EMITTER IR 940NM 70MA 1206 |
0 |
|
Технический лист |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Infrared (IR) | 70mA | 40mW/sr @ 70mA | 940nm | 1.6V | 18° | Universal | -25°C ~ 85°C (TA) | - | - | Surface Mount |
|
|
SFH 4727AS R3367000 |
0 |
|
Технический лист |
OSLON® Black | 1515 (3838 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 1.5A | 900mW/sr @ 1A | 950nm | 2.9V | 50° | Top View | -40°C ~ 125°C | - | - | Surface Mount |
|
|
SFH 4716AS R3367000 |
0 |
|
Технический лист |
Power TOPLED® | 3-SMD, No Lead | Tape & Reel (TR) | Active | Infrared (IR) | 1.5A | 224mW/sr @ 1A | 860nm | 3.15V | 150° | Top View | -40°C ~ 125°C | - | - | Surface Mount |
|
|
OPR2800EMITTER IR 880NM 50MA SMD |
0 |
|
Технический лист |
- | 2-SMD, No Lead | Tray | Obsolete | Infrared (IR) | 50mA | - | 880nm | 1.5V | 100° | Top View | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
HIR-C19D-1O90/L708-P01/TREMITTER |
0 |
|
Технический лист |
- | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 1A | 300mW/sr @ 1A (Typ) | 850nm | 2.3V | 90° | Top View | -40°C ~ 100°C | - | - | Surface Mount |
|
SFH 4056-NQEMITTER IR 850NM 70MA SMD |
0 |
|
Технический лист |
- | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | Infrared (IR) | 70mA | 2.5mW/cm² @ 70mA | 850nm | 1.6V | 44° | Top View | -40°C ~ 85°C (TA) | - | - | Surface Mount |
|
SFH 4059-ZEMITTER IR 850NM 70MA 1206 |
0 |
|
Технический лист |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Infrared (IR) | 70mA | 40mW/sr @ 70mA | 850nm | 1.6V | 20° | Top View | -40°C ~ 85°C (TA) | - | - | Surface Mount |
.jpg)
|
SFH 4651-ZEMITTER IR 860NM 70MA MIDLED |
0 |
|
Технический лист |
MIDLED | 2-SMD, No Lead | Tape & Reel (TR) | Active | Infrared (IR) | 70mA | 60mW/sr @ 70mA | 860nm | 1.6V | 20° | Top View | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
HSM9-C280CHIP,TOP MT,ALGAAS,940NM |
0 |
|
- |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 70mA | 1mW/sr @ 20mA | 940nm | 1.29V | 140° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
EAUVA2016EF5EMITTER UV 20MA SMD |
0 |
|
Технический лист |
EAUVA2016 | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 20mA | - | 380nm ~ 390nm | 3V | 125° | Top View | -40°C ~ 110°C (TA) | - | - | Surface Mount |
|
OP268FPSEMITTER IR 850NM 50MA RADIAL |
0 |
|
Технический лист |
- | Radial | Bulk | Obsolete | Infrared (IR) | 50mA | 0.1mW/cm² @ 20mA | 850nm | 1.8V | 50° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
EAIST3045A1EMITTER |
0 |
|
Технический лист |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 500mA | 65mW/sr @ 500mA (Typ) | 850nm | 1.6V | 130° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
VSMY9854535EMITTER IR 850NM 1A 3SMD |
0 |
|
Технический лист |
SurfLight™ | 3-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Infrared (IR) | 1A | 160mW/sr @ 1A | 850nm | 1.8V | 90° | Top View | -40°C ~ 85°C (TA) | - | - | Surface Mount |
|
|
SFH 4181S A0167000 |
0 |
|
Технический лист |
OSLON® Piccolo | 0606 (1616 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 1A | 560mW/sr @ 1A | 950nm | 2.95V | 70° | Top View | -40°C ~ 125°C | - | - | Surface Mount |
