Драйверы светодиодов
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Программируемый | Тип | Топология | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Затемнение | Особенности | Номинальные значения | Рабочая температура | Эффективность | Тип вывода | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG-150-12-3YLED AC/DC DRIVER 150W |
15 |
|
Технический лист |
ELG-150 (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 12V | 10A | 120 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 88% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM | - |
|
|
ELG-150-48A-3YLED AC/DC DRIVER 150W |
7 |
|
Технический лист |
ELG-150 (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 48V | 3.13A | 150 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 90°C | 90% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM | - |
|
HLG-60H-15ALED DRVR CC/CV AC/DC 13.5-17V 4A |
28 |
|
Технический лист |
HLG-60H (60W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 13.5 ~ 17V | 4A | 60 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 87.5% | Wire Leads | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV, UR | - |
|
HLG-60H-36LED DVR CC/CV ACDC 21.6-36V 1.7A |
20 |
|
Технический лист |
HLG-60H (60W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 21.6 ~ 36V | 1.7A | 61 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 90% | Wire Leads | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV, UR | - |
|
HLG-80H-20LED DRVR CC/CV AC/DC 12-20V 4A |
19 |
|
Технический лист |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12 ~ 20V | 4A | 80 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 90% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL | - |
|
|
HLG-80H-54LED DVR CC/CV ACDC 32.4-54V 1.5A |
19 |
|
Технический лист |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 32.4 ~ 54V | 1.5A | 81 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 91% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL | - |
|
|
HLG-80H-15LED DRIVER CC/CV AC/DC 9-15V 5A |
16 |
|
Технический лист |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 9 ~ 15V | 5A | 75 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 89% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL | - |
|
NPF-90D-36LED DRVR CC AC/DC 21.6-36V 2.5A |
9 |
|
Технический лист |
NPF-90D (90W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 21.6 ~ 36V | 2.5A | 90 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 90% | Wire Leads | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC | - |
|

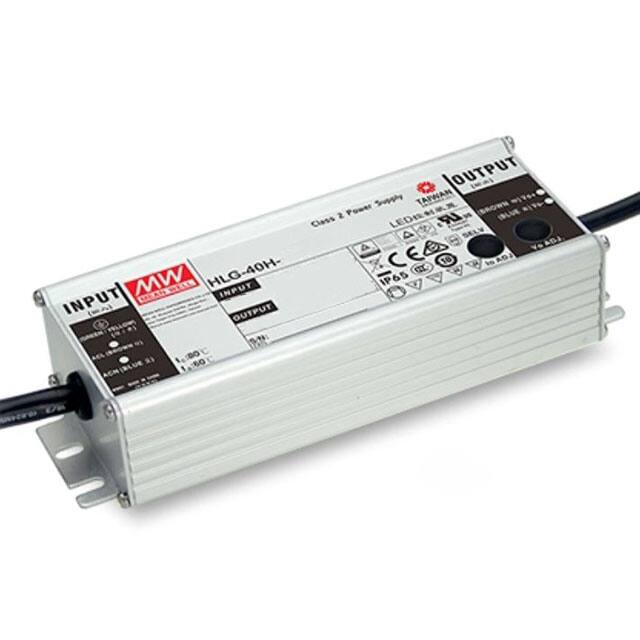

HLG-40H-24ABO/P +24V1.67A |
18 |
|
Технический лист |
HLG-40H (40W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 1.67A | 40 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 88% | Wire Leads | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) | CB, CCC, CE, cURus, EAC, KC, PSE, RCM, TUV | - |
|
|
AB-D20100-V24-Q100-240VAC INPUT, 24VDC OUTPUT, |
24 |
|
Технический лист |
- | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 100VAC | 240VAC | 24V | 4.16A | 100 W | - | - | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 89% | Terminal Block | 12.62" L x 1.18" W x 0.72" H (320.6mm x 30.0mm x 18.2mm) | CE, cULus, cURus, TUV, UKCA | - |
|
|
XLG-150-M-DA2O/P +60~107V 1.4A~2.1A |
32 |
|
Технический лист |
XLG-150-DA2 (150W) | Box | Active | - | Constant Power | AC DC Converter | 1 | 100VAC | 305VAC | 60 ~ 107V | 1.4A | 150 W | 3.75 kV | PWM | - | IP67 | -40°C ~ 90°C | 92.5% | Wire Leads | 7.09" L x 2.48" W x 1.40" H (180.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, UKCA | UL 8750 |
|
|
HLG-80H-48LED DVR CC/CV ACDC 28.8-48V 1.7A |
19 |
|
Технический лист |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 28.8 ~ 48V | 1.7A | 82 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 91% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL | - |
|
|
XLG-150-L-DA2O/P +120~214V 0.7A~1.05A |
10 |
|
Технический лист |
XLG-150-DA2 (150W) | Box | Active | - | Constant Power | AC DC Converter | 1 | 100VAC | 305VAC | 120 ~ 214V | 700mA | 150 W | 3.75 kV | PWM | - | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 7.09" L x 2.48" W x 1.40" H (180.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, UKCA | UL 8750 |
|
|
XLG-150-H-DA2O/P +27~56V 2.68A~4.17A |
2 |
|
Технический лист |
XLG-150-DA2 (150W) | Box | Active | - | Constant Power | AC DC Converter | 1 | 100VAC | 305VAC | 27 ~ 56V | 2.8A | 150 W | 3.75 kV | PWM | - | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.09" L x 2.48" W x 1.40" H (180.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, UKCA | UL 8750 |
|
|
HLG-60H-20BLED DRVR CC/CV AC/DC 12-20V 3A |
10 |
|
Технический лист |
HLG-60H (60W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12 ~ 20V | 3A | 60 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 89% | Wire Leads | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV, UR | - |
|
|
HLG-60H-15BLED DRIVER CC/CV AC/DC 9-15V 4A |
6 |
|
Технический лист |
HLG-60H (60W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 9 ~ 15V | 4A | 60 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 87.5% | Wire Leads | 5.80" L x 2.42" W x 1.45" H (147.2mm x 61.5mm x 36.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV, UR | - |
|
ELG-150-C500LED DRVR CC AC/DC 150-300V 500MA |
20 |
|
Технический лист |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 150 ~ 300V | 500mA | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, ENEC | - |
|
|
ELG-75-24D2O/P +24V3.15A |
20 |
|
Технический лист |
ELG-75 (75W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 24V | 3.15A | 76 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 88% | Wire Leads | 6.14" L x 2.48" W x 1.40" H (156.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM | - |
|
|
ELG-150-C700LED DRVR CC AC/DC 107-214V 700MA |
19 |
|
Технический лист |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 107 ~ 214V | 700mA | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, ENEC | - |
|
|
ELG-150-C500ALED DRVR CC AC/DC 150-300V 500MA |
15 |
|
Технический лист |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 150 ~ 300V | 500mA | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP65 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, ENEC | - |
