Драйверы светодиодов
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Программируемый | Тип | Топология | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Затемнение | Особенности | Номинальные значения | Рабочая температура | Эффективность | Тип вывода | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLD1020-24-C0700LED DRIVER CC AC/DC 12-24V 700MA |
0 |
|
Технический лист |
TLD1020 | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 304VAC | 12 ~ 24V | 700mA | 20 W | - | - | OCP, OVP, SCP | IP66, NEMA 4 | -30°C ~ 60°C | 84% | Wire Leads | 3.74" L x 1.57" W x 0.98" H (95.0mm x 40.0mm x 25.0mm) | CE, cULus | - |
|
NPF-90-42LED DVR CCCV ACDC 25.2-42V 2.15A |
0 |
|
Технический лист |
NPF-90 (90W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 25.2 ~ 42V | 2.15A | 90 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 90.5% | Wire Leads | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC | - |
|
AMEPR30NC-4270ZLED DRIVER CC AC/DC 24-42V 700MA |
3 |
|
Технический лист |
AMEPR30NC-Z | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90V | 305V | 24 ~ 42V | 700mA | 29.4 W | 3.75 kV | Analog, PWM | OTP, SCP | IP62 | -30°C ~ 50°C | 81% | Wire Leads | 1.85" L x 6.61" W x 0.98" H (47.0mm x 168.0mm x 25.0mm) | - | - |
|
SL-LA7012501KRLED DRIVER CC AC/DC 26-33V 700MA |
0 |
|
- |
- | Tray | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 220VAC | 240VAC | 26 ~ 33V | 700mA | 25 W | - | Analog, PWM | OCP, OVP, SCP | IP66 | -30°C ~ 50°C | 85% | Wire Leads | 7.95" L x 1.77" W x 1.58" H (202.0mm x 45.0mm x 40.2mm) | - | - |
|
|
ELGT-150-C1400DALED DRIVER CC 150W |
0 |
|
Технический лист |
* | Box | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ELGT-150-C700DALED DRIVER CC 150W |
0 |
|
Технический лист |
* | Box | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NPF-90D-20BELED DRIVER CC AC/DC |
0 |
|
Технический лист |
NPF-90D (90W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 12 ~ 20V | 4.5A | 90 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 90% | Wire Leads | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC | UL 8750 |
|
EVM100W-2100-45LED DRIVER CC AC/DC 32-45V 2.1A |
0 |
|
Технический лист |
EVM (120W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 120VAC | 277VAC | 32 ~ 45V | 2.1A | 95 W | - | ELV, Triac | OCP, OTP, SCP | IP20, NEMA 410 | -30°C ~ 90°C | 89% | Wire Leads | 5.67" L x 2.76" W x 1.57" H (144.0mm x 70.0mm x 40.0mm) | cUL, UL, cRUcs, FC, CE, CB | - |
|
ELGT-150-C700BLED DRVR CC AC/DC 107-214V 700MA |
0 |
|
Технический лист |
ELGT-150-C (150W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 107 ~ 214V | 700mA | 150 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, ENEC | - |
|
LED30W-36-C0830-DLED DRIVER CC AC/DC 18-36V 830MA |
0 |
|
Технический лист |
LED-30W | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 18 ~ 36V | 830mA | 30 W | - | Analog | OCP, OVP, SCP | IP66 | - | 87% | Wire Leads | 4.92" L x 1.69" W x 0.98" H (125.0mm x 43.0mm x 25.0mm) | CE, cURus, FCC | - |
|

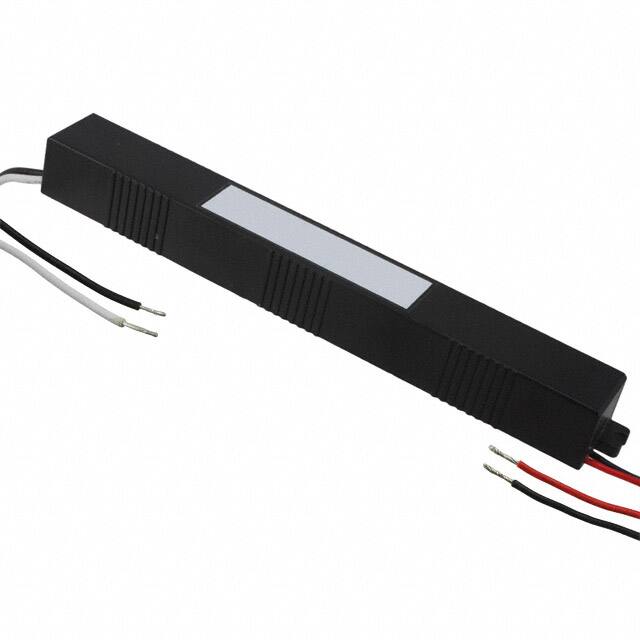

LED17W-24LED DRIVER CV AC/DC 24V 700MA |
0 |
|
Технический лист |
LED-17W | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 700mA | 17 W | - | - | OCP, OVP, SCP | IP66 | -30°C ~ 60°C | 82% | Wire Leads | 8.43" L x 0.98" W x 0.87" H (214.0mm x 25.0mm x 22.0mm) | CE, cULus | - |
|
|
LED17W-24-C0700LED DRIVER CC AC/DC 12-24V 700MA |
0 |
|
Технический лист |
LED-17W | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 12 ~ 24V | 700mA | 17 W | - | - | OCP, OVP, SCP | IP66 | -30°C ~ 60°C | 82% | Wire Leads | 8.43" L x 0.98" W x 0.87" H (214.0mm x 25.0mm x 22.0mm) | CE, cULus | - |
|
|
LED17W-36-C0470LED DRIVER CC AC/DC 18-36V 470MA |
0 |
|
Технический лист |
LED-17W | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 18 ~ 36V | 470mA | 17 W | - | - | OCP, OVP, SCP | IP66 | -30°C ~ 60°C | 82% | Wire Leads | 8.43" L x 0.98" W x 0.87" H (214.0mm x 25.0mm x 22.0mm) | CE, cULus | - |
|
|
ELGT-150-C700LED DRVR CC AC/DC 107-214V 700MA |
0 |
|
Технический лист |
ELGT-150-C (150W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 107 ~ 214V | 700mA | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, ENEC | - |
|
|
LMD400-0048-C940-2020000LED DRIVER CC AC/DC 46V 940MA |
0 |
|
Технический лист |
LMD400 | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 108VAC | 264VAC | 46V | 940mA | 43 W | - | DALI | - | IP20, NEMA 410 | 0°C ~ 90°C | 87% | Terminal Block | 8.07" L x 3.15" W x 1.38" H (205.0mm x 80.0mm x 35.0mm) | CE, CQC, cULus | - |
|
ELG-150-C2100BLED POWER SUPPLIES 151.2W 2100MA |
0 |
|
Технический лист |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 36 ~ 72V | 2.1A | 151 W | 3.75 kV | PWM | OTP, OVP, SCP | IP67 | -40°C ~ 70°C (With Derating) | 91% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM | - |
|
|
ELG-150-C1400B-3YLED CC AC/DC DRIVER 150W |
0 |
|
Технический лист |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 54 ~ 107V | 1.4A | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 91% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM | - |
|
|
ELG-150-C700B-3YLED CC AC/DC DRIVER 150W |
0 |
|
Технический лист |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 107 ~ 214V | 700mA | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM | - |
|
|
ELG-150-C500B-3YLED CC AC/DC DRIVER 150W |
0 |
|
Технический лист |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 150 ~ 300V | 500mA | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM | - |
|
|
ELG-150-C2100B-3YLED CC AC/DC DRIVER 150W |
0 |
|
Технический лист |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 36 ~ 72V | 2.1A | 151 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 91% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM | - |
