Цветное светодиодное освещение
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Цвет | Длина волны | Ток - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | Световой поток при токе/температуре | Температура - Тест | Угол обзора | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XREBLU-L1-0000-00H03LED XLAMP XRE BLUE 468NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 468nm (465nm ~ 470nm) | 350mA | 3.3V | 18 lm/W | 1A | 21lm (18lm ~ 24lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREBLU-L1-0000-00J03LED XLAMP XRE BLUE 475NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 475nm (470nm ~ 480nm) | 350mA | 3.3V | 23 lm/W | 1A | 27lm (24lm ~ 31lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREBLU-L1-0000-00J04LED XLAMP XRE BLUE 470NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 470nm (465nm ~ 475nm) | 350mA | 3.3V | 23 lm/W | 1A | 27lm (24lm ~ 31lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREBLU-L1-0000-00K01LED XLAMP XRE BLUE 475NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 475nm (465nm ~ 485nm) | 350mA | 3.3V | 30 lm/W | 1A | 35lm (31lm ~ 40lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREBLU-L1-0000-00K02LED XLAMP XRE BLUE 473NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 473nm (465nm ~ 480nm) | 350mA | 3.3V | 30 lm/W | 1A | 35lm (31lm ~ 40lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREBLU-L1-R250-00J01LED XLAMP XRE BLUE 475NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 475nm (465nm ~ 485nm) | 350mA | 3.3V | 23 lm/W | 1A | 27lm (24lm ~ 31lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREGRN-L1-0000-00P02LED XLAMP XRE GREEN 525NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Green | 525nm (520nm ~ 530nm) | 350mA | 3.3V | 67 lm/W | 700mA | 77lm (67lm ~ 87lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00701LED XLAMP XRE BLUE 458NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 458nm (450nm ~ 465nm) | 350mA | 3.3V | - | 1A | 275mW (250mW ~ 300mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00702LED XLAMP XRE BLUE 455NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 350mA | 3.3V | - | 1A | 275mW (250mW ~ 300mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00703LED XLAMP XRE BLUE 460NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (455nm ~ 465nm) | 350mA | 3.3V | - | 1A | 275mW (250mW ~ 300mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00801LED XLAMP XRE BLUE 458NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 458nm (450nm ~ 465nm) | 350mA | 3.3V | - | 1A | 325mW (300mW ~ 350mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00802LED XLAMP XRE BLUE 455NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 350mA | 3.3V | - | 1A | 325mW (300mW ~ 350mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00803LED XLAMP XRE BLUE 460NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (455nm ~ 465nm) | 350mA | 3.3V | - | 1A | 325mW (300mW ~ 350mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00901LED XLAMP XRE BLUE 458NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 458nm (450nm ~ 465nm) | 350mA | 3.3V | - | 1A | 388mW (350mW ~ 425mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00902LED XLAMP XRE BLUE 455NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 350mA | 3.3V | - | 1A | 388mW (350mW ~ 425mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00903LED XLAMP XRE BLUE 460NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (455nm ~ 465nm) | 350mA | 3.3V | - | 1A | 388mW (350mW ~ 425mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00A01LED XLAMP XRE BLUE 458NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 458nm (450nm ~ 465nm) | 350mA | 3.3V | - | 1A | 463mW (450mW ~ 475mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00A02LED XLAMP XRE BLUE 455NM SMD |
0 |
|
Технический лист |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 350mA | 3.3V | - | 1A | 463mW (450mW ~ 475mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
LA W5AM-JXKX-24-ZLED DRAGON PLUS AMBER 617NM SMD |
0 |
|
Технический лист |
Golden DRAGON® Plus | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Amber | 617nm (612nm ~ 624nm) | 400mA | 2.2V | 72 lm/W | 1A | - | - | 170° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.122" (3.10mm) |
|

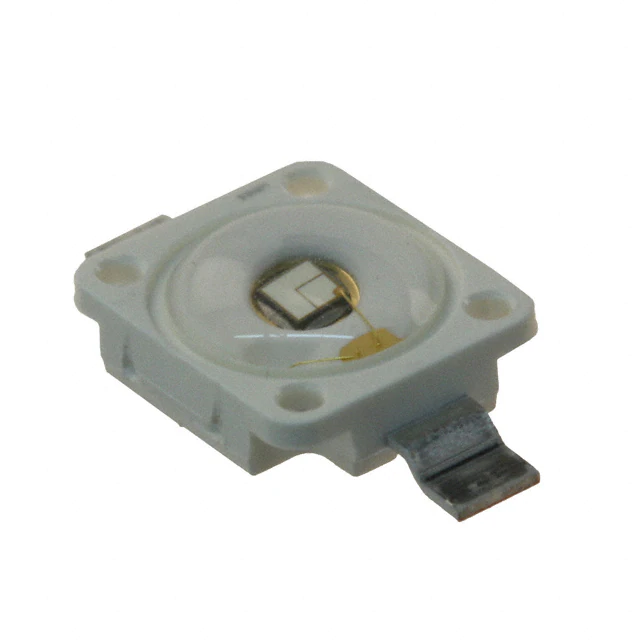

LB W5AM-GYHY-25-0-350-R18-ZLED DRAGON PLUS BLUE 468NM SMD |
0 |
|
Технический лист |
Golden DRAGON® Plus | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Blue | 468nm (459nm ~ 476nm) | 350mA | 3.2V | 27 lm/W | 1A | 30lm (21lm ~ 39lm) | 25°C | 170° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.122" (3.10mm) |
